Description
What’s Included

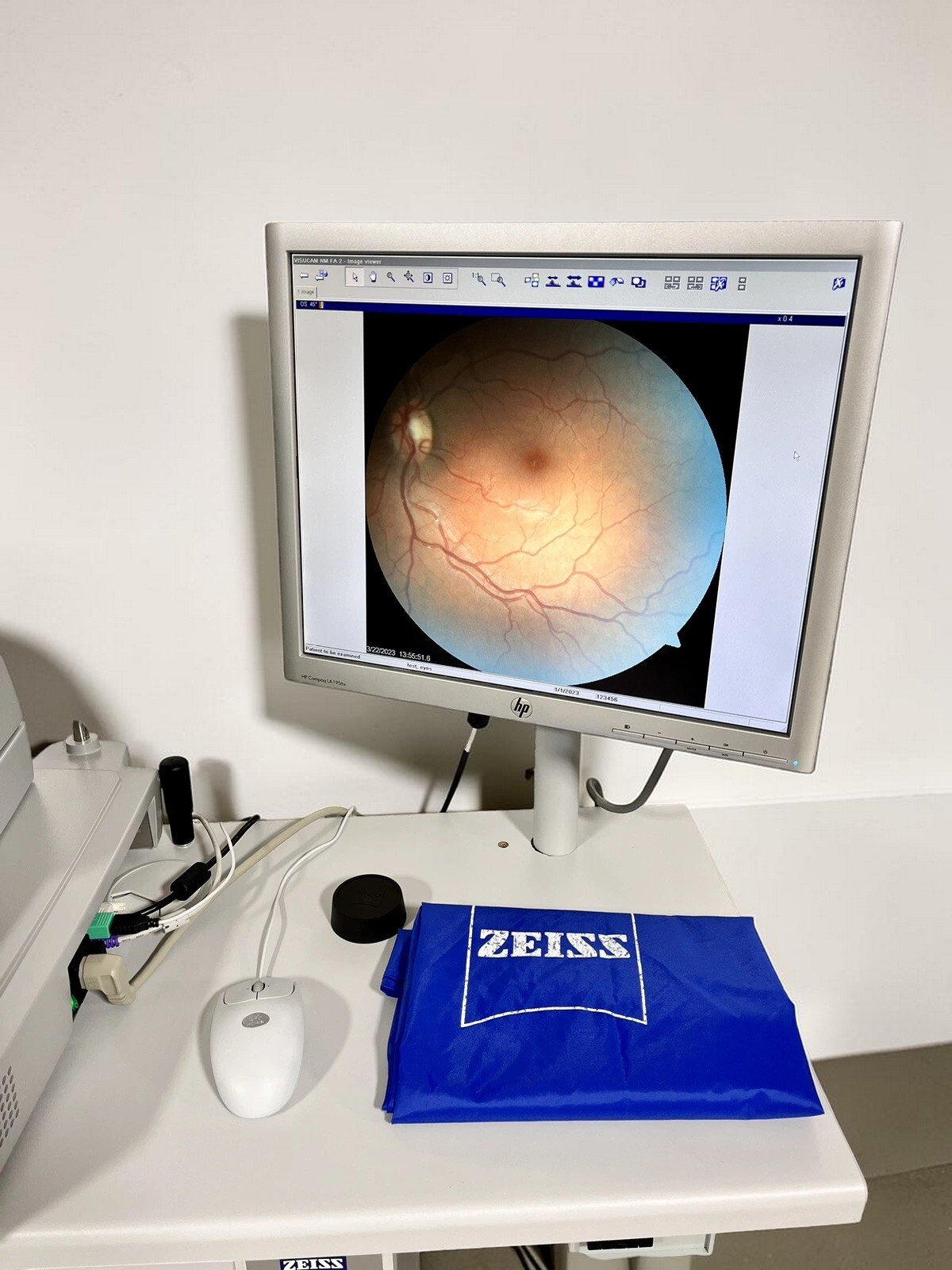

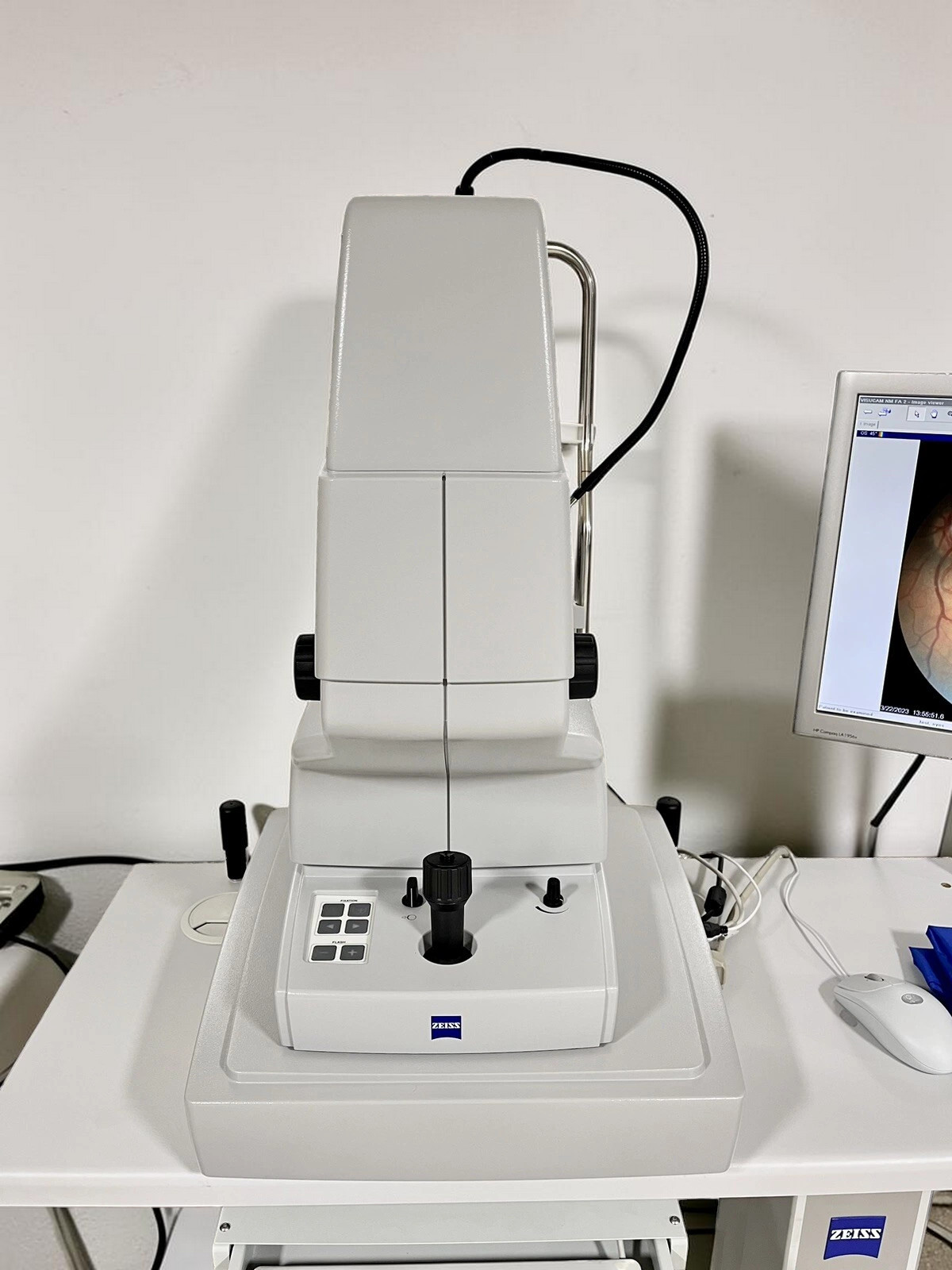

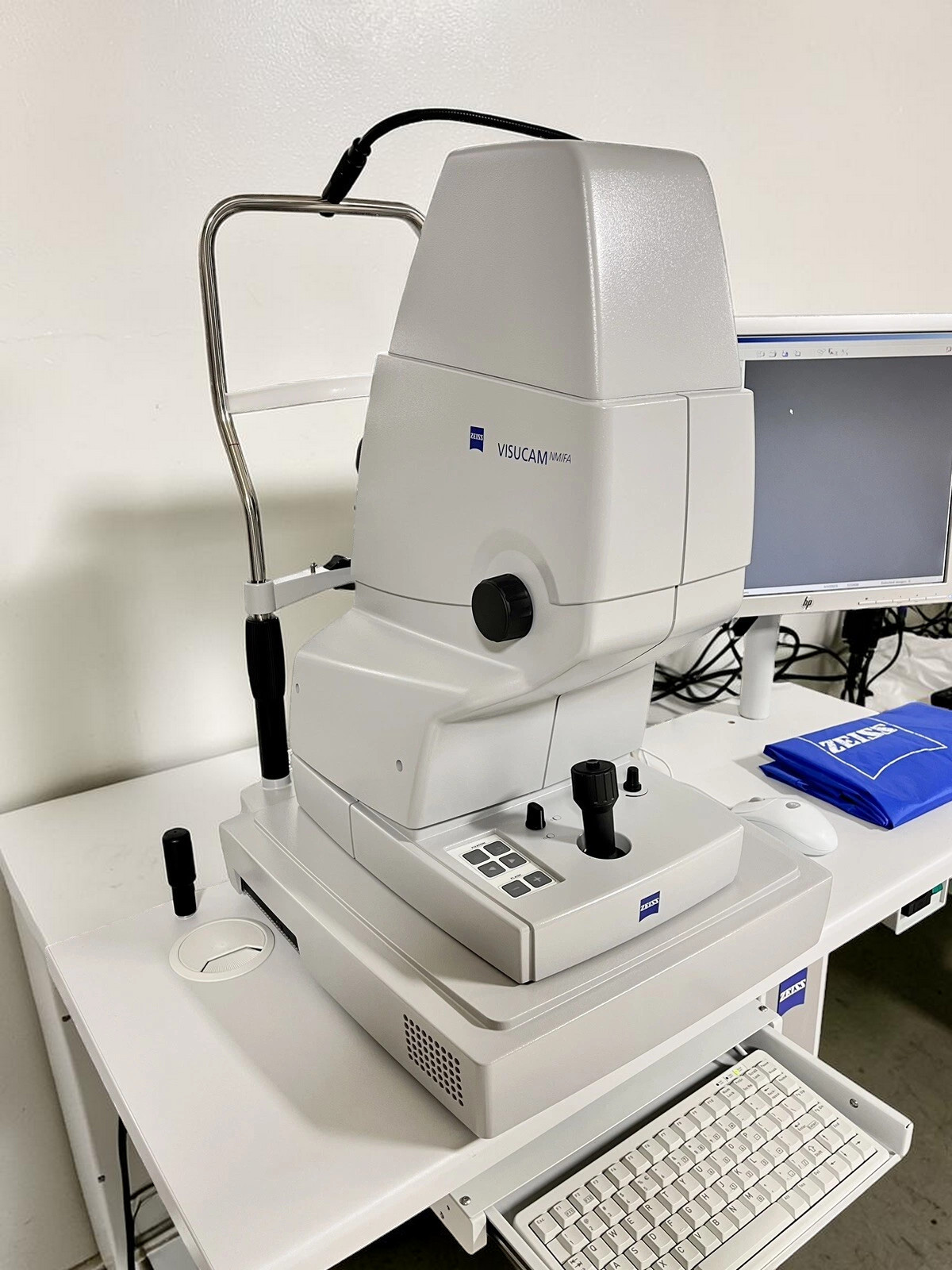

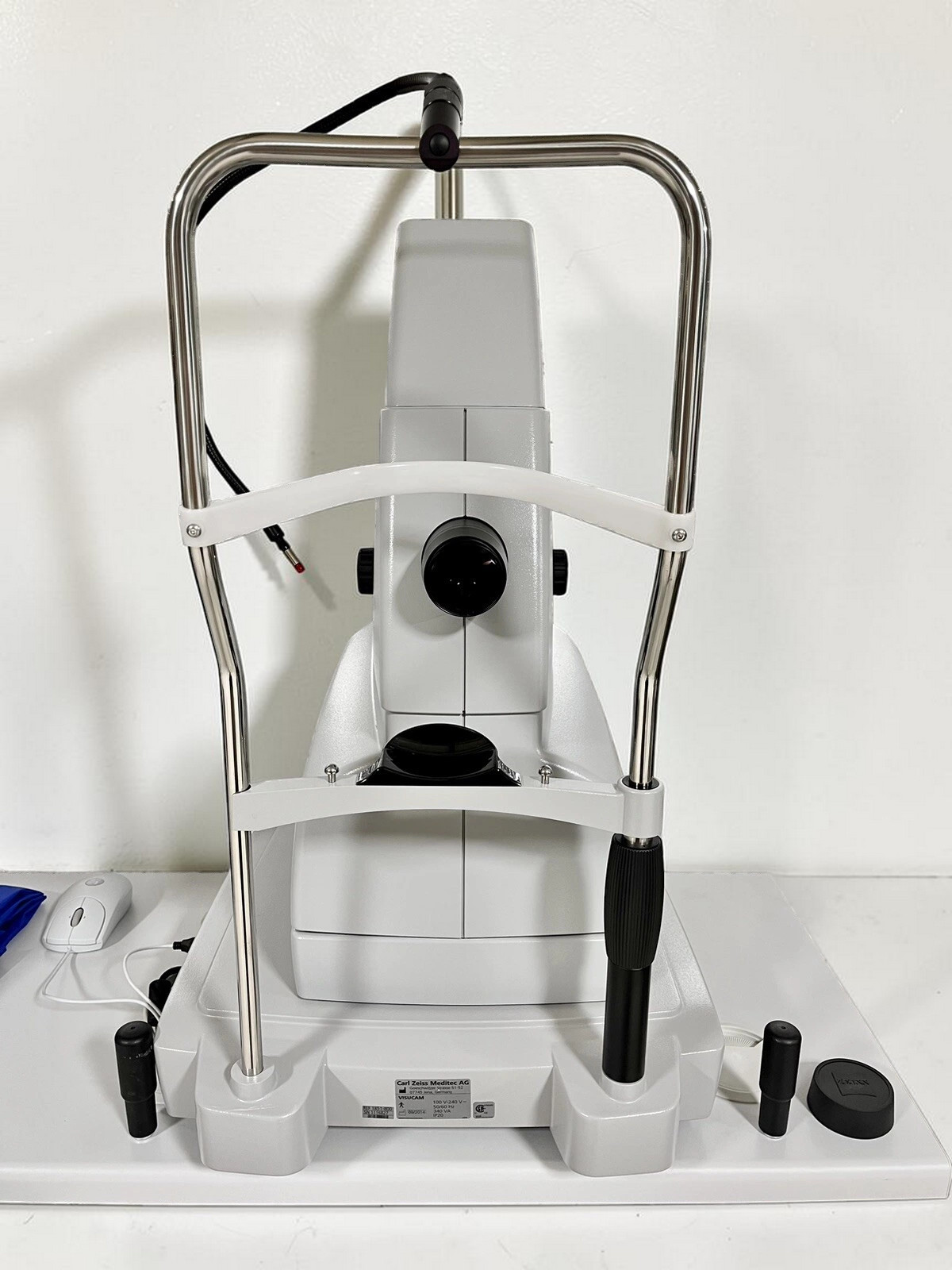

- Carl Zeiss VISUCAM PRO NM/FA fundus camera with Fluorescein Angiography (FA) capability
- Electric Table (included per the listing title)
- Power cable (as photographed)
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. Tested before listing — Fluorescein Angiography mode confirmed functional, color fundus capture verified, electric table movement confirmed. Cleaned. Covered by a 90-day warranty on parts and workmanship. Contact us before purchase if you need a longer warranty option.

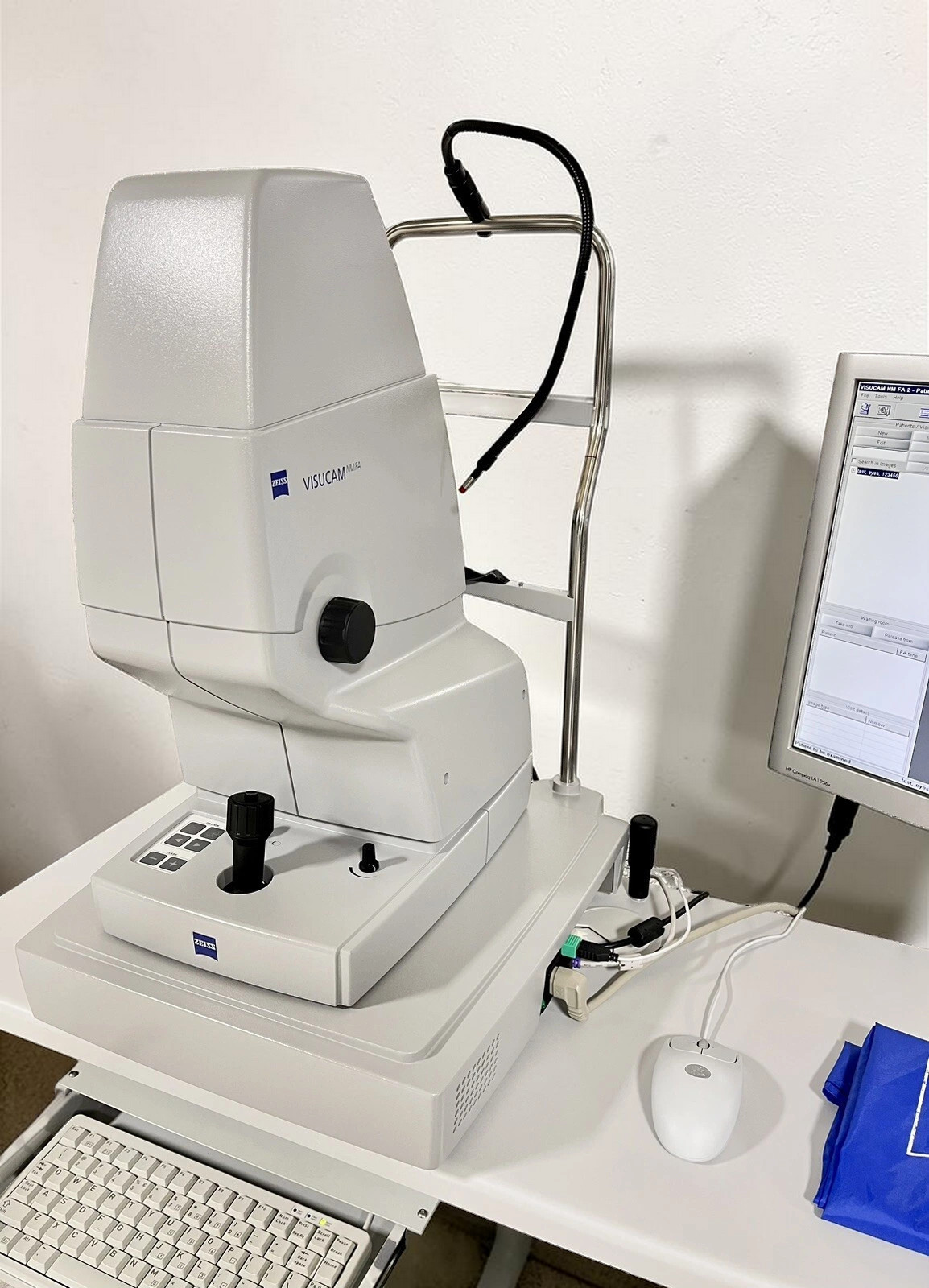

Zeiss Visucam NM/FA — Used Non-Mydriatic Fundus Camera with Fluorescein Angiography
The Zeiss Visucam NM/FA (also written VISUCAM PRO NM/FA) is the mid-tier fundus camera in the Zeiss VISUCAM family — adding standard Fluorescein Angiography to the non-mydriatic color fundus base camera. This used zeiss visucam nmfa ships on its electric table and is positioned for clinics that need FA imaging without paying the premium for the NMFA-FAF-ICG configuration.

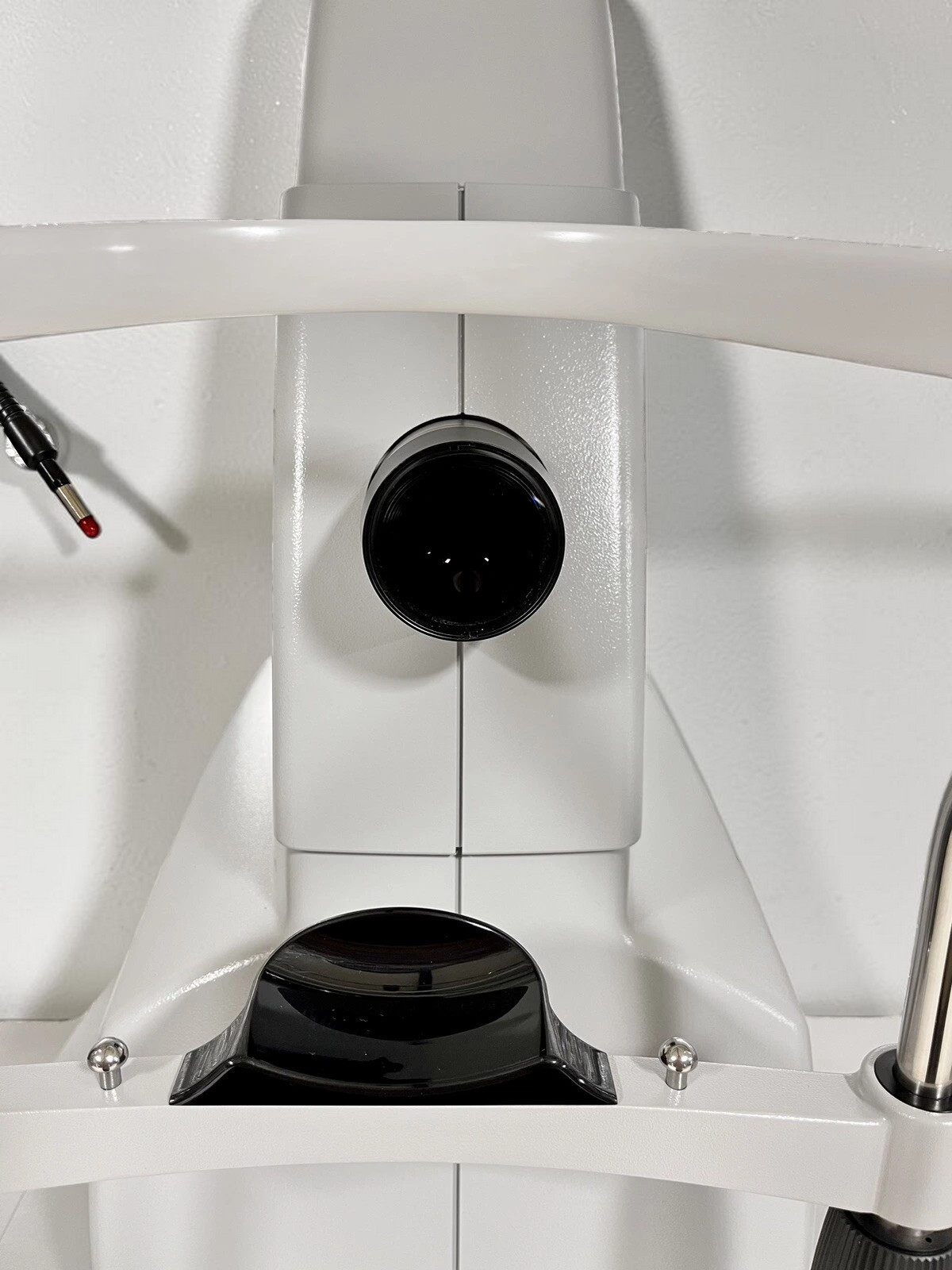

The system uses ZEISS Telecentric Optics with an integrated medical-grade digital sensor and pairs 45° / 30° fields of view with a minimum pupil diameter of 3.3 mm for non-mydriatic capture. Acquisition modes include color fundus, red-free, blue and red wavelength channels for stereo / RGB analysis, and full Fluorescein Angiography sequencing.
According to a National Library of Medicine-indexed review (Clin Exp Ophthalmol, 2023), retinal-vascular imaging — particularly fluorescein angiography — remains a foundational diagnostic step for diabetic retinopathy progression, retinal vein occlusion staging, and ischemia mapping. The NM/FA gives a clinic a complete in-house FA workflow without referring patients out.
Why Practices Choose the Visucam NM/FA
Standard Fluorescein Angiography — full FA sequencing built in, not an add-on. Run early, mid, and late phase captures from a single console.- ZEISS Telecentric Optics — Zeiss’s signature telecentric design preserves image geometry across the field of view, reducing peripheral distortion in retinal documentation.
- 3.3 mm minimum pupil — non-mydriatic capture for color fundus and red-free; FA still typically requires dilation per clinical workflow.
- 45° and 30° field of view — full posterior-pole coverage at 45° plus 30° digital crop for disc and macula detail.

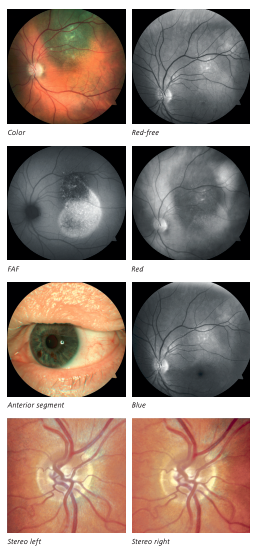

- Color, red-free, and channel-separated capture — green, red, and blue images as separate photos or as RGB layers of a color photo, useful for vessel and RNFL review.

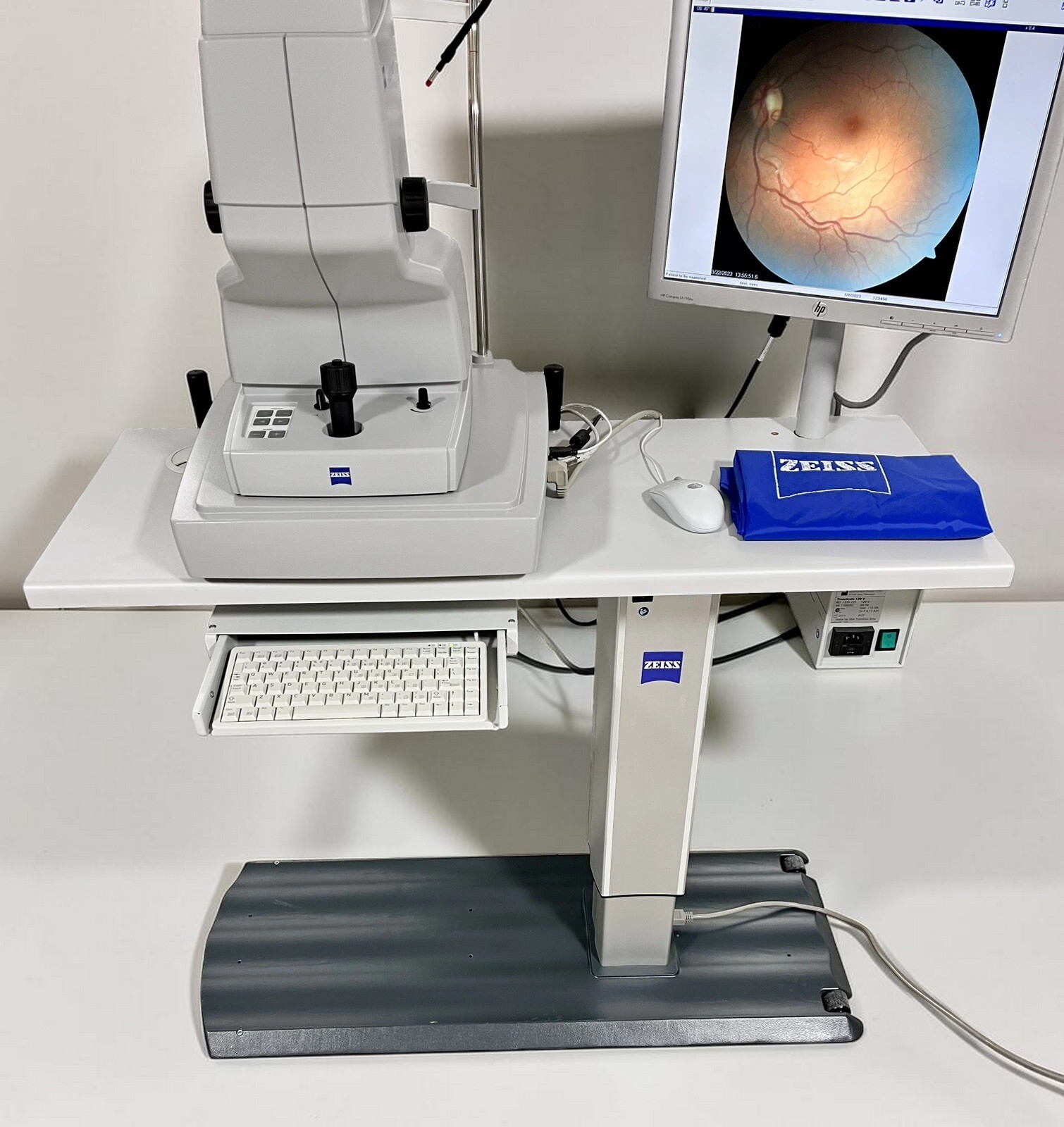

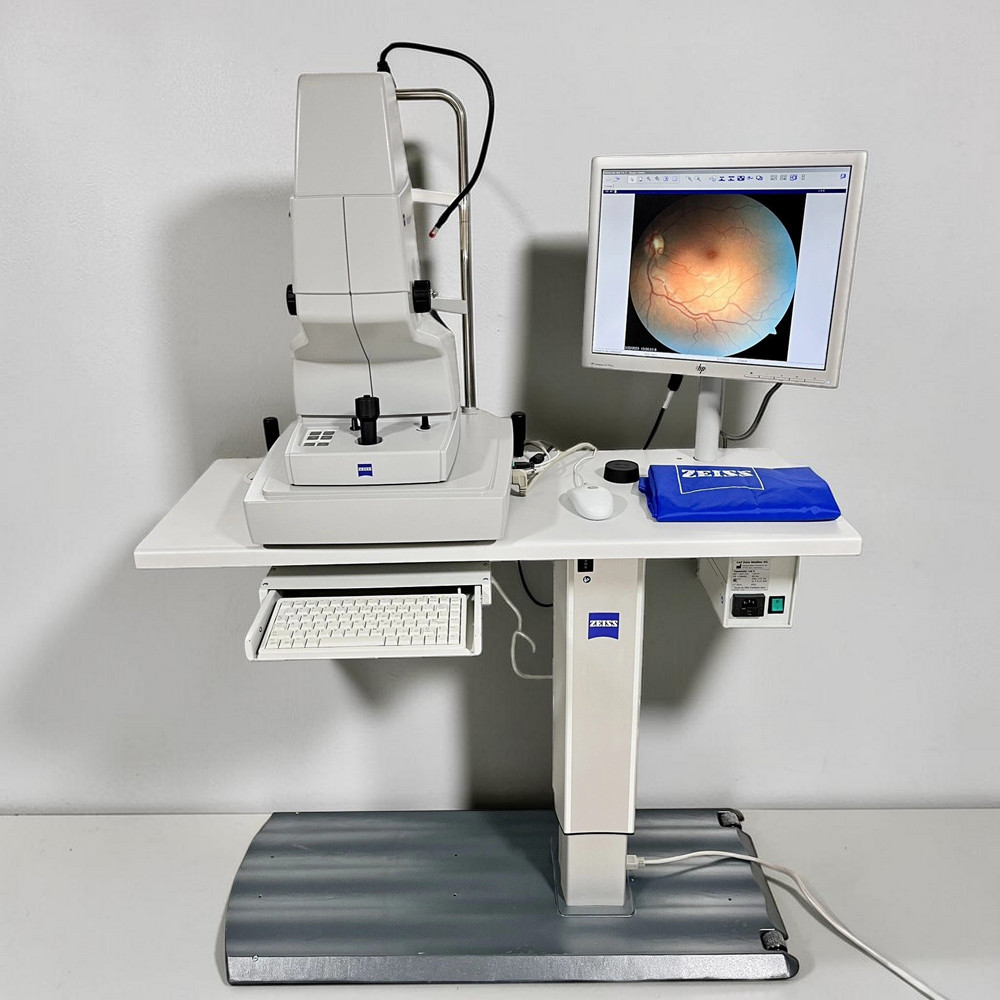

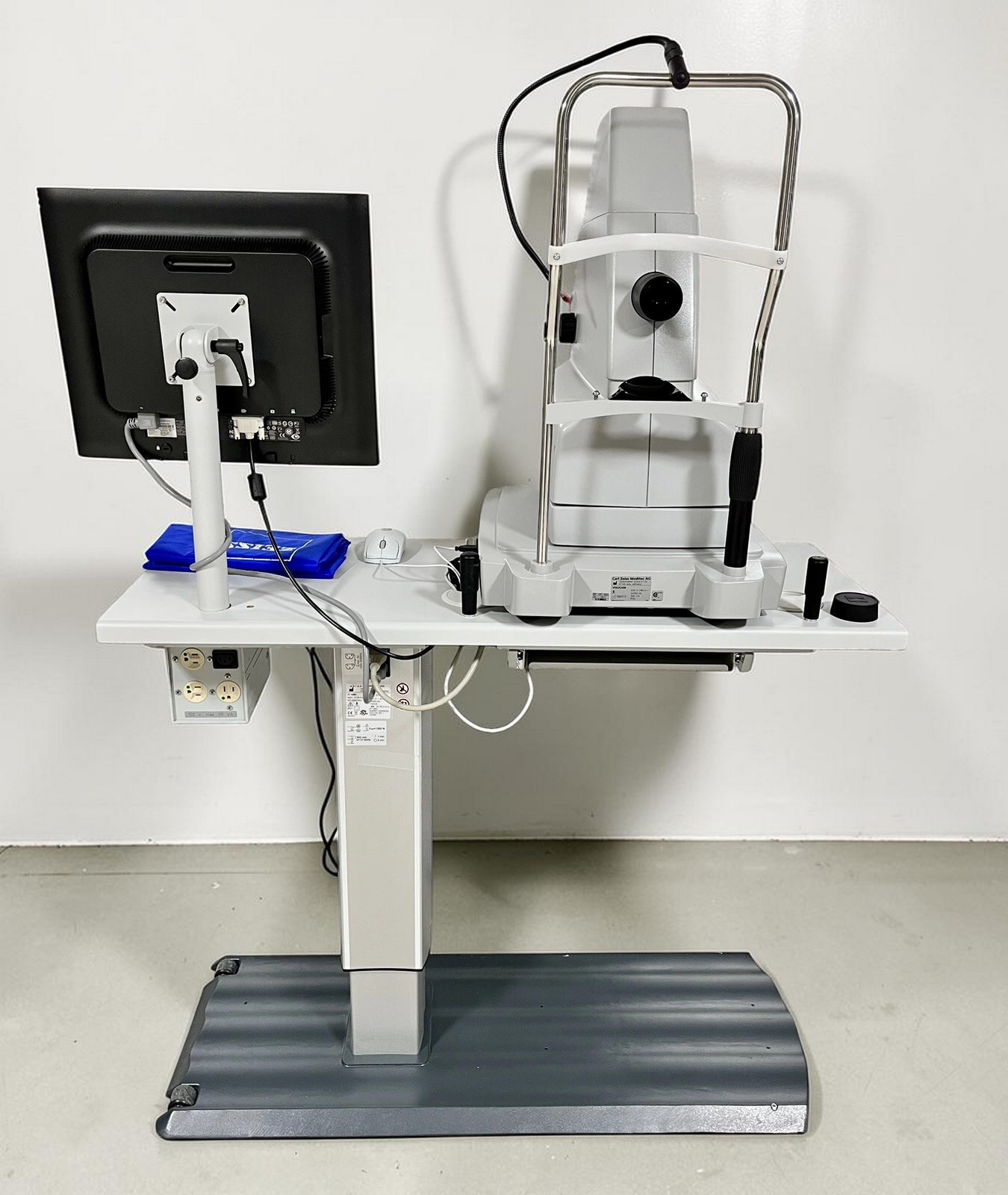

- Electric table included — height-adjustable powered base ships with the unit (per the listing title), making patient positioning straightforward in any exam lane.
- DICOM conformant / network ready — integrates with most PACS and EMR systems out of the box for direct image archival.
- Compatible with ZEISS FORUM — when paired with the FORUM data manager, the NM/FA fits into a centralized Zeiss imaging stack alongside Cirrus OCT and Humphrey perimeters.
Clinical Applications
- Diabetic retinopathy staging — color fundus + FA to map non-perfusion, microaneurysms, and neovascularization for DR severity scoring.
- Retinal vein occlusion (CRVO / BRVO) — FA documents the extent of capillary non-perfusion to guide laser or anti-VEGF decisions.
- Wet AMD and choroidal neovascularization (CNV) — FA helps identify and classify CNV patterns (classic, occult, mixed).
- Inflammatory and uveitic retinal disease — FA highlights leakage, vasculitis, and disc inflammation patterns.
- Pre-op and post-op vascular documentation — baseline and follow-up imaging for retinal surgical referrals.
- Routine fundus screening — standard non-mydriatic color fundus for primary-care eye visits.
Who This Is For
- Retina specialists and general ophthalmology practices that perform in-house FA imaging and need an FA-capable camera at a sub-$10K price point.
- Multi-office groups looking to add FA capability to a satellite location without committing to the premium NMFA-FAF-ICG bundle.
- Practices already on the ZEISS imaging ecosystem (Cirrus OCT, Humphrey perimeter, FORUM) that want consistent ZEISS optics across their fundus and OCT workflow.
- Clinics replacing an aging Zeiss Visucam Lite or older non-FA fundus camera with a unit that adds angiography on the same Zeiss platform.
Technical Specifications
| Specification | Detail |
| Type | Non-mydriatic color fundus camera with Fluorescein Angiography |
| Field of view | 45° and 30° |
| Minimum pupil diameter | 3.3 mm |
| Optics | ZEISS Telecentric Optics, integrated medical-grade digital sensor |
| Capture modes | Color fundus / red-free / blue and red wavelength channels / Fluorescein Angiography (standard) |
| FAF / ICG | Not included on NM/FA model (available on premium NMFA-FAF-ICG variant) |
| Connectivity | DICOM conformant, network ready, ZEISS FORUM compatible |
| Dimensions | 410 × 480 × 650 mm (L × W × H), 30 kg |
| Power | 100–240 V AC, 50/60 Hz |
| Display | 17″ flat-screen monitor (per manufacturer spec) |
| Electric table | Included (powered height adjustment) |
| Condition | Used — tested before listing |
| Warranty | 90-day DEC warranty on parts and workmanship |
Compare Refurbished and Used Fundus Camera Options
Where the Visucam NM/FA fits among DEC’s fundus camera lineup:
| Model | FOV | FA | FAF / ICG | Condition | Price | Notes |
| Visucam NM/FA | 45° / 30° | Yes | No | Used / 90-day | $8,800 | FA capable, electric table — this listing |
| Visucam PRO NM | 45° / 30° | No | No | Refurbished / 6-month | $8,075 | Color fundus only — entry tier |
| Visucam PRO NMFA | 45° | Yes | No | Refurbished / 6-month | $15,200 | Same FA spec as this listing — refurbished tier |
| Visucam PRO NMFA, FAF, ICG | 45° | Yes | Yes | Refurbished / 6-month | $17,100 | Premium — adds FAF and ICG |
Need FAF (geographic atrophy / dry AMD progression) or ICG (deep choroidal vasculature)? Step up to the Visucam PRO NMFA, FAF, ICG. Want a refurbished version of this same FA camera with a longer warranty? See the Visucam PRO NMFA Refurbished.
Questions about the Zeiss Visucam NM/FA? Contact us for current availability, shipping details, or training options.
