Description
What’s included

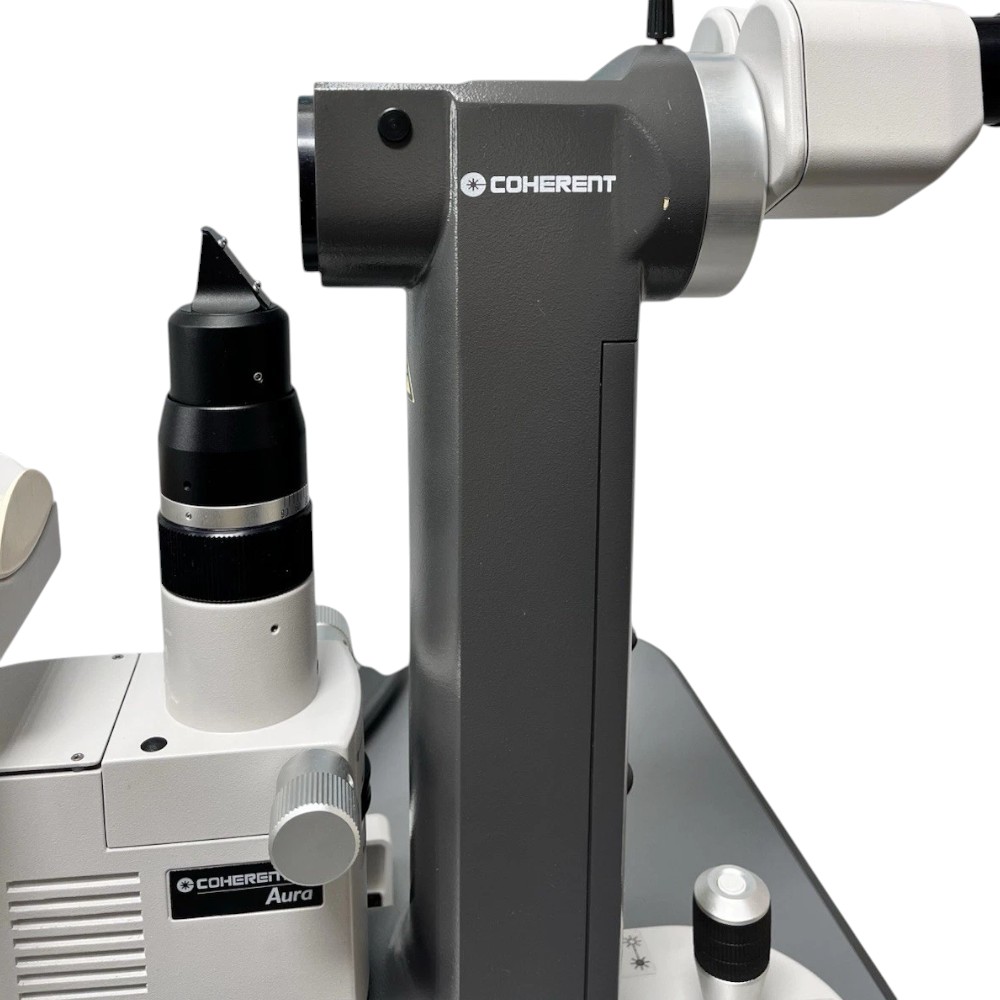

- Laser head
- Binoculars

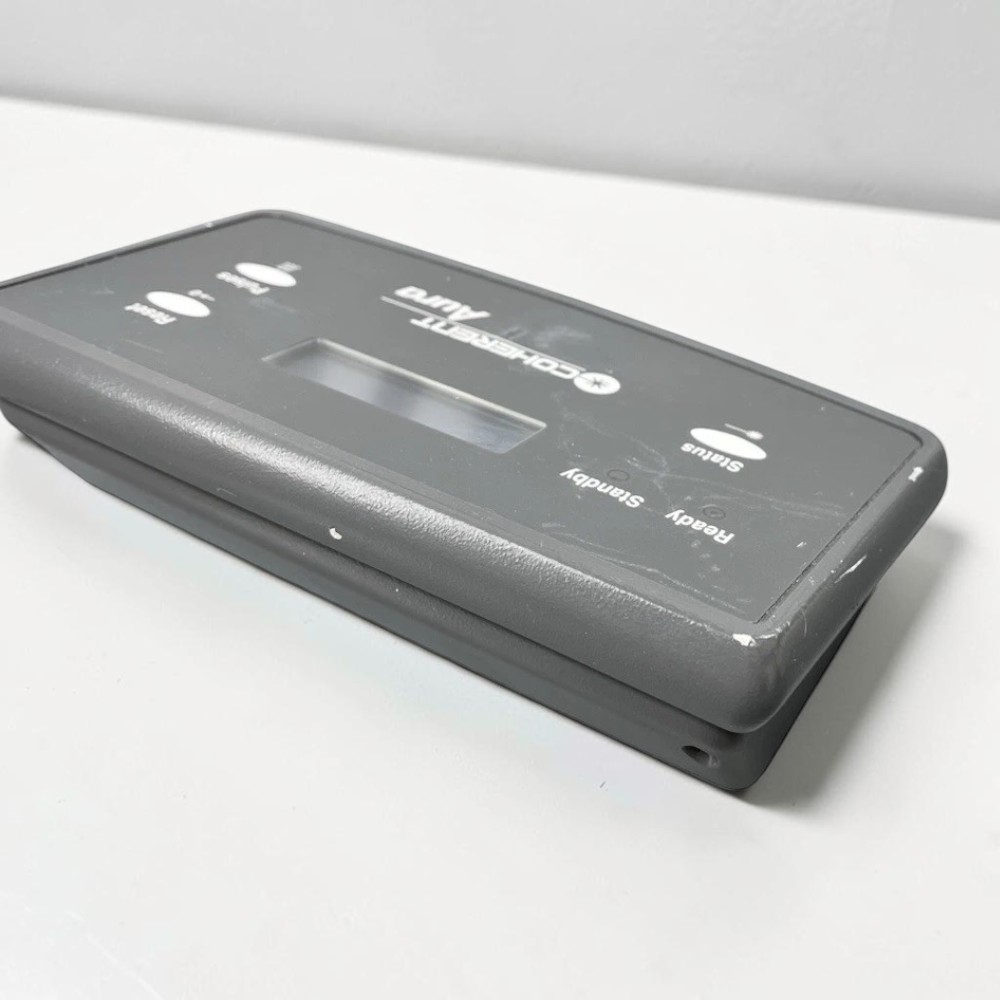

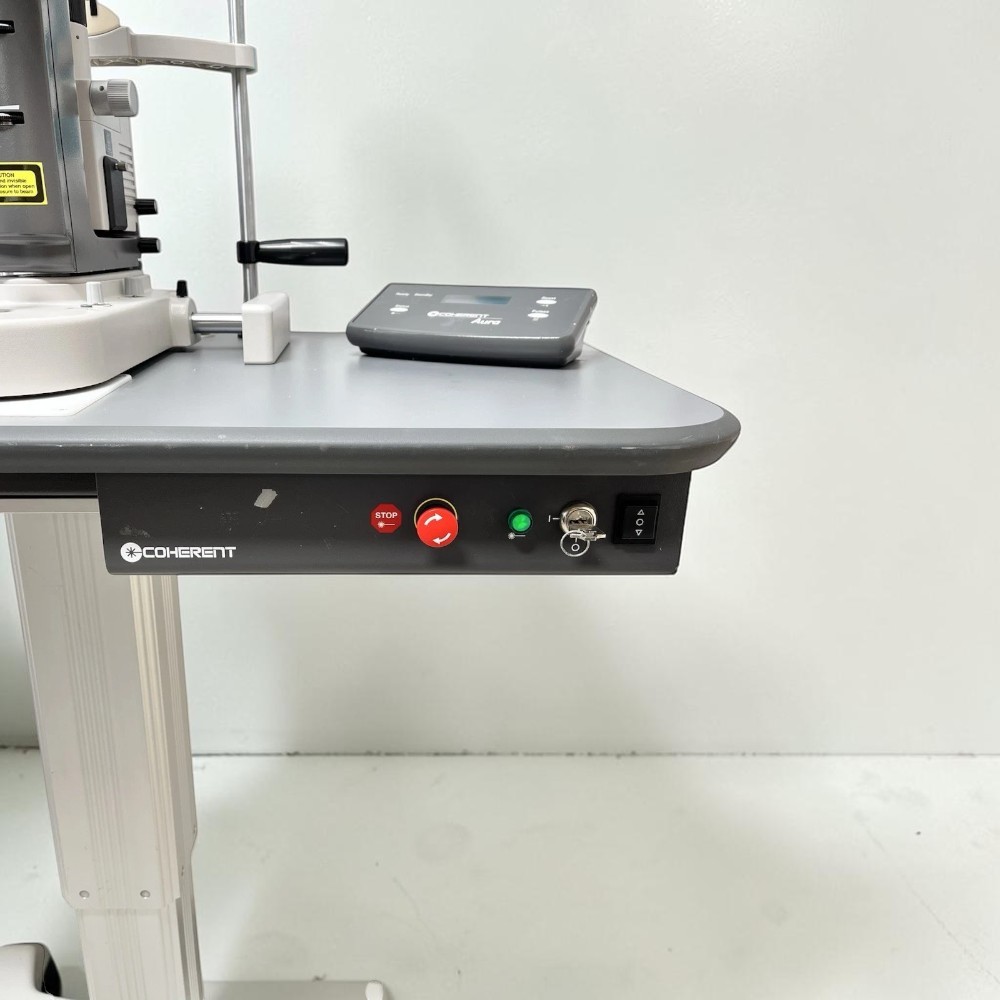

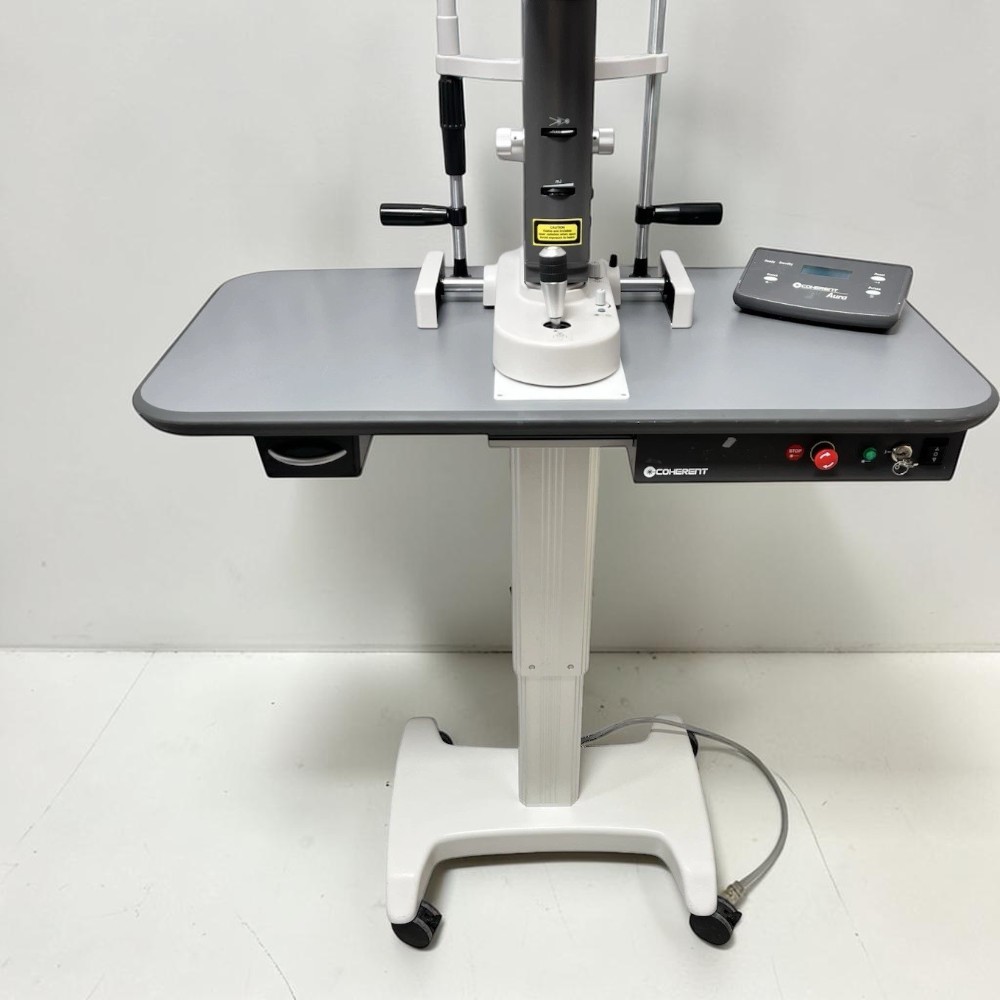

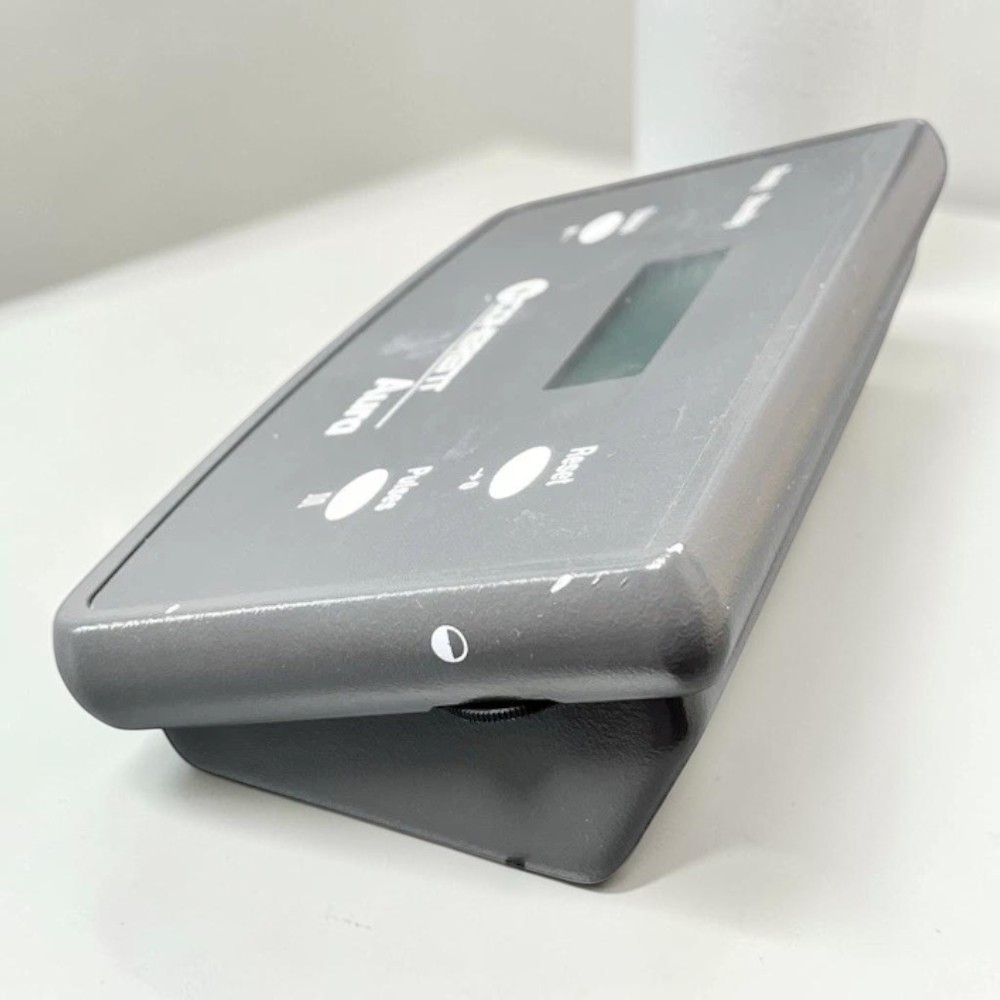

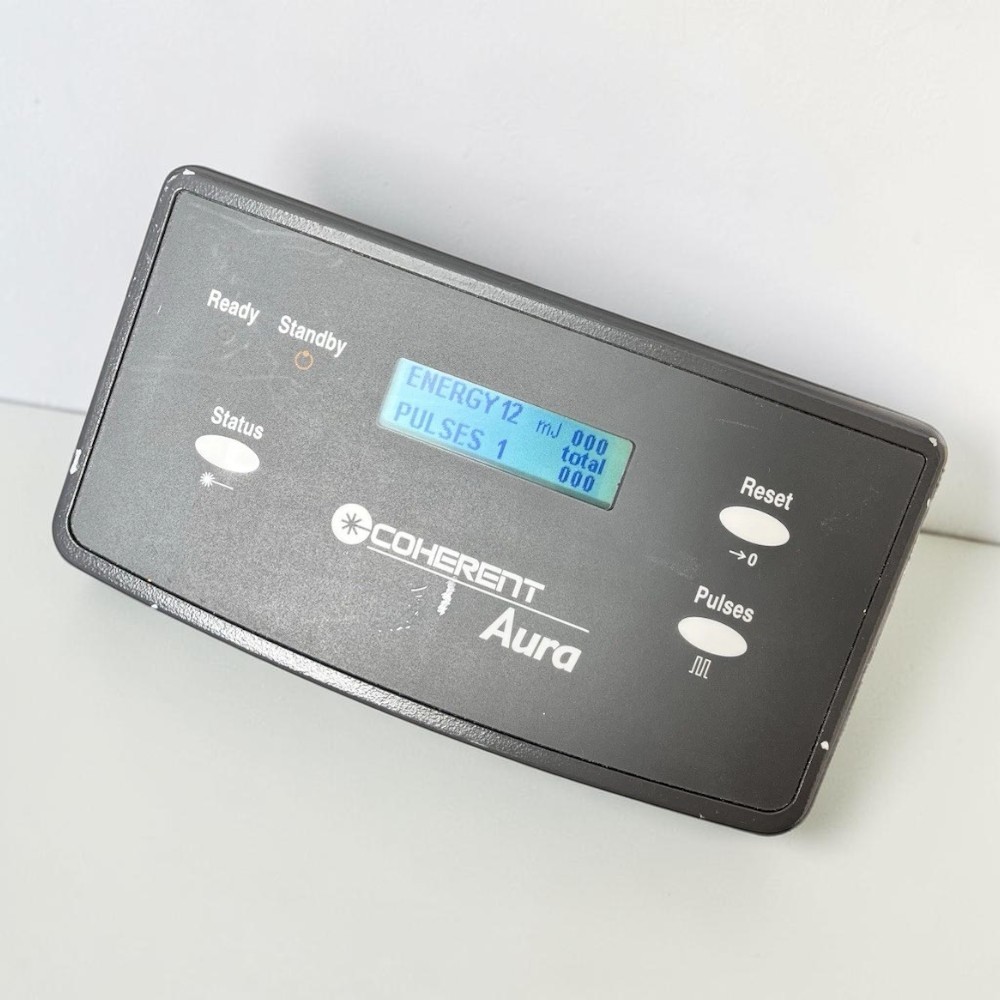

- Table with power supply console and control panel

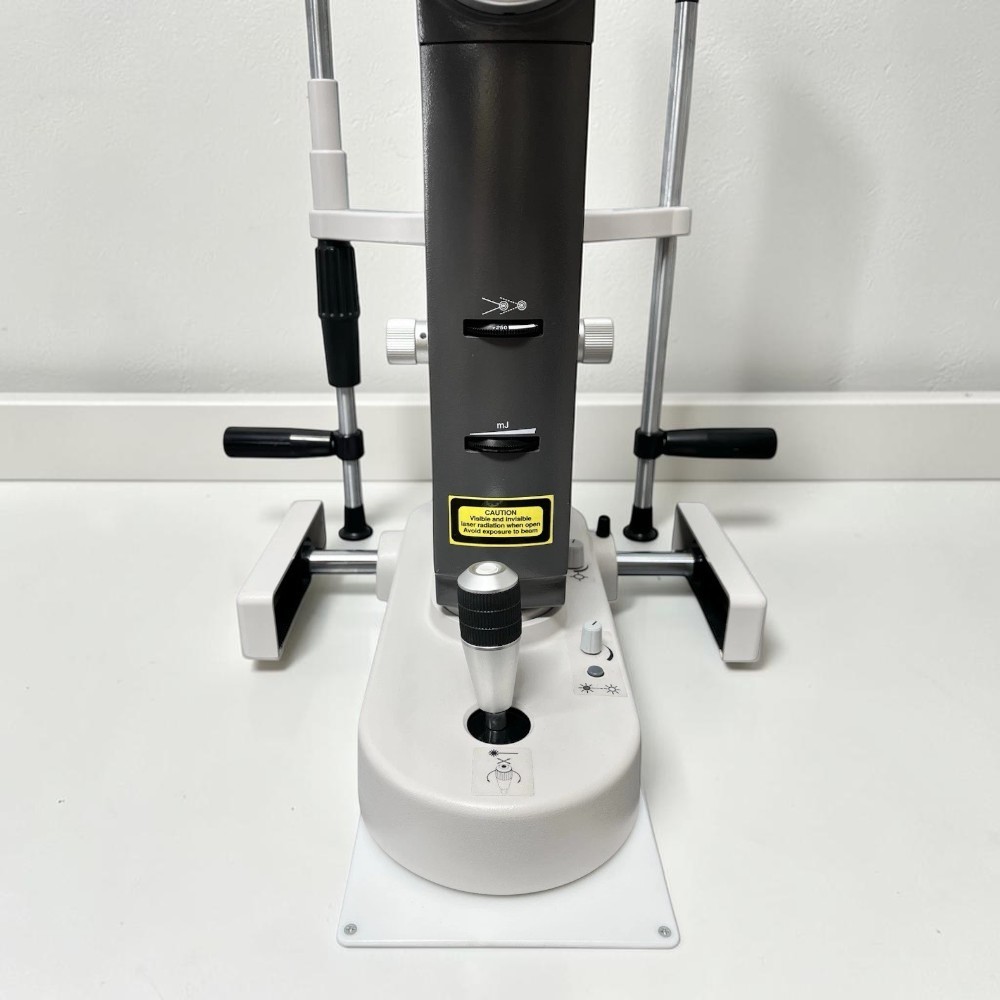

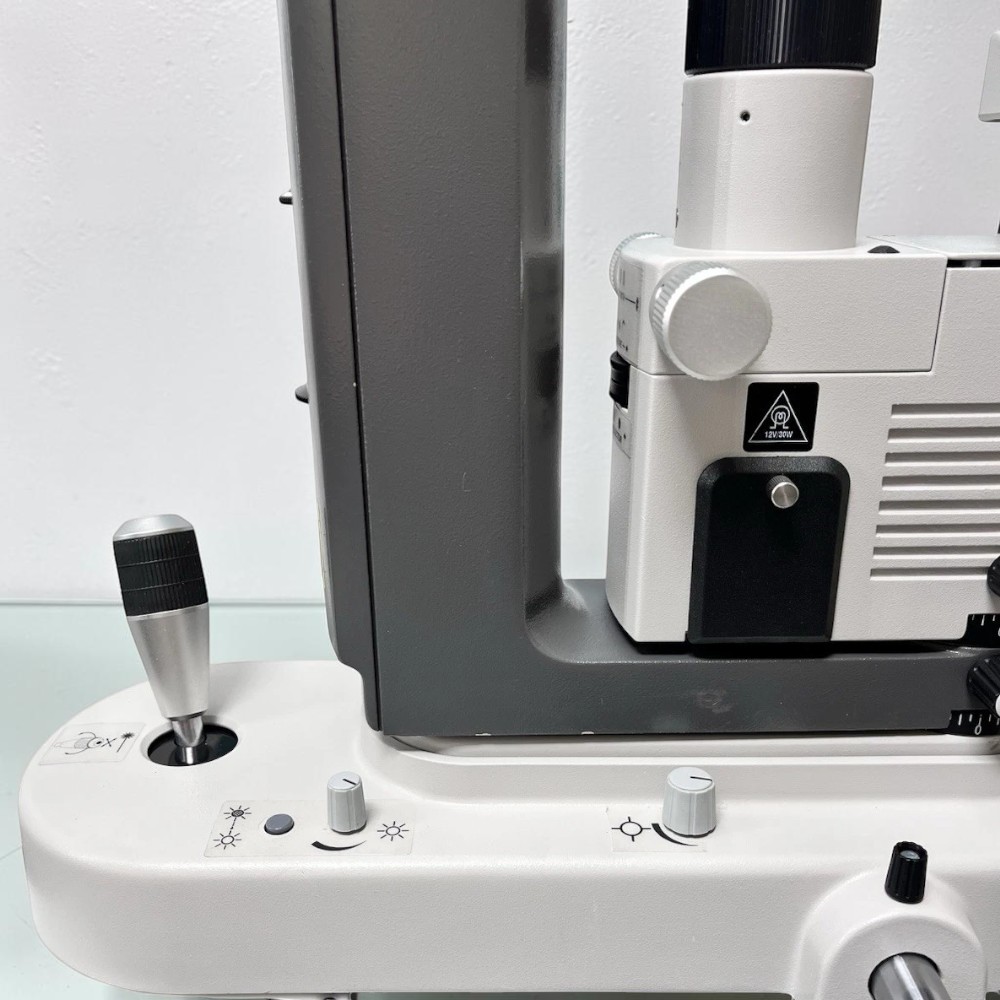

- Joystick and fire switch
- Pedestal
- Base on castors

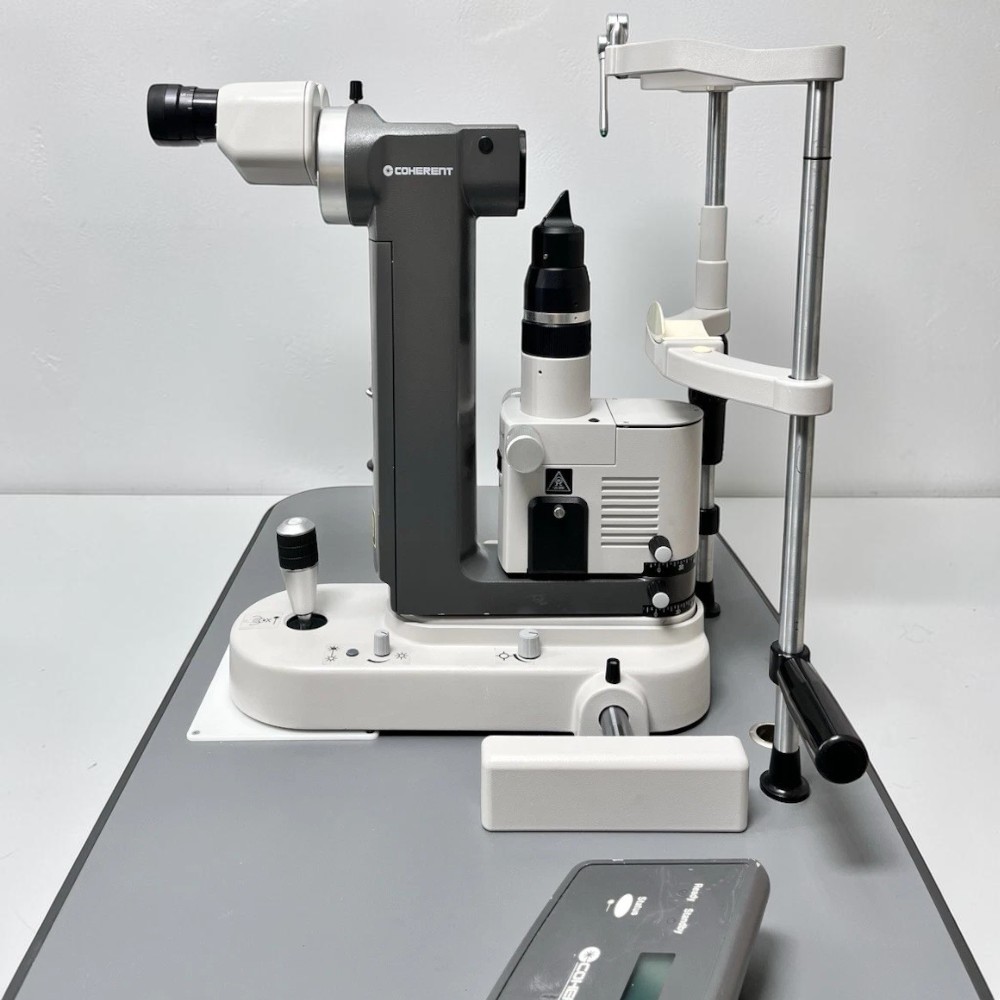

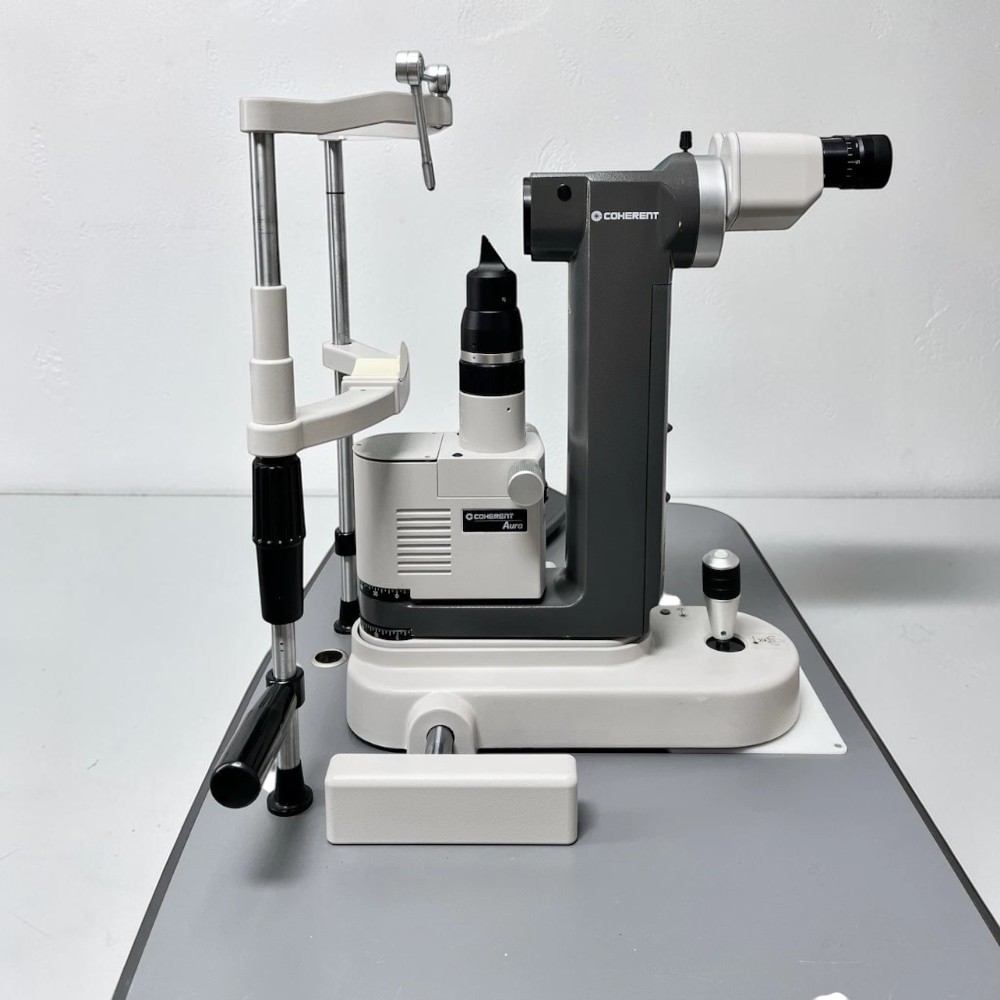

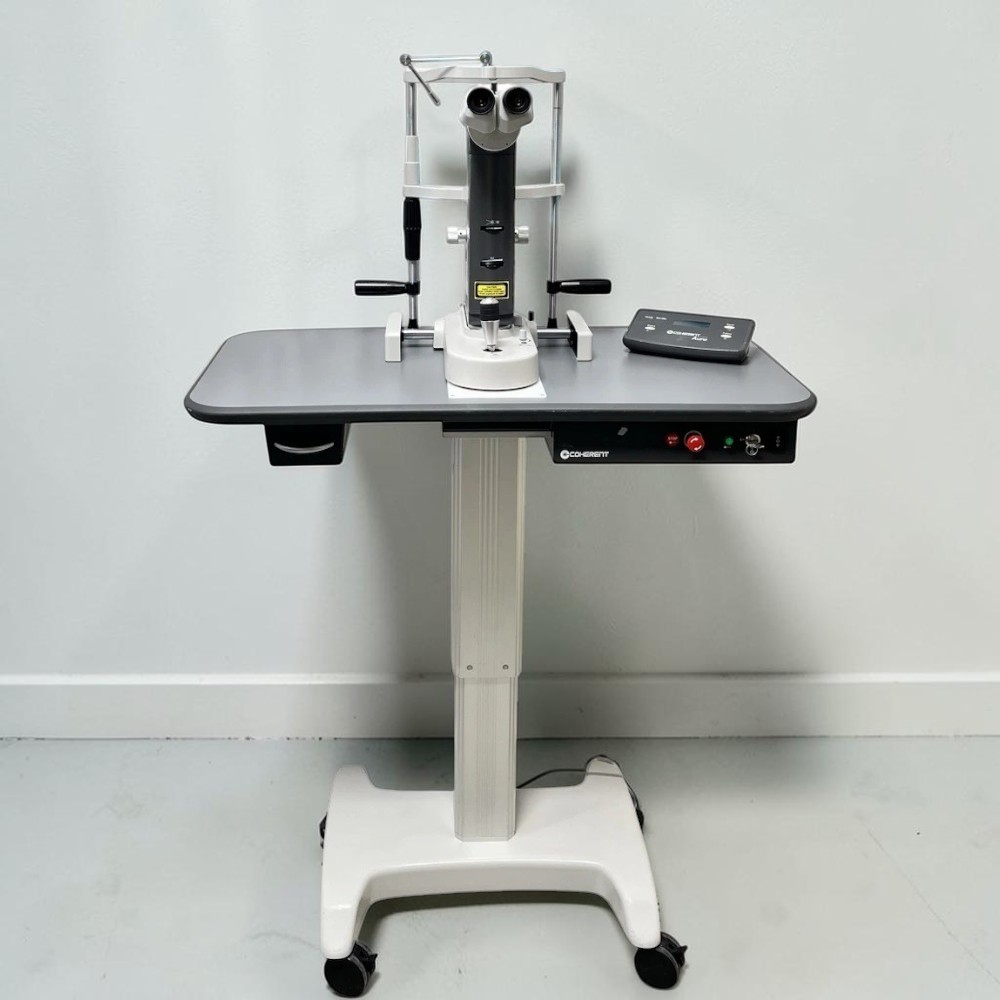

Coherent Aura Ophthalmic YAG Laser — Used
The Coherent Aura is an ophthalmic Nd:YAG photodisruptor laser designed for ophthalmic surgical procedures including posterior capsulotomy, posterior membranectomy and other procedures that require photodisruption of ocular tissue. The system uses a Q-switched Nd:YAG laser operating at 1064 nm.
The Aura delivers short laser pulses with energy that can be continuously adjusted from approximately 0.3 mJ to more than 10 mJ, with a maximum energy of 45 mJ in triple-pulse mode. The system supports single, double and triple pulses per shot, with approximately 20 microseconds between pulses.

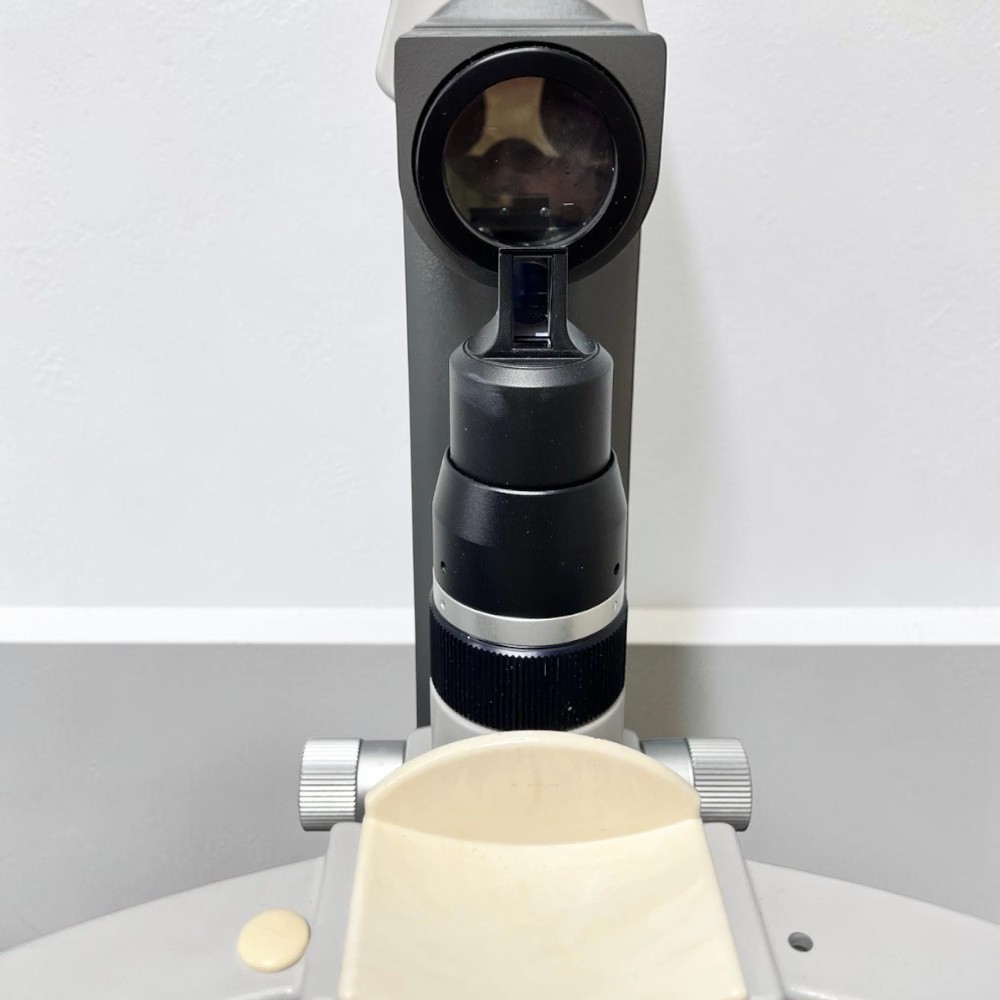

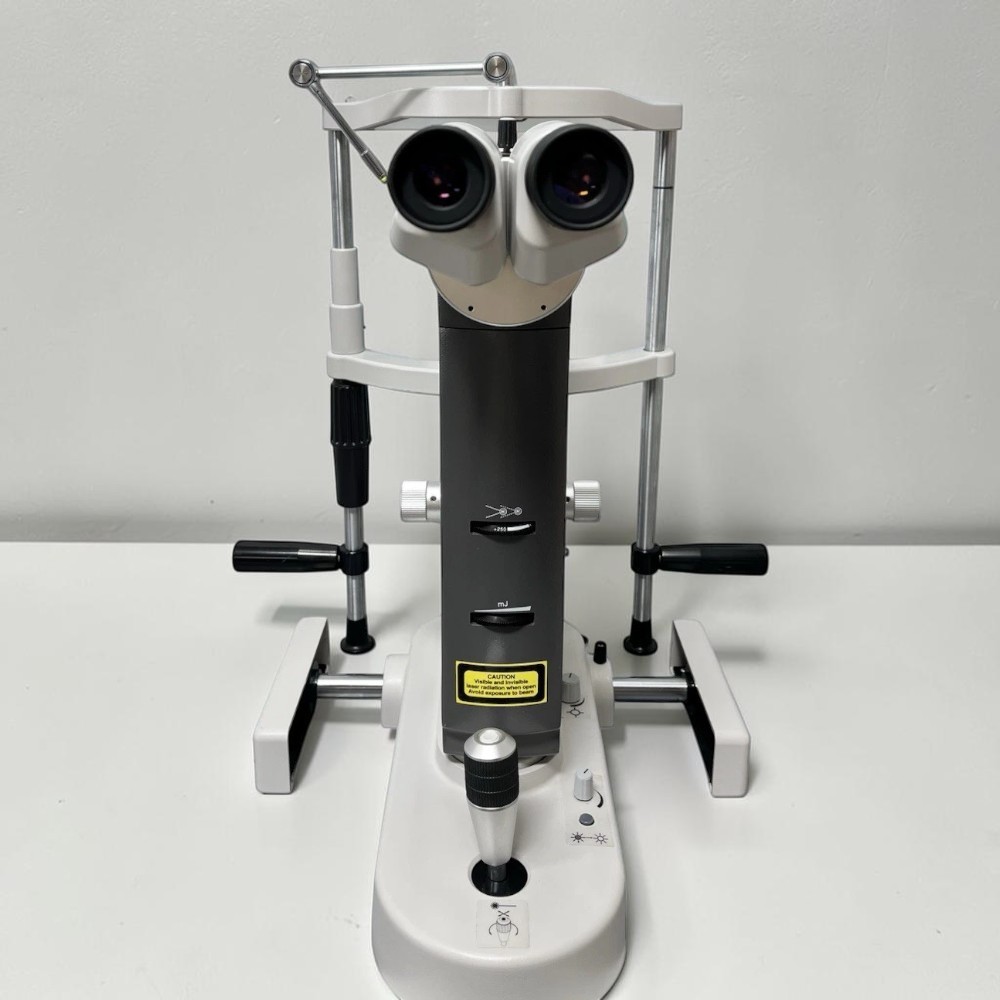

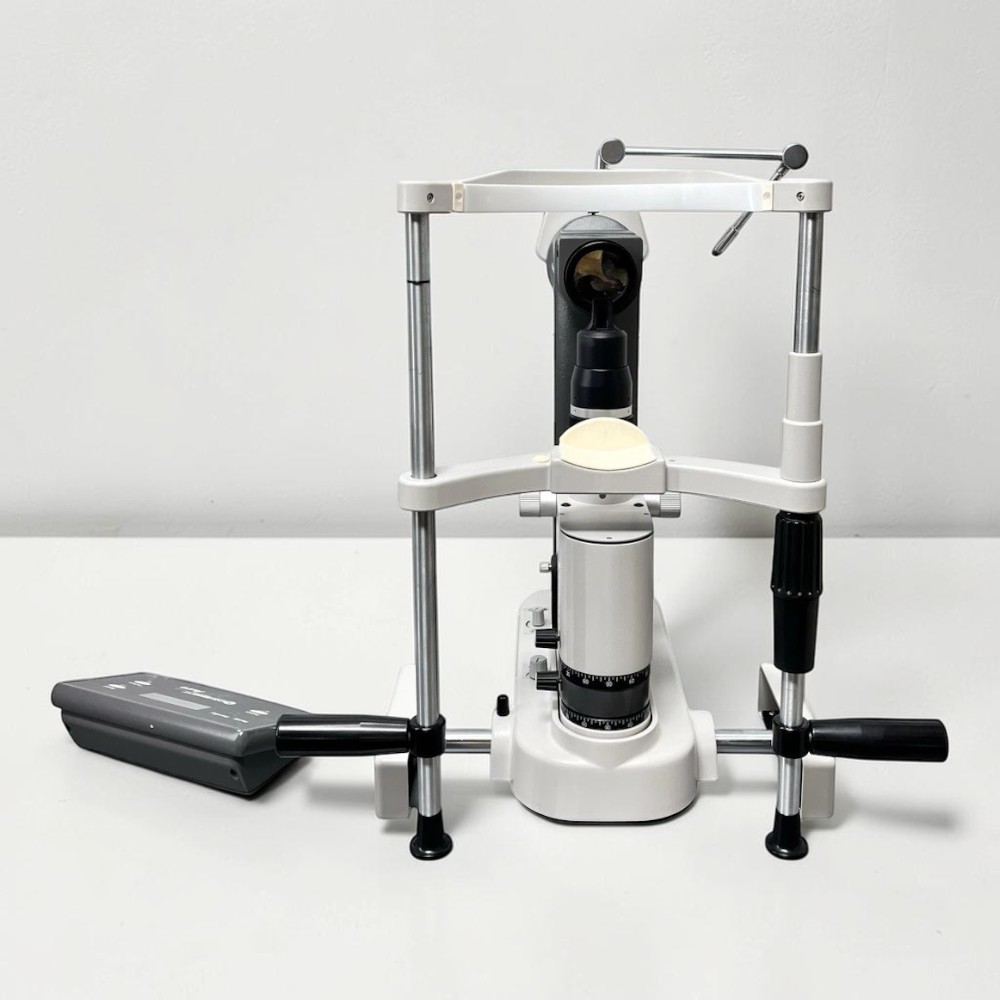

The laser is delivered through an integrated slit-lamp system with a 16× standard magnification, Galilean stereoscopic optics and a twin-spot red aiming laser. An optional three-step magnification changer provides 12×, 16× and 28× magnification.
Technical Specifications
| Specification | Detail |
|---|---|
| Instrument type | Ophthalmic Nd:YAG photodisruptor laser |
| Manufacturer | Coherent |
| Model | Aura |
| Laser type | Q-switched Nd:YAG |
| Wavelength | 1064 nm |
| Laser safety class | Class 3B |
| Pulse width | 4.0 ns |
| Energy selection | ≤0.3 to ≥10 mJ, continuously variable |
| Maximum energy | 45 mJ in triple-pulse mode |
| Pulse modes | Single, double or triple pulse |
| Pulse separation | Approximately 20 µs |
| Repetition rate | 2.3 Hz single / 2.0 Hz double / 1.5 Hz triple |
| Laser spot size | 8 µm FWHM |
| Posterior offset | 100 / 250 / 350 µm nominal settings |
| Aiming laser | Twin-spot semiconductor diode |
| Aiming wavelength | 670 nm |
| Aiming laser power | Up to 200 µW total |
| Microscope | Galilean stereoscopic microscope |
| Standard magnification | 16× |
| Optional magnification | 12× / 16× / 28× |
| Eyepieces | 12.5× |
| Interpupillary distance | 55–88 mm |
| Working distance | 55 mm |
| Slit width | 0–12 mm |
| Slit rotation | 180° continuous |
| Filters | Green, cobalt-blue, neutral density |
| Illumination | 12 V, 30 W halogen |
| Power supply | 90–120 V or 220–240 V AC, 50/60 Hz |
| Unpacked weight | Approx. 60 kg / 132 lb |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
