Description
This exact unit sold recently — but we specialize in sourcing refurbished ophthalmic equipment. Typical turnaround is 2–4 weeks once we confirm availability with our partners. Request a free quote with no deposit required.
Request Availability → Free quote · No obligation · 90-day warranty when shipped

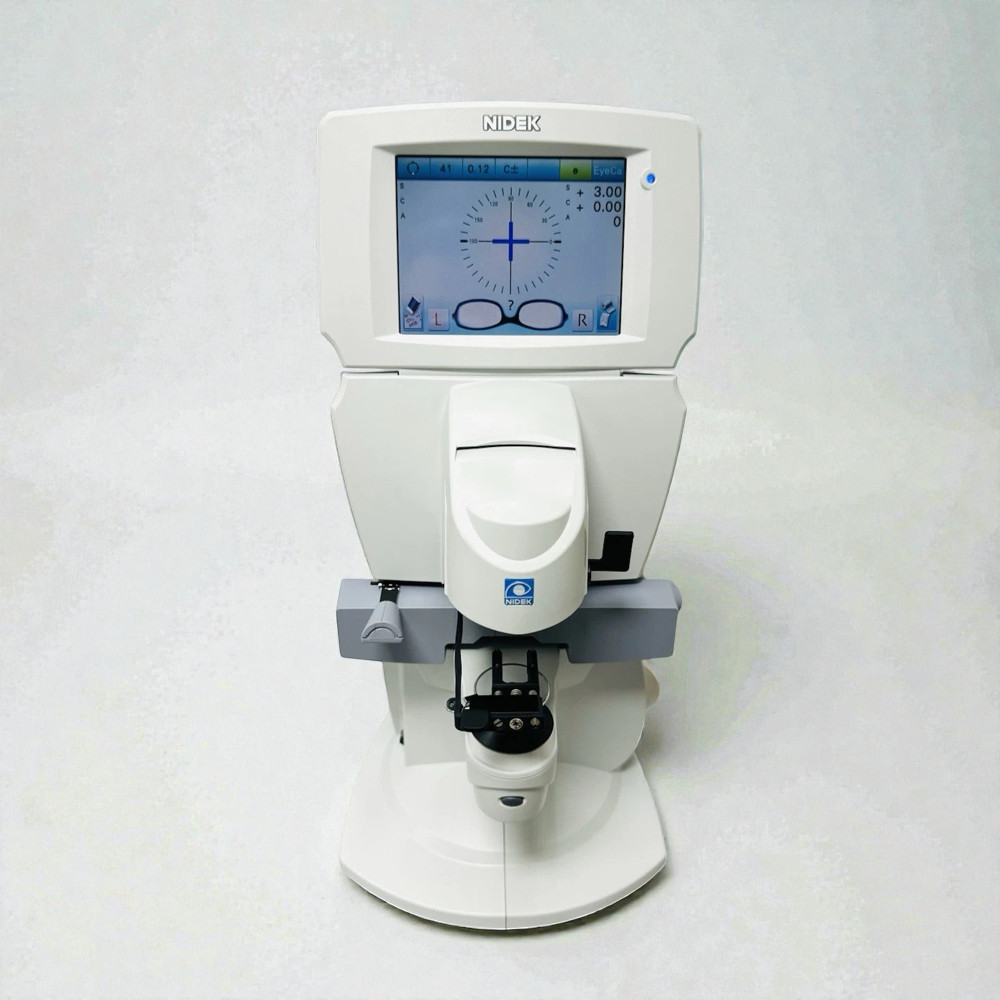

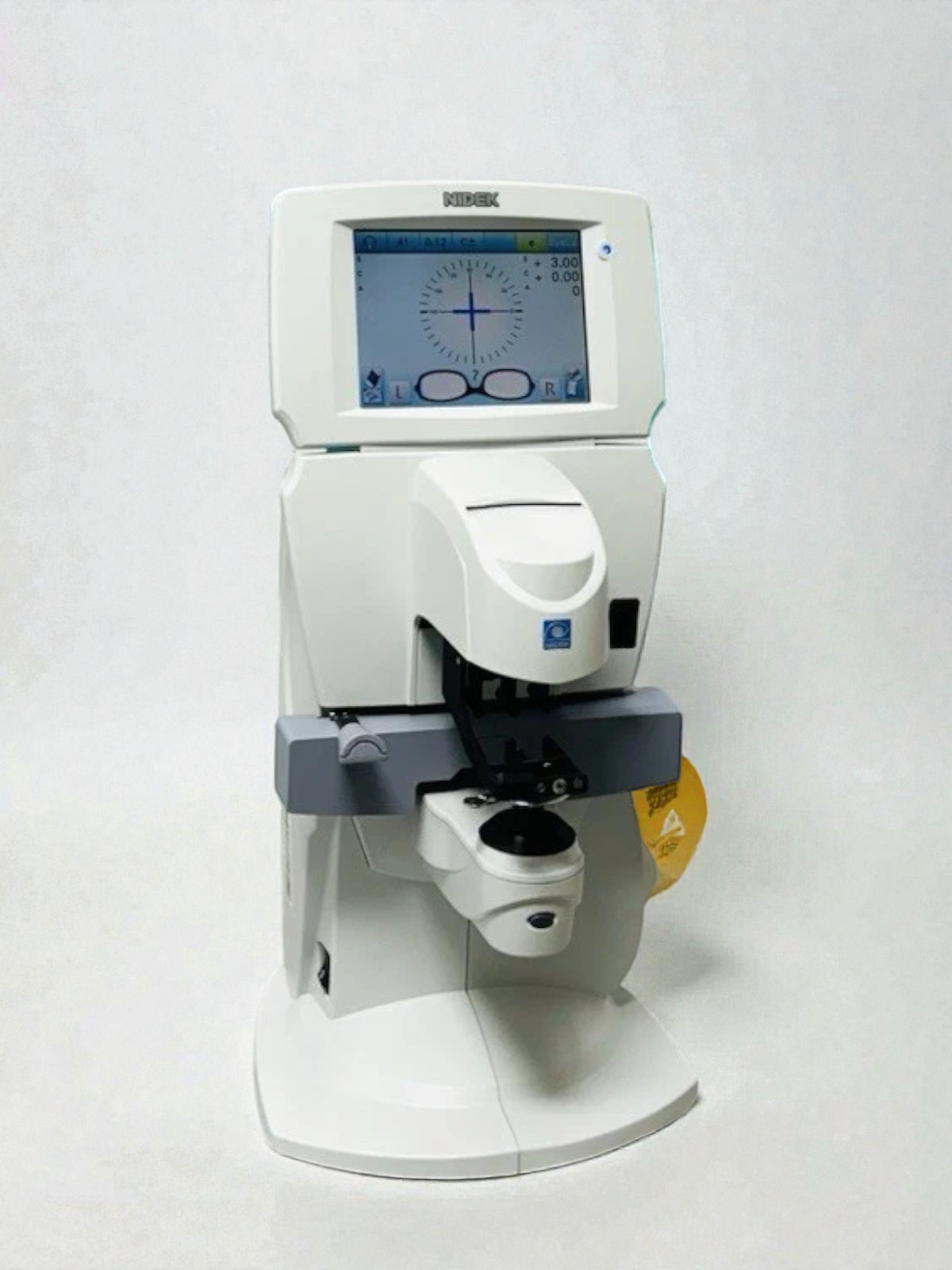

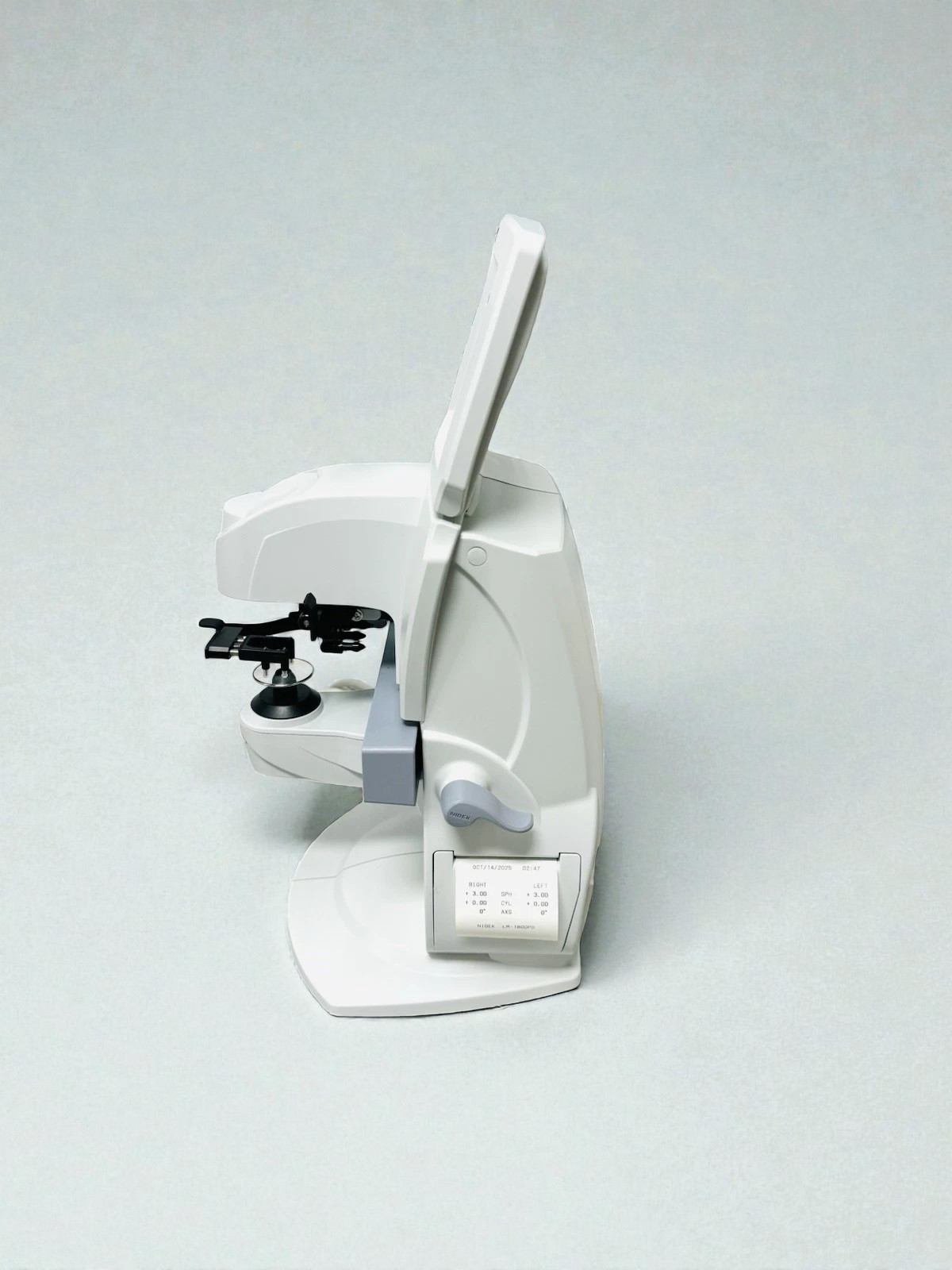

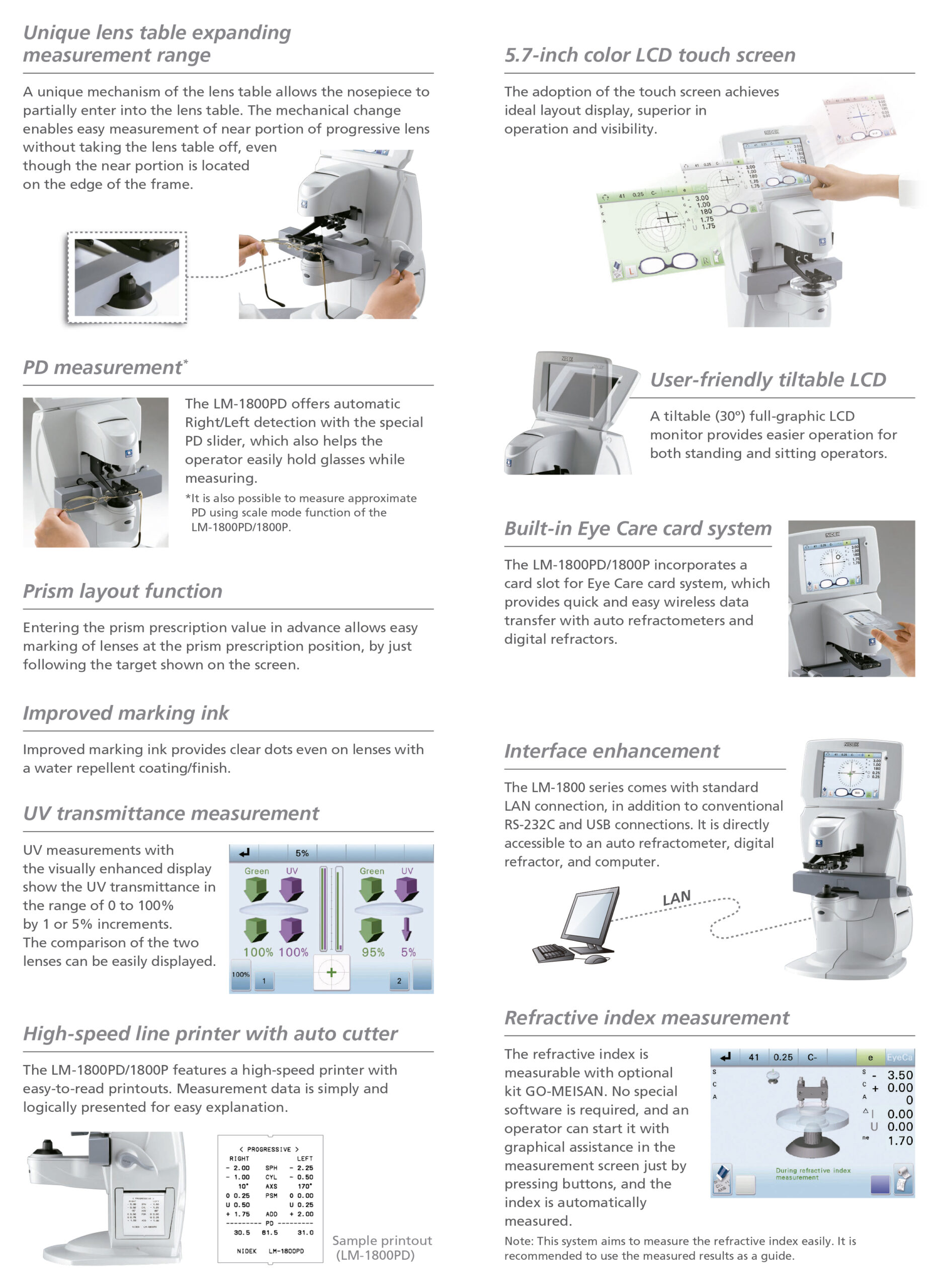

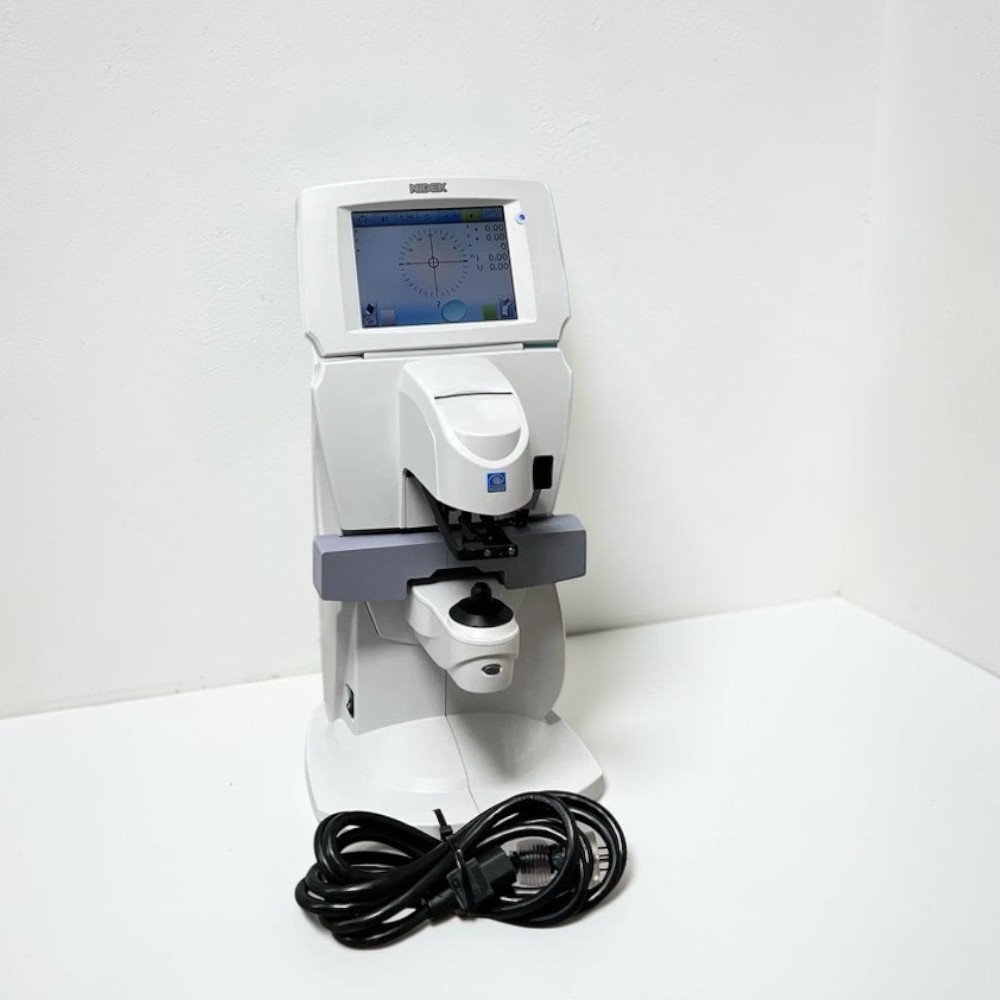

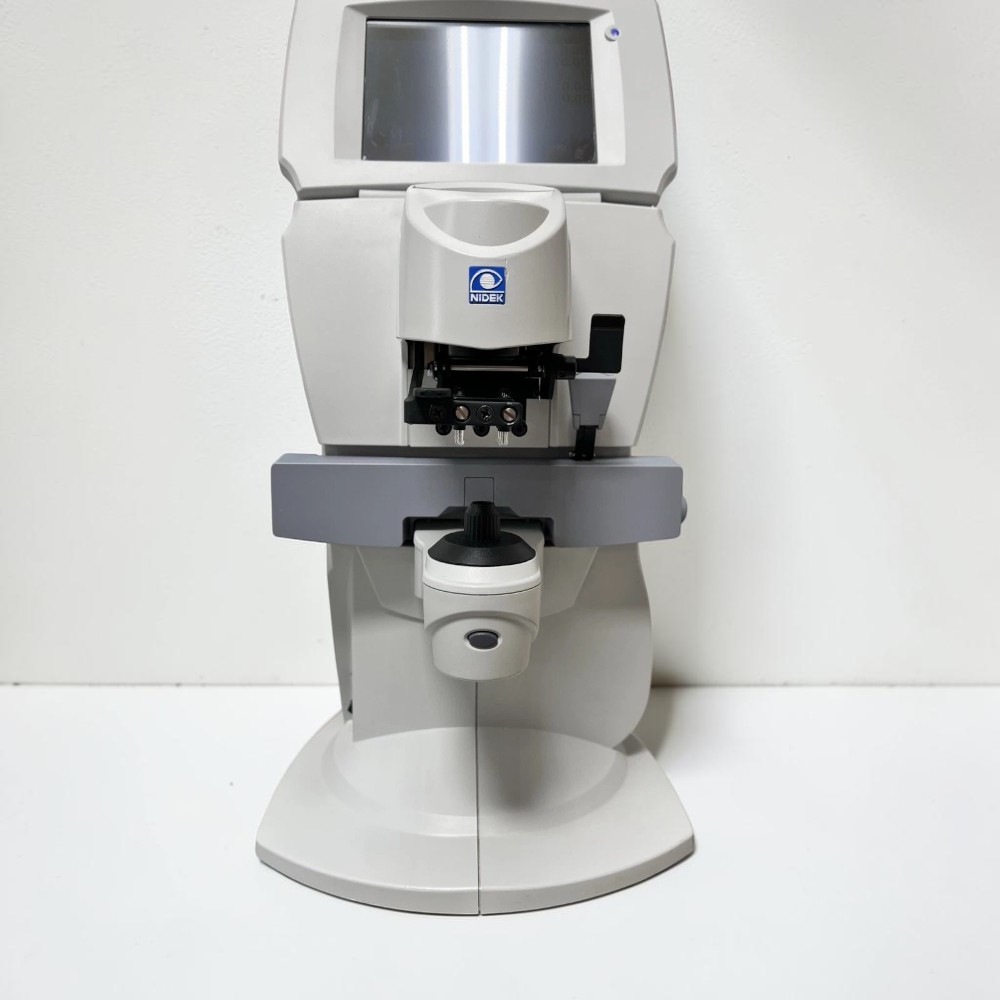

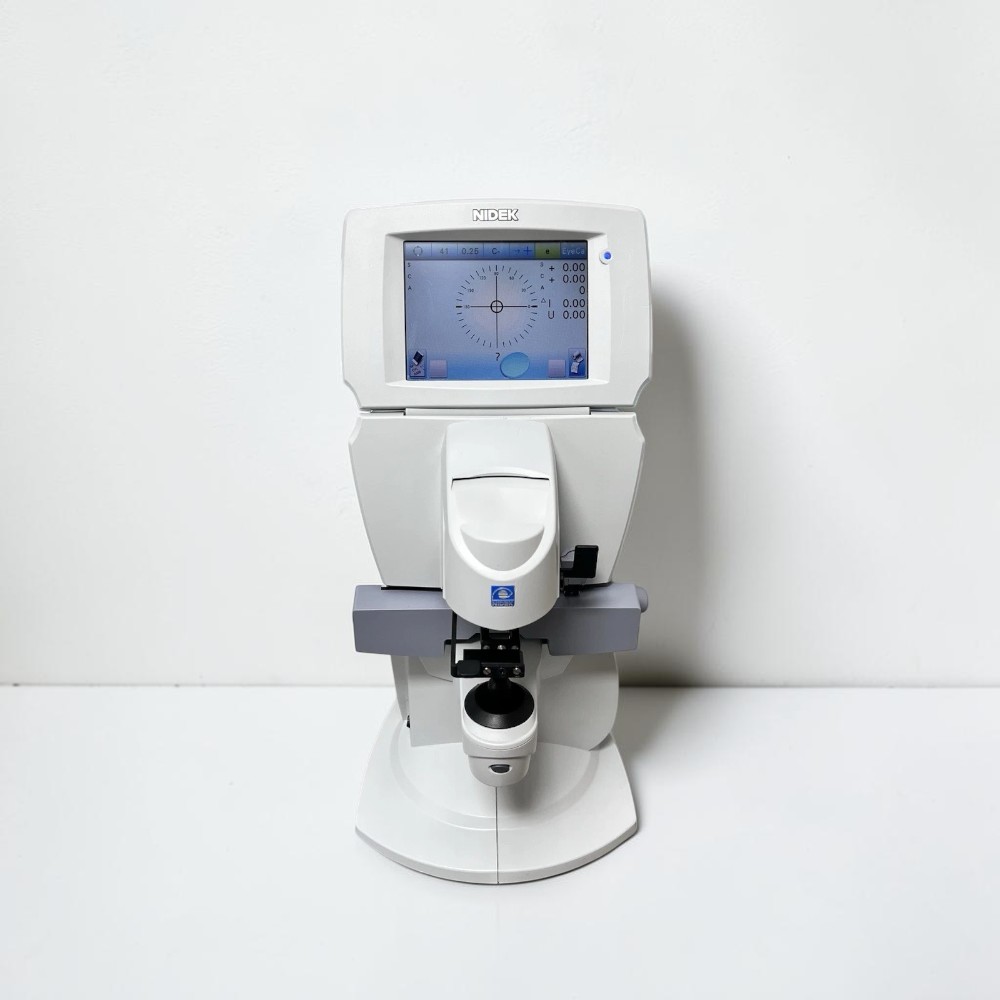

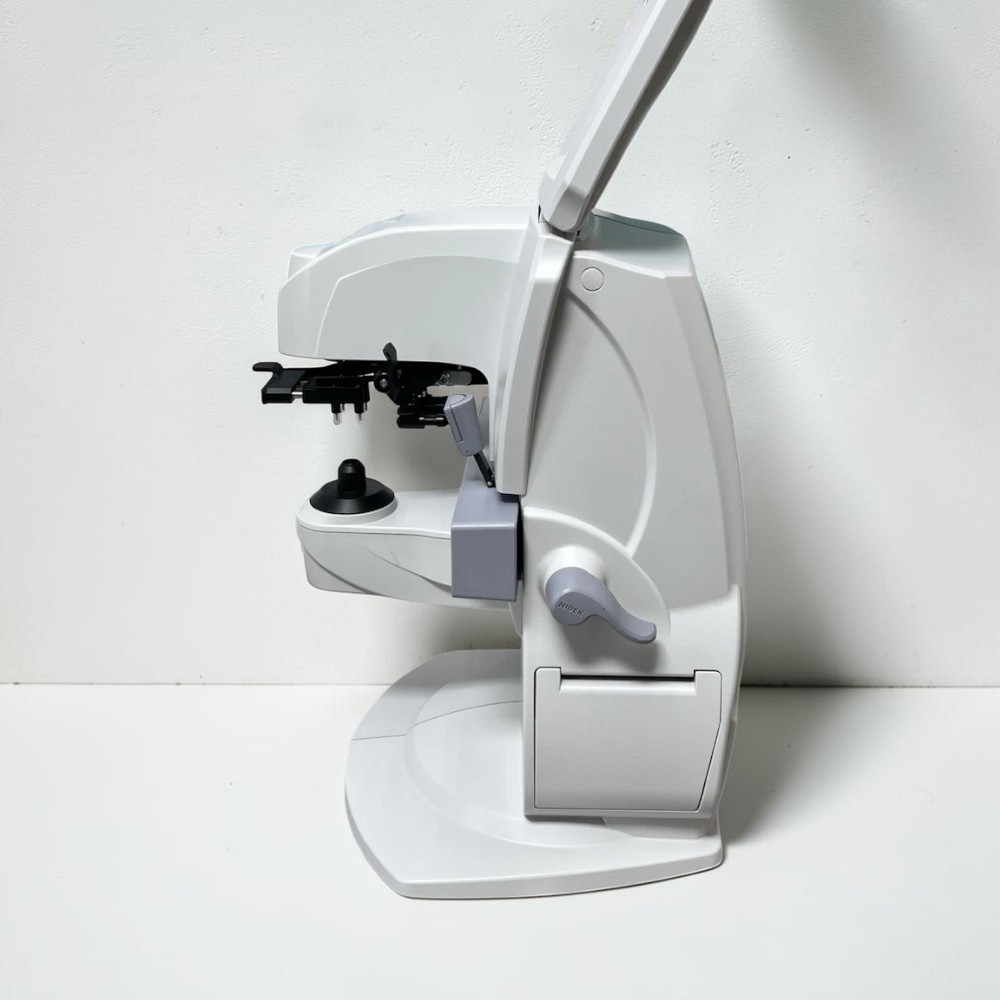

The Nidek LM-1800PD Auto Lensmeter is a premium automatic lensometer designed for modern ophthalmic dispensing and optometry practices. Featuring a Hartmann sensor with 108 simultaneous measurement points, this instrument delivers highly accurate and fast readings of sphere, cylinder, axis, prism, addition (ADD), and transmittance (visible “green” light and UV). Its special lens table mechanism extends the measurement range to include the near portion of progressive lenses without removing the lens table.

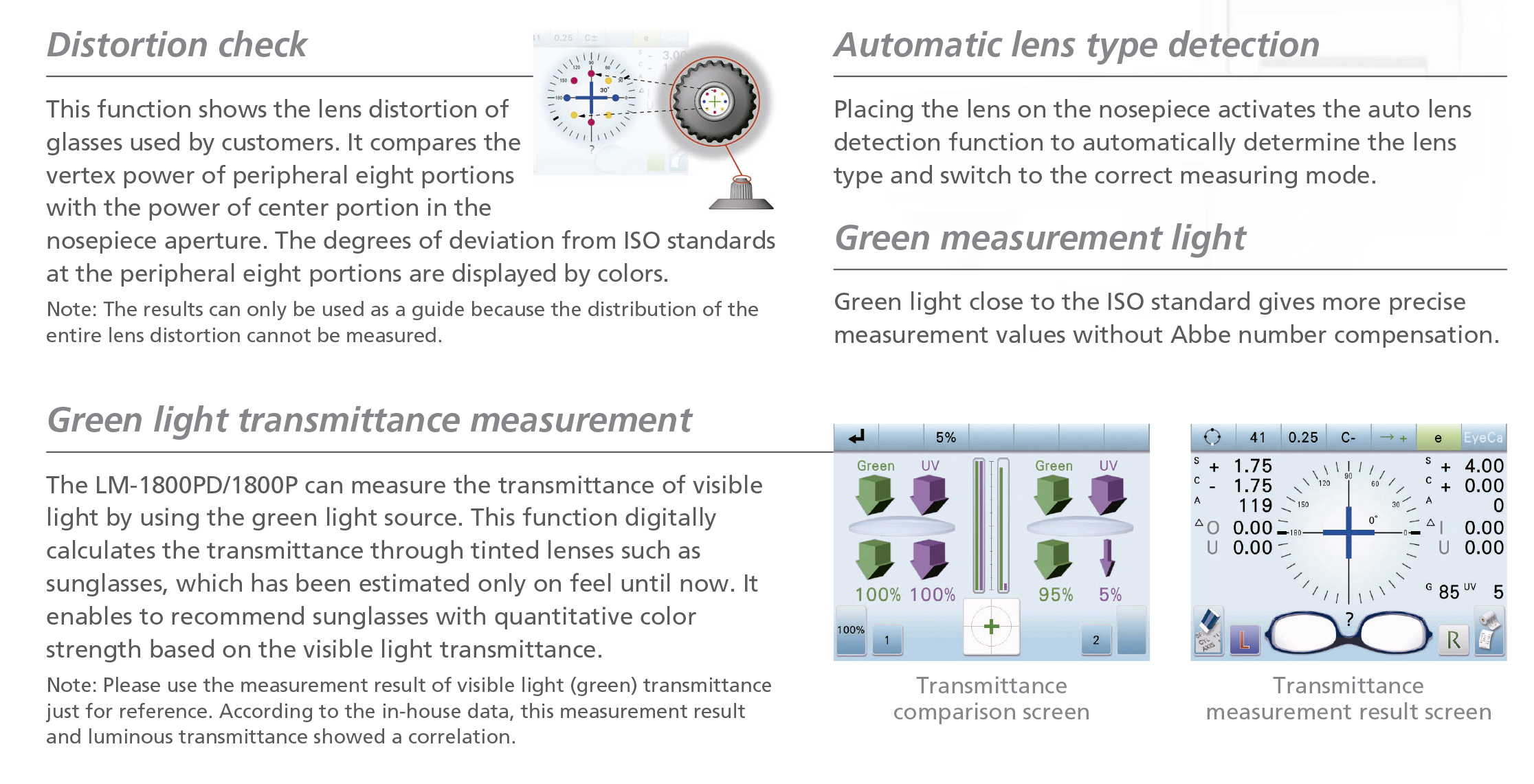

The series also offers automatic lens-type detection (single vision, bifocal, progressive), distortion-check functionality, a tiltable 5.7″ colour touch screen display, and, in the PD version (LM-1800PD), a dedicated PD slider for quick monocular pupillary distance measurement. With built-in connectivity (USB, RS-232C, optional LAN) and a thermal printer (in some models), the LM-1800PD brings a high-end, versatile workflow to optical labs, clinics, and dispensaries.
Specifications
| Measurement Principle / Sensor | Hartmann sensor with 108 simultaneous measurement points within the nosepiece |
| Sphere (Spectacle Lenses) | –25.00 D to +25.00 D (increments: 0.01 / 0.06 / 0.12 / 0.25 D) |
| Sphere (Contact Lenses) | –25.00 D to +25.00 D (BC = 6.0 to 9.0) (same increments) |
| Cylinder | 0.00 D to ±10.00 D (increments: 0.01 / 0.06 / 0.12 / 0.25 D) |
| Axis | 0° to 180° (1° increments) |
| Addition (ADD) | +0.40 D to +10.00 D (increments: 0.01 / 0.06 / 0.12 / 0.25 D) |
| Prism | 0.00 ∆ to 20.00 ∆ (increments: 0.01 / 0.06 / 0.12 / 0.25 ∆) |
| Prism Modes | Δ, θ, Base In/Out, Base Up/Down |
| Pupillary-Distance (PD) Measurement (LM-1800PD) | 20.0 mm to 49.5 mm (monocular) — single vision PD, progressive-far PD |
| UV / Visible Green Light Transmittance | 0% to 100% (increments 1% or 5%) — UV at ~365 nm, Green at ~535 nm |
| Measurable Lens Diameter (Spectacle) | Ø20 mm to Ø120 mm |
| Measurable Lens Diameter (Contact) | Larger than inner diameter of nosepiece (≈ Ø5 mm) |
| Compensation for High Index Lenses | Abbe number adjustable range: 20 to 60 |
| Marking System | Ink cartridge type; optional ink-pad type marking unit |
| Wavelength / Measuring Light | 535 nm (green) / 108 measurement points |

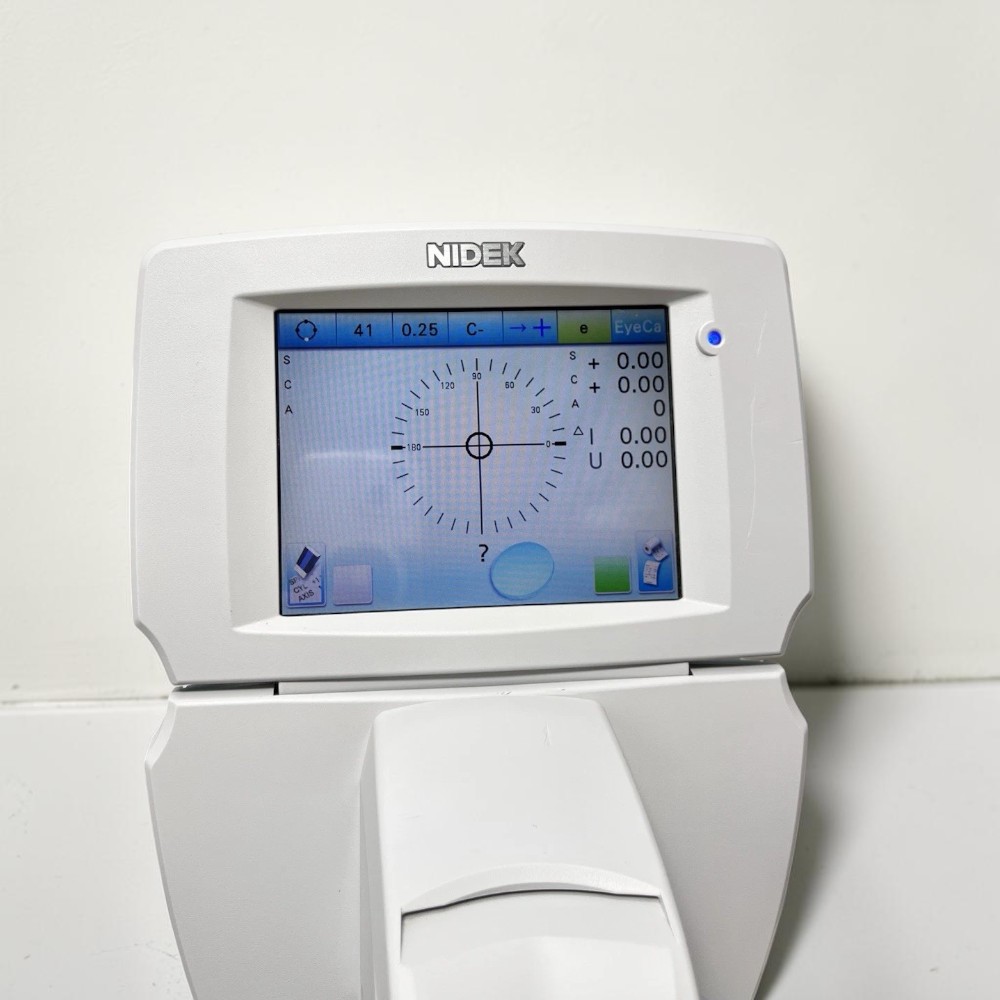

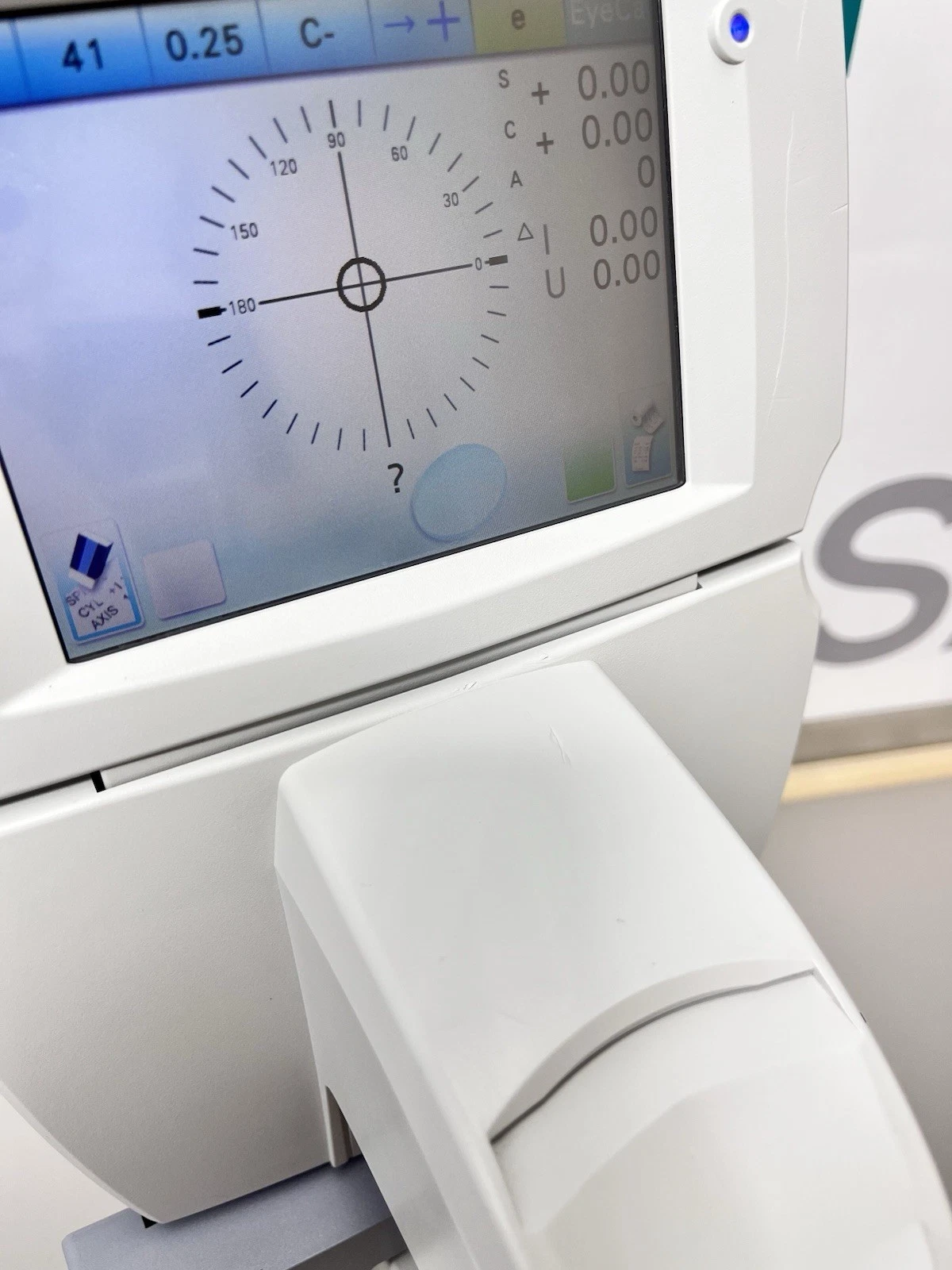

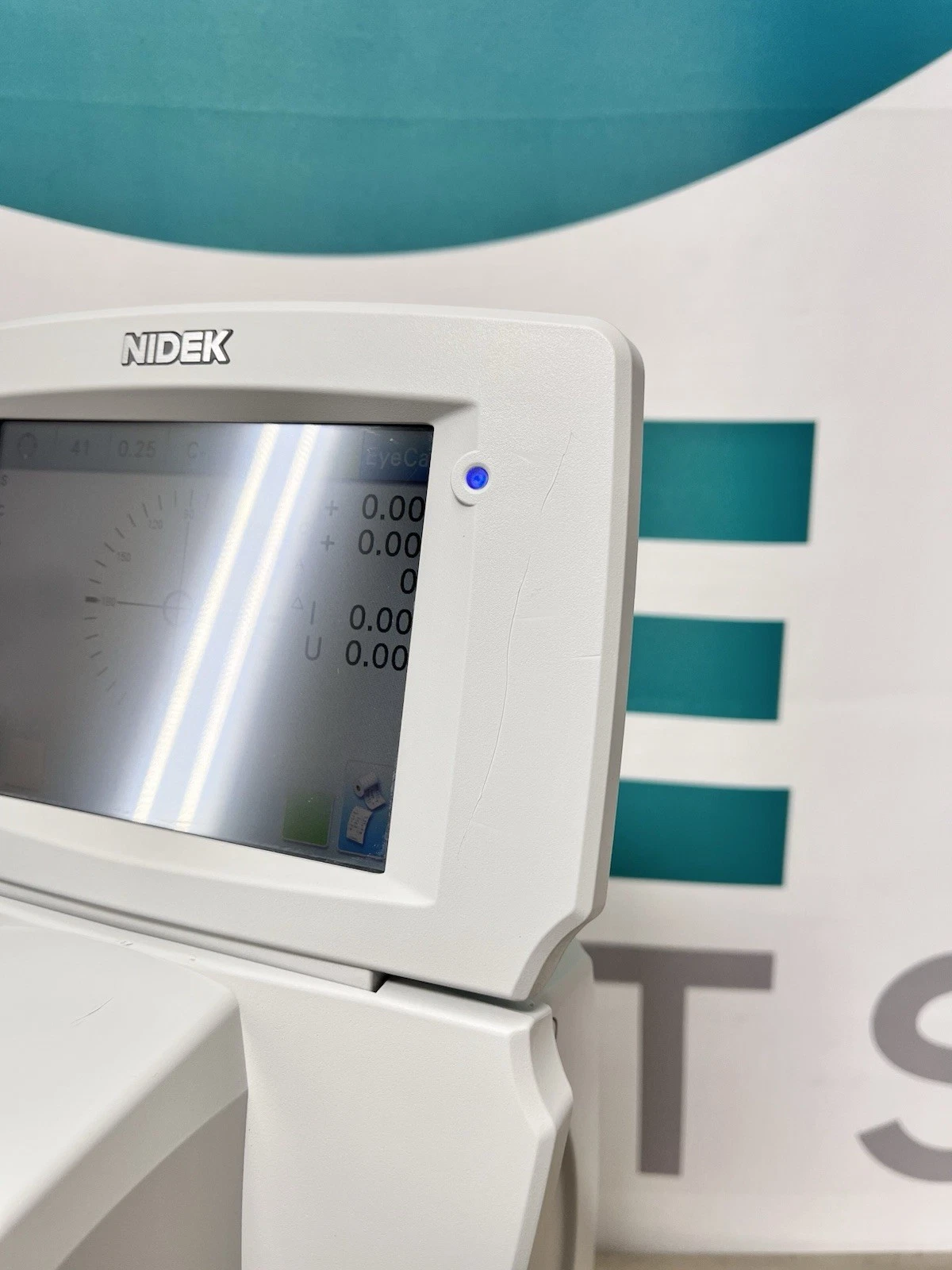

| Display | 5.7″ colour full graphic TFT-LCD (640 × 480 dots) with LED back-light; tiltable (30°) |
| Printer | Thermal line printer with auto-cutter (paper width 58 mm) |
| Interface / Connectivity | RS-232C (1 port), USB Host + USB Function (2 ports), LAN 10/100Base-T (1 port) |
| Measuring Time | Approx. 0.06 s ±10% (minimum) |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | ≈ 60 VA |
| Dimensions (W × D × H) | 220 mm × 252 mm × 430 mm |
| Weight | Approx. 5.0 kg (≈11 lbs) |
Questions? Contact us for availability and shipping details.
