Description

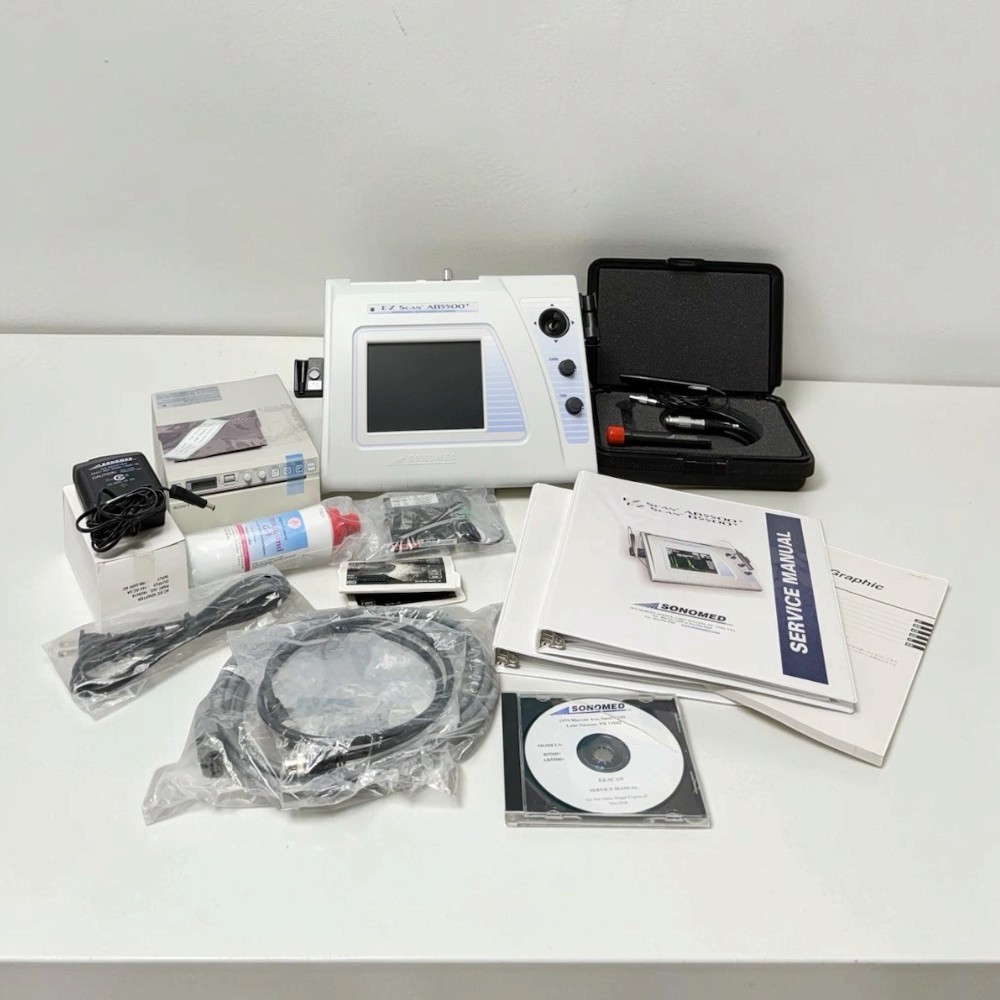

What’s Included
- Sonomed E-Z Scan AB5500+ main unit
- A-scan probe
- B-scan probe
- Foot pedal
- Printer
- Power cable
- Coupling gel
- Manual
- 90-day Digital Eye Center warranty
Condition & Warranty
New – Open Box. The box was opened only to check the accessories and confirm the unit powers up and functions. Covered by a 90-day Digital Eye Center warranty on parts and workmanship.
Sonomed E-Z Scan AB5500+ — New Open Box A/B-Scan Ophthalmic Ultrasound

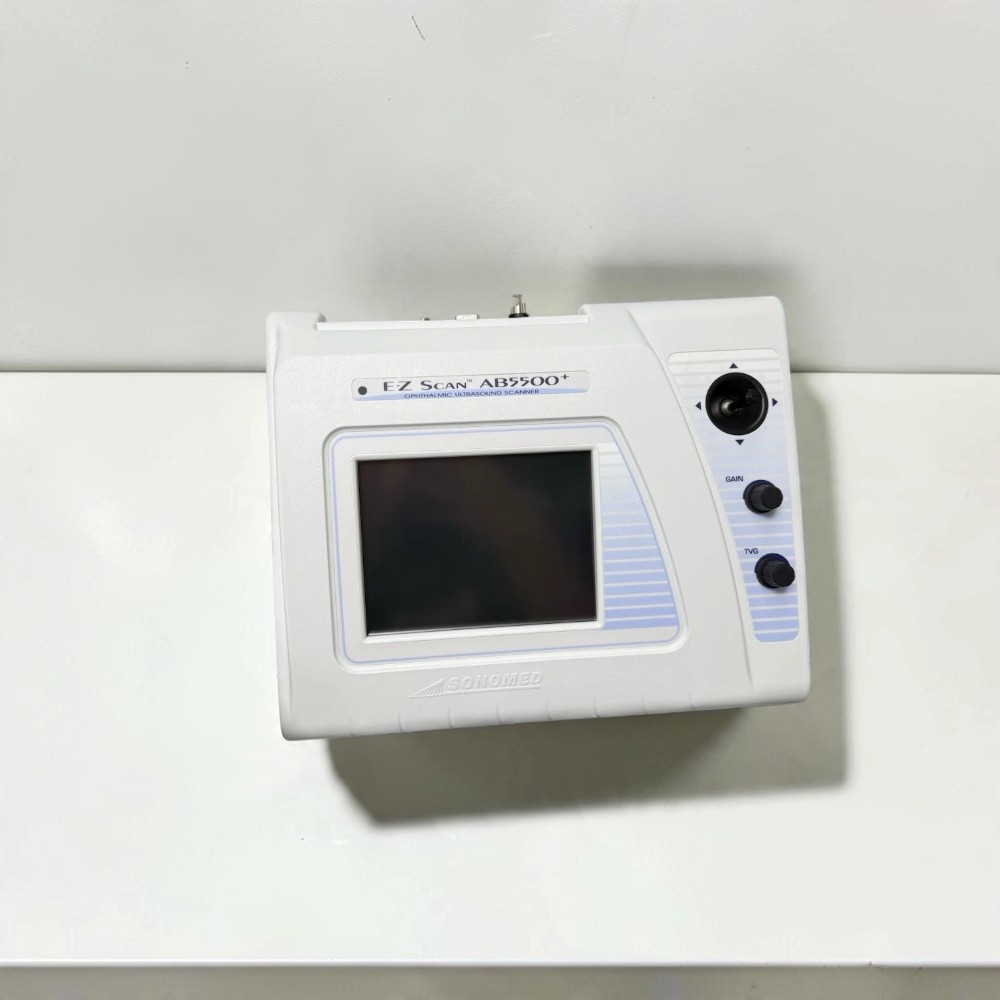

The Sonomed E-Z Scan AB5500+ is a portable, computer-controlled ophthalmic ultrasound system that pairs a contact A-scan for axial-length biometry with a motor-driven B-scan for imaging the eye and orbit. Both channels run 10 MHz transducers, and the whole instrument is controlled from its color touch screen, so there is no separate computer to set up at the exam lane.
Because the Sonomed E-Z Scan AB5500+ covers two jobs in one unit, a practice can measure axial length for IOL power calculation and image the posterior segment when the view is blocked by a dense cataract or vitreous hemorrhage, without buying two devices. At about 5.25 lb (2.4 kg) it moves easily between exam rooms.
Ultrasound remains the fallback when optical biometry cannot get a reading: a study in the National Library of Medicine compared optical biometers and immersion ultrasound in dense cataracts, where optical devices can fail to measure some eyes.
Why Practices Choose the Sonomed E-Z Scan AB5500+
- A-scan and B-scan in one unit — axial-length biometry and diagnostic B-scan imaging from a single instrument, with both probes included.
- Works where optical biometry cannot — contact A-scan measures eyes with dense cataract or other media opacity.
- Four A-scan eye types — Cataract, Dense Cataract, Aphakic and Pseudophakic, with velocity settings for common pseudophakic lens materials such as PMMA, acrylic and silicone.
- Built-in IOL formulas — Binkhorst, Regression-II, Theoretic-T, Holladay and Hoffer-Q, with Haigis available as an option.
- Touch-screen workflow — color backlit LCD with touch overlay and stored settings for multiple users.
- Foot pedal capture — freeze A-scan and B-scan images hands-free while the probe stays on the eye.
- Printed records — a printer is included, and the RS-232 port supports transferring results to a computer.
Clinical Applications
- Axial-length measurement and IOL power calculation for cataract surgery planning.
- Biometry in dense-cataract eyes where optical biometers cannot obtain a reading.
- B-scan imaging of the posterior segment behind opaque media, such as vitreous hemorrhage or a mature cataract.
- Evaluation of suspected retinal detachment, intraocular masses and foreign bodies.
- Anterior chamber depth and lens thickness measurements as part of the surgical work-up.
Who This Is For
- Cataract and comprehensive ophthalmology practices that need dependable ultrasound biometry.
- Surgery centers that want an ultrasound backup alongside an optical biometer.
- Practices adding diagnostic B-scan capability without buying a separate imaging system.
- Satellite clinics that need a portable A/B-scan unit.
Technical Specifications
| Spec | Detail |
| Modalities | Combined contact A-scan biometry and B-scan imaging |

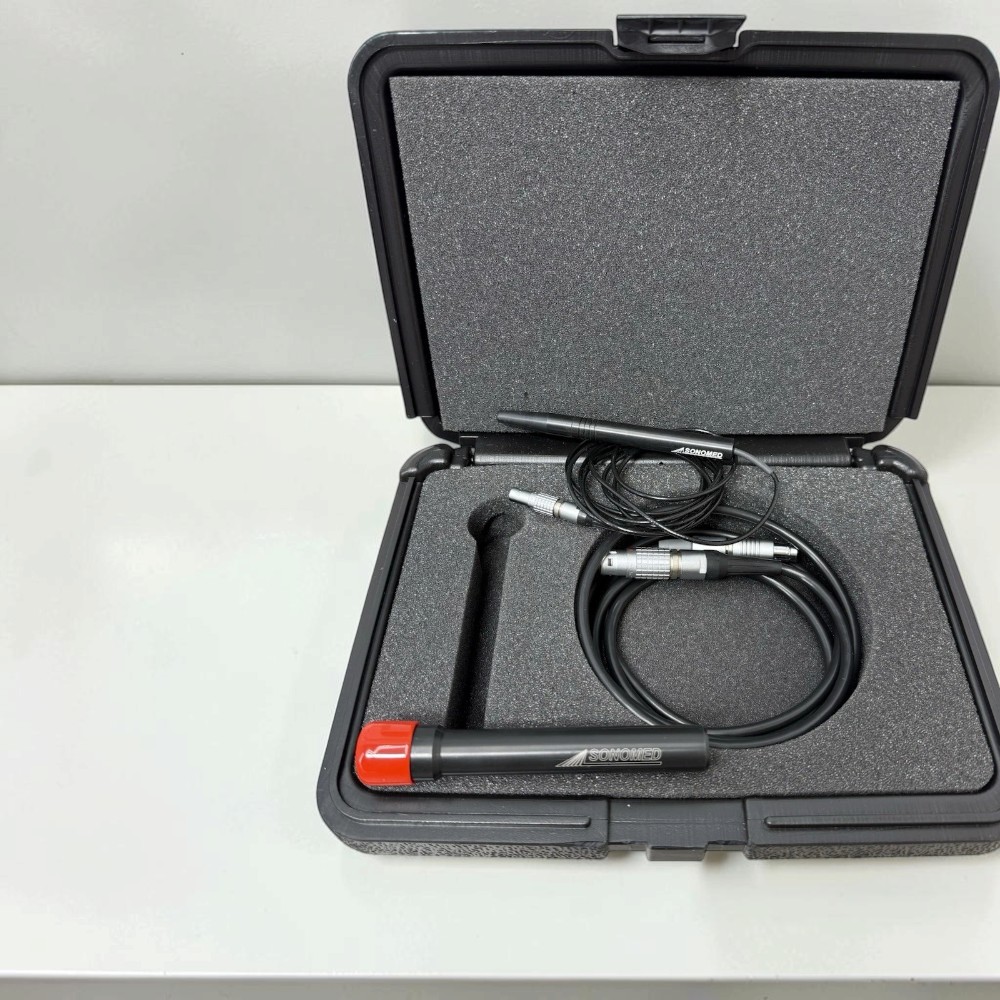

| A-scan probe | Direct contact, 10 MHz ±10%, focal length 25 mm ±3 mm |
| B-scan probe | Mechanical sector scan, 10 MHz ±10%, focal length 24 mm ±2 mm |
| A-scan accuracy | Electronic ±0.023 mm; clinical ±0.1 mm |
| A-scan measurement range | 18–40 mm |
| A-scan eye types | Cataract, Dense Cataract, Aphakic, Pseudophakic |
| IOL formulas | Binkhorst, Regression-II, Theoretic-T, Holladay, Hoffer-Q; Haigis (optional) |
| B-scan accuracy | Electronic ±0.0484 mm; clinical ±0.1 mm |
| B-scan depth | 50 mm (256 lines) or 60 mm (128 lines) |
| Gain | Nominal 100 dB, with separate TVG control in B-scan |
| Display | Color backlit LCD with touch-screen overlay, 640 × 480 px |

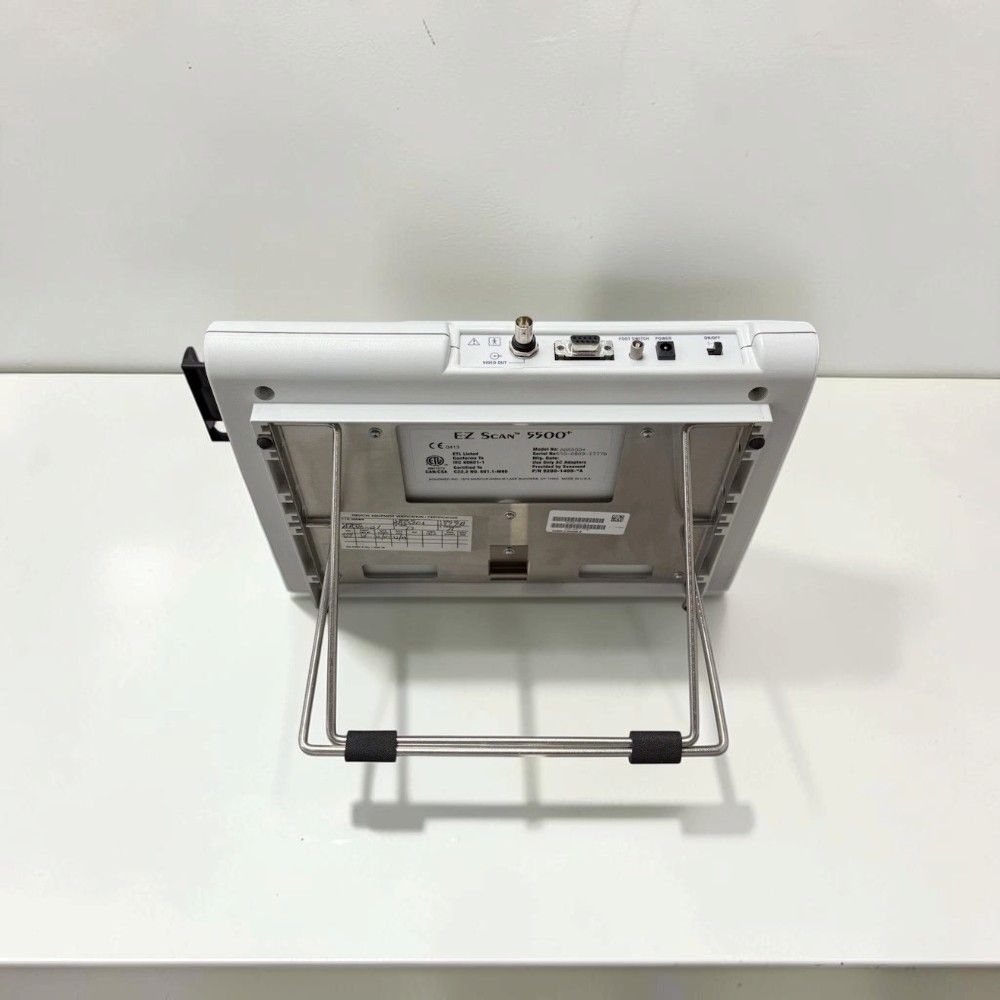

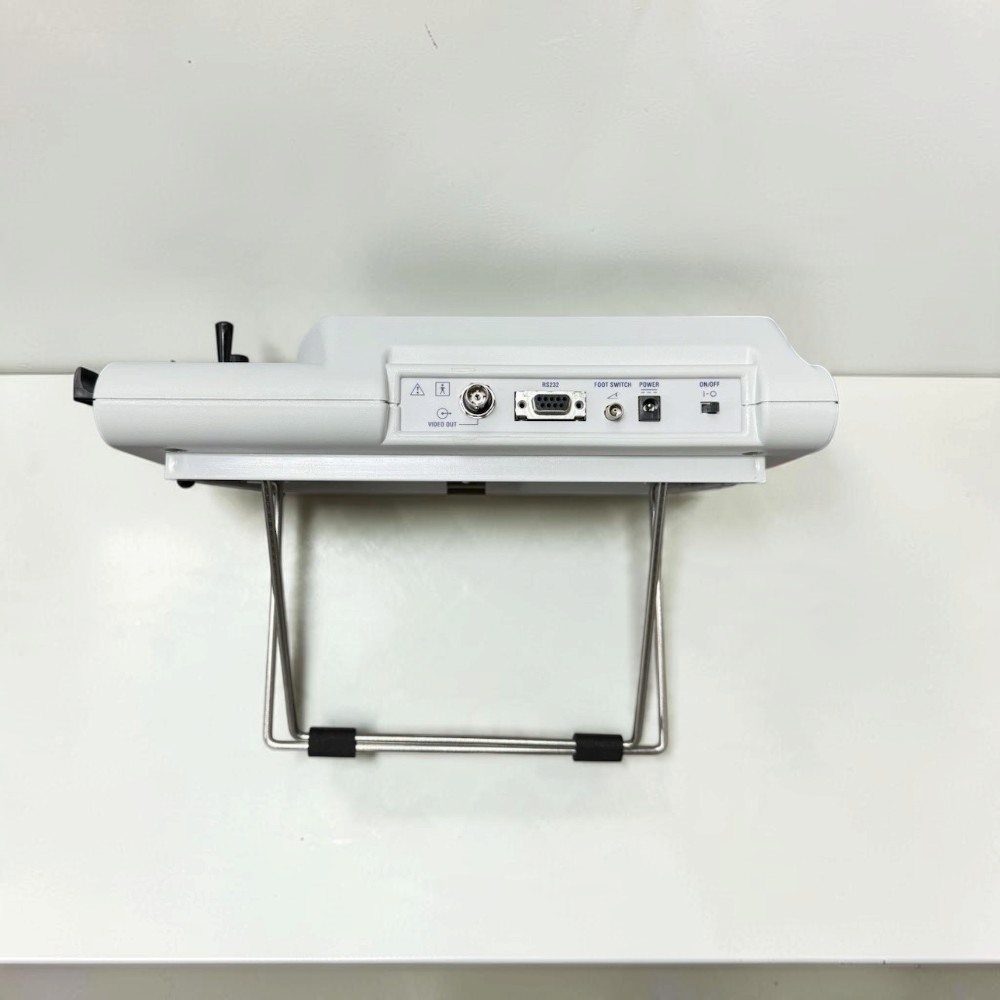

| Outputs | BNC video output (printer or monitor); RS-232 serial port |
| Power | 120–240 VAC, 50/60 Hz; 15 VDC, 2.0 A; about 10 W typical |
| Dimensions | 239 × 225 × 71 mm (9.4 × 8.9 × 2.8 in) |
| Weight | 2.4 kg (5.25 lb) |
| Condition | New – Open Box |
| Warranty | 90-day Digital Eye Center warranty |
Also consider the Sonomed PacScan 300A A-scan biometric ruler for a dedicated A-scan station, or the Zeiss IOLMaster 5.4 optical biometer to pair optical and ultrasound biometry.
Questions about the Sonomed E-Z Scan AB5500+? Contact us for availability and shipping details.
