Description

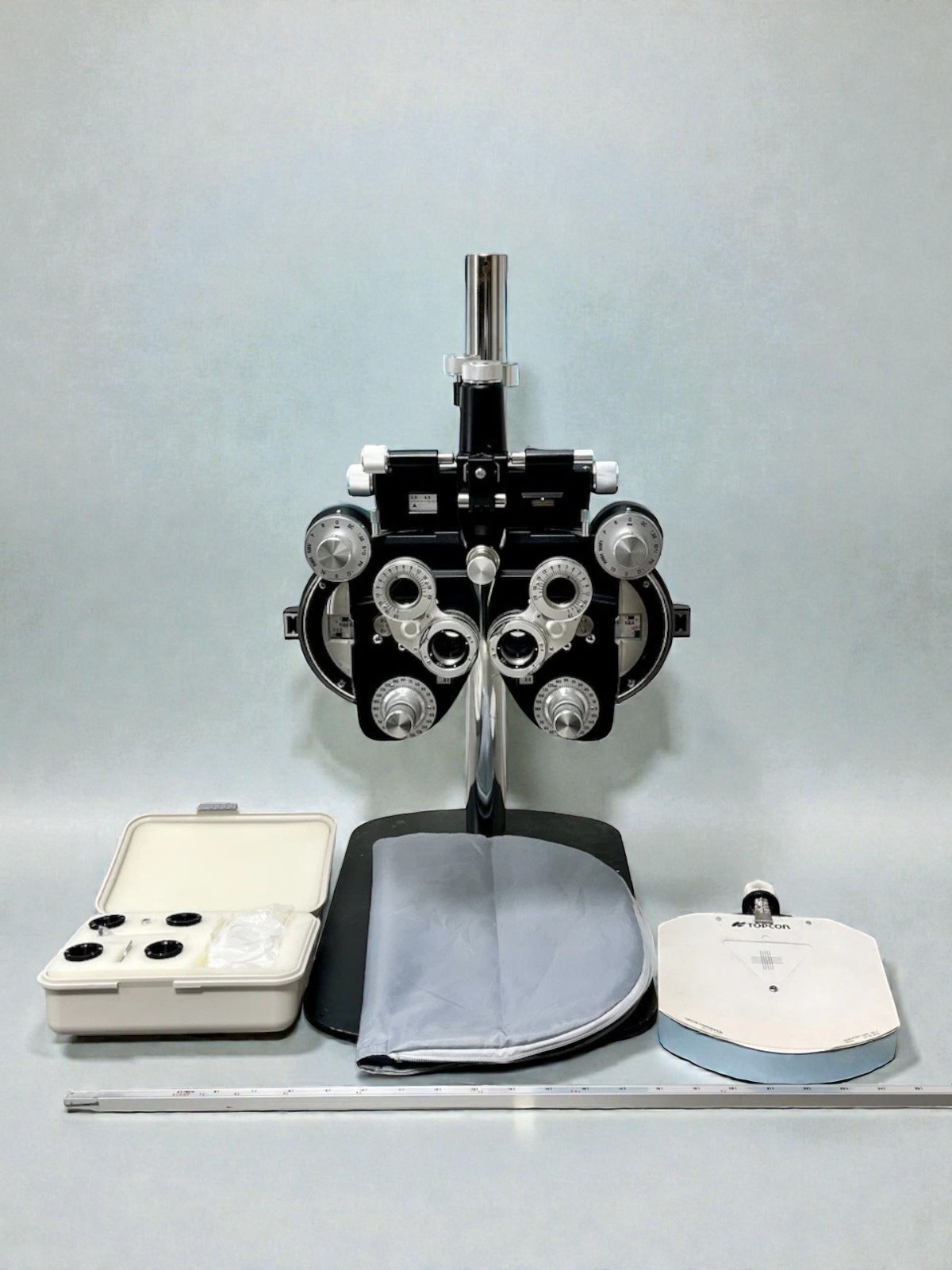

What’s Included
- Topcon VT-10 Plus Cylinder phoropter (used)

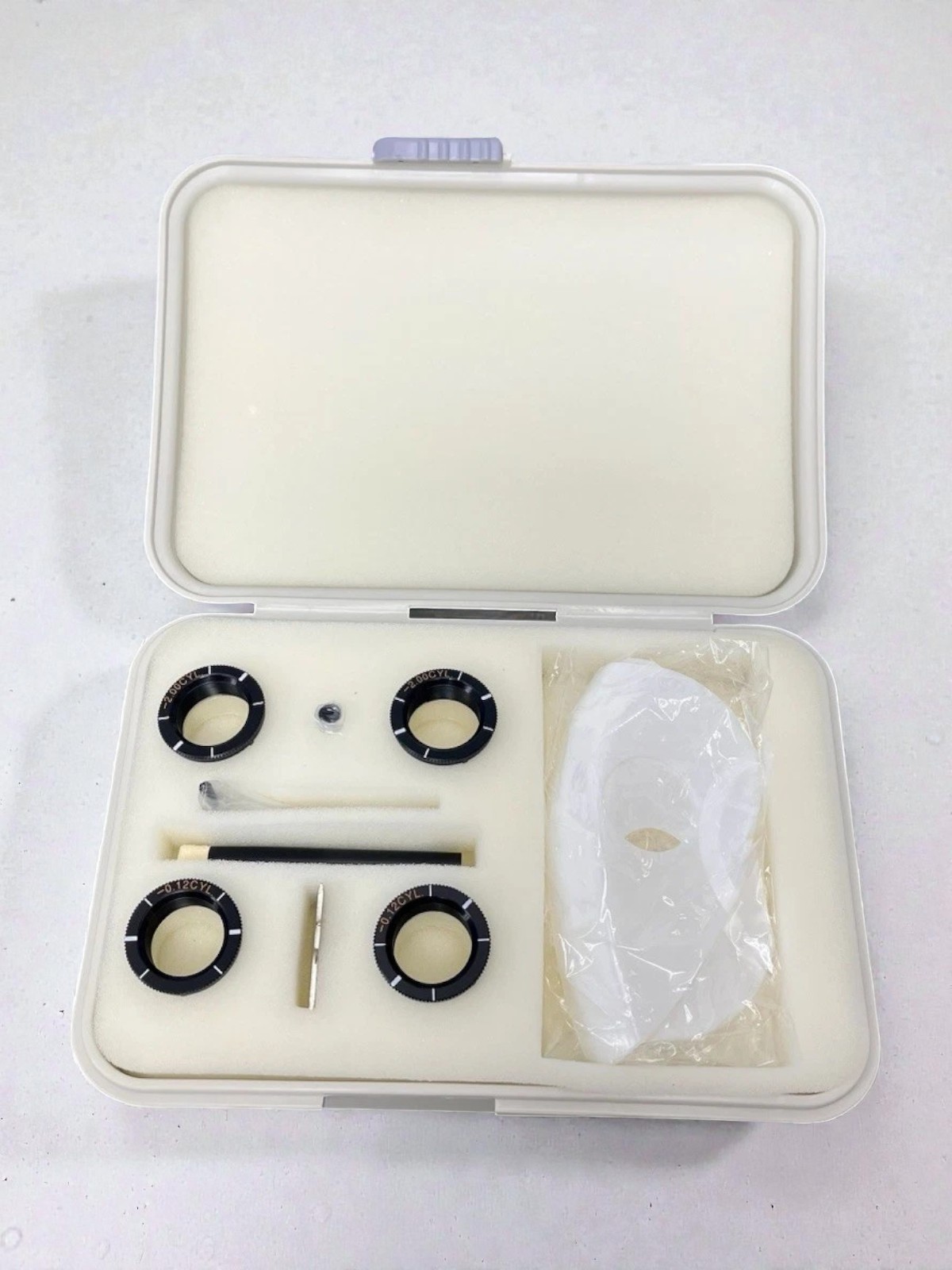

- Accessory case with auxiliary lenses
- Near-point reading card
- Dust cover
- 90-day Digital Eye Center warranty
Condition & Warranty

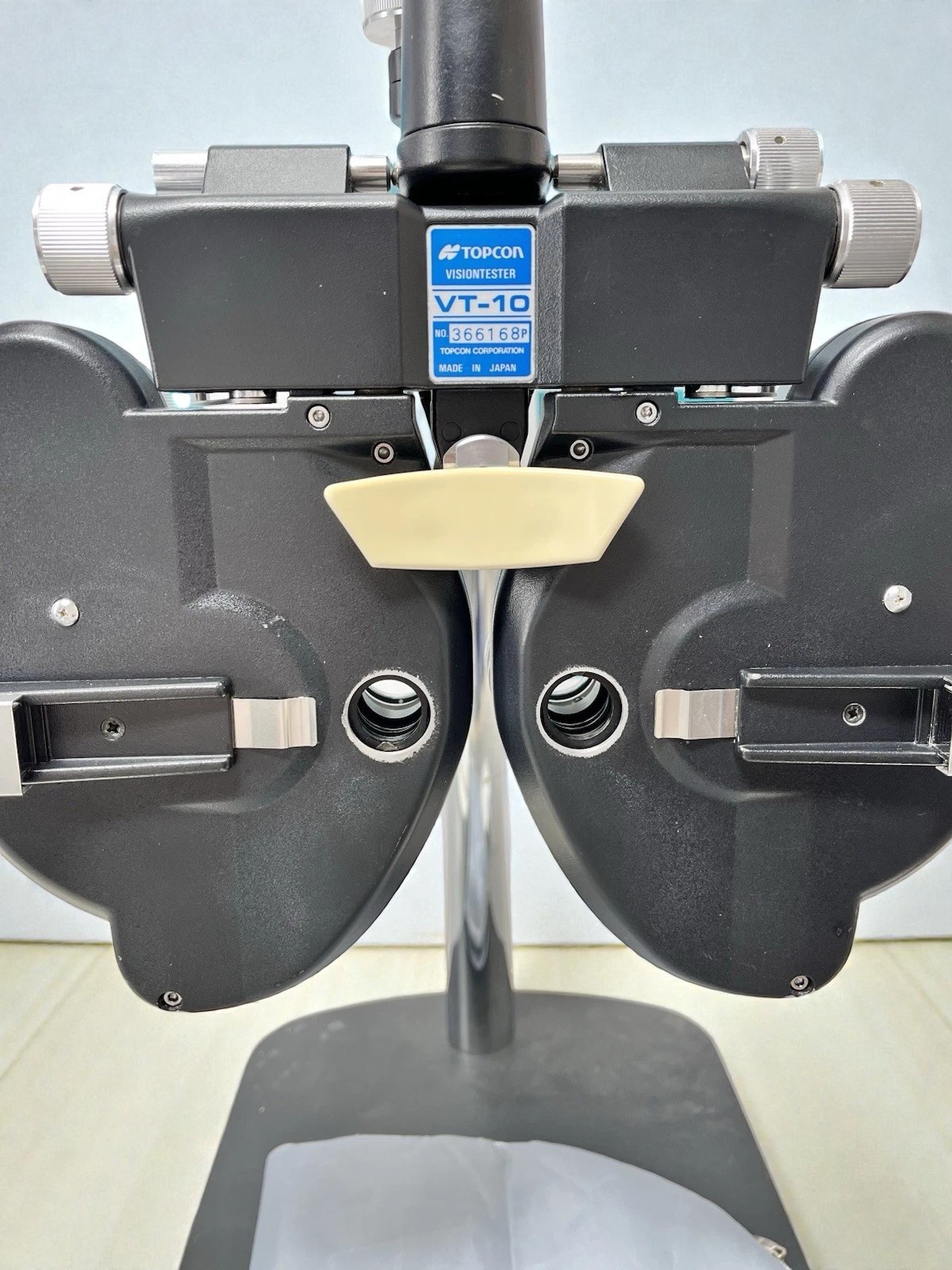

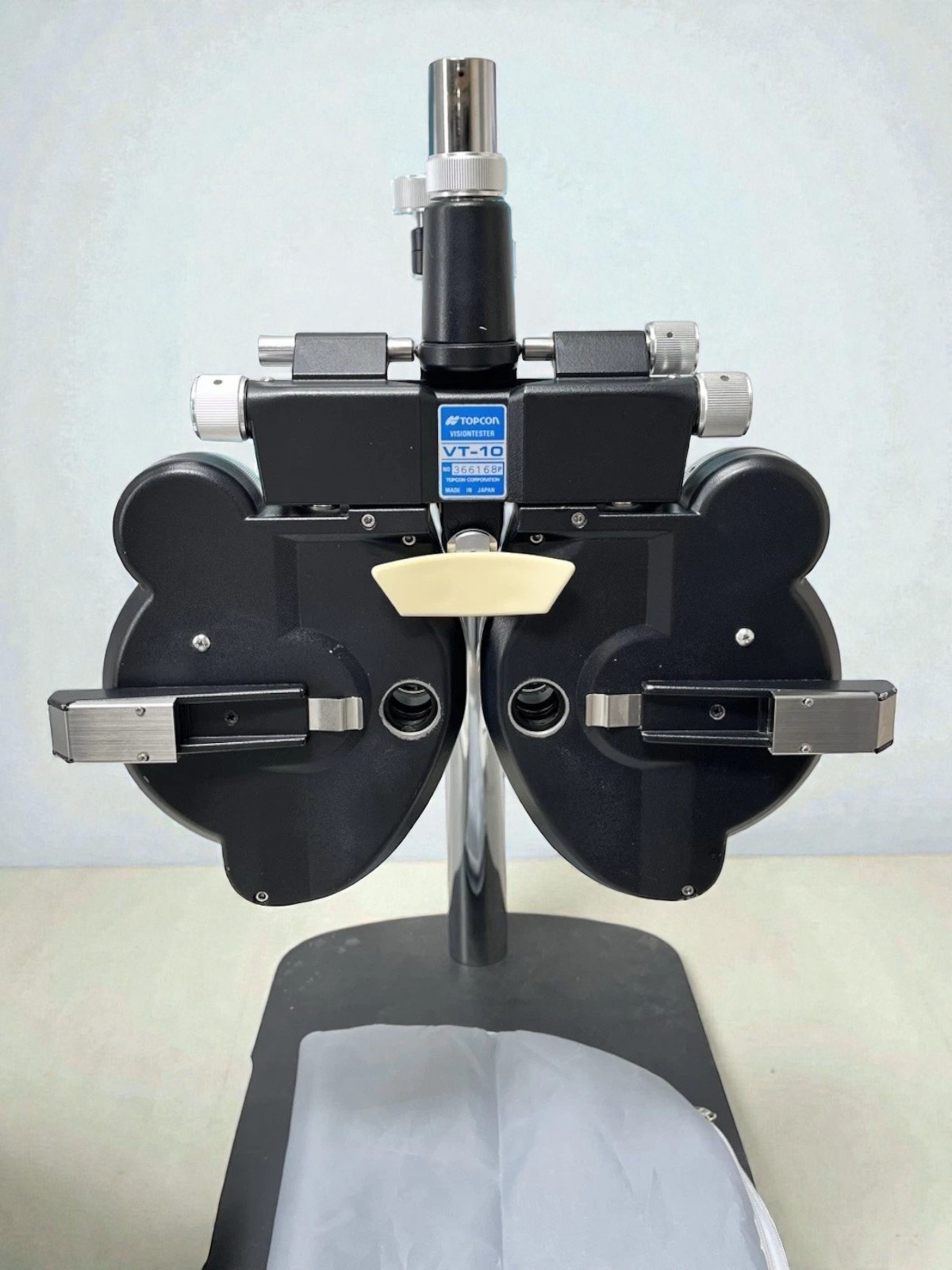

Used. The unit has been checked and fully serviced: all lenses cleaned and the controls lubricated. It is fully operational and shows some signs of prior clinical use. The metal stand holding the phoropter in the photos is not included. Covered by a 90-day warranty on parts and workmanship.

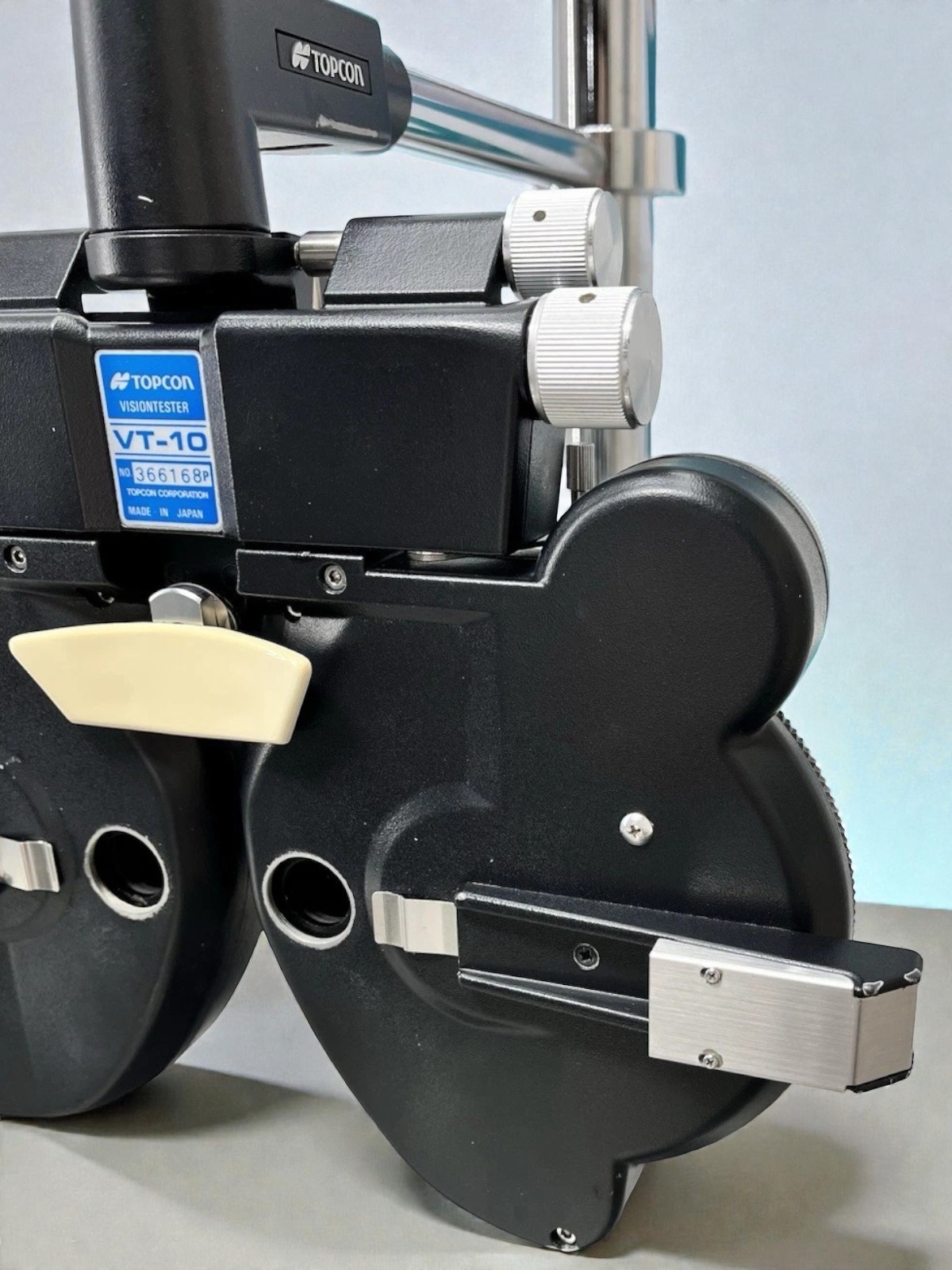

Topcon VT-10 Phoropter (Plus Cylinder) — Used Subjective Refraction Instrument

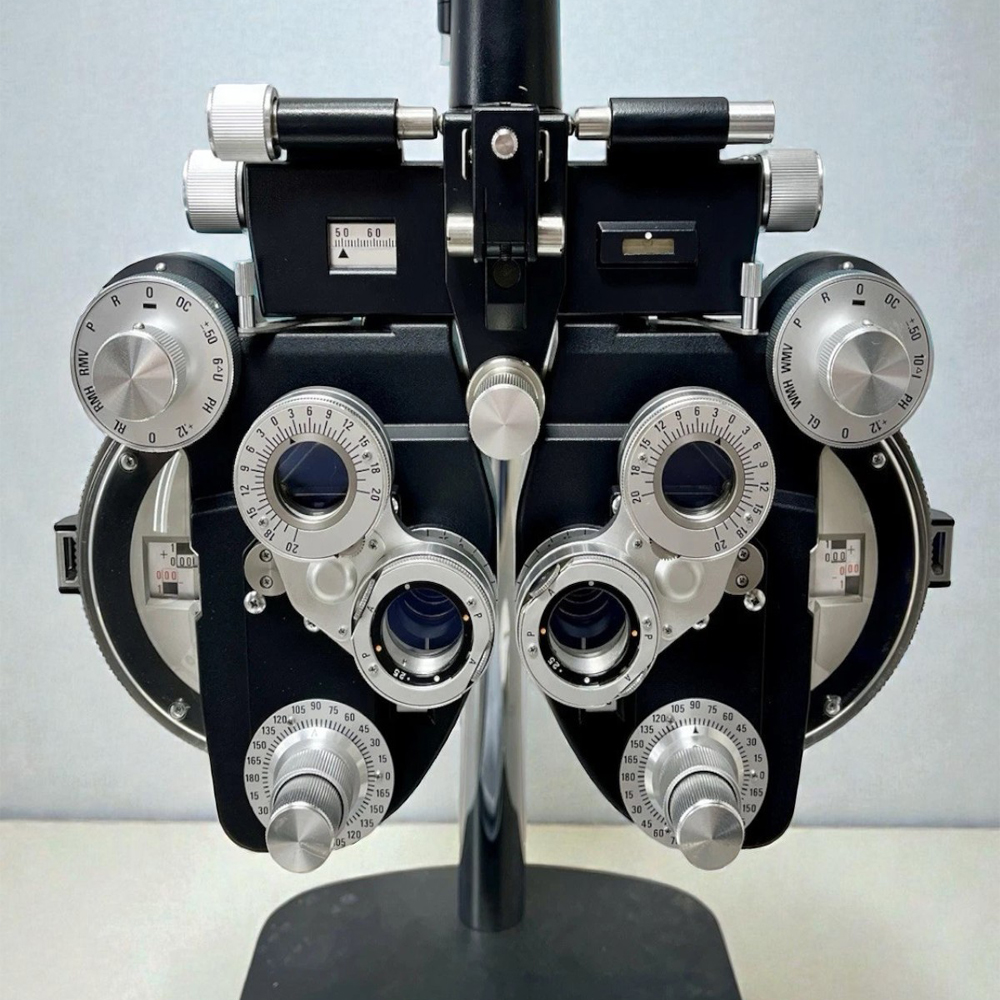

The Topcon VT-10 phoropter delivers precise subjective refraction for optometrists and ophthalmologists who work in plus cylinder. This used Topcon VT-10 phoropter combines multi-coated optics with concentric, low-mounted control knobs, so sphere, cylinder and axis adjustments stay quick and keep the operator’s hands out of the patient’s line of sight. Topcon’s synchronized cross-cylinder gearing rotates the loupe automatically each time the cylinder axis is changed — the signature time-saver of the Topcon VT-10 phoropter design.
Subjective refraction with a phoropter remains the clinical reference for prescribing spectacles; the National Library of Medicine publishes accuracy comparisons of automated refraction systems against conventional subjective refraction, underscoring why a precise manual instrument like the VT-10 stays central to the exam lane.
Why Practices Choose the Topcon VT-10
- Wide sphere range — +16.75 D through 0 to −19.00 D in 0.25 D steps, with a 3.00 D strong-sphere control for fast major adjustments and 0.12 D fine-tuning via auxiliary lens.
- Plus-cylinder format — cylinder power to 6.00 D in 0.25 D steps, extendable to 8.00 D with an auxiliary lens.
- Synchronized cross-cylinder — special gearing rotates the Jackson cross-cylinder loupe with every axis change, so a full axis check is read on a single scale.
- Bi-loupe turret — index the power or axis cross-cylinder loupe with a single touch.

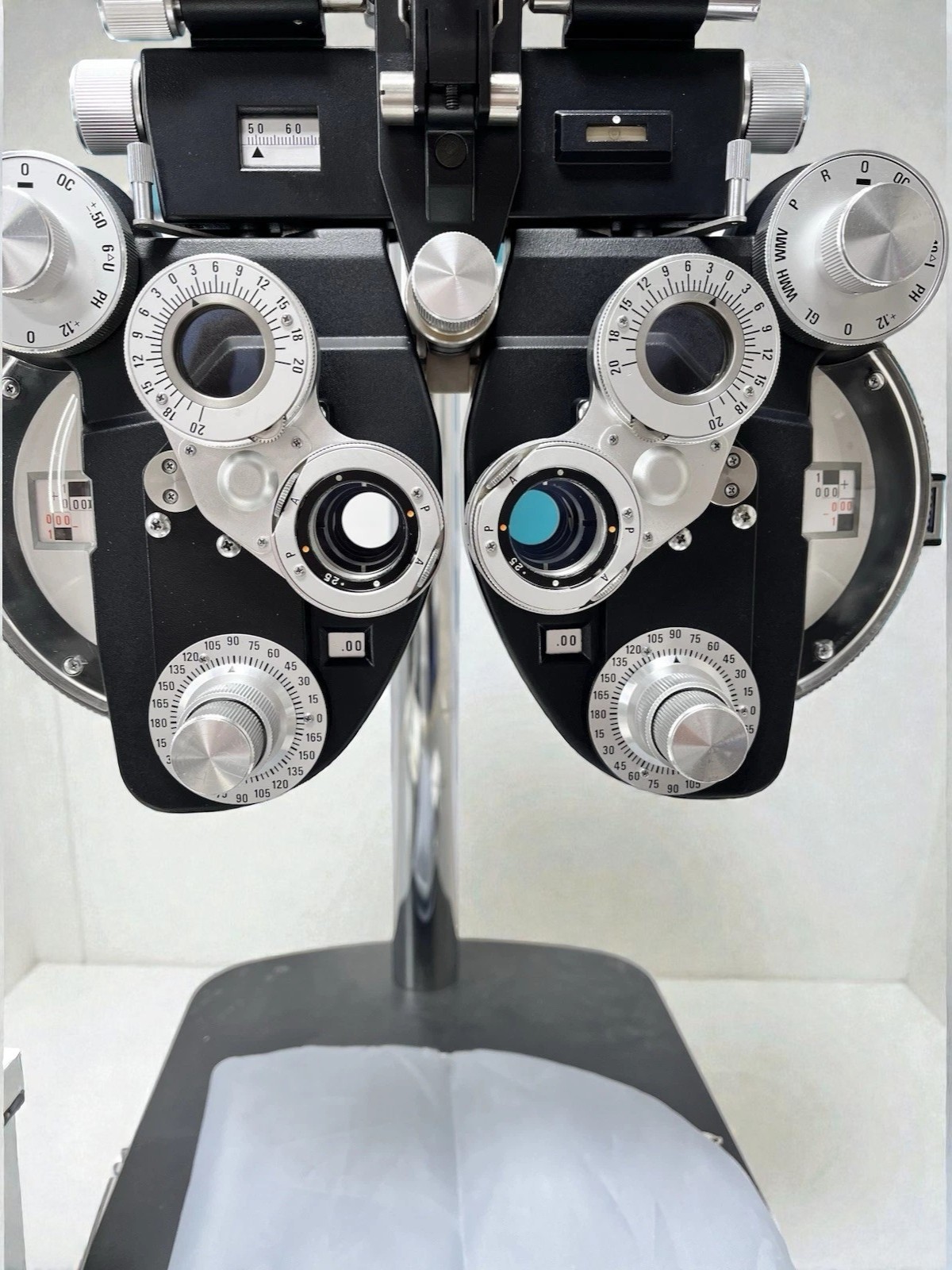

- 10 auxiliary lenses plus two open apertures — including red/green filters for binocular testing, each indexed into position with one touch.
- Rotary prism — precision-geared 20Δ range in 1Δ increments for phoria and vergence testing.
- PD range 48–75 mm — sealed mechanism with 1 mm graduations and convergence levers for near testing.
Clinical Applications
- Routine distance and near subjective refraction for spectacle prescriptions.
- Cylinder axis and power refinement using the synchronized Jackson cross-cylinder.
- Binocular balance, phoria and vergence measurement with the rotary prisms.
- Retinoscopy with the axis scale at the main aperture for quick reference.
- Contact lens over-refraction and low-vision workups.
Who This Is For
- Optometry and ophthalmology practices that prescribe in plus cylinder.
- Clinics adding a dependable second refraction lane at a used-equipment price.
- New or satellite offices building out an exam lane without the cost of a digital refractor.
Technical Specifications
| Specification | Detail |
| Type | Manual phoropter / vision tester, plus cylinder |
| Sphere range | +16.75 D to −19.00 D (0.25 D steps; 3.00 D strong sphere; 0.12 D auxiliary) |
| Cylinder range | 0 to 6.00 D (0.25 D steps); to 8.00 D with auxiliary lens |
| Cylinder axis scale | 360° control, 5° increments with 15° markings |
| Cross-cylinder | ±0.25 D, synchronized with cylinder axis |
| Rotary prism | 0–20Δ (1Δ increments) |
| PD range | 48–75 mm (1 mm graduations) |
| Auxiliary lenses | 10 lenses plus two open apertures |
| Condition | Used — serviced, fully operational |
| Warranty | 90-day Digital Eye Center warranty |
Compare Phoropter Options
| Feature | Topcon VT-10 Plus | Topcon VT-10 Minus | Reichert 11635 | Marco RT-700-LED |
| Cylinder format | Plus | Minus | Plus | Plus |
| Cylinder range | 6.00 D | 6.00 D | 6.00 D | 6.00 D (8.00 D with aux.) |
| Internal illumination | No | No | No | LED |
| PD range | 48–75 mm | 48–75 mm | 48–75 mm | 48–75 mm |
| Condition | Used | Used | Used | Brand new |
| Price | $2,530 | $2,200 | $2,750 | $3,080 |
Also consider the Topcon VT-10 Minus Cylinder if your practice refracts in minus cylinder, or the Marco RT-700-LED for an illuminated plus-cylinder alternative.
Questions about the Topcon VT-10 phoropter? Contact us for availability and shipping details.
