Description

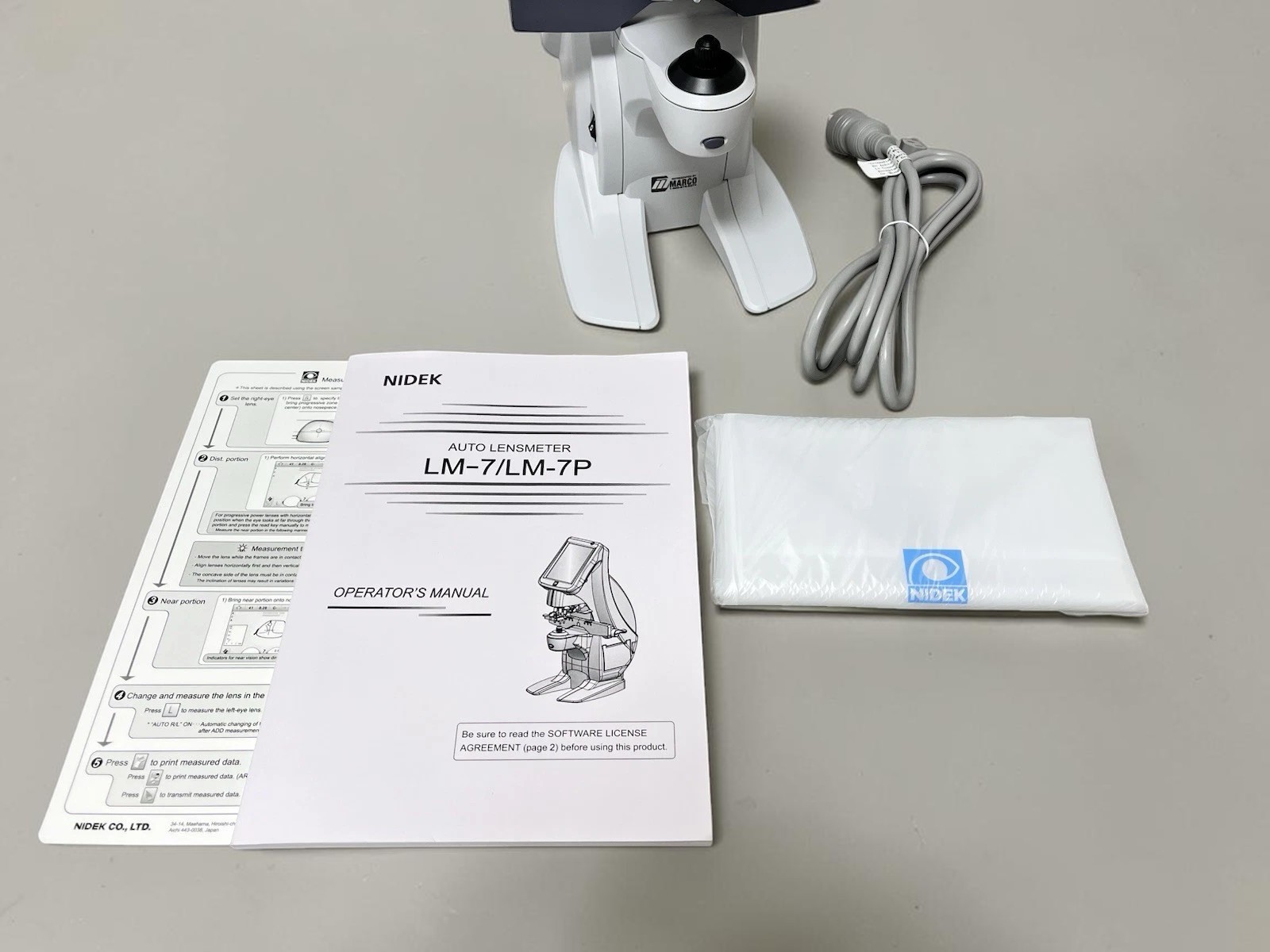

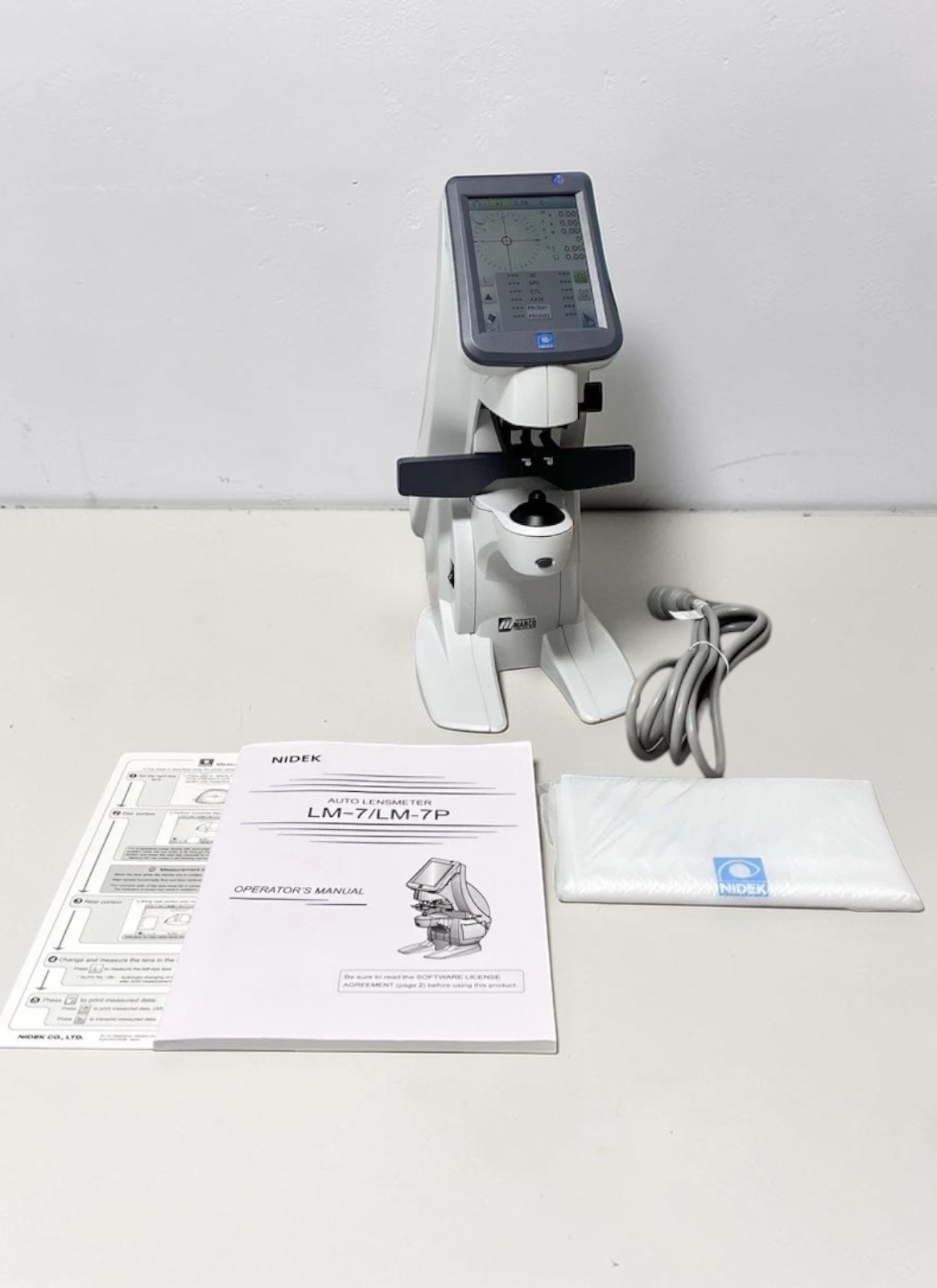

What’s Included
- Nidek LM-7 auto lensmeter main unit
- Operator’s manual
- Quick reference card
- Dust cover
- Power cord
- 90-day Digital Eye Center warranty
Condition & Warranty

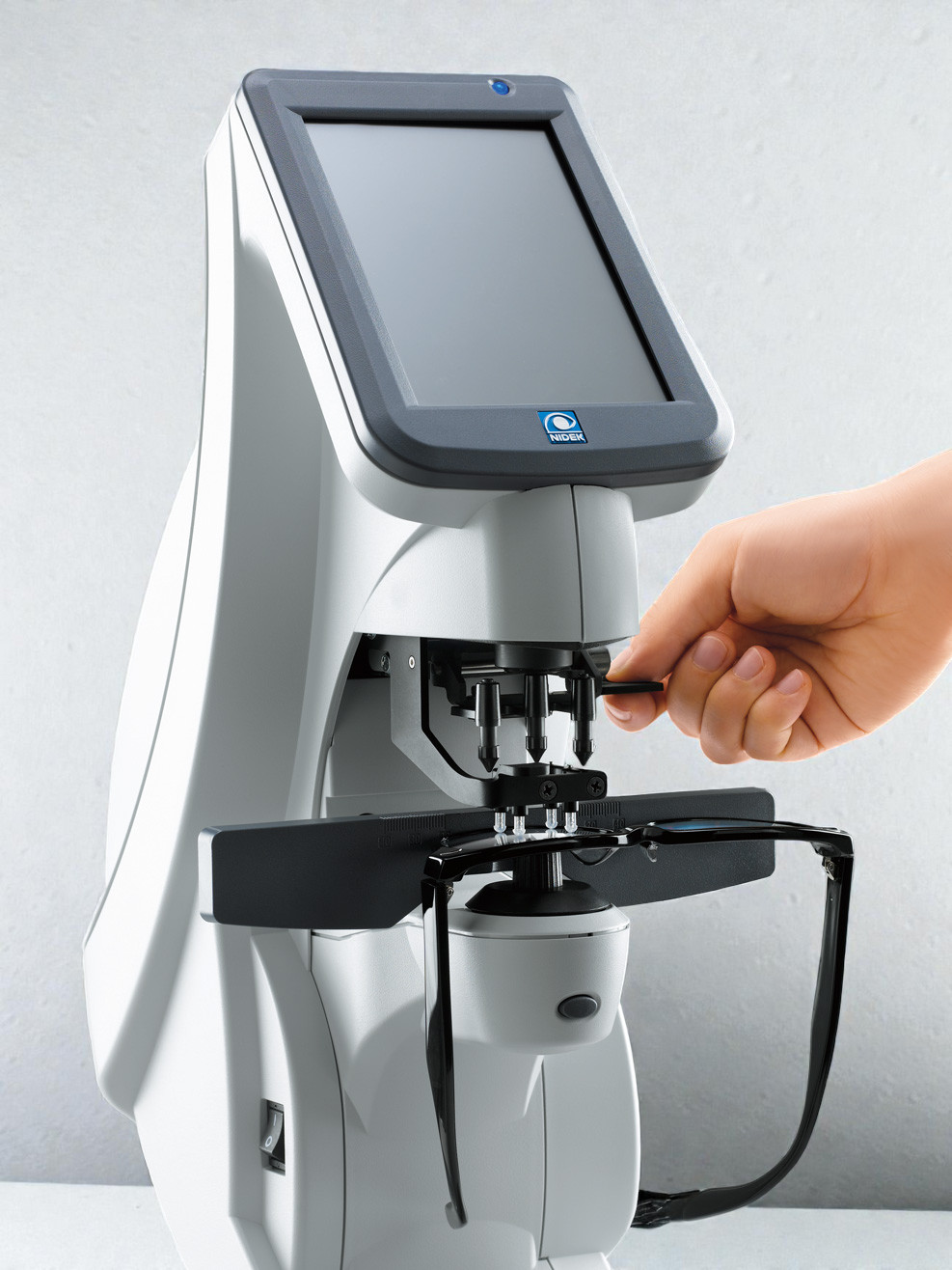

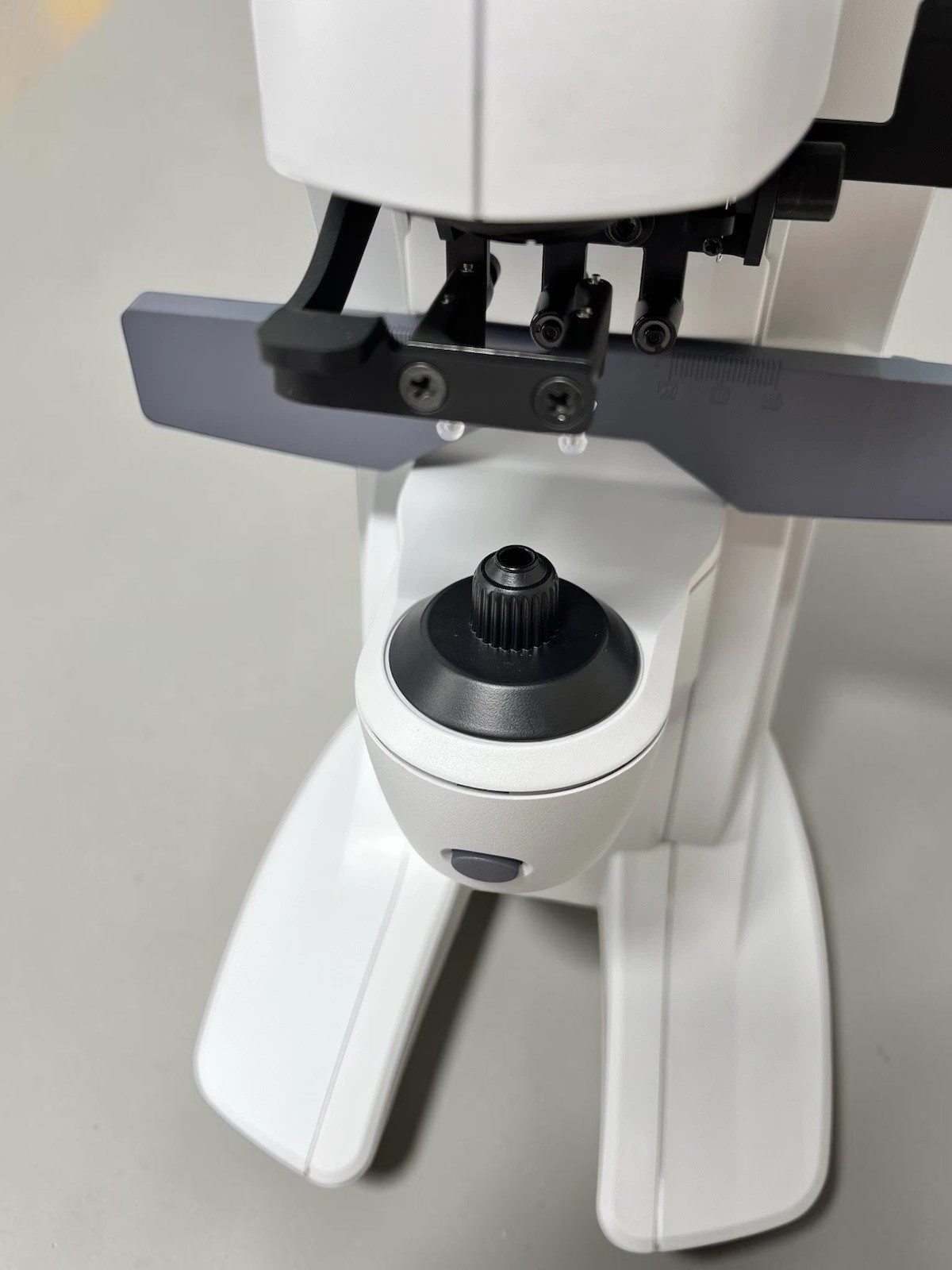

Used. This Nidek LM-7 has been inspected and powered on, with the color touchscreen, Hartmann-sensor measurement, and lens marking mechanism confirmed in good working order; it shows cosmetic signs of prior clinical use. Every unit is tested before shipment. Covered by a 90-day warranty on parts and workmanship.

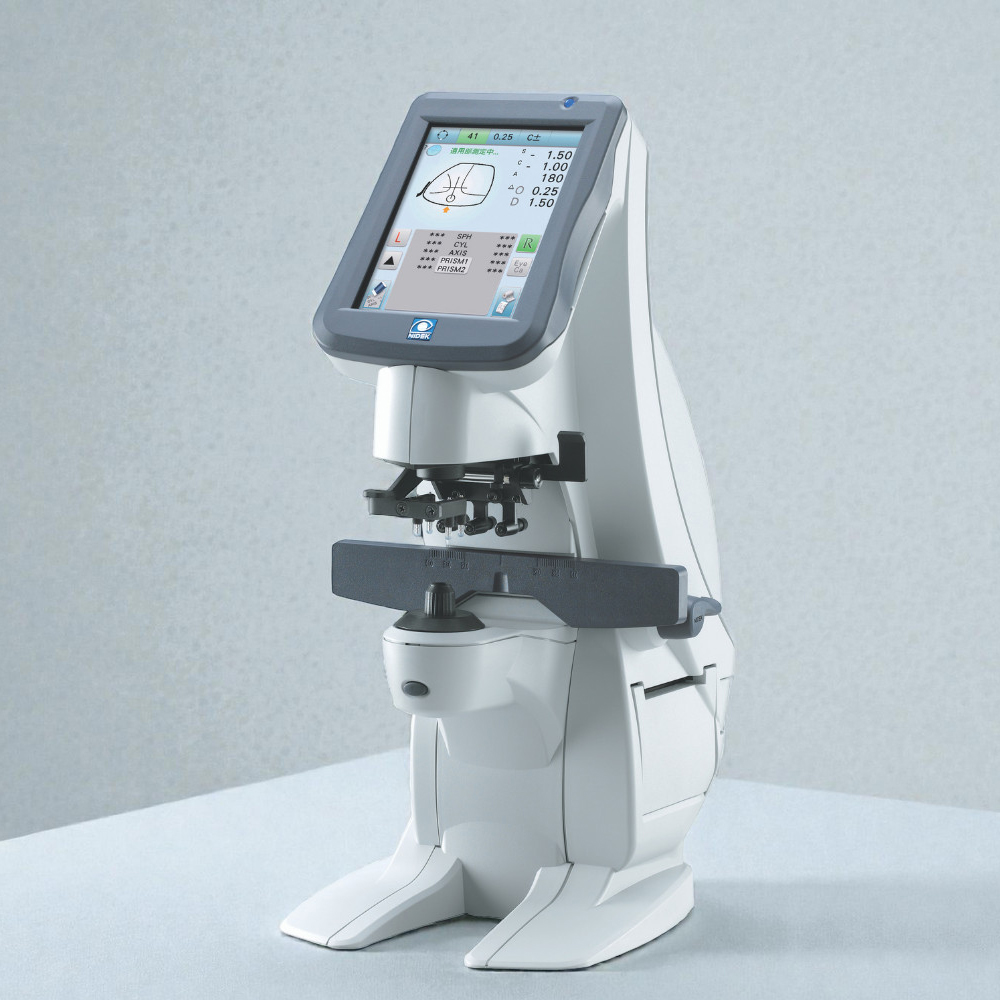

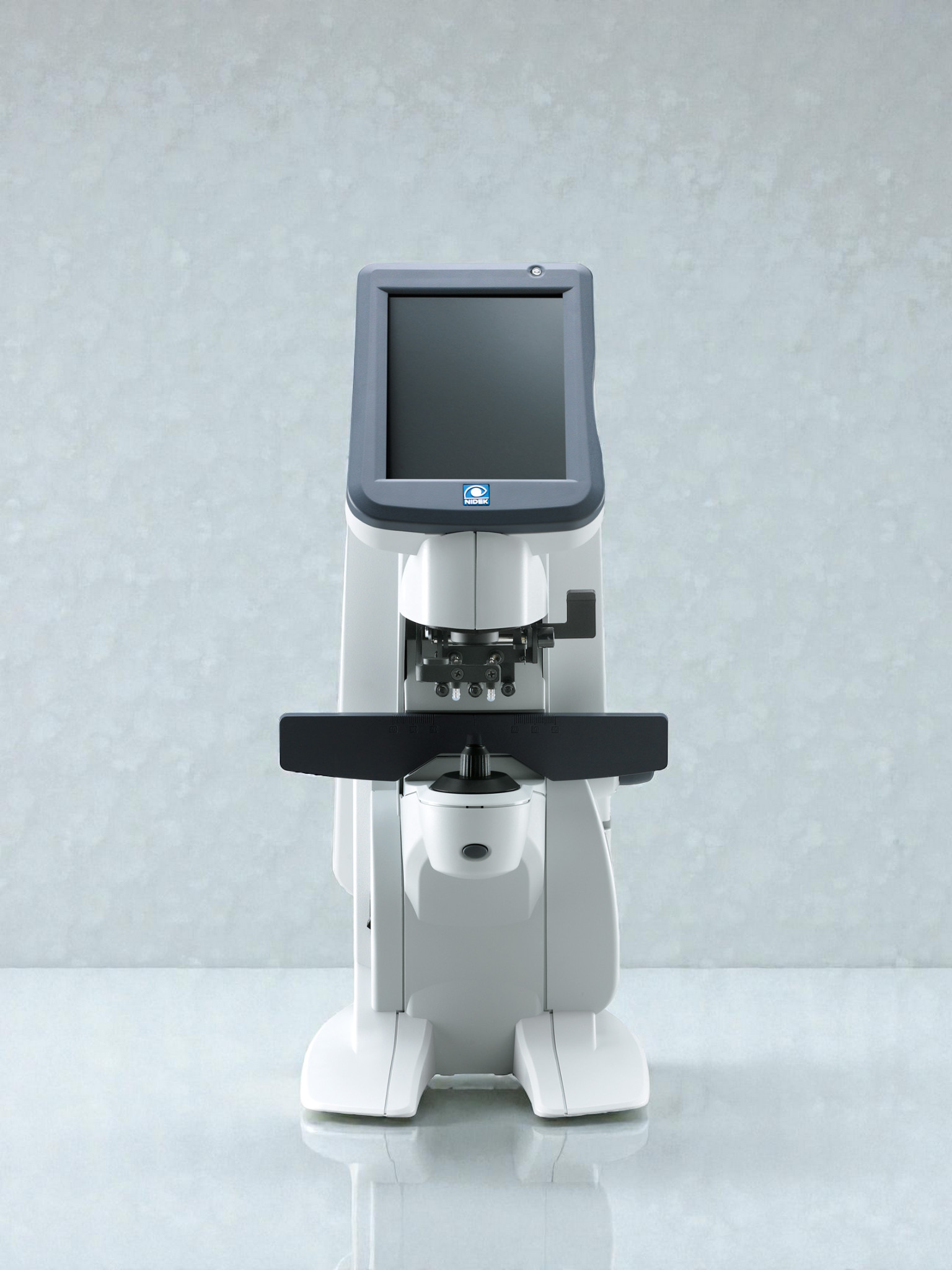

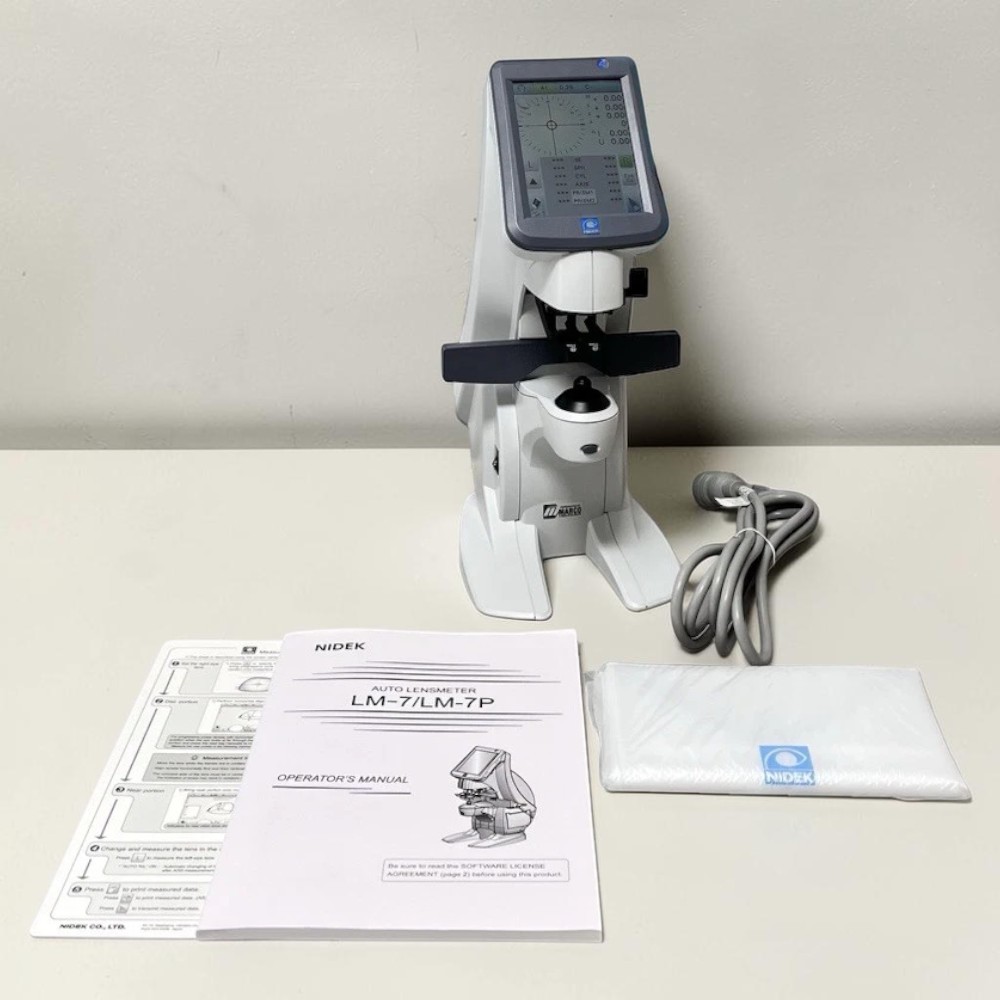

Nidek LM-7 Auto Lensmeter — Used Automated Lensmeter

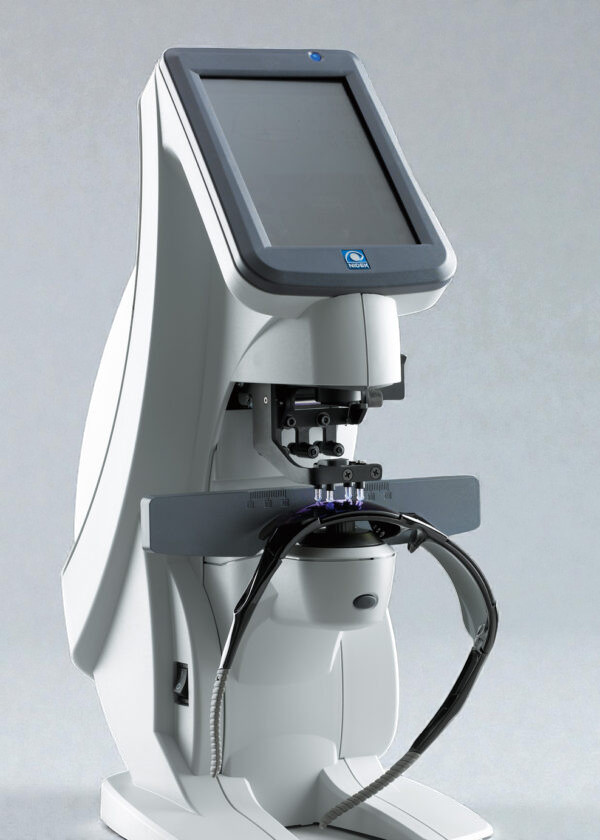

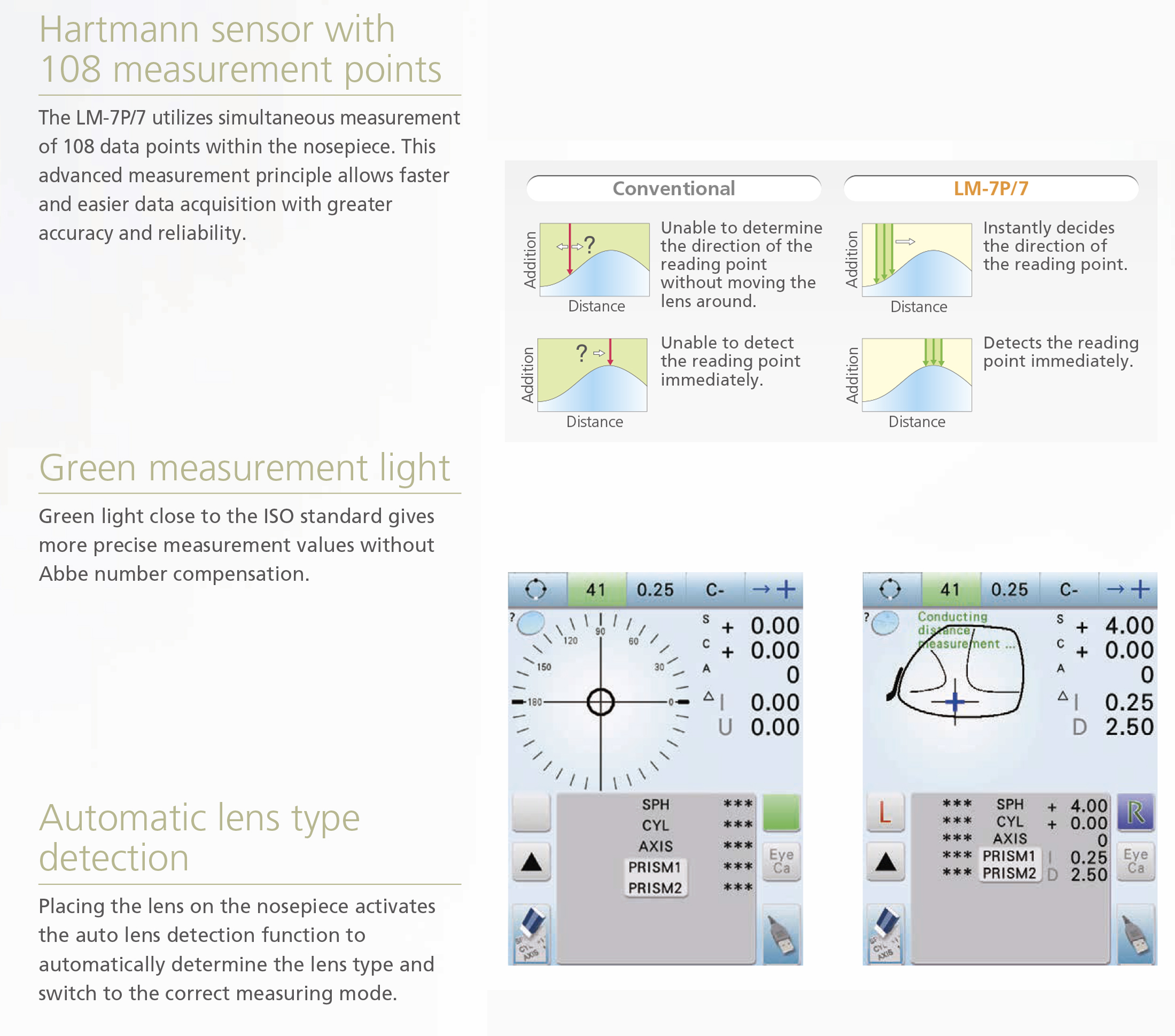

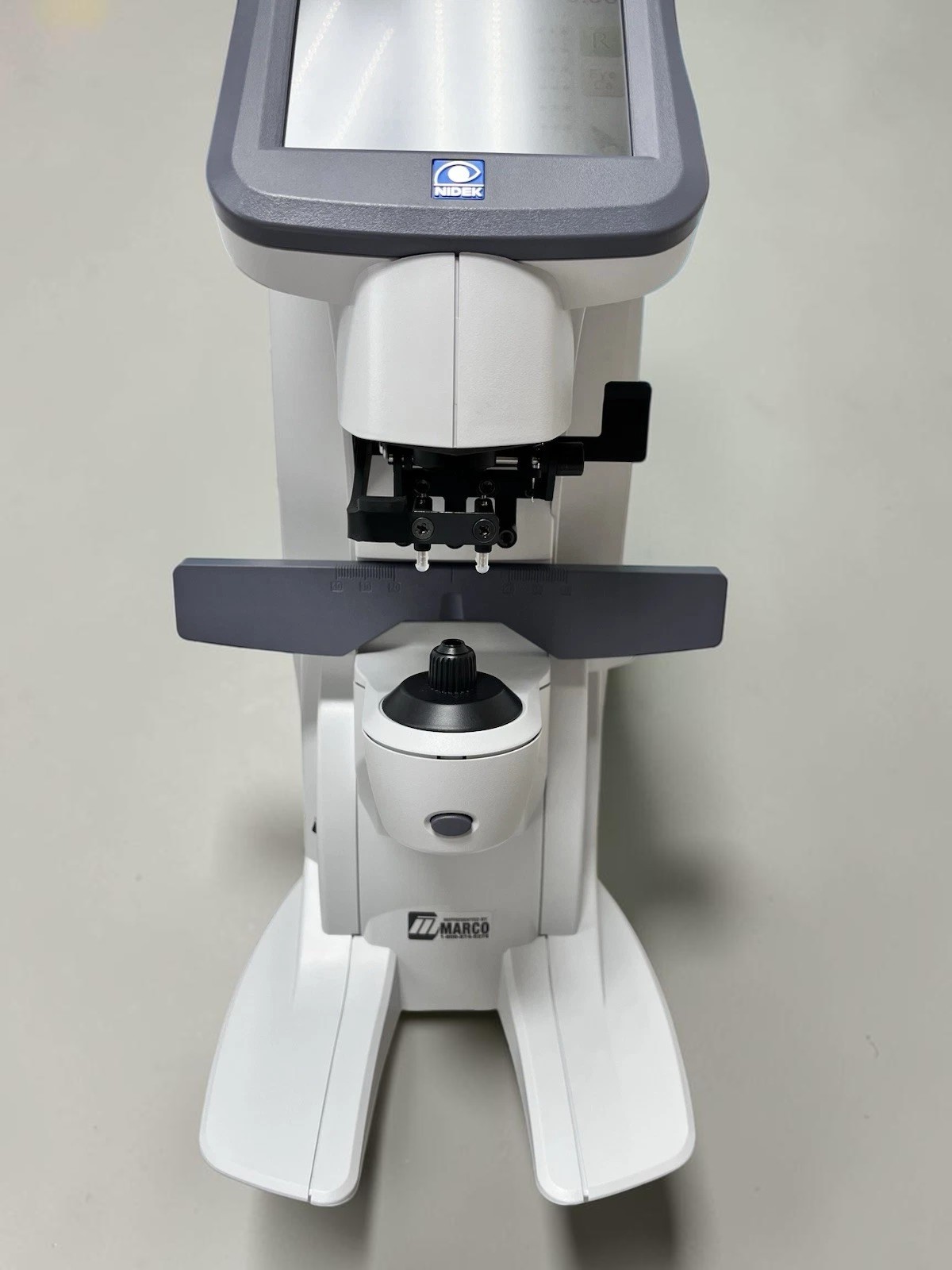

The Nidek LM-7 auto lensmeter is a compact, vertically designed automated lensmeter built to speed up daily lens verification in any optical dispensary or pre-testing lane. At the heart of this used Nidek LM-7 auto lensmeter is a Hartmann sensor that reads 108 measurement points simultaneously inside the nosepiece, capturing sphere, cylinder, axis, ADD, and prism in a single quick step with strong repeatability. Placing a lens on the stage triggers automatic lens-type detection, so the instrument switches to the correct single-vision, bifocal, or progressive mode on its own.

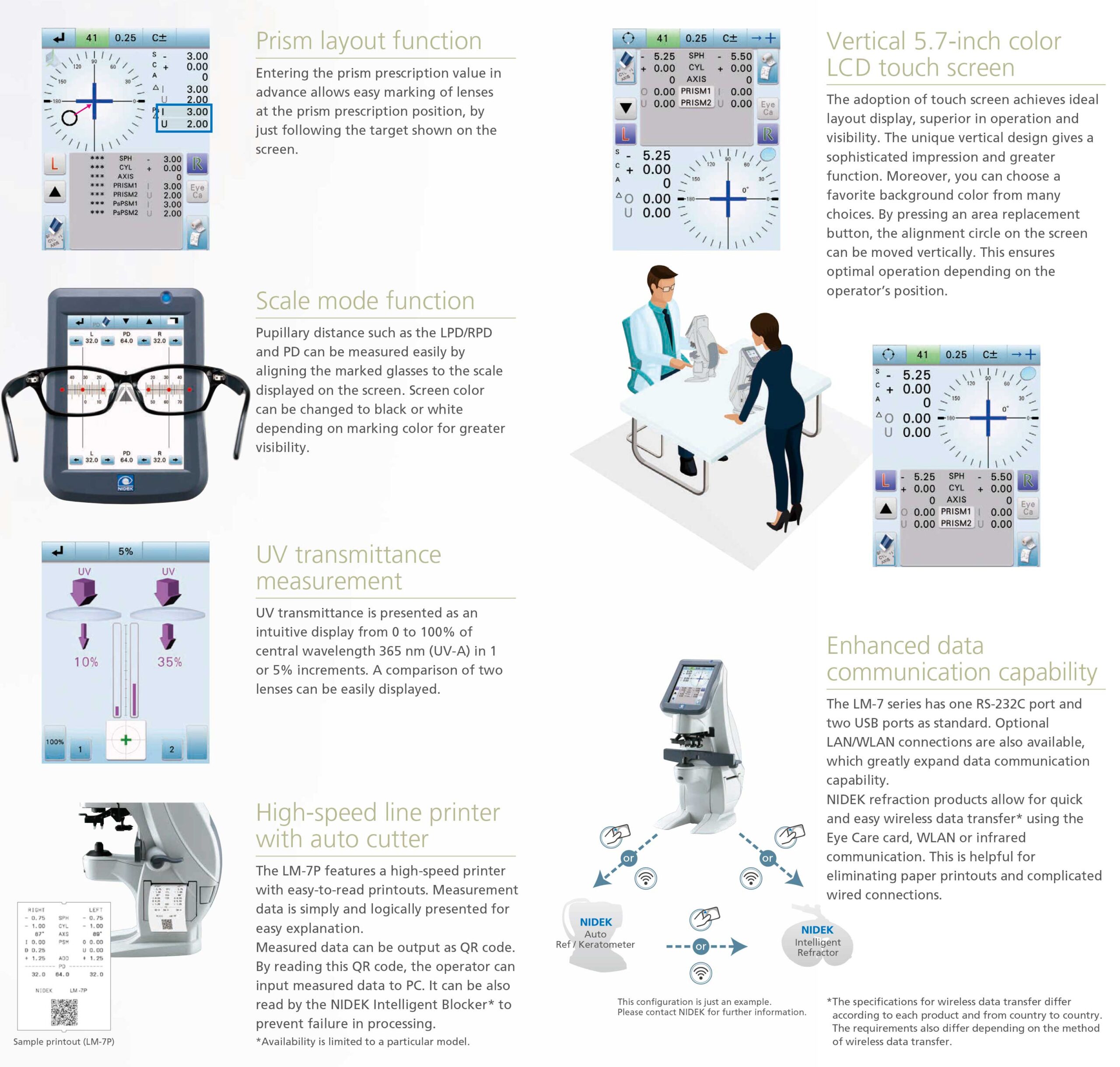

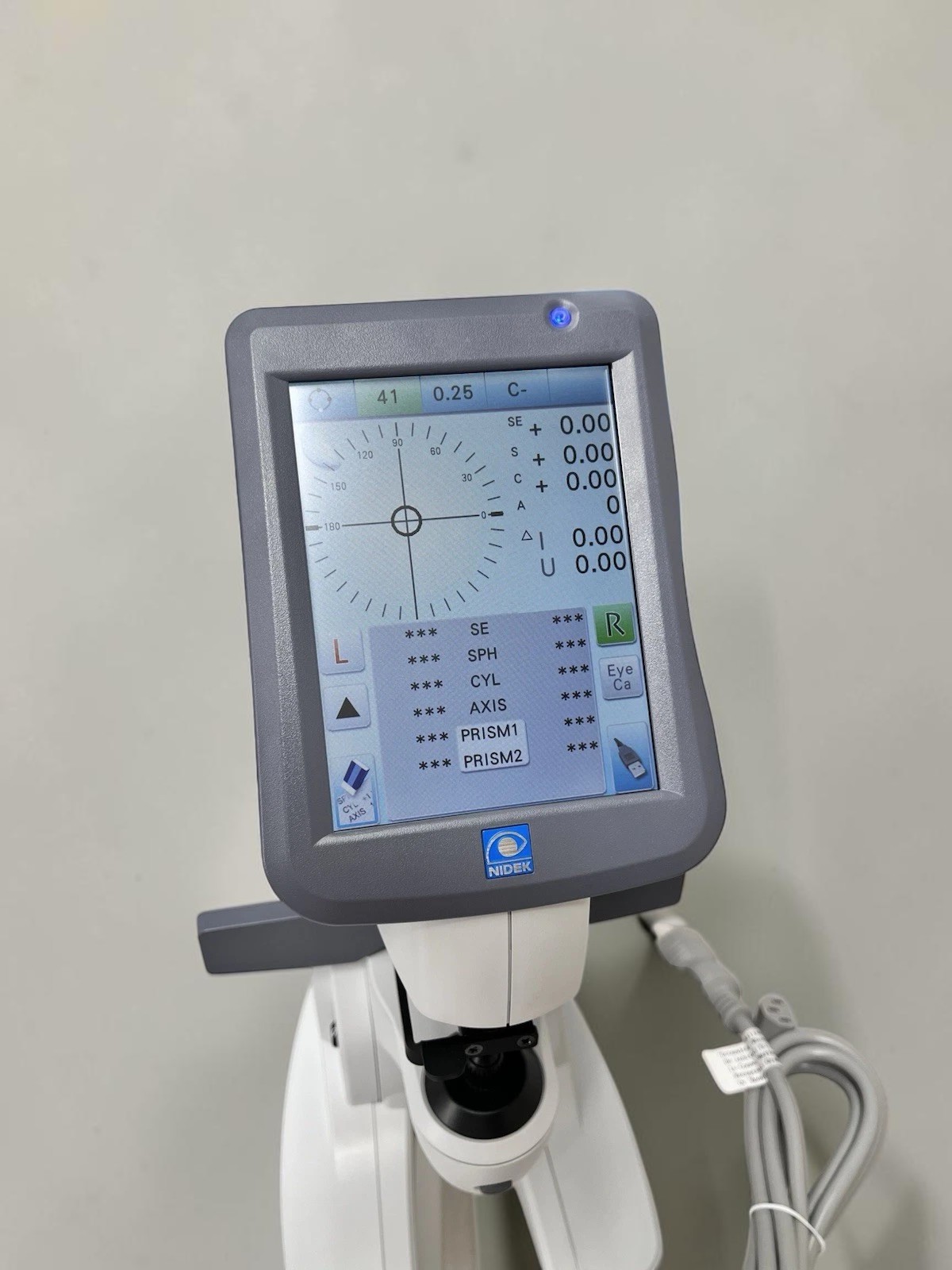

Results appear on a vertical 5.7-inch color LCD touchscreen with an uncluttered layout, and the unit reads spectacle lenses across a sphere range of -25 to +25 D and a cylinder range of 0 to ±10 D. UV transmittance is displayed from 0 to 100% at a central wavelength of 365 nm, and the built-in scale mode measures monocular and binocular PD by aligning marked glasses to the on-screen scale. Data moves out through one RS-232C port and two USB ports for connection to an edger, refraction system, or EMR.
Independent testing supports the role of automated focimeters in reliable lens power verification — the National Library of Medicine reports on the accuracy of automated focimeters for measuring spectacle lens power.
Why Practices Choose the Nidek LM-7
- 108-point Hartmann sensor — simultaneous multi-point measurement for fast, repeatable sphere, cylinder, axis, ADD, and prism readings.
- Automatic lens-type detection — the instrument identifies single-vision, bifocal, and progressive lenses and switches modes without operator input.
- Vertical 5.7-inch color touchscreen — a space-saving footprint with a clear, tap-driven interface.
- UV transmittance measurement — reports UV-A (365 nm) transmittance from 0 to 100% for lens quality checks.

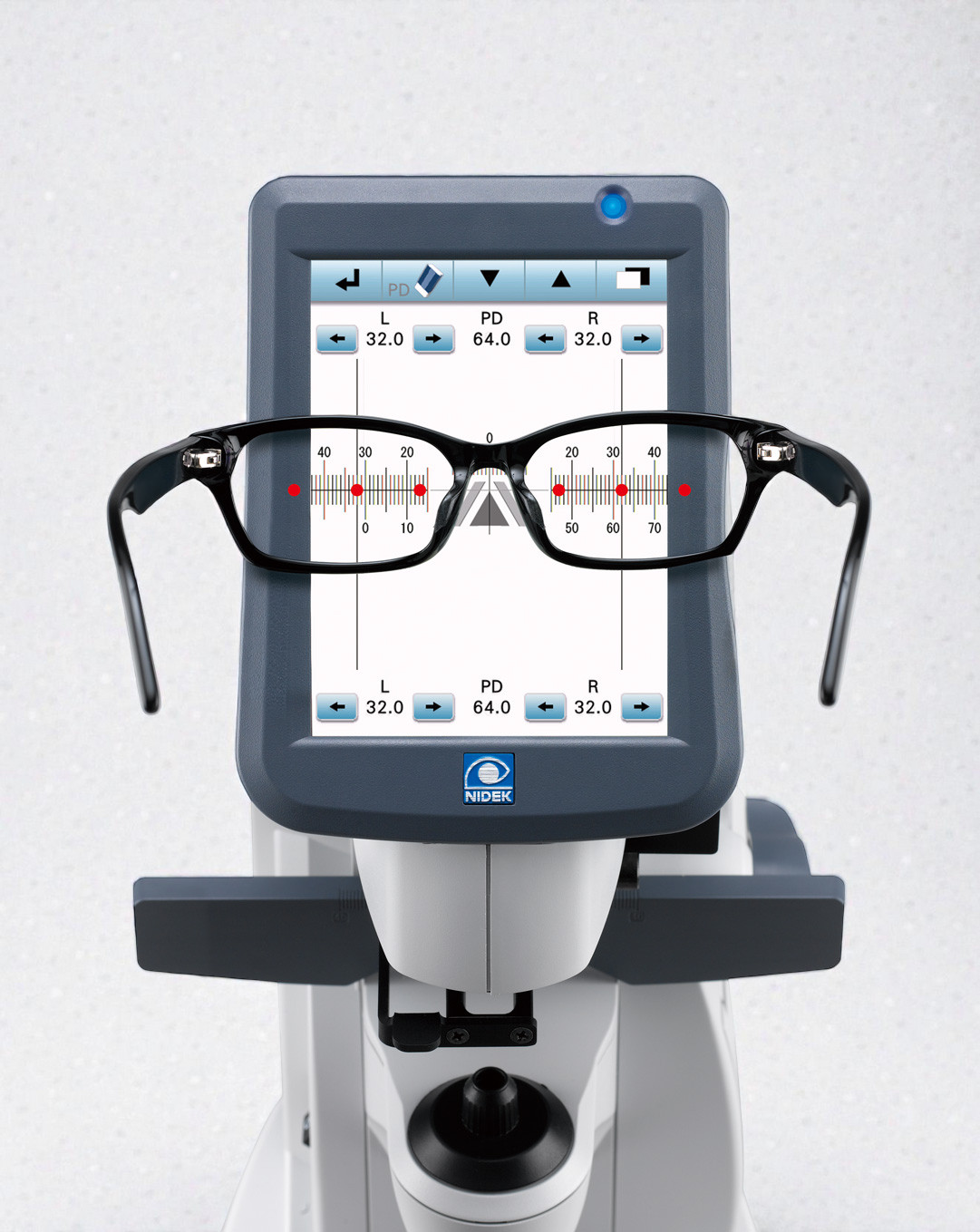

- Scale-mode PD measurement — monocular and binocular pupillary distance read directly on screen.
- Flexible data output — one RS-232C and two USB ports connect the LM-7 to edgers, refraction systems, and record software.
See the Nidek LM-7 in Action
An independent hands-on look at the Nidek LM-7 auto lensmeter reading spectacle lens power on its touchscreen.
Clinical Applications
- Verifying incoming spectacle prescriptions before dispensing.
- Neutralizing single-vision, bifocal, and progressive lenses quickly.
- Confirming prism and axis on remakes and warranty claims.
- Checking UV transmittance and lens quality at intake.
- Measuring monocular and binocular PD from finished eyewear.
Who This Is For
- Optical dispensaries and retail optical shops handling high lens volume.
- Optometry and ophthalmology practices running an in-house pre-testing lane.
- Lens finishing labs that need reliable neutralization before edging.
- Mobile and satellite clinics needing a compact, all-in-one lensmeter.
Technical Specifications
| Specification | Detail |
| Measurement principle | Hartmann sensor, 108 simultaneous measurement points |
| Measured parameters | Sphere, cylinder, axis, ADD, prism, UV transmittance, PD |
| Sphere range | -25 to +25 D (spectacle lenses) |
| Cylinder range | 0 to ±10 D |
| Lens-type detection | Automatic (single-vision, bifocal, progressive) |
| UV transmittance | 0 to 100% at central wavelength 365 nm (UV-A) |
| PD measurement | Monocular and binocular, scale mode |
| Display | Vertical 5.7-inch color LCD touchscreen |
| Data output | 1× RS-232C, 2× USB (optional LAN/WLAN) |
| Condition | Used |
| Warranty | 90 days, parts and workmanship |
Compare Auto Lensmeter Options
| Feature | Nidek LM-7 | Topcon CL-300 | Tomey TL-2000C |
| Measurement | Hartmann sensor, 108 points | Computerized auto | Automated |
| Display | 5.7″ vertical color touchscreen | Color LCD touch panel | 5.7″ tiltable touch panel |
| Reads | Sph, Cyl, Axis, ADD, Prism, UV, PD | Sph, Cyl, Axis (SV/PAL/CL) | Sph, Cyl, Axis, Prism, ADD, UV |
| Built-in printer | No (RS-232C + USB output) | Yes | — |
| Condition | Used | Used | Used |
| Warranty | 90 days | 90 days | 90 days |
| Price | $2,750 | $3,300 | $2,750 |
Also consider the Topcon CL-300 if you want a built-in printer, or the Reichert AL-700 as a lower-cost alternative.
