Description

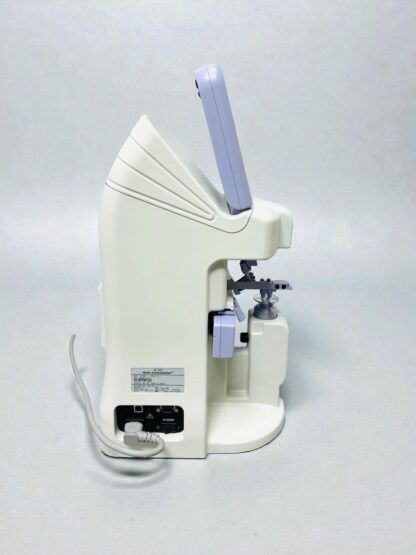

The Reichert AL700 Auto Lensometer is engineered to deliver fast, accurate, and reliable measurements of spectacle lenses, including single vision, bifocal, progressive, and prism lenses. With a vertical-space-saving configuration and intuitive colour tilt-screen display, the AL700 simplifies your workflow: place the lens on the table, and the instrument automatically detects the power and additional lens parameters.
It features UV transmittance measurement, pupillary distance (PD) measurement, contact-lens (hard and soft) compatibility, data output via printer/USB/RS-232C, and optional EMR integration. Designed for modern optometry and ophthalmic practices, it combines precision optics with digital convenience.
Specifications
| Spherical Power Measurement Range | –25 D to +25 D (0.01 / 0.12 / 0.25 D steps) |
| Cylinder Power Range | 0 D to ±10 D (0.01 / 0.12 / 0.25 D steps) |
| Axis Range | 0° to 180° (1° steps) |
| Addition (ADD) Range | 0 D to ±10 D (0.01 / 0.12 / 0.25 D steps) |
| Prism Measurement Range | 0 to 10 ∆ (0.01 / 0.12 / 0.25 D steps) |
| UV Transmittance Measurement | 0 % to 100 % (1 % increments) |
| UV Transmittance Wavelength | 375 nm |
| Lens Power Measuring Wavelength | 630 nm |
| Pupillary Distance (PD) Range | 45 mm to 85 mm (0.5 mm steps) |
| Unprocessed Lens Diameter | Up to 100 mm |
| Display | 5.7″ (14.5 cm) colour LCD monitor |
| Built-in Printer | Thermal printer – paper width 2.3″ (5.8 cm) |
| External Interface | USB and RS-232C ports |
| Power Requirements | 100-240 VAC, 50/60 Hz, 60 VA |
| Dimensions (H×D×W) | 20″ H × 11″ D × 8.6″ W (50.7 cm × 28 cm × 21.8 cm) |
| Weight | 15 lbs (6.8 kg) |
| Measurement Modes | Single Vision, Bifocal, Progressive, Prism, UV Transmittance, Hard & Soft Contact Lenses |
| Orientation / Form Factor | Vertical space-saving design with tilt colour screen for standing or seated use |
