Description

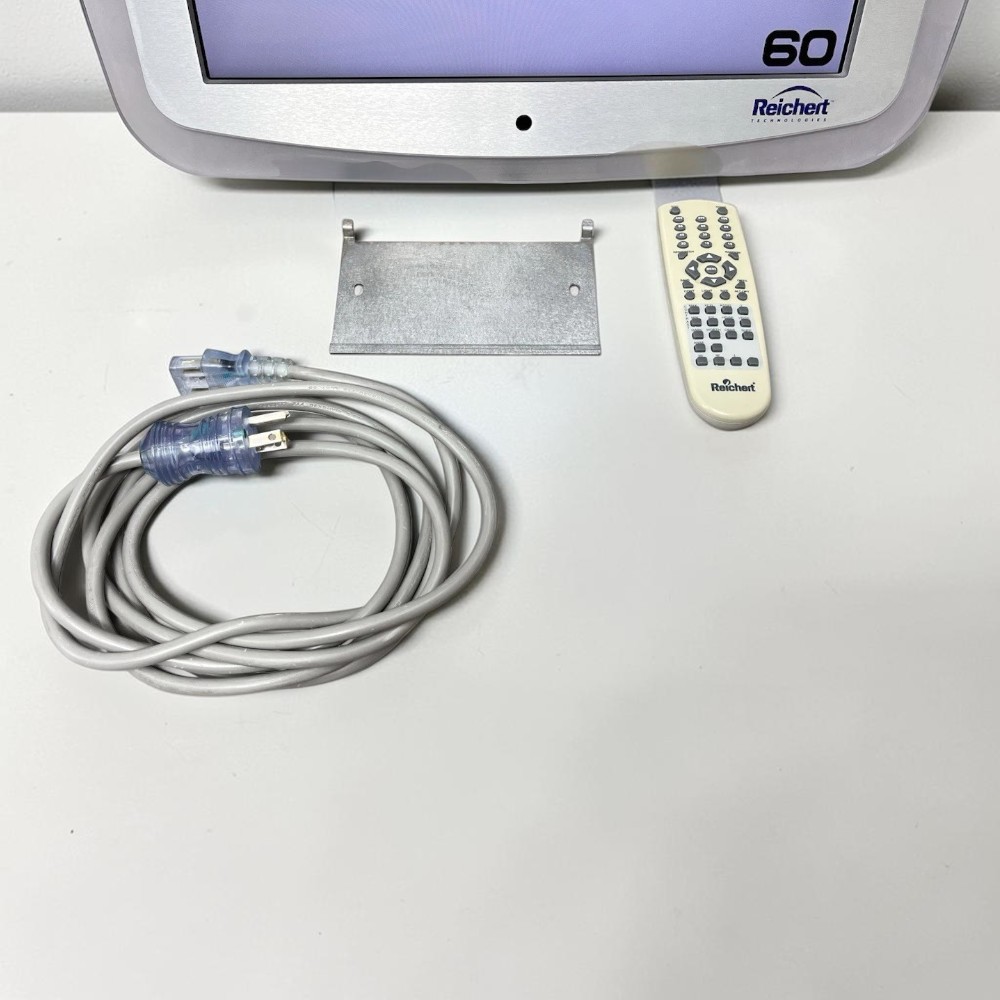

What’s Included
- Reichert ClearChart 2 digital acuity display unit
- Wall mount bracket

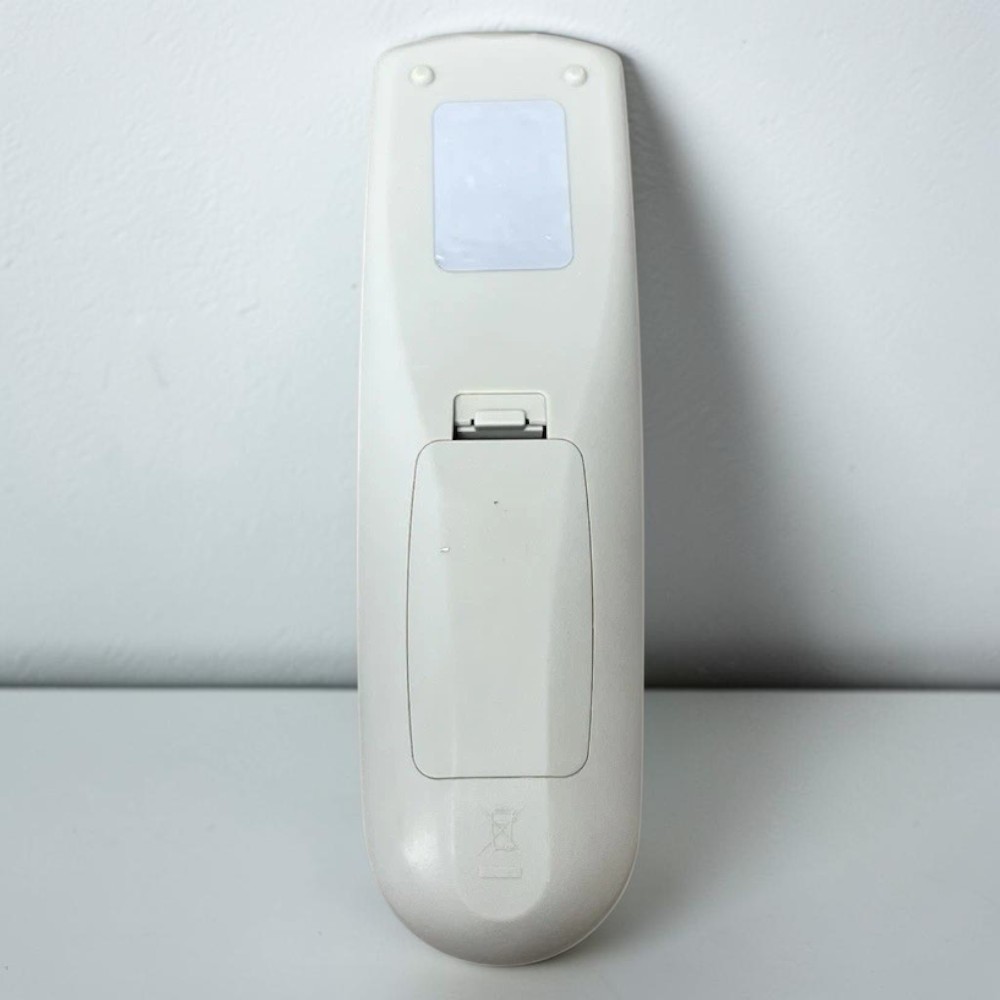

- Infrared remote control
- Power cable
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. Tested and confirmed in excellent working order; the LCD display, onboard software, and infrared remote were all verified functional, and the unit has been cleaned. Some cosmetic signs of use may be visible in the product photos. Covered by a 90-day warranty on parts and workmanship.

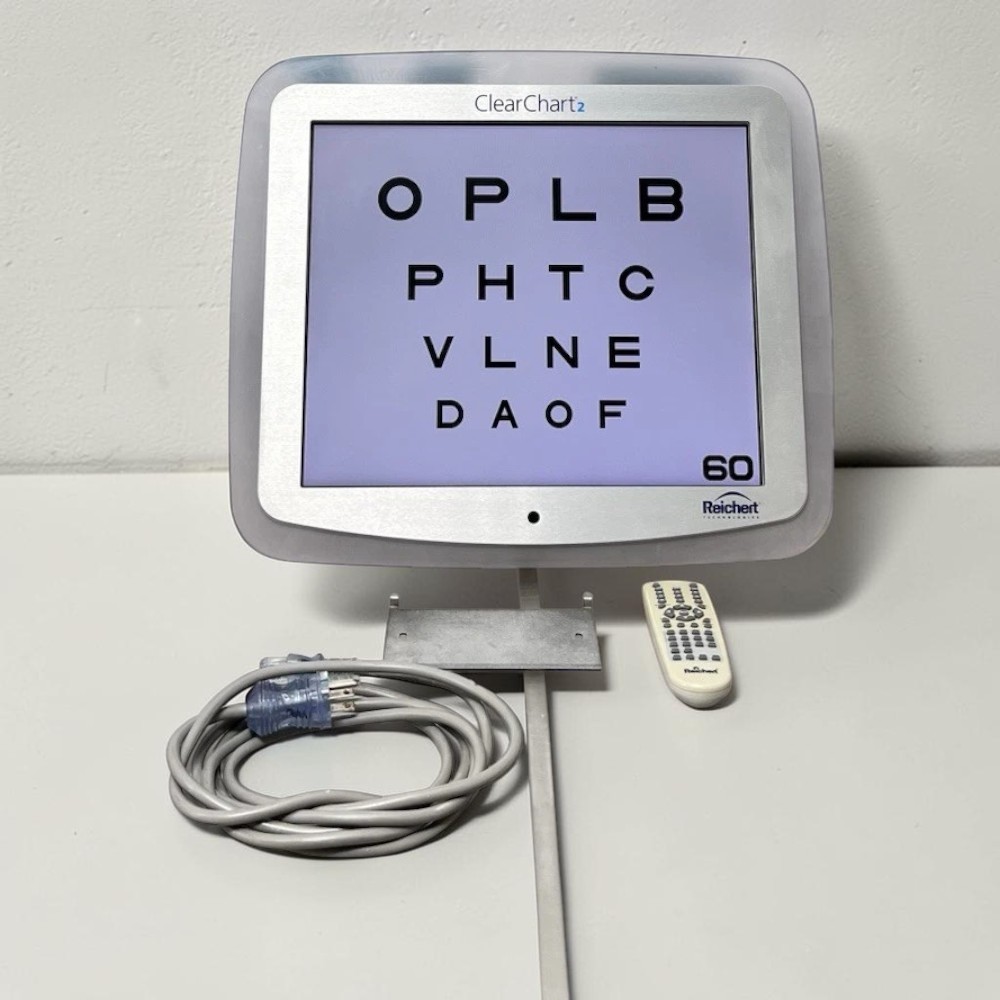

Reichert ClearChart 2 Digital Acuity System — Used

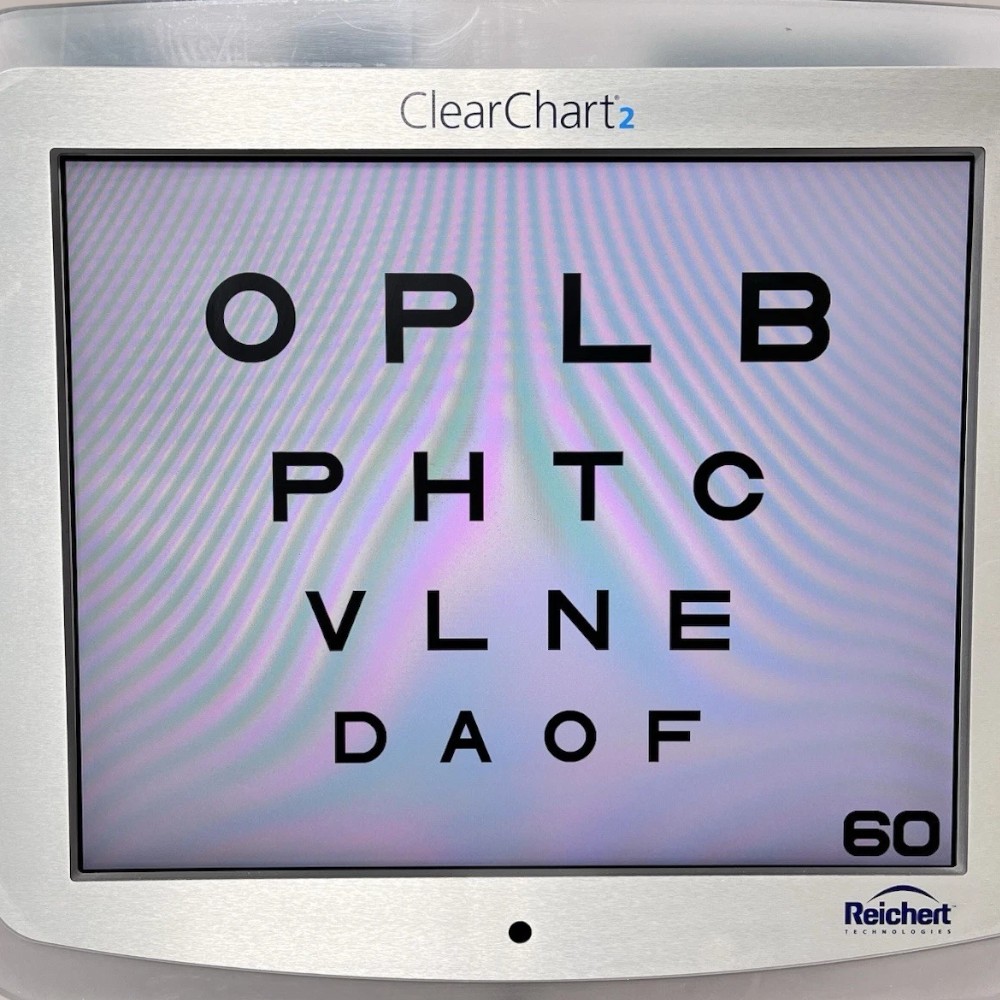

The Reichert ClearChart 2 Digital Acuity System is a self-contained digital acuity chart built for optometry and ophthalmology exam lanes. Its 19-inch LED-backlit LCD runs on a dedicated operating system with no separate PC, hard drive, or cooling fans required — simply wall-mount the unit, plug it in, and start testing. The Reichert ClearChart 2 renders sharp optotypes at up to 220 cd/m² illumination across a 6 to 31 foot refraction range.
The infrared remote gives the examiner full control from anywhere in the room, cycling through chart types, test modes, and patient-education content without walking back to the unit. The system carries a comprehensive optotype library — 17-letter and 8-letter Sloan sets, HOTV, Landolt C, Landolt C and O, and Tumbling E, plus three pediatric symbol sets — with random sequencing to prevent memorization. Built-in contrast sensitivity testing uses sine-wave gratings and contrast optotypes, and the system is ETDRS protocol compliant.
A National Library of Medicine-indexed study reports that a digital acuity chart produces best-corrected visual acuity estimates clinically comparable to the printed ETDRS chart, supporting the digital-lane workflow the ClearChart 2 was designed for.
Why Practices Choose the Reichert ClearChart 2
- All-in-one design — 19-inch LED-backlit LCD with no external PC, hard drive, or cooling fans for quiet, reliable operation
- 220 cd/m² illumination — bright, even luminance for consistent optotype contrast
- 6 to 31 ft refraction range — fits both direct-view and mirrored exam lanes
- Full optotype library — Sloan, HOTV, Landolt C, and Tumbling E, plus three pediatric symbol sets with random sequencing
- Built-in contrast sensitivity — sine-wave grating and contrast acuity testing, ETDRS compliant

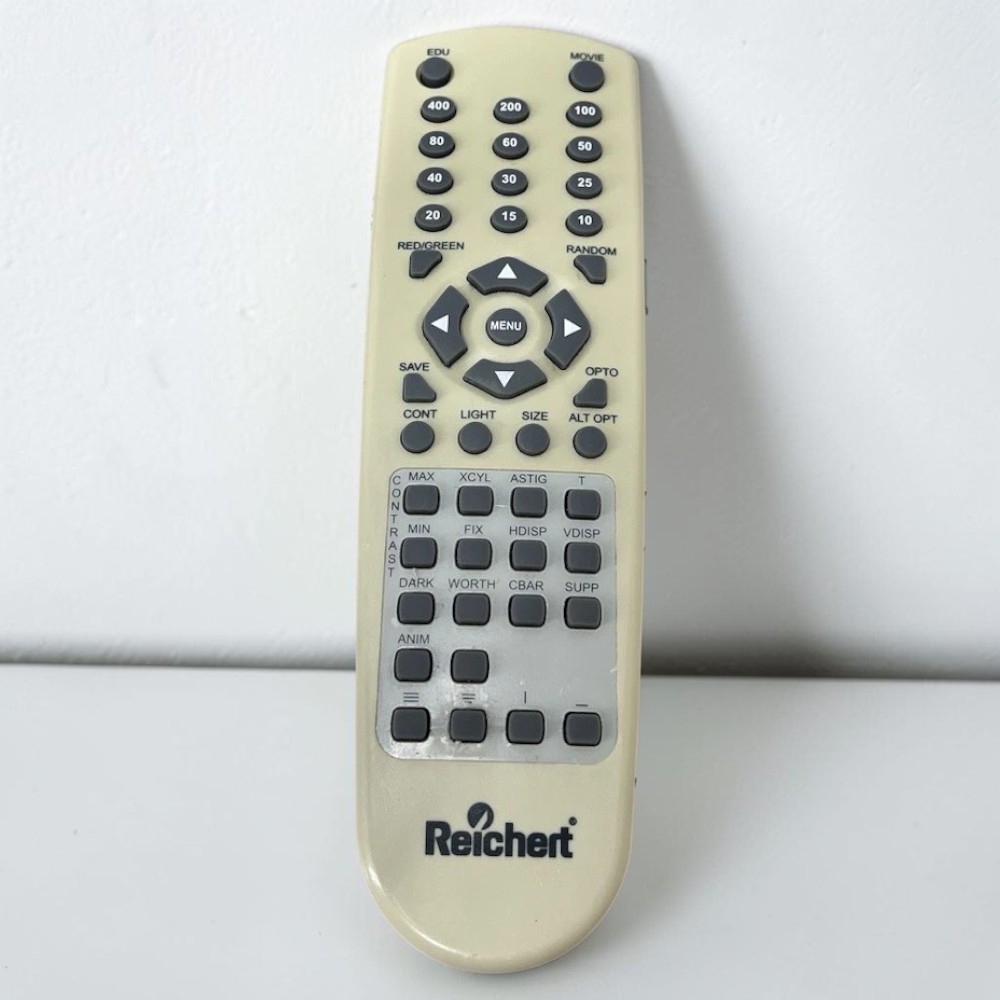

- Infrared remote control — full chart and mode selection from anywhere in the room
- Red/Green compatibility — adjustable for use with any refraction system
- USB media import — load custom patient-education videos and images (AVI, MOV, MPG, MP4)
See the Reichert ClearChart 2 in Action
This demo from Reichert walks through the ClearChart 2 digital acuity system, its optotype sets, and remote-controlled chart selection.
Clinical Applications
- Routine distance visual acuity testing in optometry and ophthalmology exam lanes
- Contrast sensitivity assessment using sine-wave gratings and contrast optotypes
- Pediatric vision screening with symbol-based optotypes and cartoon fixation targets
- ETDRS-protocol acuity measurement for clinical documentation and pre/post-operative follow-up
- Red/Green duochrome refinement during refraction
Who This Is For
- Optometry and ophthalmology practices modernizing exam lanes from projector or printed charts
- Clinics needing a compact, wall-mounted acuity system with no separate computer
- Practices testing pediatric and low-vision patients who need varied optotype sets
- Satellite offices and second exam rooms that need reliable, low-maintenance acuity testing
Technical Specifications
| Specification | Detail |
| Display | 19 in LED-backlit LCD |
| Maximum illumination | 220 cd/m² |
| Refraction range | 6 to 31 ft |
| Optotypes | 17-letter & 8-letter Sloan, HOTV, Landolt C, Landolt C and O, Tumbling E; three pediatric symbol sets |
| Special tests | Contrast sensitivity (sine-wave grating & contrast acuity), ETDRS compliant, Red/Green |
| Control | Infrared remote |
| Media import | USB (AVI, MOV, MPG, MP4) |
| Power | 100 to 240 V AC, 50/60 Hz |
| Dimensions | 16.9 in H x 19.9 in W x 3.25 in D |
| Weight | Approx. 10 lb |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
Compare Digital Acuity Options
| Feature | Reichert ClearChart 2 | Lombart CVS iMac |
| Display | 19 in LED-backlit LCD | 24 in Apple iMac LED |
| Optotype sets | Sloan, HOTV, Landolt C, Tumbling E + pediatric | Snellen, ETDRS, Sloan, Tumbling E, Landolt C + pediatric |
| Contrast sensitivity | Yes (sine-wave grating) | Yes |
| Control | Infrared remote | Wireless remote |
| Separate PC required | No (all-in-one) | No (integrated iMac) |
| Condition | Used | Used |
| Price | $1,100 | $1,100 |
Also consider the Lombart CVS iMac Acuity System — a same-tier digital acuity chart running on a 24-inch Apple iMac display.
Questions about the Reichert ClearChart 2? Contact us for availability and shipping details.
