Description
What’s Included

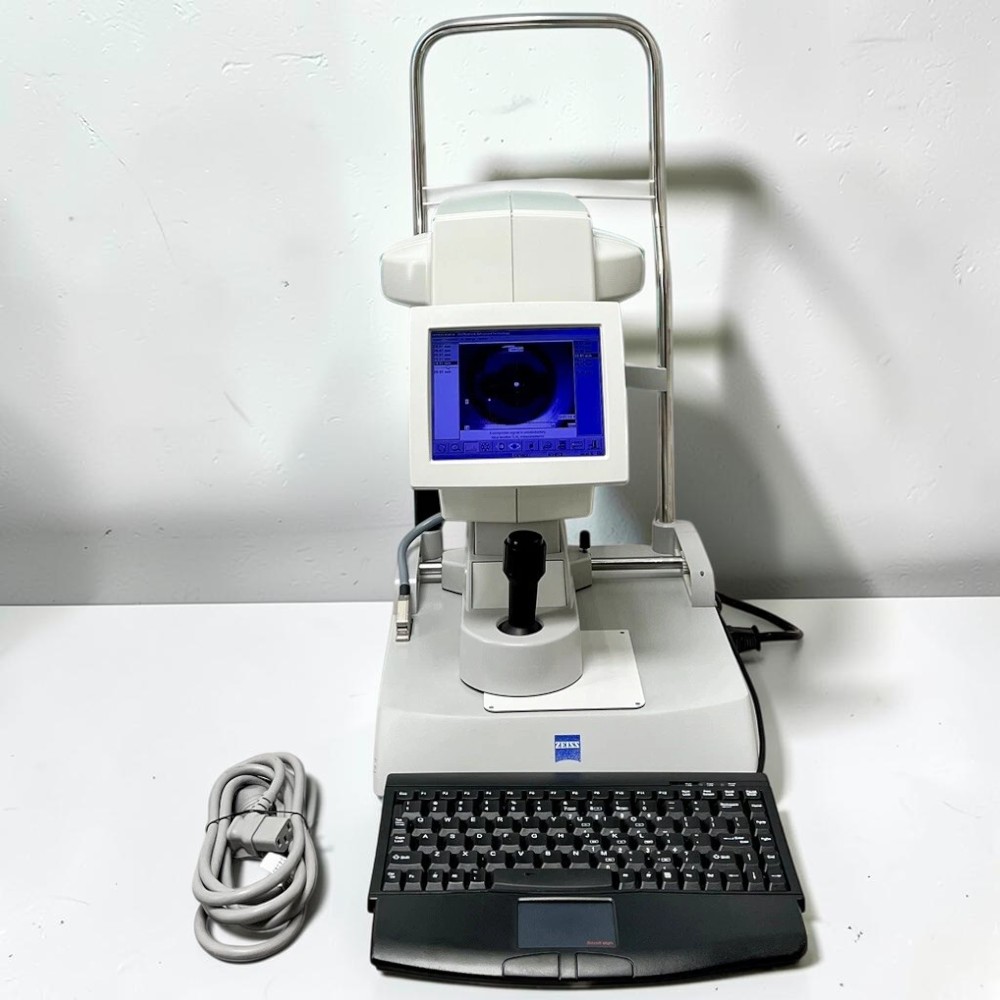

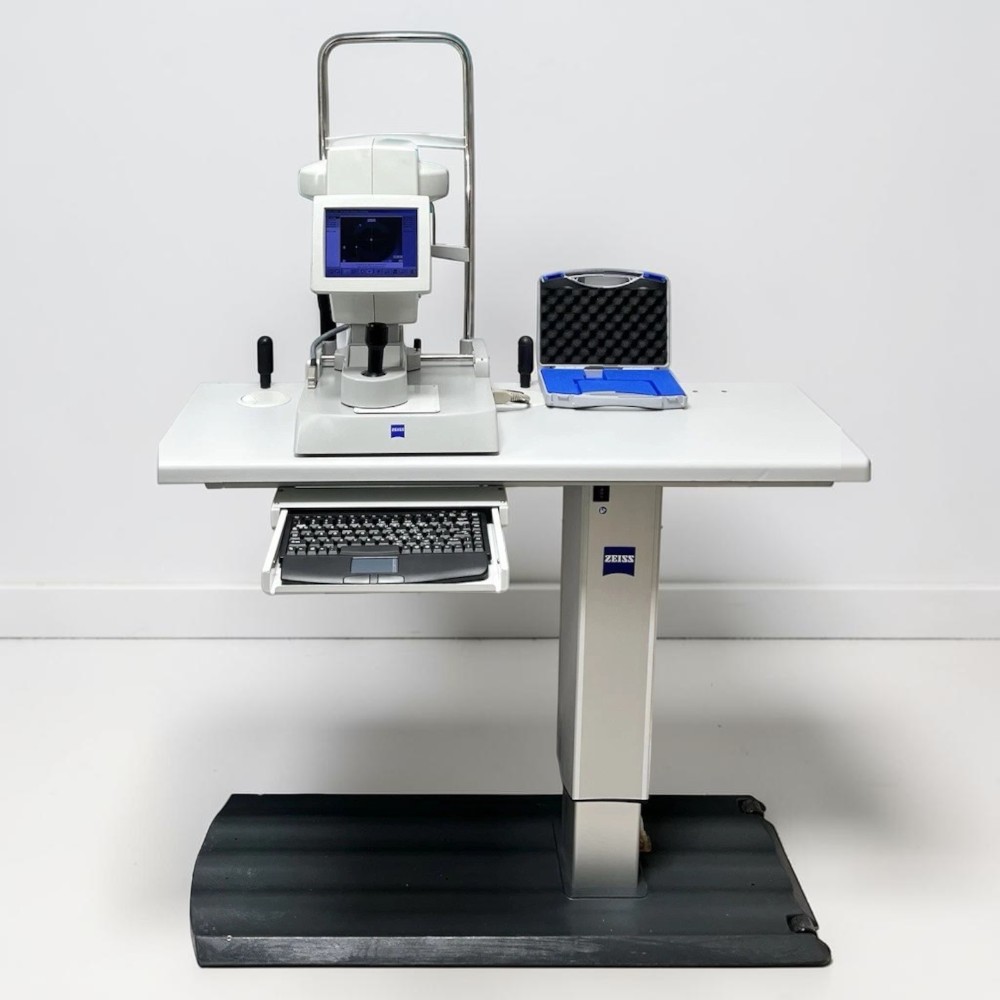

- Zeiss IOL Master 5.5 optical biometer
- Power cable

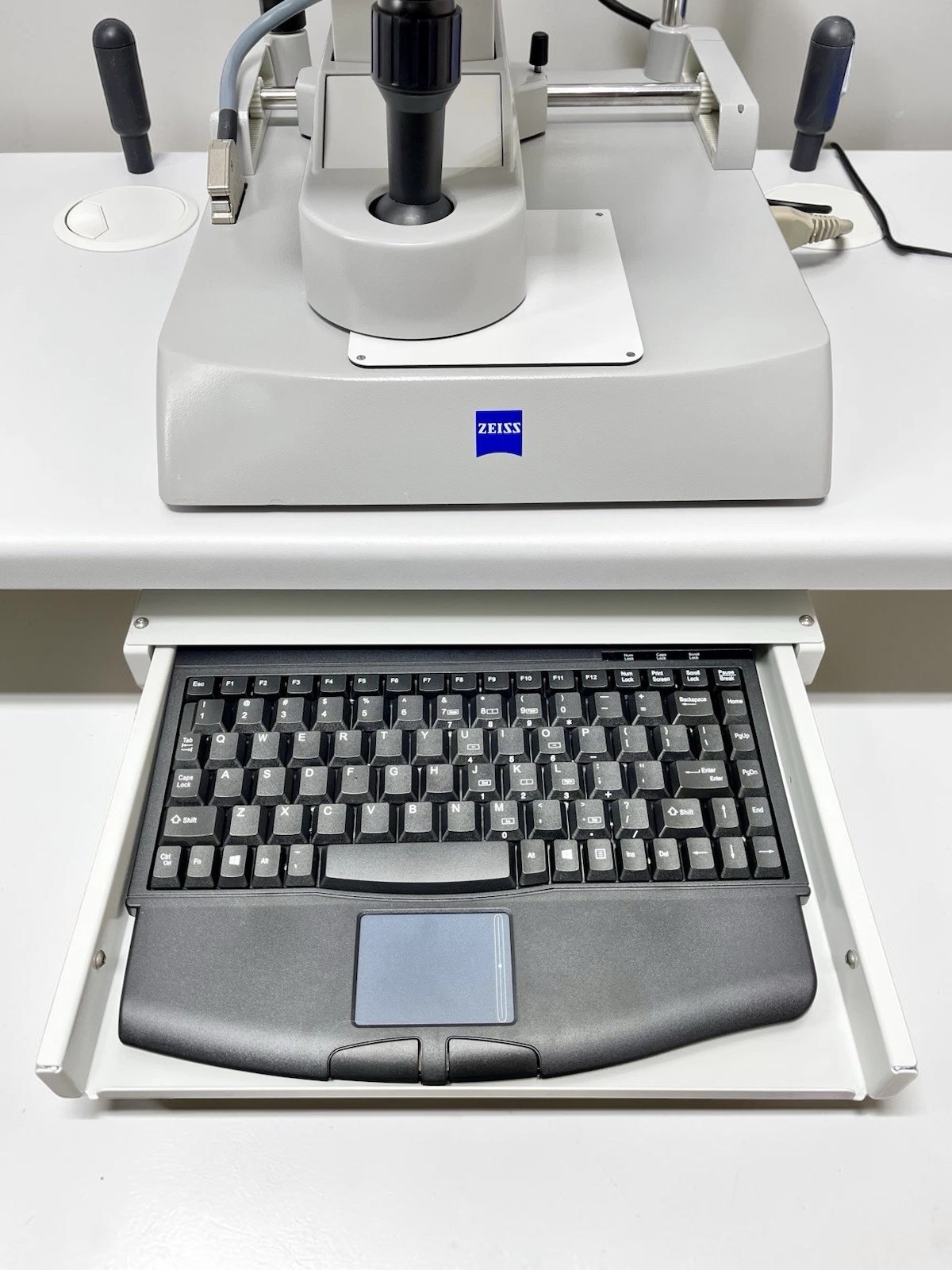

- Keyboard
- Electric table
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. The unit shows some cosmetic signs of use on the body. It is fully operational and functions as intended. Covered by a 90-day warranty on parts and workmanship.

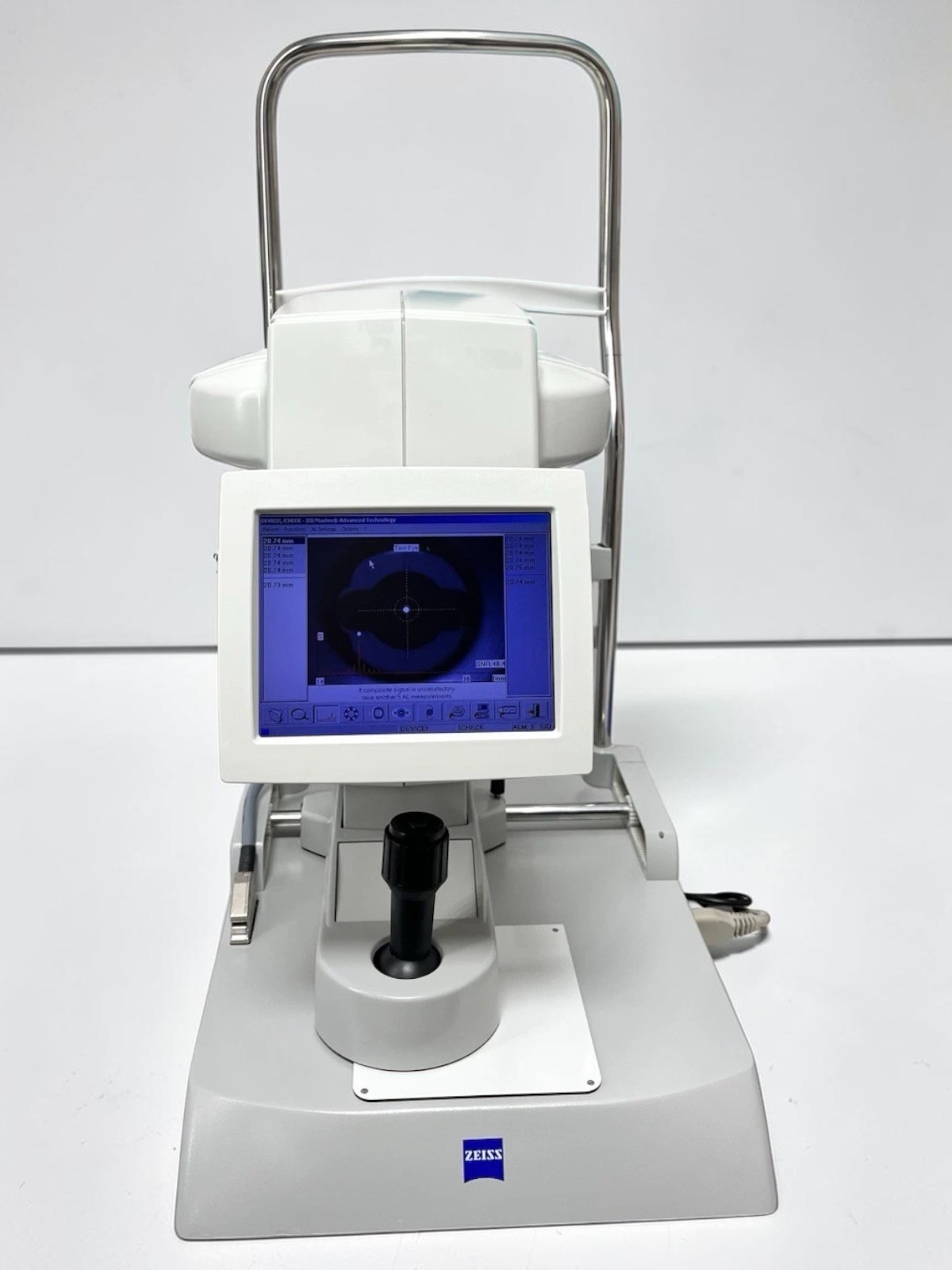

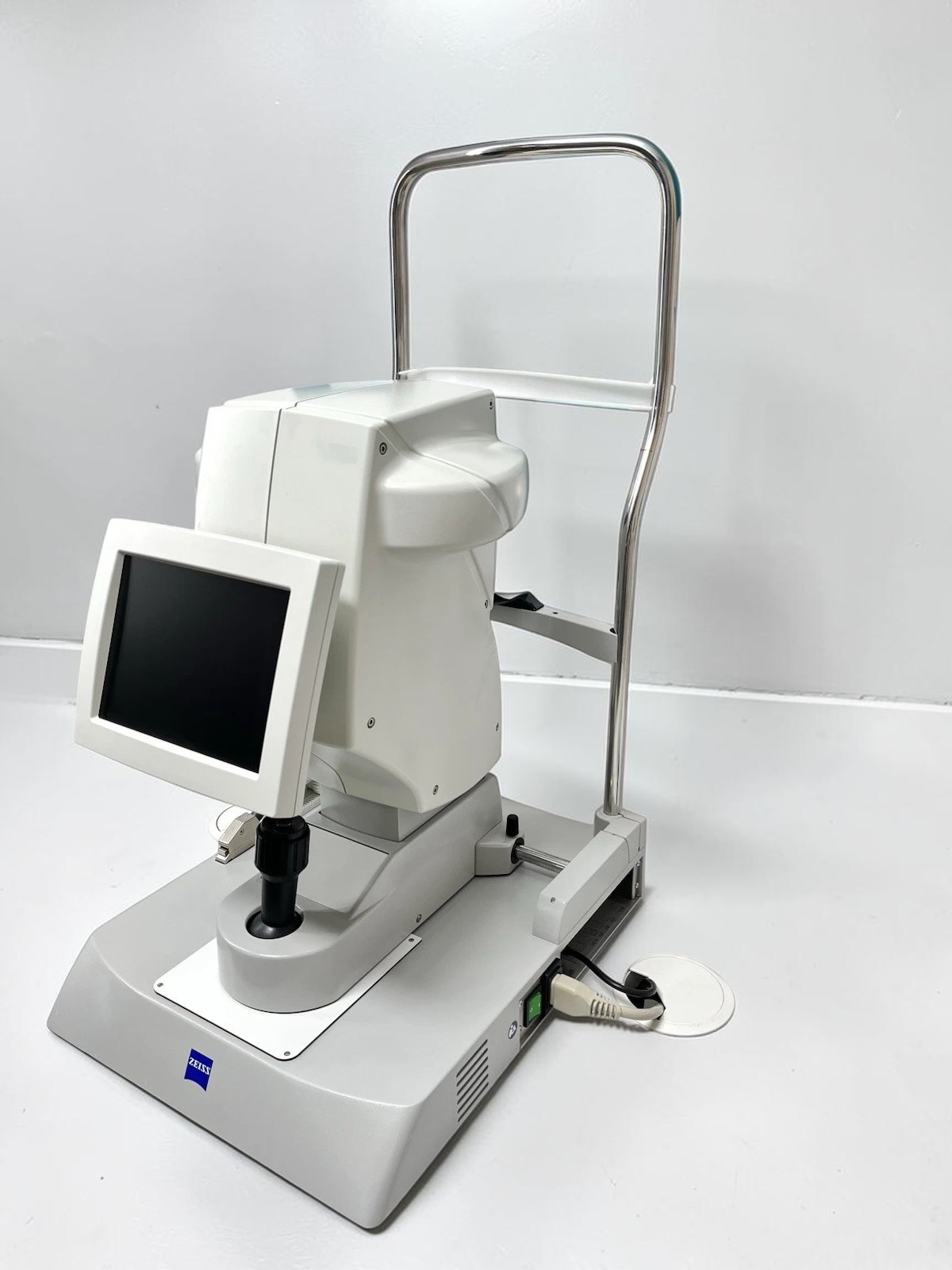

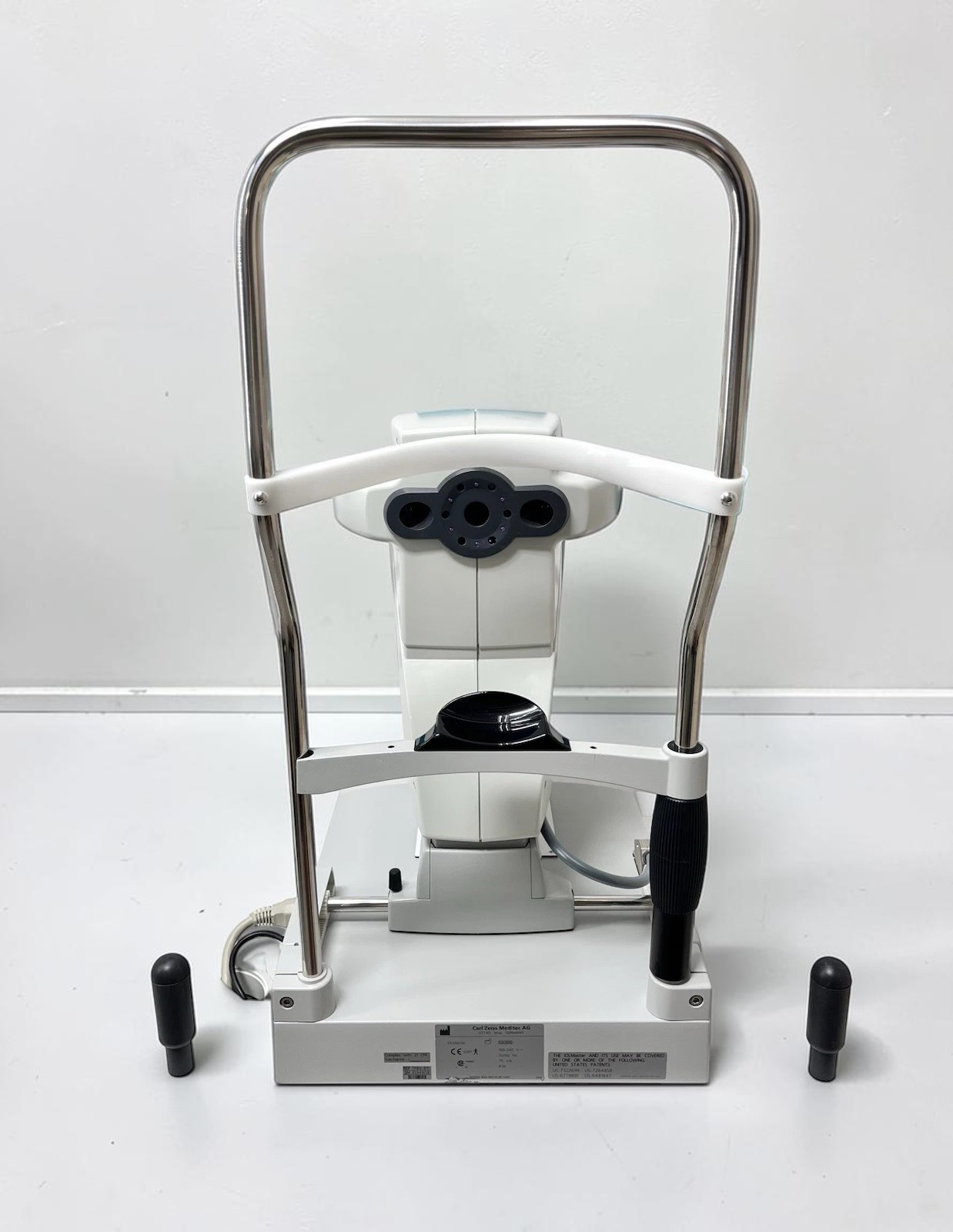

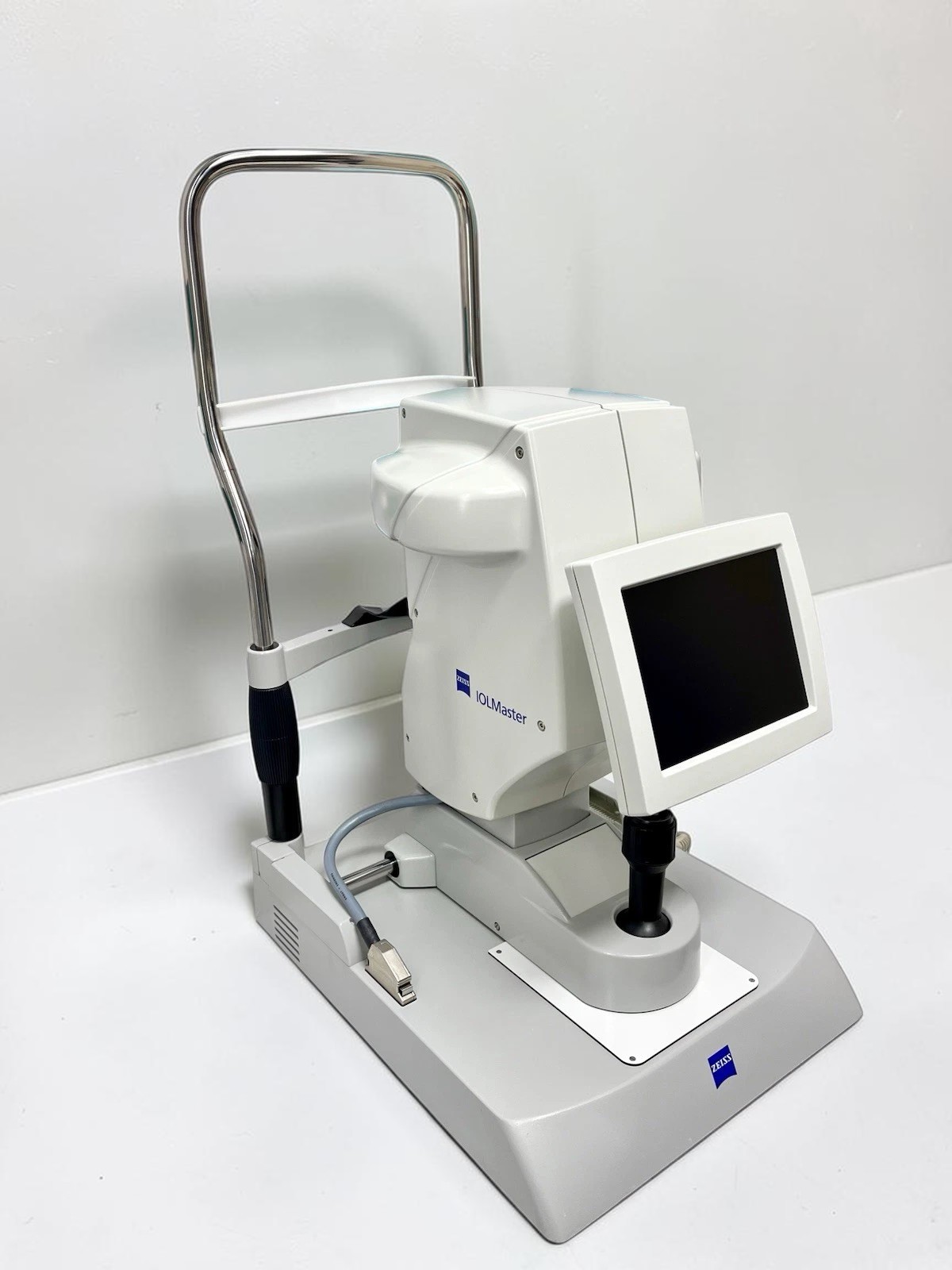

Zeiss IOL Master 5.5 — Used Optical Biometer
The Zeiss IOL Master 5.5 is an optical biometer that pairs non-contact Partial Coherence Interferometry (PCI) for axial length with 6-point telecentric keratometry for corneal curvature. PCI delivers results compatible with immersion ultrasound while providing 0.01 mm resolution and no patient contact. In a single session it measures axial length (14–40 mm), corneal radii, anterior chamber depth, and white-to-white, and supports Haigis, Haigis-L, Hoffer Q, Holladay, SRK II, and SRK/T — including post-refractive-surgery calculations via Haigis-L.
The IOL Master streamlines pre-operative cataract workflow by completing every required biometric parameter in one non-contact examination. A joystick-controlled alignment system with automatic right/left eye detection keeps operation simple, and the integrated printer provides immediate printed results at the point of care.
The National Library of Medicine documents that the ZEISS IOLMaster delivers intraocular lens power prediction accuracy on par with other modern optical biometers in cataract surgical planning.
Why Practices Choose the Zeiss IOL Master 5.5

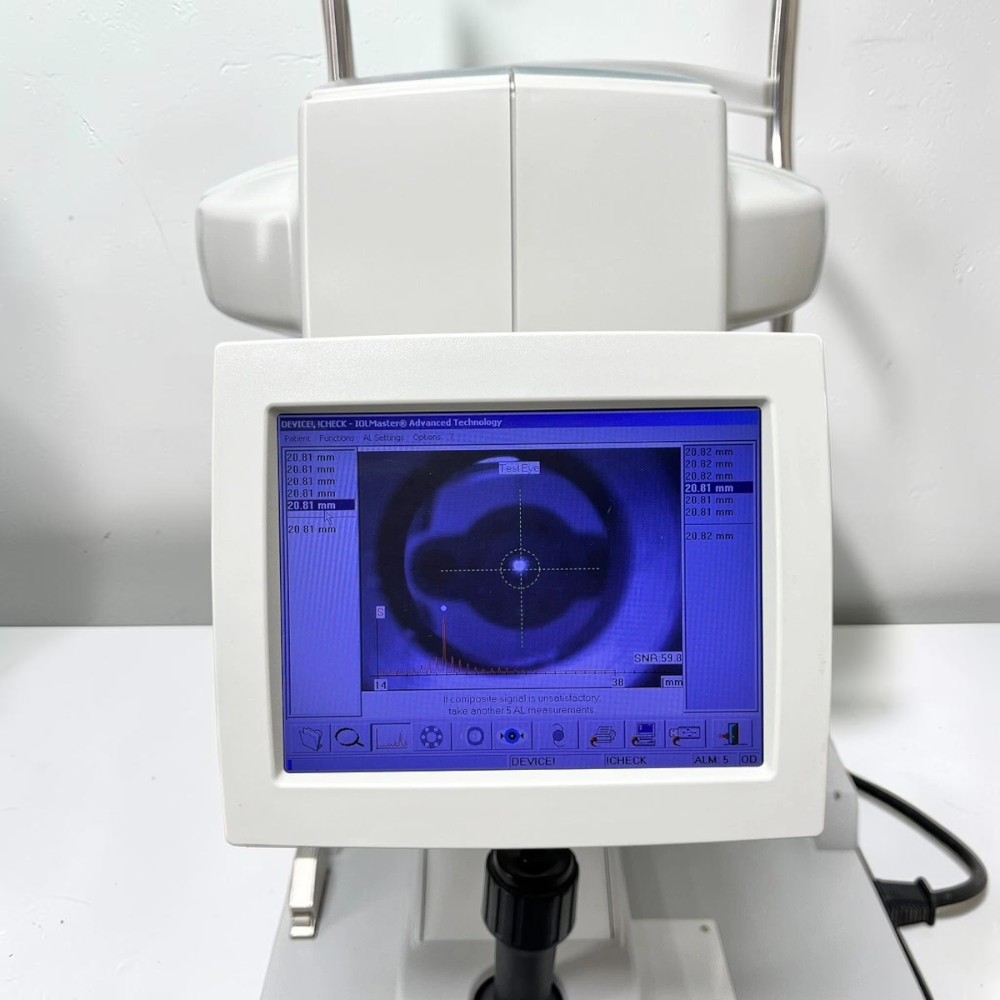

- Non-contact PCI axial length — immersion-ultrasound-compatible accuracy at 0.01 mm resolution with no corneal contact, improving patient comfort

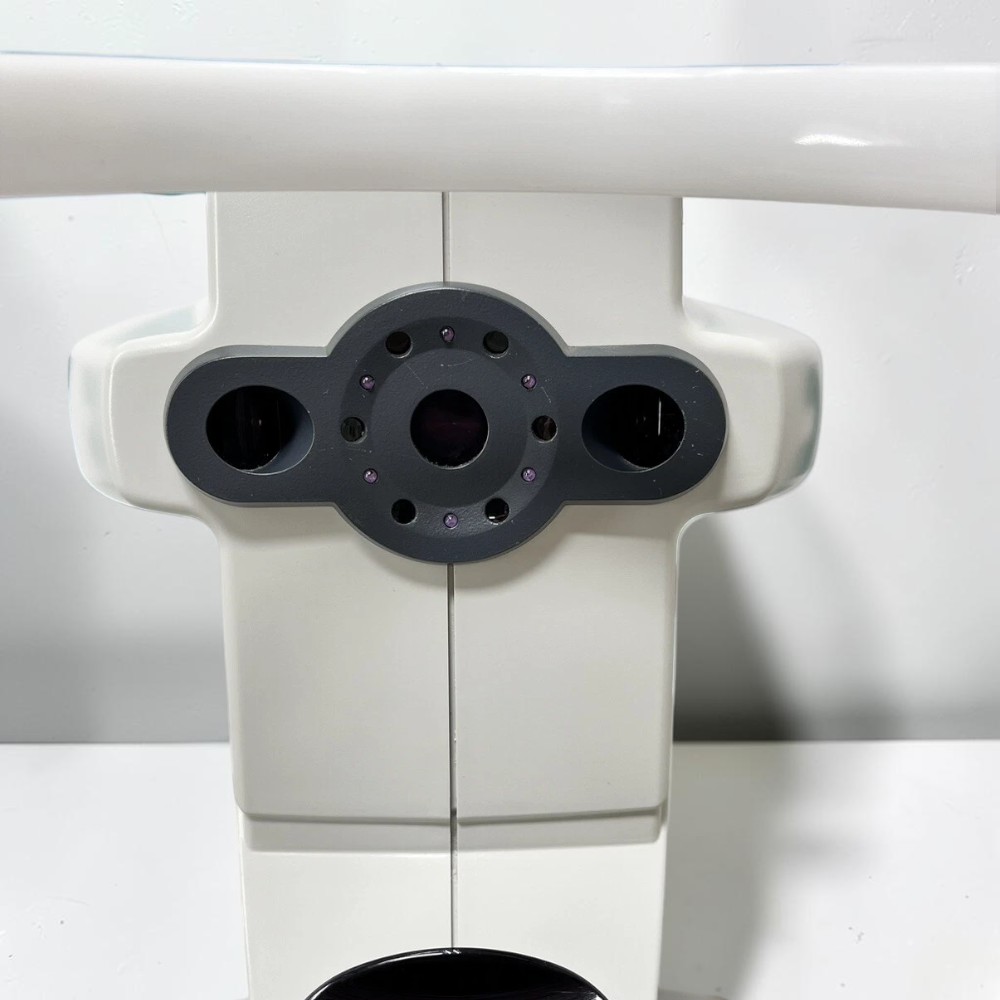

- 6-point telecentric keratometry — distance-independent corneal power measurement for reliable, repeatable K values
- Haigis-L for post-refractive eyes — accurate IOL power in post-LASIK, PRK, and LASEK patients
- Full IOL formula suite — Haigis, Hoffer Q, Holladay, SRK II, and SRK/T built in

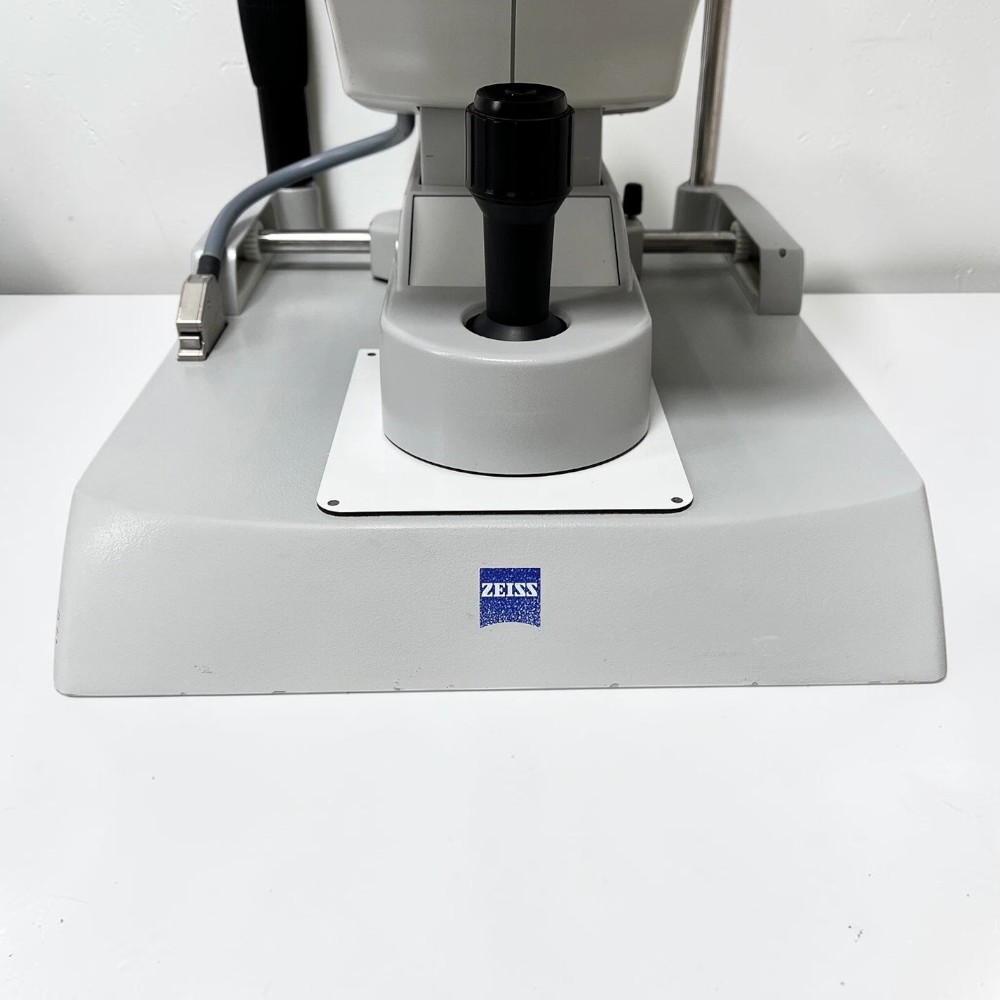

- Automatic right/left eye detection — joystick alignment that simplifies bilateral measurement
- Integrated printer — immediate chairside printout with no external PC
- Established ZEISS biometry platform — the optical-biometry workflow trusted across cataract practices worldwide
Clinical Applications
- Pre-operative cataract IOL power calculation
- IOL power calculation in post-refractive-surgery eyes (Haigis-L)
- Toric IOL planning using keratometry and anterior chamber depth
- Reliable biometry in dense and challenging cataracts
- Routine axial length and anterior chamber depth documentation
Who This Is For
- Cataract and refractive surgery practices
- Ambulatory surgery centers and hospital eye units
- Ophthalmology clinics adding or upgrading optical biometry
- Practices seeking a cost-effective, trusted ZEISS biometer
Technical Specifications
| Specification | Detail |
| Measurement Technology | Partial Coherence Interferometry (PCI) |
| Keratometry | 6-point telecentric measurement |
| Axial Length Range | 14 – 40 mm |
| Axial Length Resolution | 0.01 mm |
| Corneal Radii Range | 5 – 10 mm |
| Corneal Radii Resolution | 0.01 mm |
| Anterior Chamber Depth Range | 1.5 – 6.5 mm |
| ACD Resolution | 0.01 mm |
| White-to-White Range | 8 – 16 mm |
| White-to-White Resolution | 0.1 mm |
| Light Source (ALM) | Semiconductor diode laser (MMLD), 780 nm |
| Laser Classification | Class 1 (DIN EN 60825-1:2003) |
| IOL Formulas | Haigis, Haigis-L, Hoffer Q, Holladay, SRK II, SRK/T |
| Power Supply | 100 – 240 V AC (±10%); 50/60 Hz |
| Power Consumption | 90 VA |
| Dimensions (footprint) | 390 × 300 mm |
| Height | Max. 610 mm (with headrest) |
| Weight | Approx. 18 kg |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
Compare ZEISS IOLMaster Options
| Feature | IOLMaster 500 | IOL Master 5.5 | IOL Master 5.4 |
| Measurement | PCI + telecentric K | PCI + 6-pt telecentric K | PCI + 6-pt telecentric K |
| Axial length range | 14–38 mm | 14–40 mm | 14–40 mm |
| Cataract penetration | >93% | High | High |
| Built-in printer | Yes | Yes | Yes |
| Condition | Used | Used | Used |
| Warranty | 90-day | 90-day | 90-day |
| Price | $10,450 | $7,700 | $4,290 |
Also consider the IOLMaster 500 and IOL Master 5.4 for a different price tier in the same ZEISS IOLMaster family.
Questions about this biometer? Contact us for availability and shipping details.
