Description

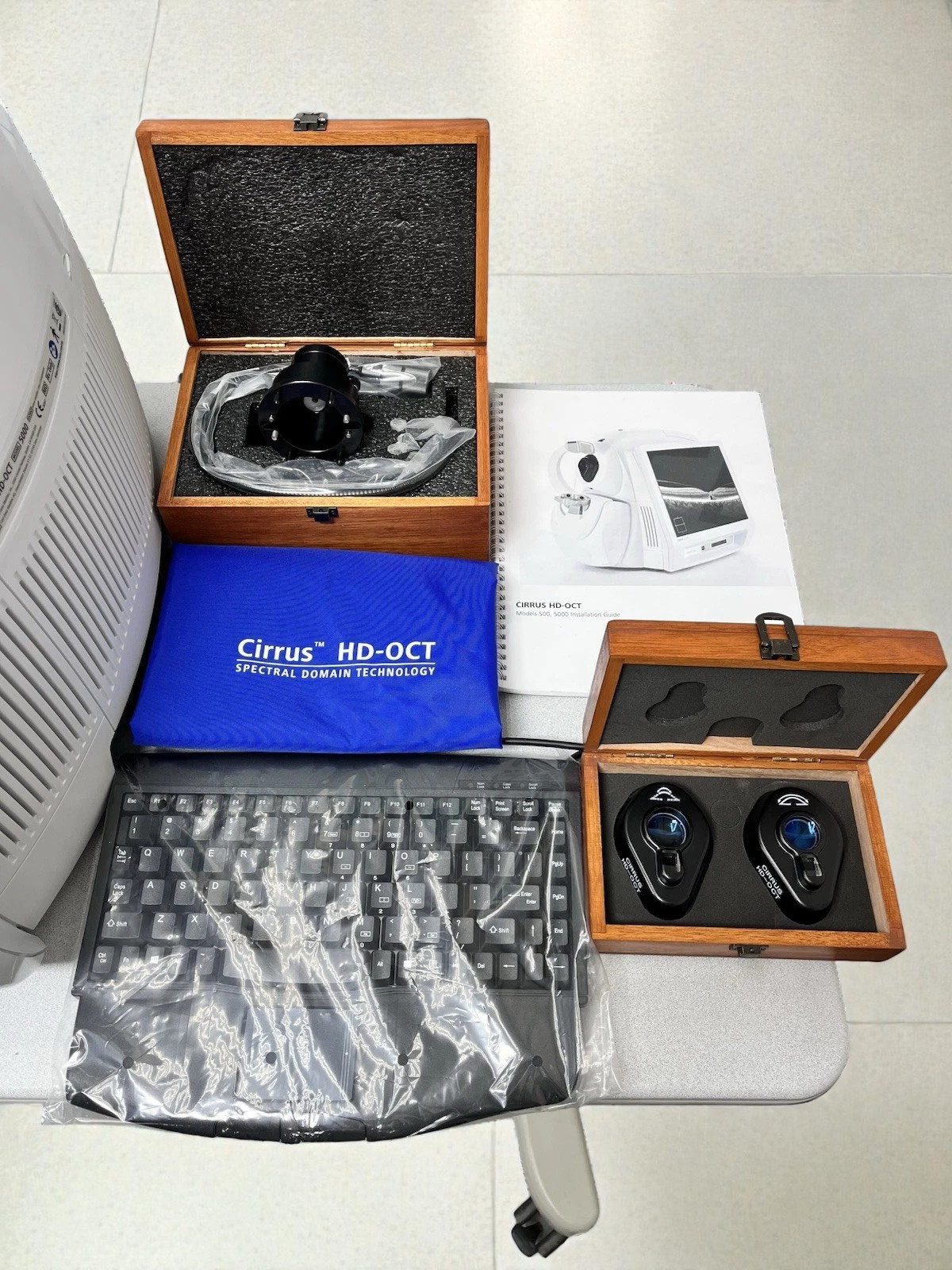

What’s Included

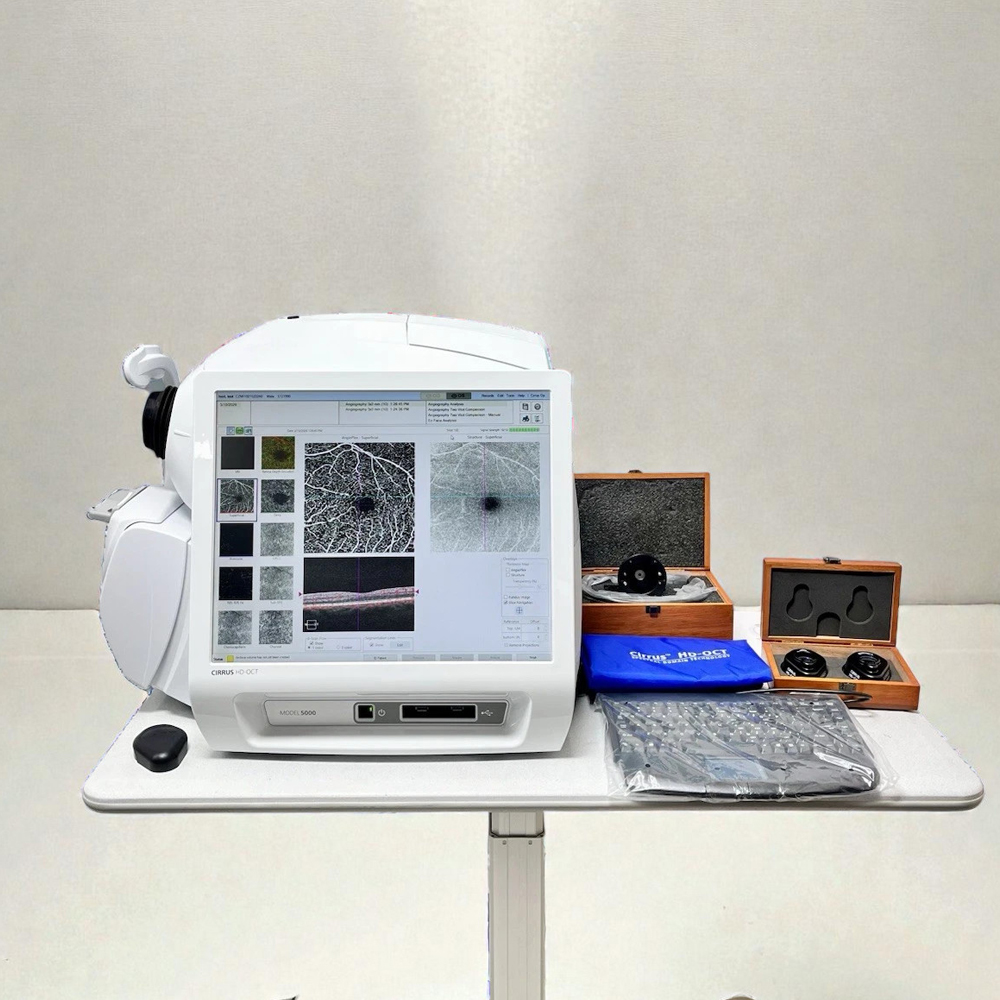

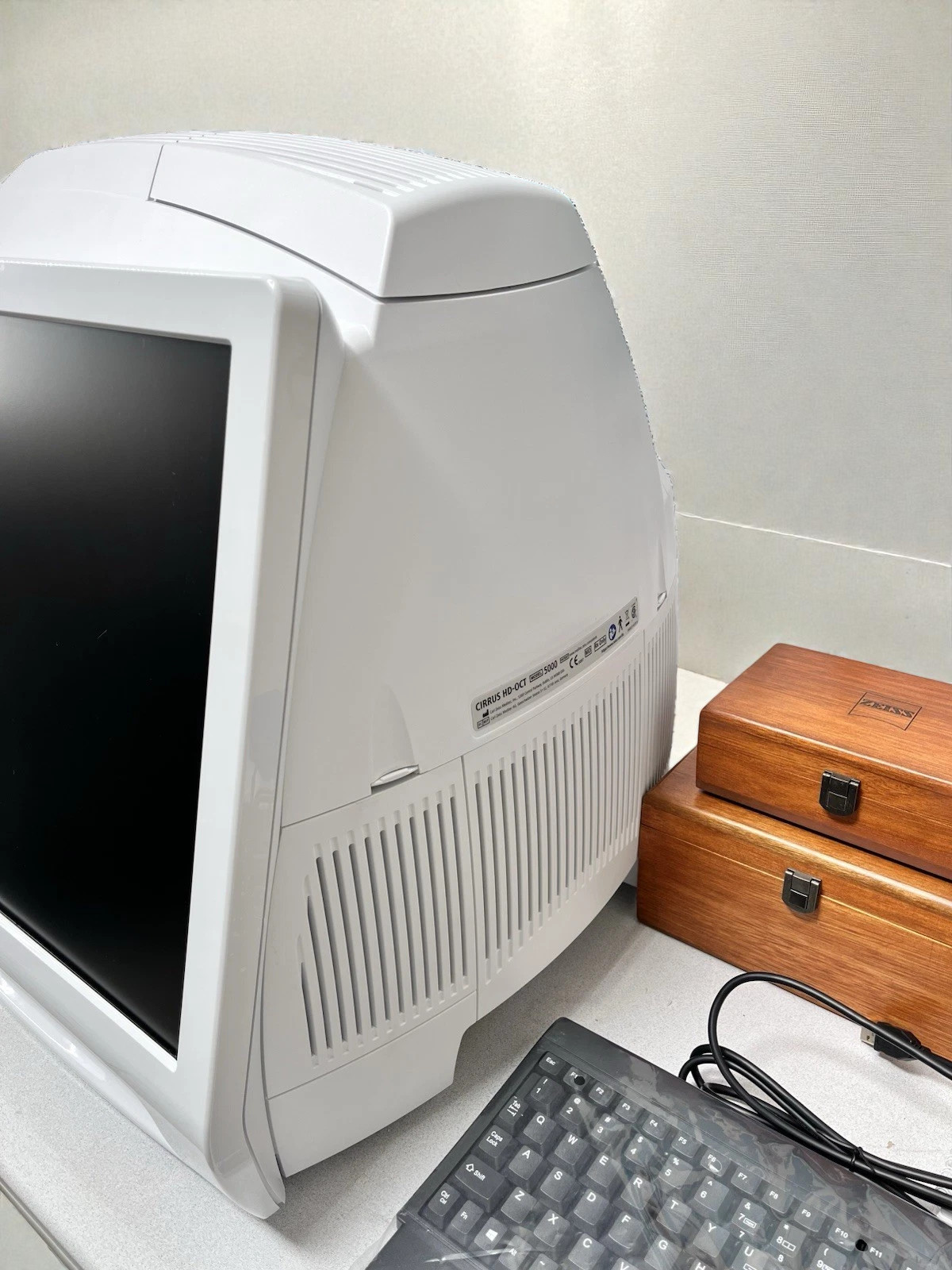

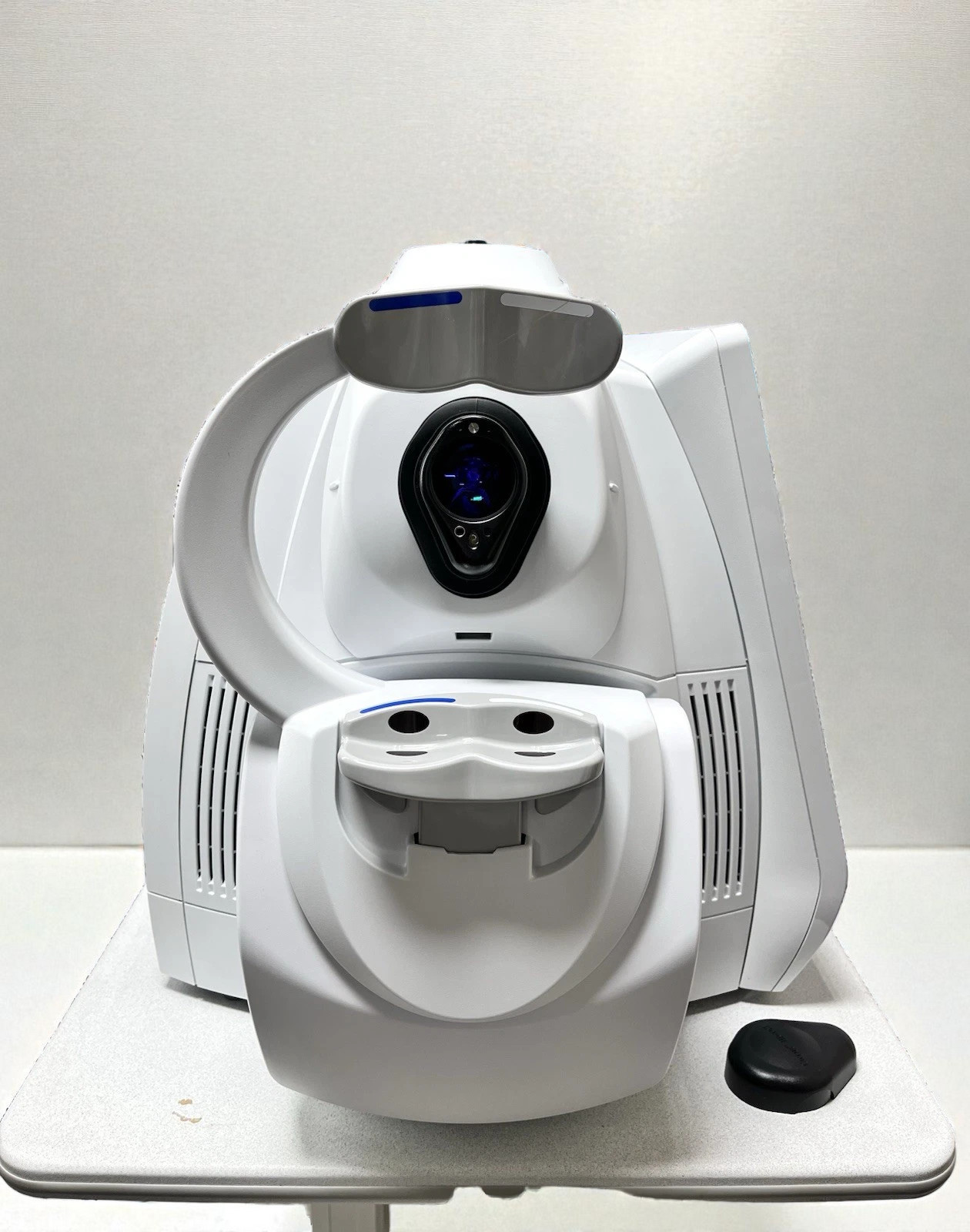

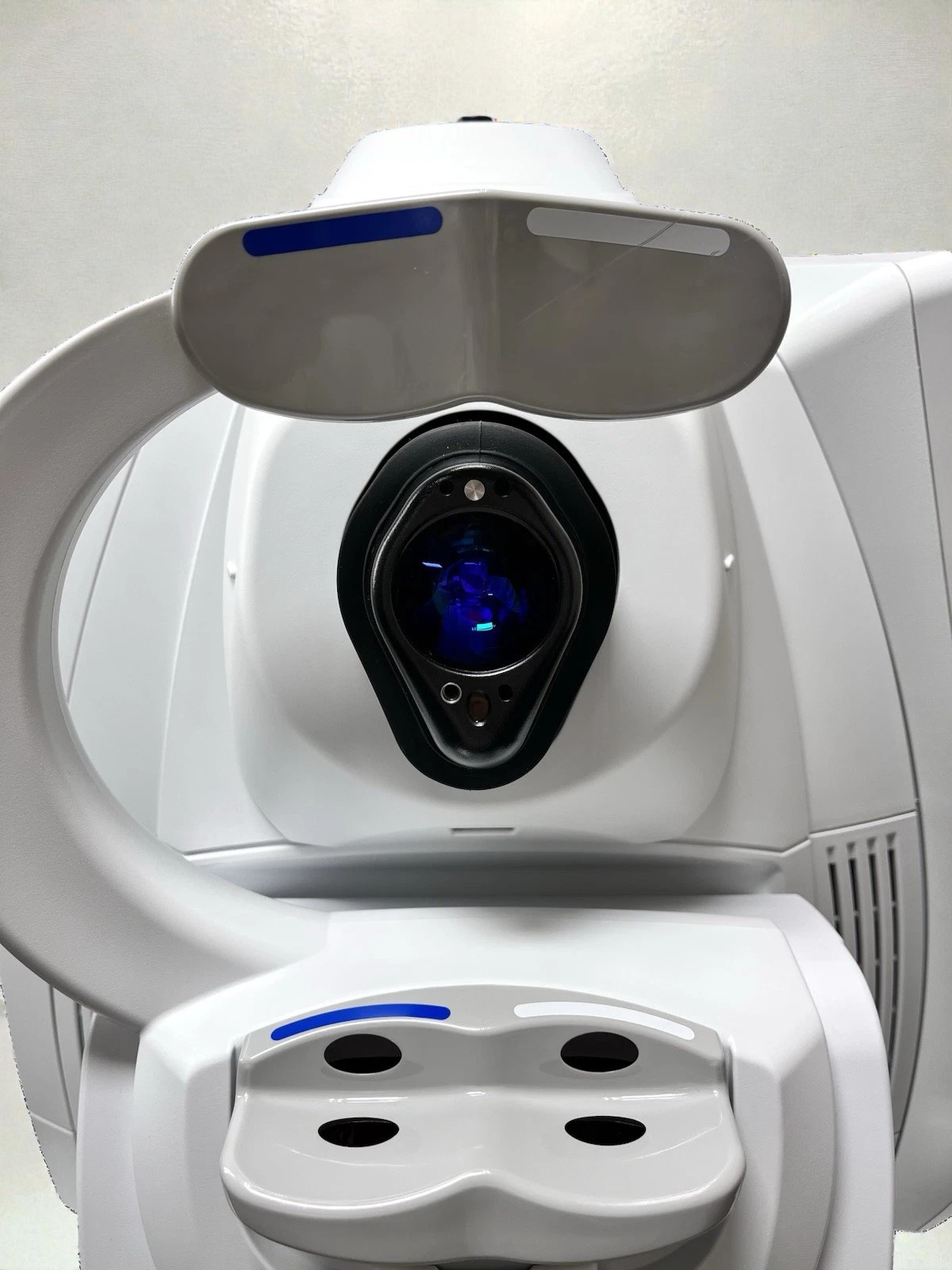

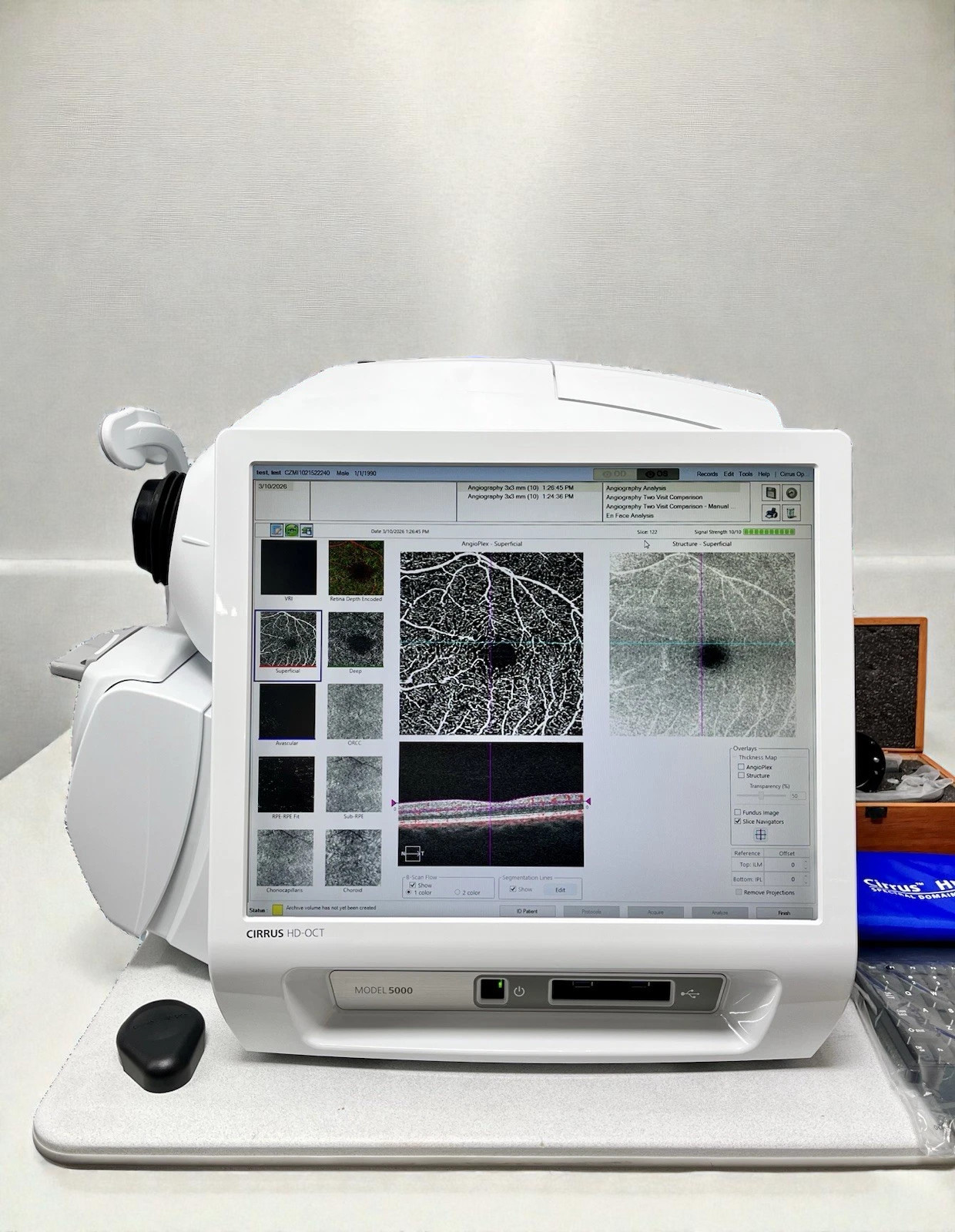

- Carl Zeiss Cirrus 5000 HD-OCT instrument
- AngioPlex OCT-Angiography module
- Workstation / PC with Windows 10
- Power cabling
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. Tested before listing — OCT engine, AngioPlex OCT-A acquisition, FastTrac retinal tracking, Windows 10 software boot and report generation verified. Covered by a 90-day warranty on parts and workmanship.
Zeiss Cirrus 5000 HD-OCT — Used Spectral-Domain OCT with AngioPlex
The Zeiss Cirrus 5000 HD-OCT is the FastTrac-equipped model of the CIRRUS platform: spectral-domain OCT with an 840 nm superluminescent diode, up to 68,000 A-scans per second, 5 µm axial resolution in tissue and a 2.0 mm scan depth. This used Zeiss Cirrus 5000 adds the AngioPlex OCT-Angiography module for dye-free 3-D microvascular imaging of the retina, and runs on a Windows 10 workstation.
Because FastTrac uses a 20 Hz line-scanning ophthalmoscope to track the eye during acquisition, the Zeiss Cirrus 5000 keeps scans registered to the same retinal location visit after visit — the foundation for RNFL, Ganglion Cell Analysis and Guided Progression Analysis in glaucoma follow-up.
A review indexed by the National Library of Medicine (Progress in Retinal and Eye Research, 2023) describes how OCT angiography visualizes capillary non-perfusion and neovascularization in diabetic retinopathy without dye injection — the clinical workload AngioPlex was built for.
Why Practices Choose the Zeiss Cirrus 5000 HD-OCT
- Up to 68,000 A-scans/sec — high-speed scanning shortens acquisition and supports dense OCT-A cubes.

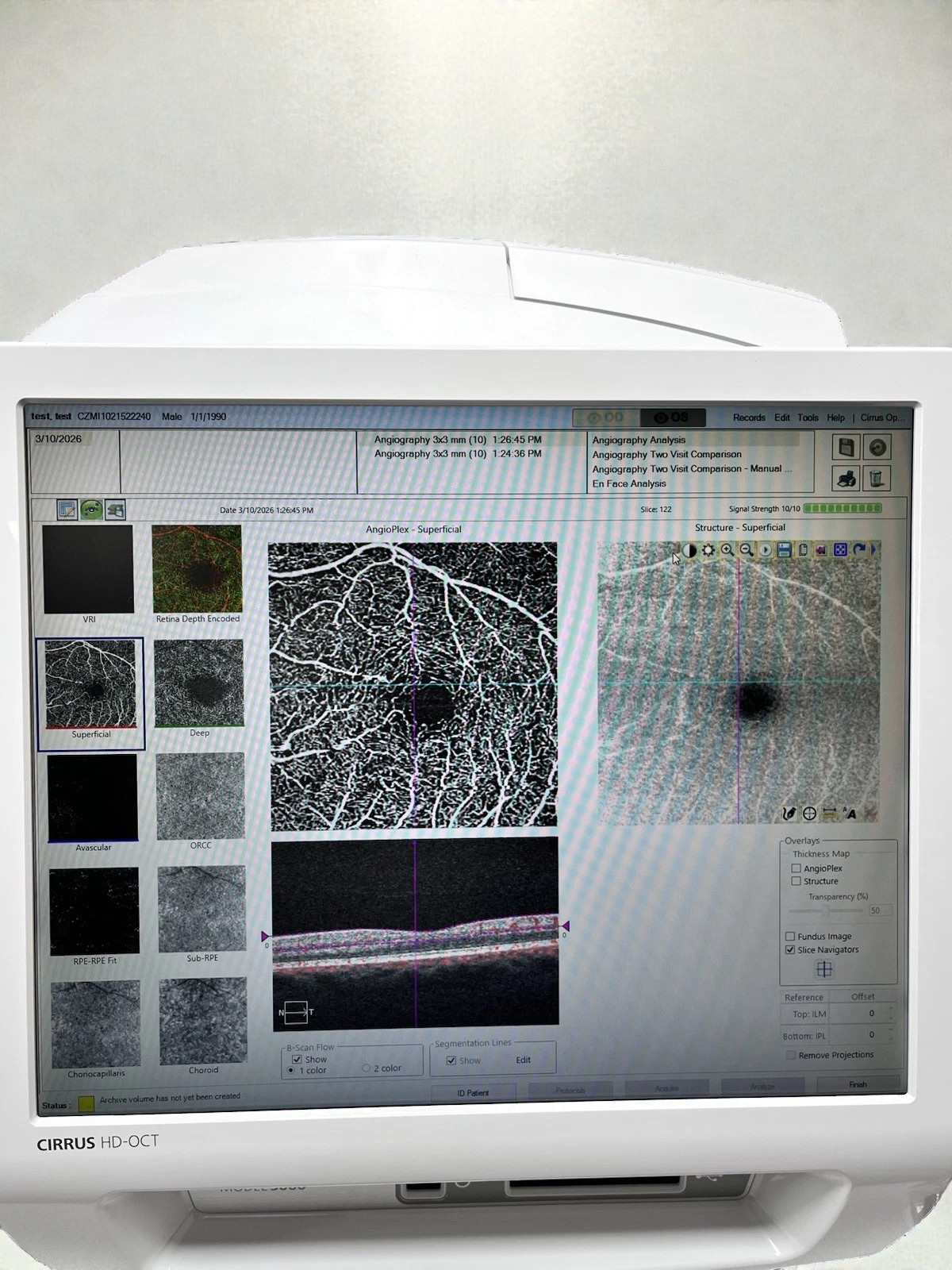

- AngioPlex OCT-Angiography — non-invasive 3-D microvascular imaging without fluorescein or ICG injection.
- FastTrac retinal tracking — 20 Hz LSO tracking reduces eye-motion artifacts without slowing patient throughput.
- Glaucoma analysis — RNFL thickness, optic nerve head, Ganglion Cell Analysis and Guided Progression Analysis.
- 5 µm axial resolution — clear separation of retinal layers on macular and optic disc cubes.
- Line-scanning fundus image — 36° × 30° LSO view for alignment and registration.
- Windows 10 workstation — current operating system for networking and export.
See the Zeiss Cirrus 5000 HD-OCT in Action
This product demo from ZEISS walks through the CIRRUS HD-OCT platform, including patient alignment, scan acquisition and analysis.
Clinical Applications
- Glaucoma diagnosis and progression — RNFL, ganglion cell and Guided Progression Analysis reporting.
- Diabetic retinopathy and DME — macular thickness maps plus AngioPlex perfusion imaging.
- Age-related macular degeneration — structural OCT and OCT-A for choroidal neovascularization follow-up.
- Retinal vein occlusion — macular edema monitoring and capillary non-perfusion mapping.
- Macular hole, epiretinal membrane and vitreomacular traction — high-resolution line and cube scans.
Who This Is For
- Retina and glaucoma practices that want OCT-Angiography without a dye-based workflow.
- Practices already standardized on the Zeiss CIRRUS platform.
- Multi-doctor clinics that need FastTrac registration for longitudinal follow-up.
- Practices upgrading from a time-domain or entry-level OCT.
Technical Specifications
| Specification | Detail |
| Manufacturer | Carl Zeiss Meditec |
| Model | CIRRUS HD-OCT 5000 with AngioPlex |
| Technology | Spectral-domain OCT |
| OCT light source | Superluminescent diode (SLD), 840 nm |
| Scan speed | 27,000 – 68,000 A-scans per second |
| Axial resolution | 5 µm (in tissue) |
| Transverse resolution | 15 µm (in tissue) |
| A-scan depth | 2.0 mm (in tissue) |
| Fundus imaging | Line-scanning ophthalmoscope, 750 nm SLD, 36° × 30° field |
| Eye tracking | FastTrac retinal tracking (20 Hz LSO) |
| OCT-Angiography | AngioPlex (included) |
| Operating system | Windows 10 |
| Condition | Used — tested before listing |
| Warranty | 90-day warranty on parts and workmanship |
Compare Zeiss CIRRUS HD-OCT Options
| Feature | Cirrus 5000 with AngioPlex (this unit) | Cirrus 500 HD-OCT |
| Technology | Spectral-domain OCT | Spectral-domain OCT |
| Scan speed | 27,000 – 68,000 A-scans/sec | 27,000 A-scans/sec |
| Axial resolution | 5 µm | 5 µm |
| FastTrac retinal tracking | Yes | No |
| OCT-Angiography | AngioPlex included | Not available |
| Operating system | Windows 10 | Windows 10 Professional |
| Condition | Used | Used |
| Price | $38,500 | $20,592 |
Need structural OCT without angiography? The Zeiss Cirrus 500 HD-OCT runs the same analysis tools at a lower price. Completing a glaucoma workup? Pair it with the Zeiss Humphrey Field Analyzer 3 860.
Questions about the Zeiss Cirrus 5000 HD-OCT? Contact us for availability and shipping details.
