Description
What’s Included
-
CenterVue DRS Fundus Camera
-
Power cable
-
Dust cover
-
90-day Digital Eye Center warranty
Condition & Warranty
Condition: Used. The unit has been tested, cleaned, and described as fully operational. It may show cosmetic signs of previous use.
Warranty: 90-day Digital Eye Center warranty covering parts and workmanship.

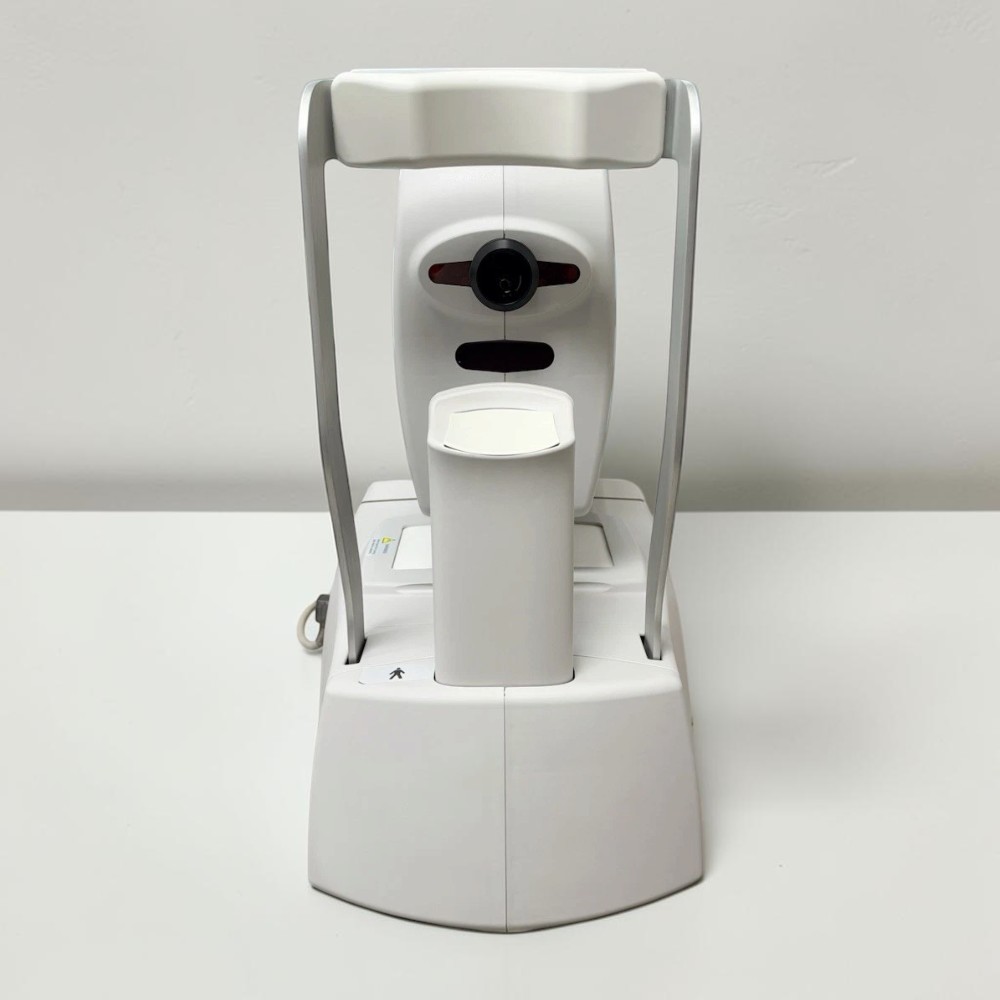

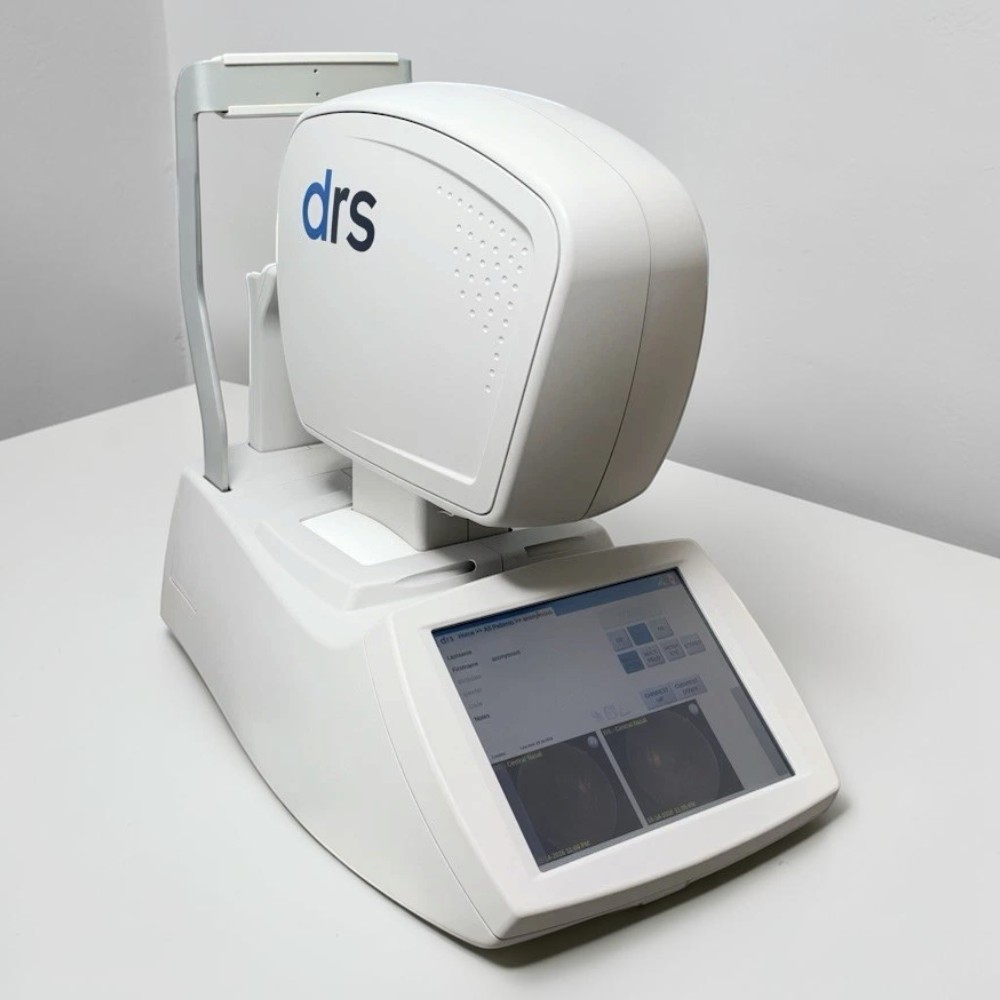

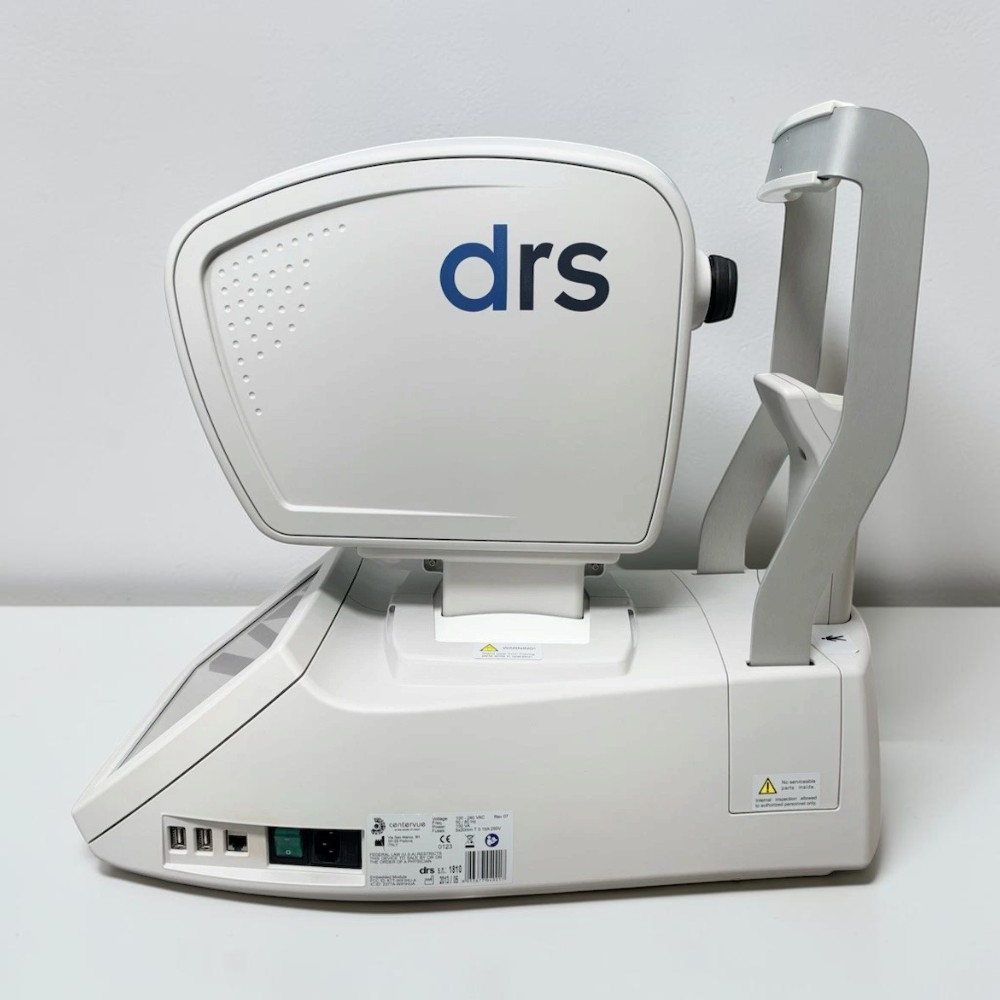

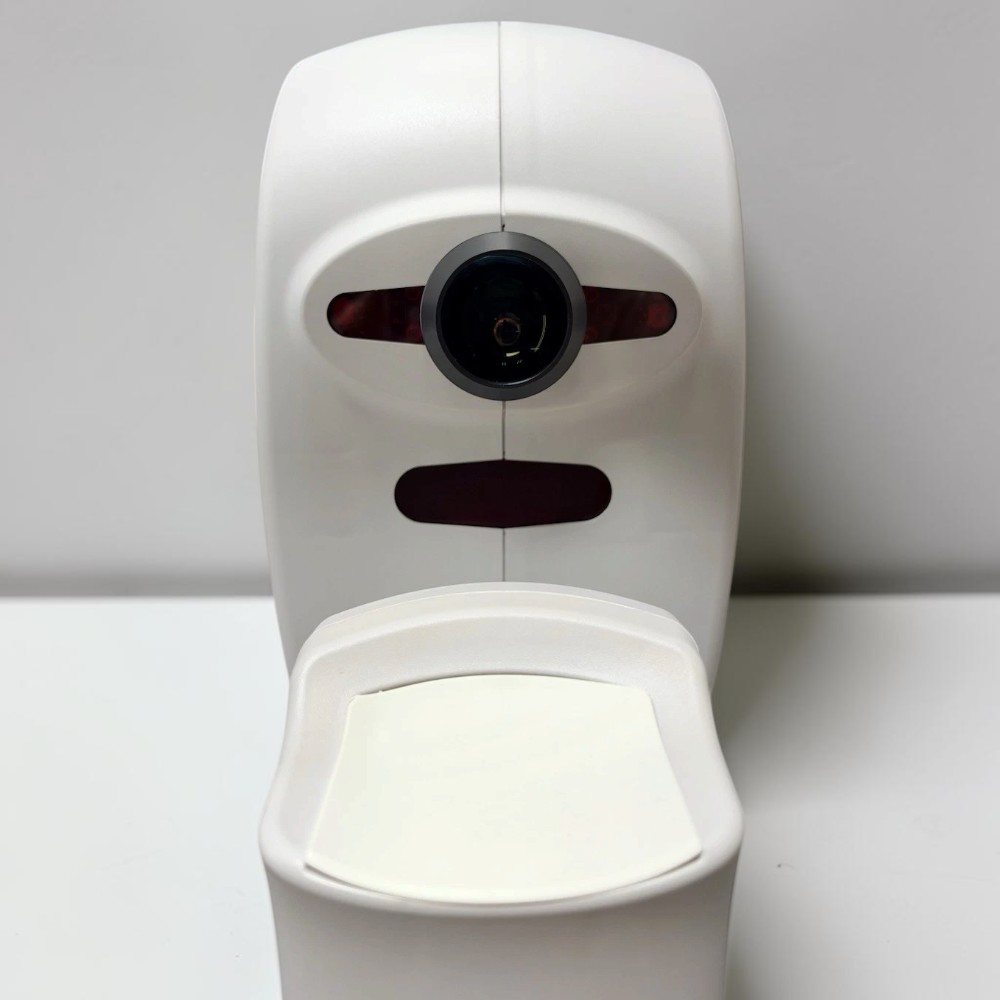

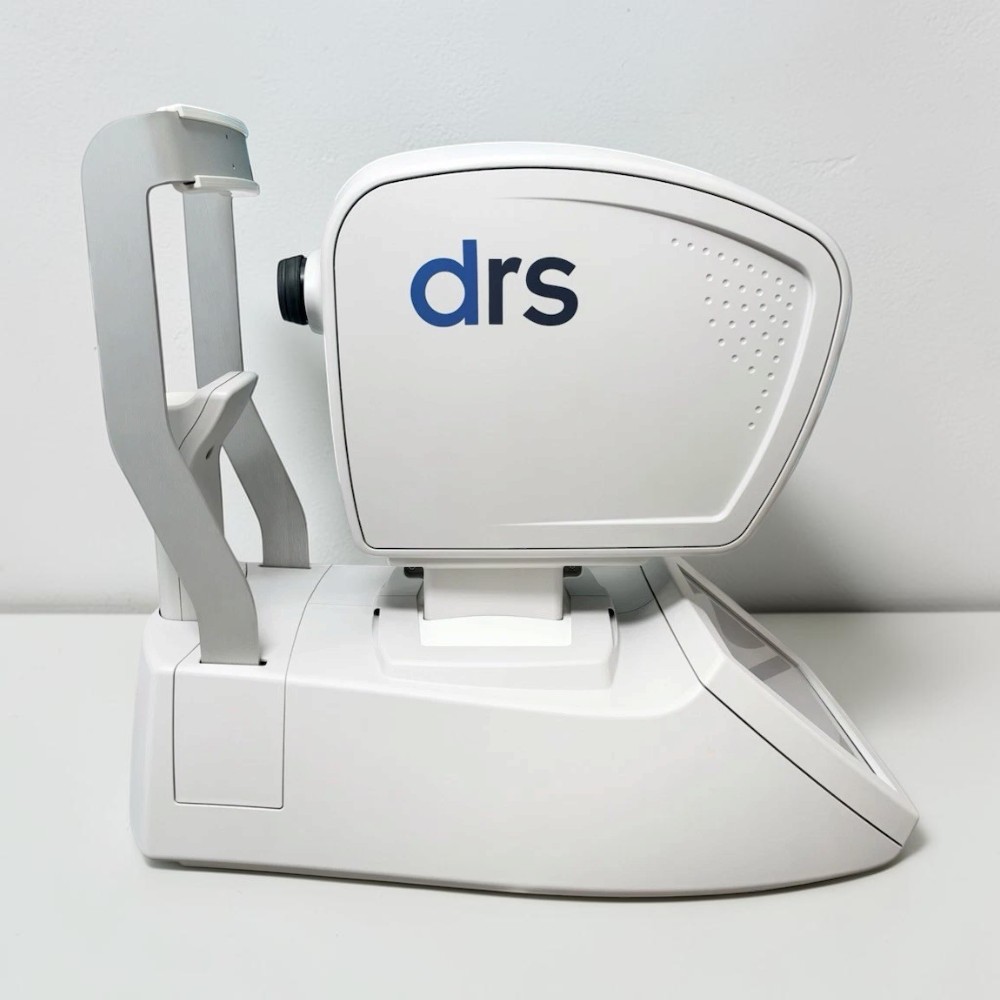

CenterVue DRS Digital Retinography System
The CenterVue DRS Digital Retinography System is an automated, non-mydriatic retinal camera designed to capture high-resolution color images of the fundus without routinely requiring pharmacological pupil dilation. Its automated alignment, autofocus, and image-capture functions streamline retinal imaging in clinical practice.
The system features an integrated touchscreen display and computer, allowing operators to acquire and review retinal images directly on the device. It supports multiple retinal fields and can capture stereo image pairs for clinical evaluation.
Why Practices Choose This Product
-
Non-mydriatic imaging: Captures retinal images without routinely dilating the pupil.
-
Automated operation: Includes automatic alignment, autofocus, and flash adjustment.
-
Wide retinal coverage: 45° × 40° field of view.
-

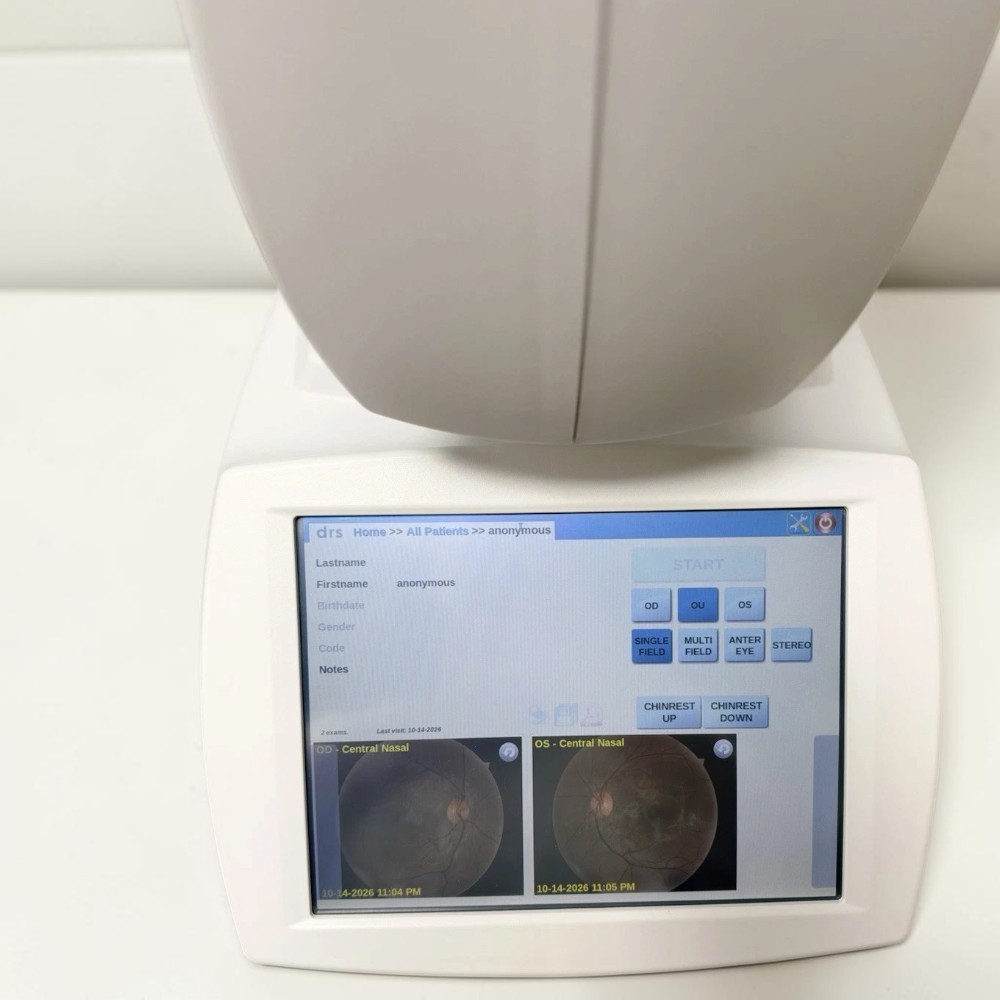

Integrated touchscreen: Enables on-device operation and image review.
-

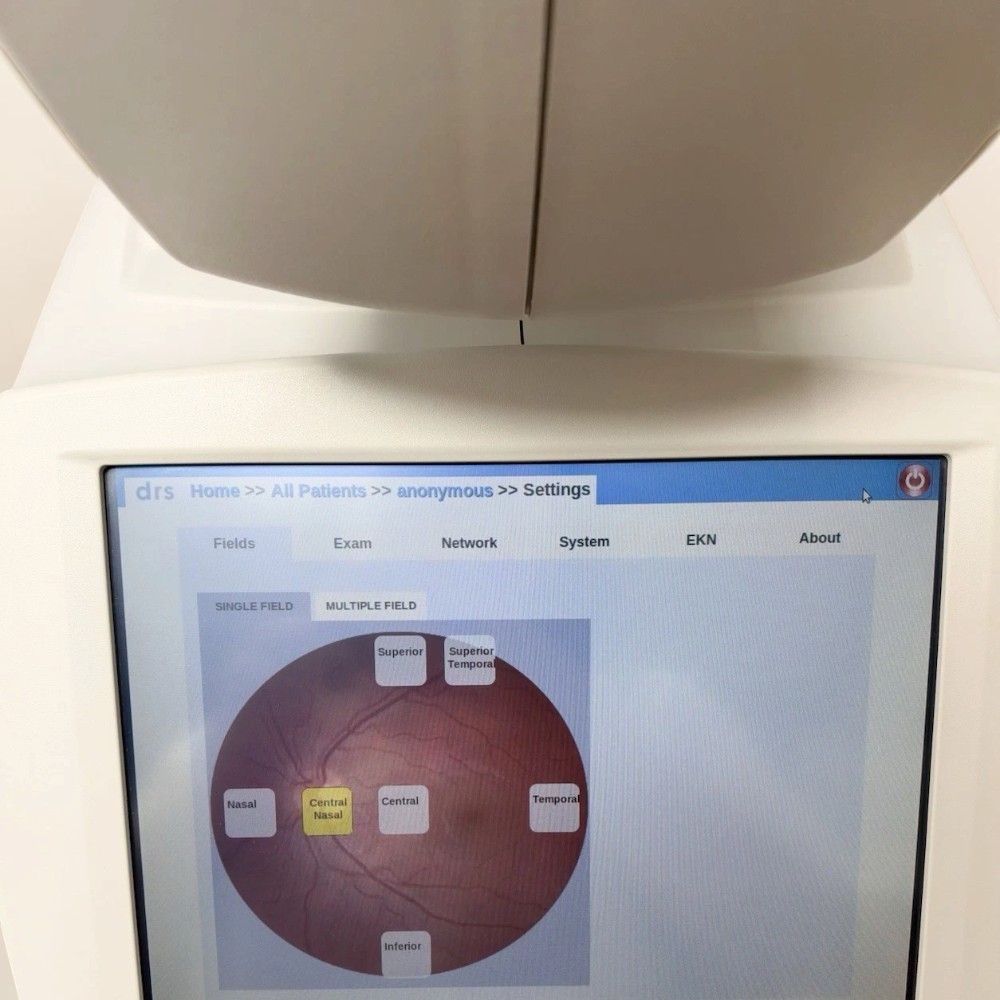

Multiple imaging positions: Internal fixation targets help capture different retinal fields.
-
Compact integrated design: Combines imaging hardware and computer functions in one system.
Clinical Applications
-
Diabetic retinopathy screening and monitoring.
-
Documentation of retinal findings.
-
Evaluation of age-related macular degeneration (AMD).
-
Assessment of retinal vascular changes.
-
Monitoring of retinal conditions over time.
-
General fundus photography for ophthalmic examinations.
Who This Is For
-
Ophthalmology clinics.
-
Optometrists performing retinal imaging.
-
Diabetic eye screening programs.
-
Retina specialists documenting retinal conditions.
-
Eye care centers requiring automated fundus photography.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CenterVue |
| Model | DRS |
| Equipment Type | Automated digital fundus camera |
| Imaging Method | Non-mydriatic retinal photography |
| Field of View | 45° horizontal × 40° vertical |
| Image Sensor | 5 megapixels |
| Sensor Resolution | 2592 × 1944 pixels |
| Retinal Resolution | 15 µm |
| Pixel Pitch on Retina | 6 µm |
| Angular Resolution | 48 pixels/degree |
| Minimum Pupil Diameter | Approximately 3.8–4.0 mm |
| Working Distance | 37 mm |
| Autofocus Range | −15 D to +15 D |
| Alignment | Automatic alignment |
| Flash | Automatic flash-level adjustment |
| Fixation Targets | 7 internal LED targets |
| Display | Integrated color touchscreen, approximately 10.4 inches |
| Computer | Integrated PC |
| Connectivity | Ethernet; Wi-Fi availability depends on configuration |
| Additional Functions | Patient detection, motorized chin rest, multiple retinal fields, stereo imaging |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | 100 VA |
| Dimensions | Approximately 55 × 55 × 33 cm |
| Weight | Approximately 19 kg (42 lb) |
| Included Accessories | Power cable and dust cover |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty on parts and workmanship |
