Description
What’s Included

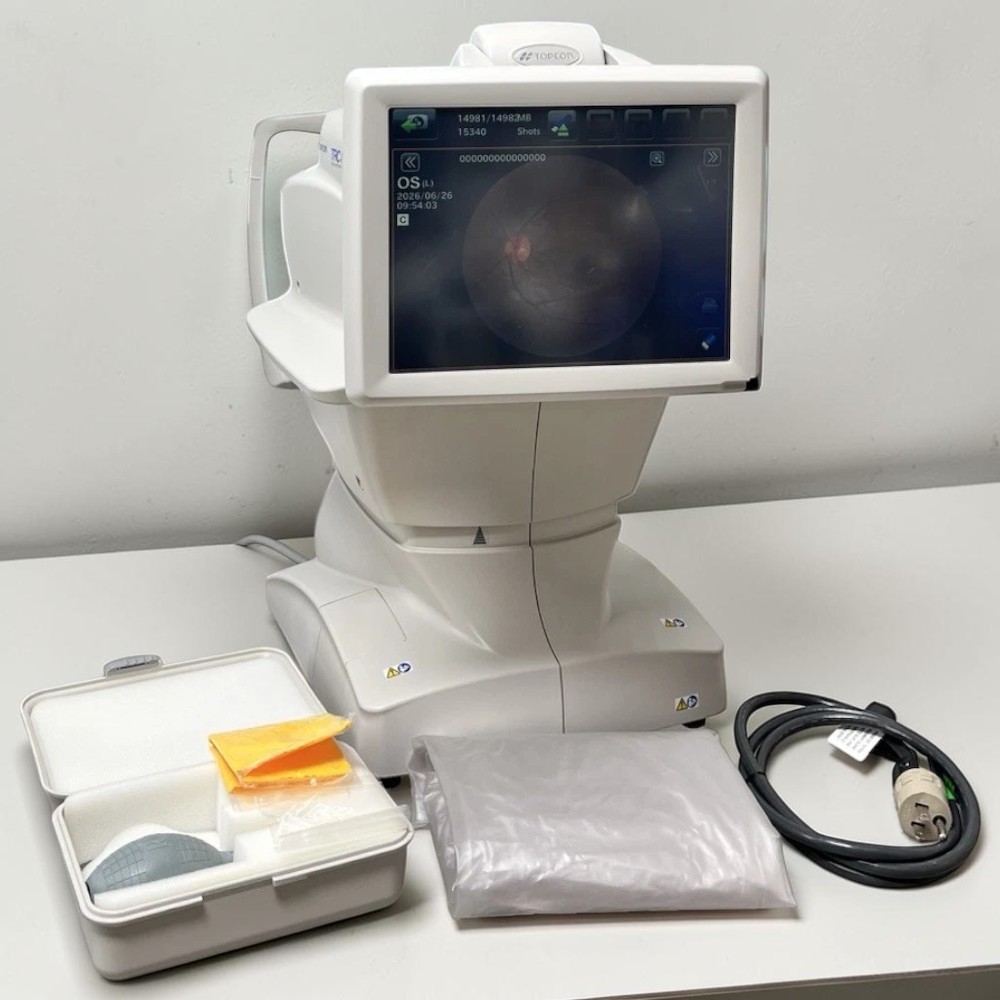

- Topcon TRC-NW400 non-mydriatic retinal camera unit
- Power cable
- Dust cover
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. Tested and confirmed in excellent working order. Cleaned prior to listing. Some signs of cosmetic use consistent with clinical deployment. Covered by a 90-day Digital Eye Center warranty on parts and workmanship.

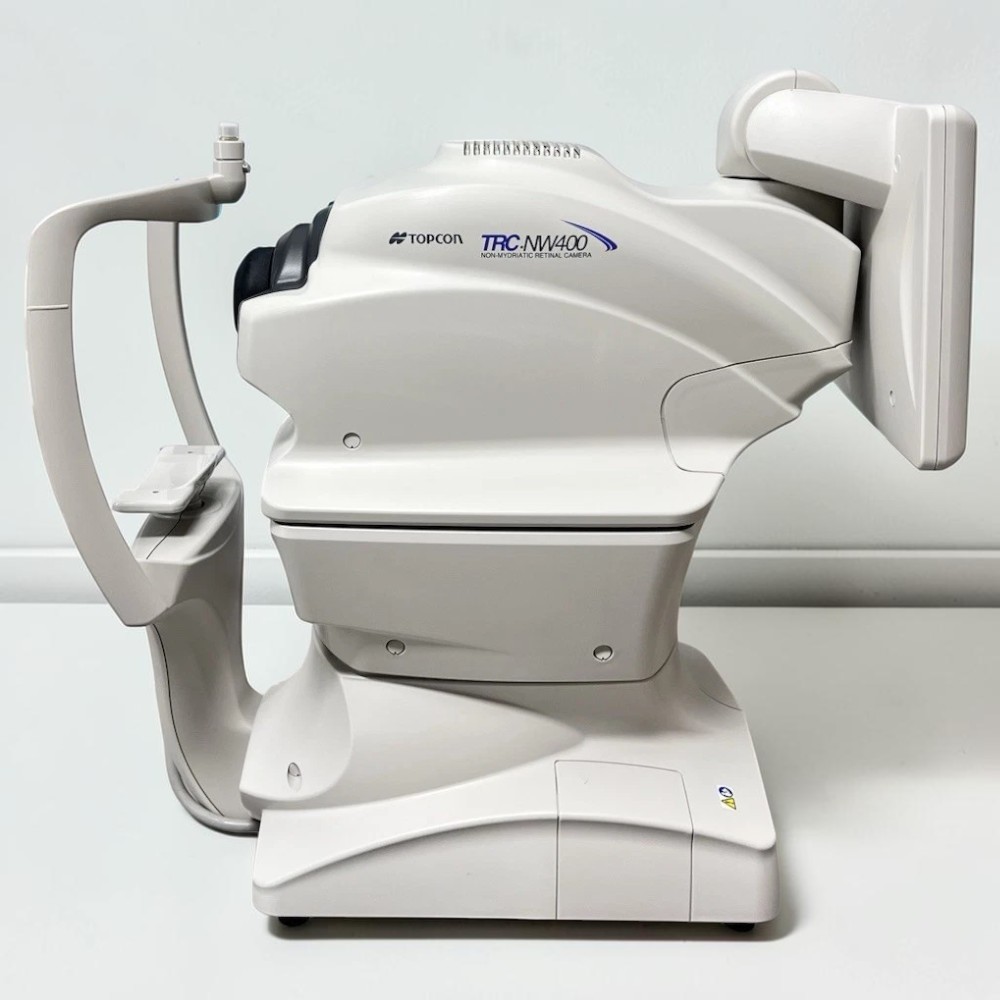

Used Topcon TRC-NW400 Non-Mydriatic Retinal Camera
The Topcon TRC-NW400 is a fully automated non-mydriatic retinal camera designed for efficient, high-quality fundus photography without dilation. In full auto mode, the TRC-NW400 handles alignment, focusing, capture, and eye-to-eye movement automatically — any operator can produce consistent retinal images without prior training. The 45° field of view covers the full posterior pole in a single image; the 9 peripheral fixation targets enable systematic documentation of the entire retinal periphery from the same session.
Small pupil photography down to ø3.3mm — combined with the small pupil aperture mode, digital zoom function, and overlaid mask — allows retinal imaging in the vast majority of patients without pharmacological dilation, reducing chair time and patient discomfort. The rotating touch panel monitor allows the camera to be operated from any angle, including wall-mounted or corner configurations, making it practical for compact exam rooms. The TRC-NW400 is DICOM compliant, enabling direct integration with PACS and EMR systems. Stereo photography mode is included, performing automatic stereo pair alignment on-screen.
This unit includes the TRC-NW400 camera body, power cable, and dust cover. Monitor and workstation computer are not included and must be sourced separately.
Technical Specifications
| Spec | Detail |
|---|---|

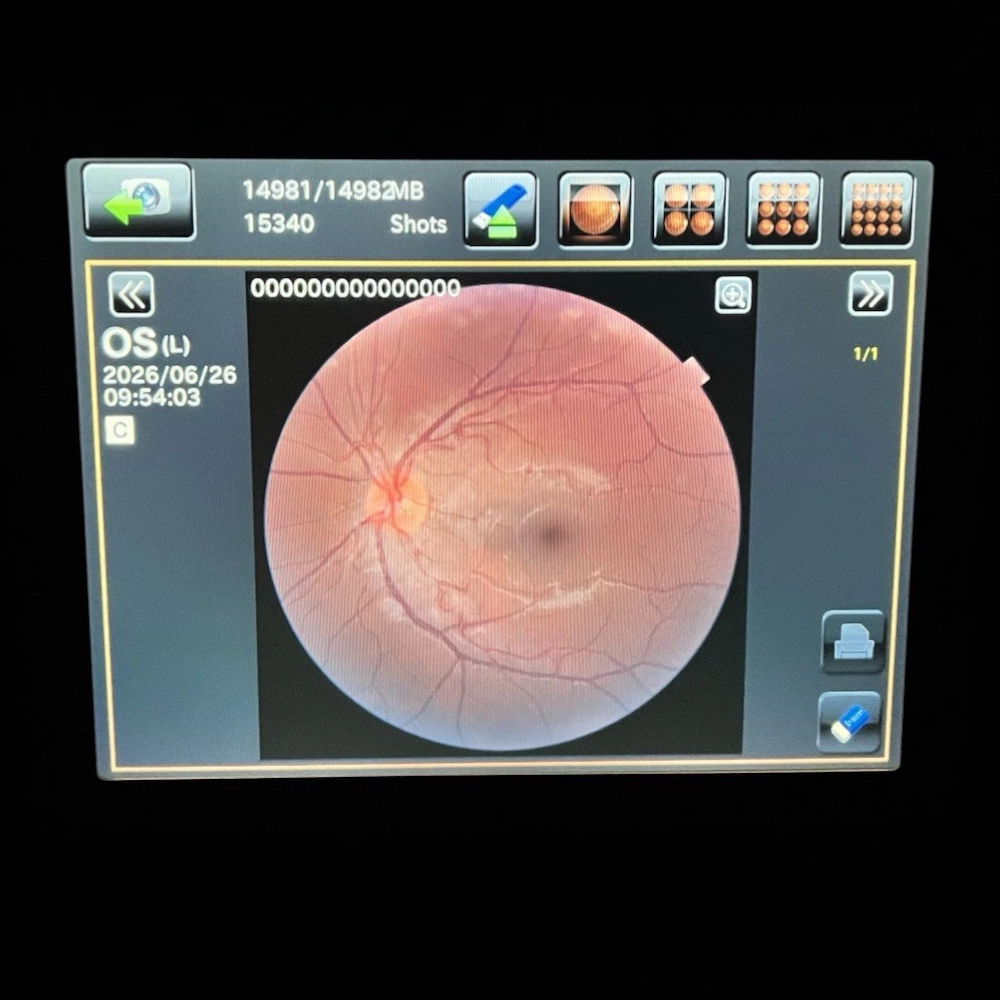

| Imaging type | Non-mydriatic color fundus photography |
| Field of view | 45° / 30° equivalent (digital zoom) |
| Working distance | 34.8 mm |
| Pupil diameter (standard) | ø4.0 mm or more |
| Pupil diameter (small pupil mode) | ø3.3 mm or more |
| Fixation targets | 3 traditional (Disc, Center, Macula) + 9 peripheral |
| Diopter correction (standard) | -13D to +12D |
| Diopter correction (concave lens) | -12D to -33D |
| Diopter correction (convex lens) | +11D to +40D |
| Automation | Auto alignment, autofocus, auto shoot, auto eye-switch |

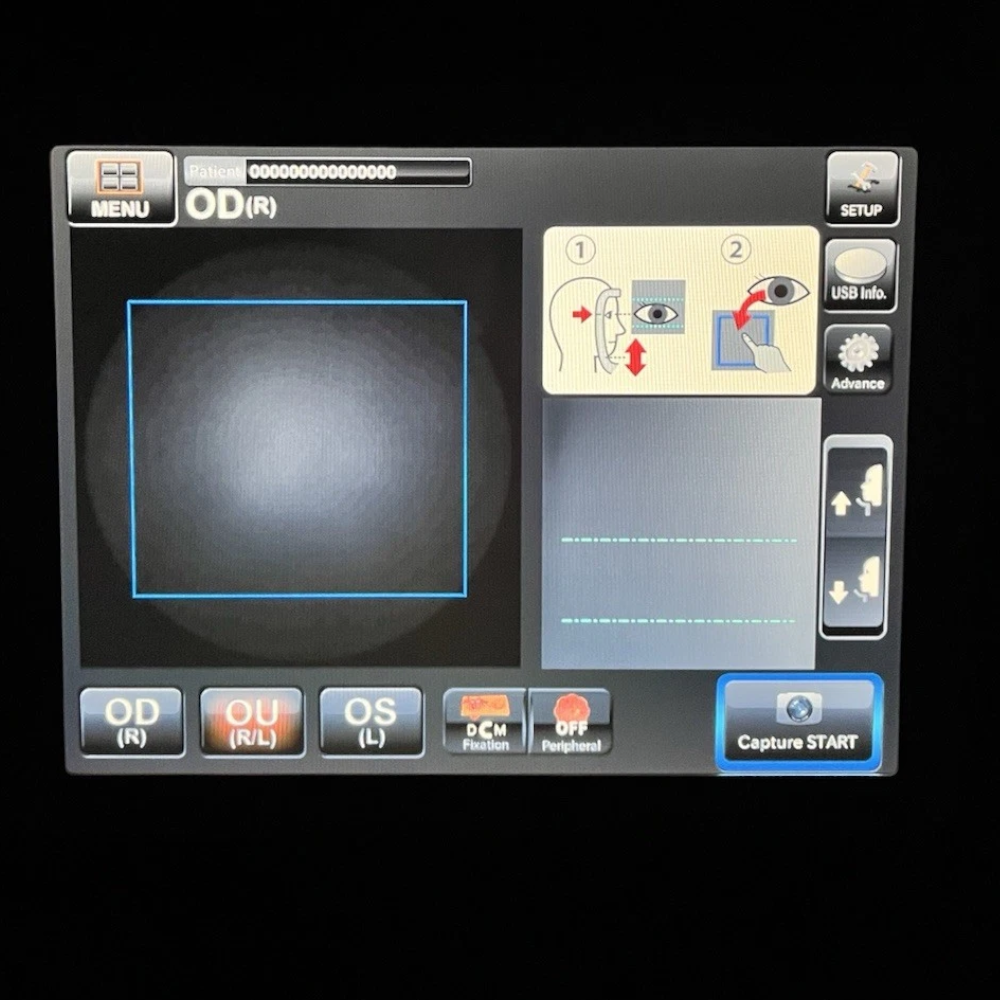

| Control panel | Rotating touch screen |
| Stereo photography | Yes (automatic alignment) |
| Connectivity | DICOM compliant |
