Description

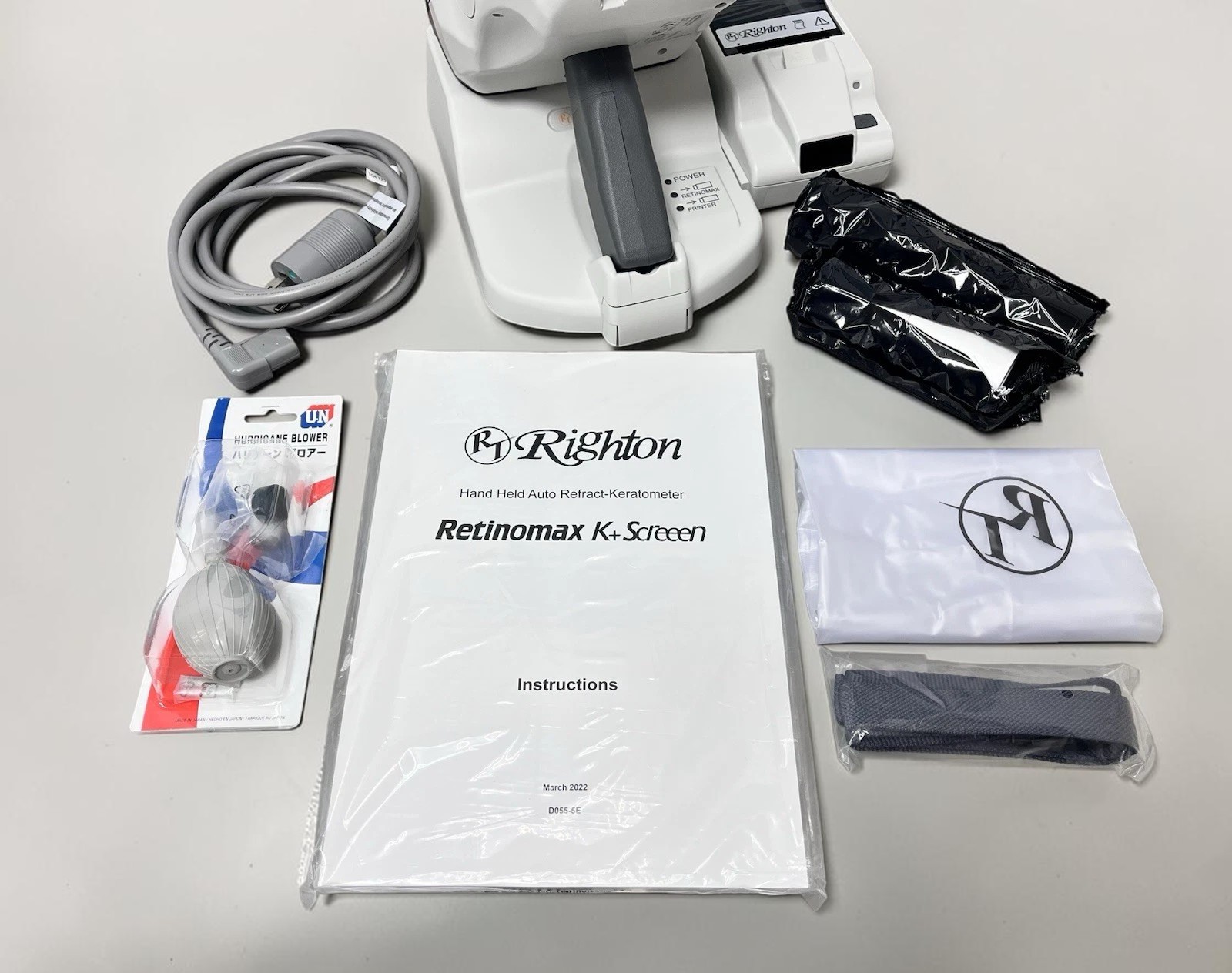

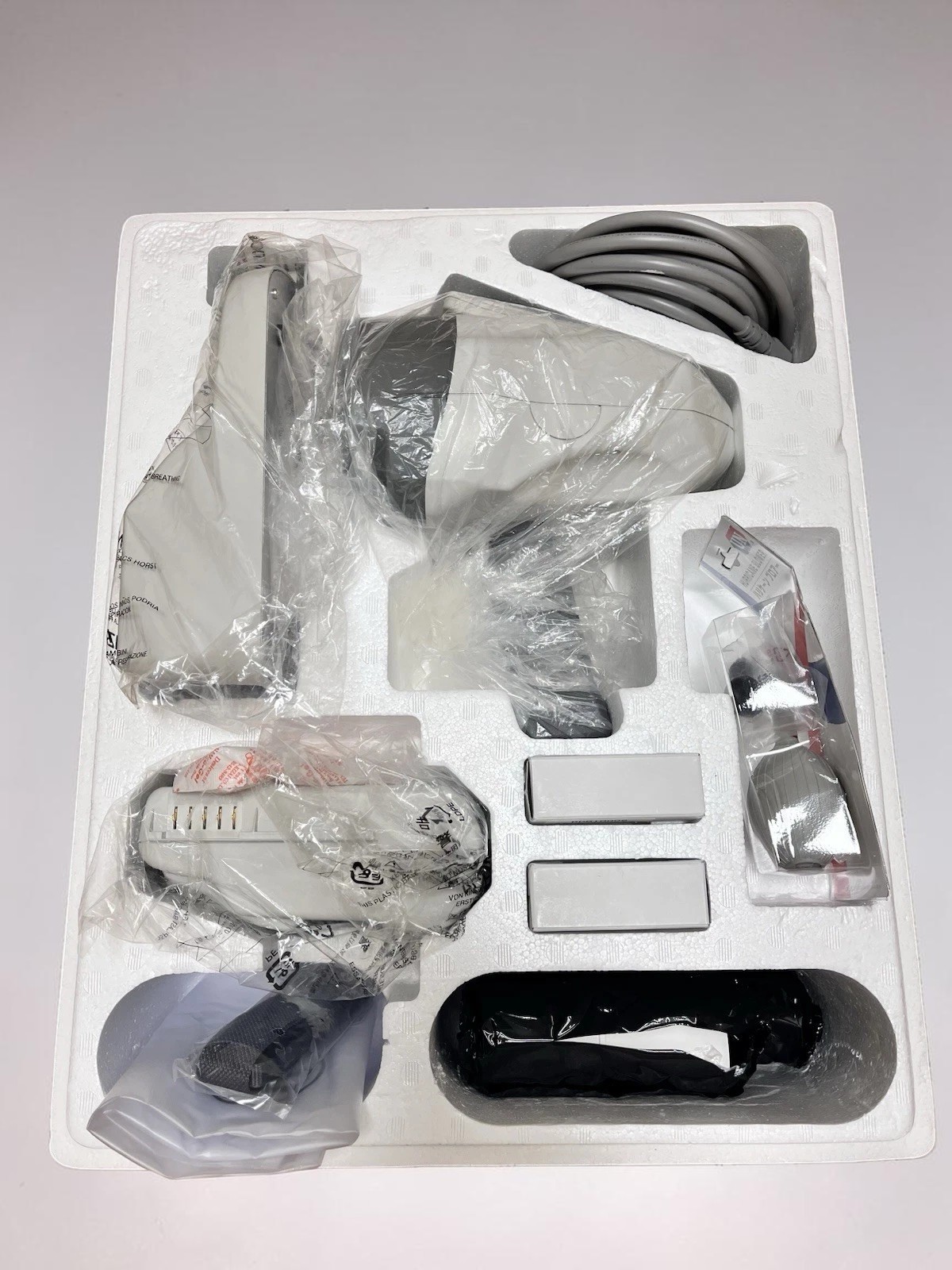

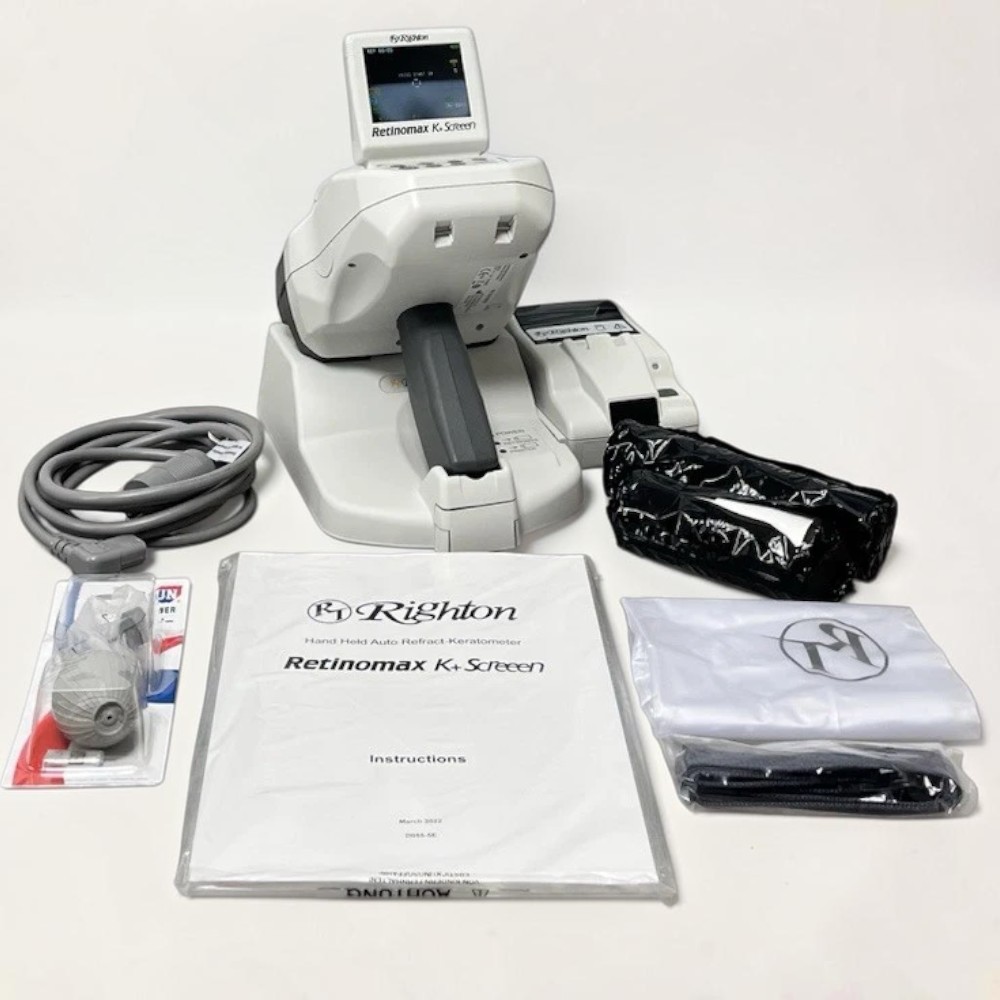

What’s Included
- Righton Retinomax K+ Screen handheld auto refract-keratometer

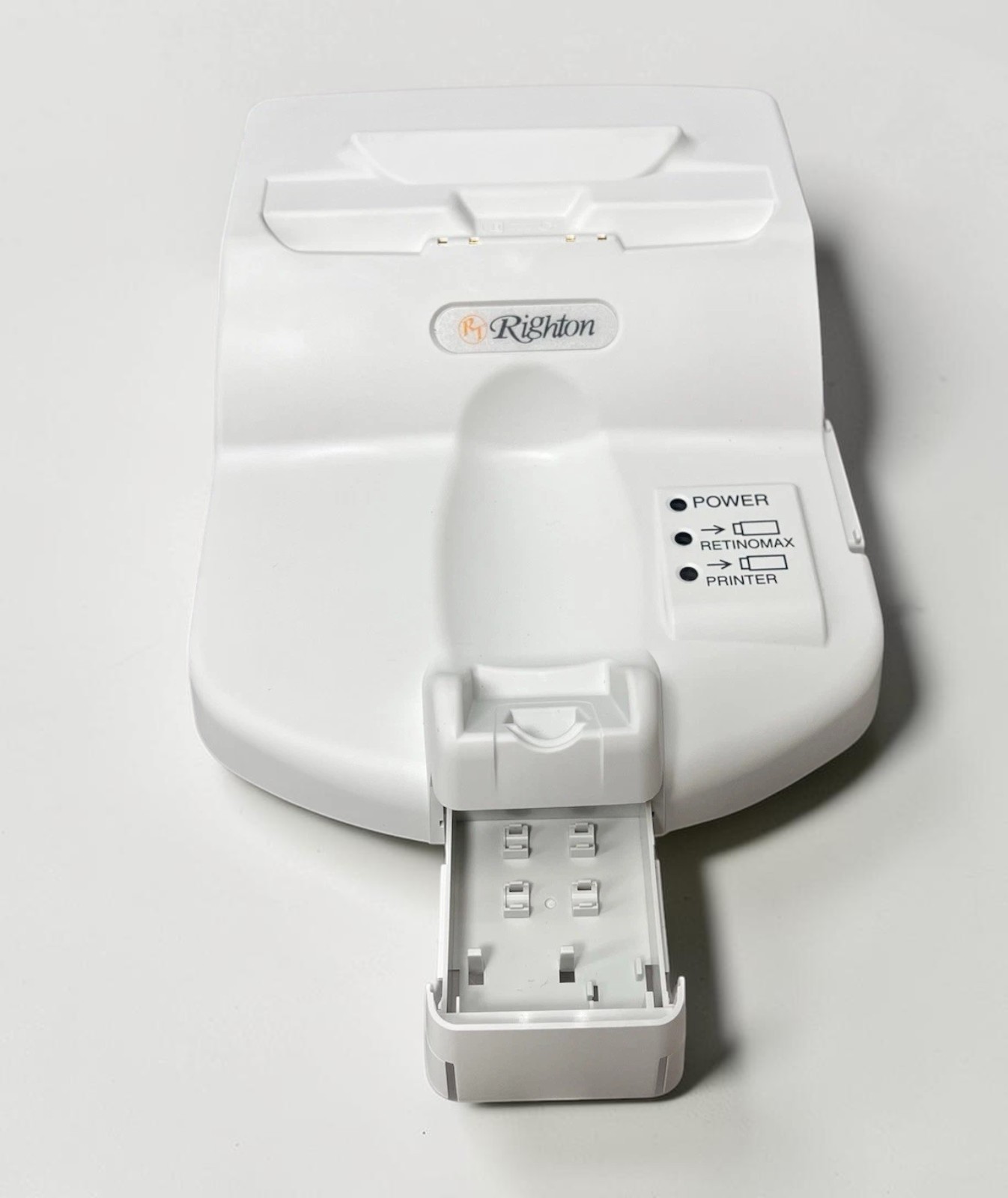

- Charging station
- Printer attachments
- Printer paper rolls
- Power cable
- Blower
- Dust cover
- Instruction manual
- 90-day Digital Eye Center warranty
Condition & Warranty

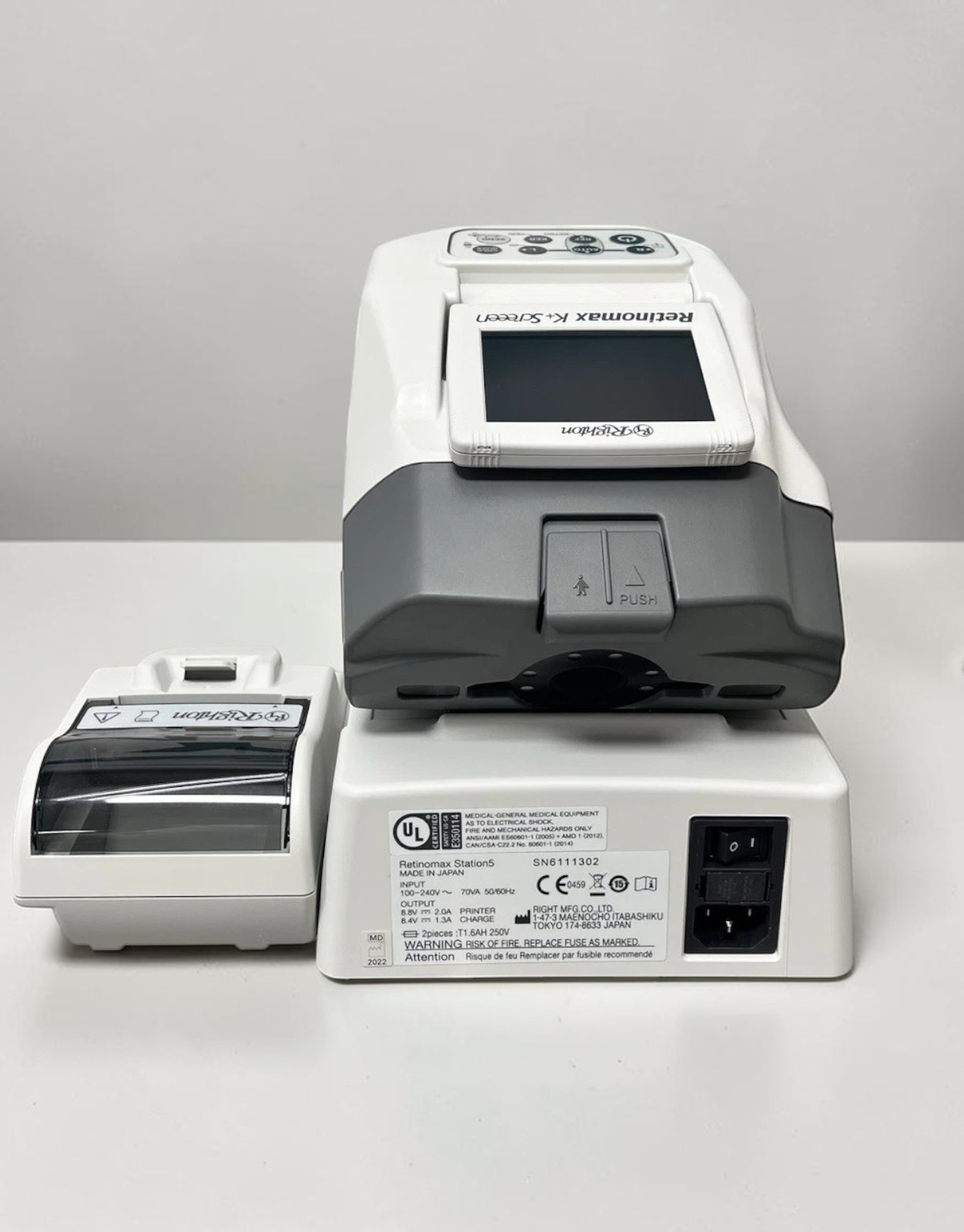

Used. Tested and in excellent working order, cleaned, and ready to use on arrival. The back of the unit shows some signs of use. Covered by a 90-day warranty on parts and workmanship.
Retinomax Autorefractor Keratometer — Used Handheld K+ Screen

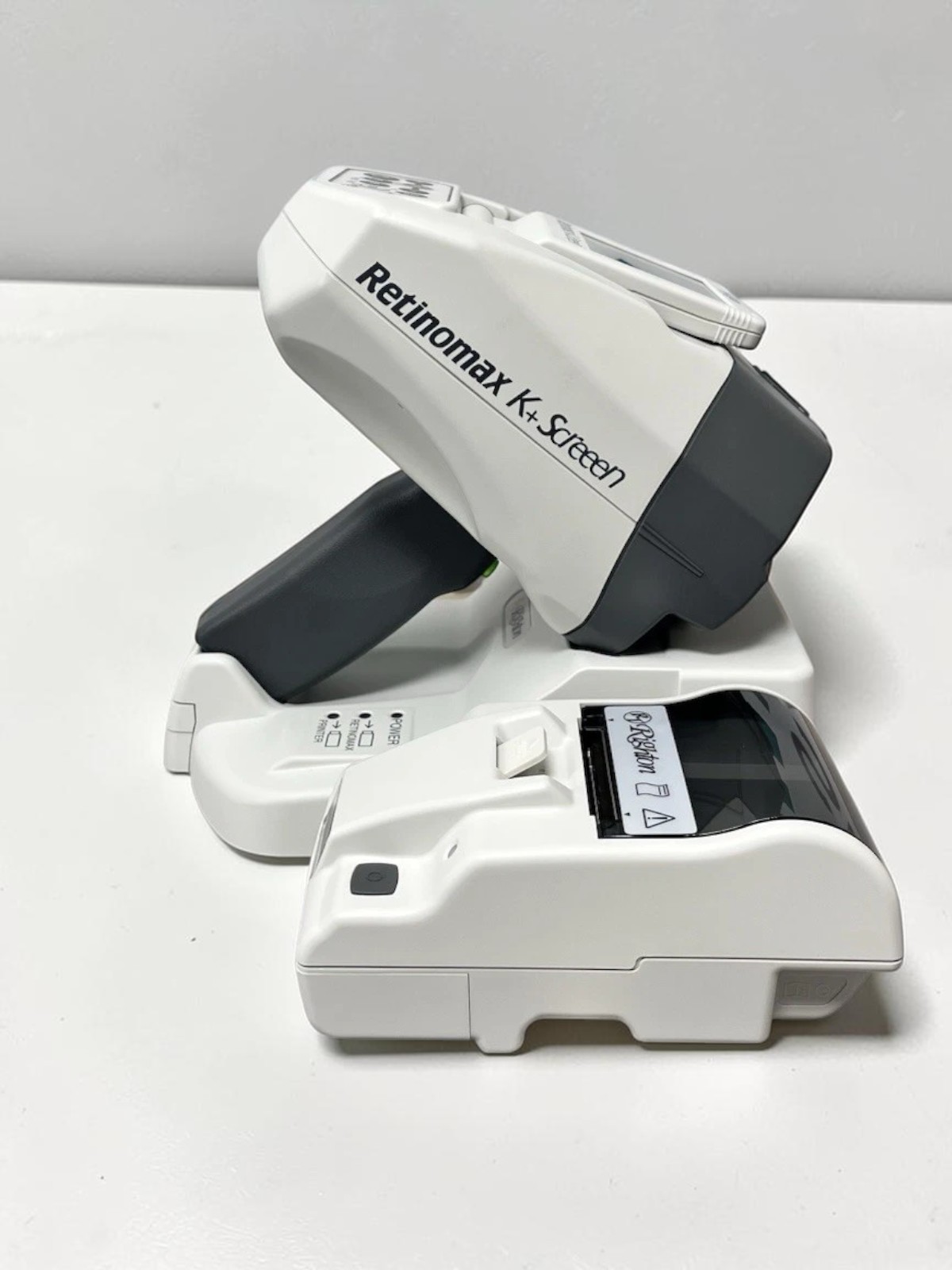

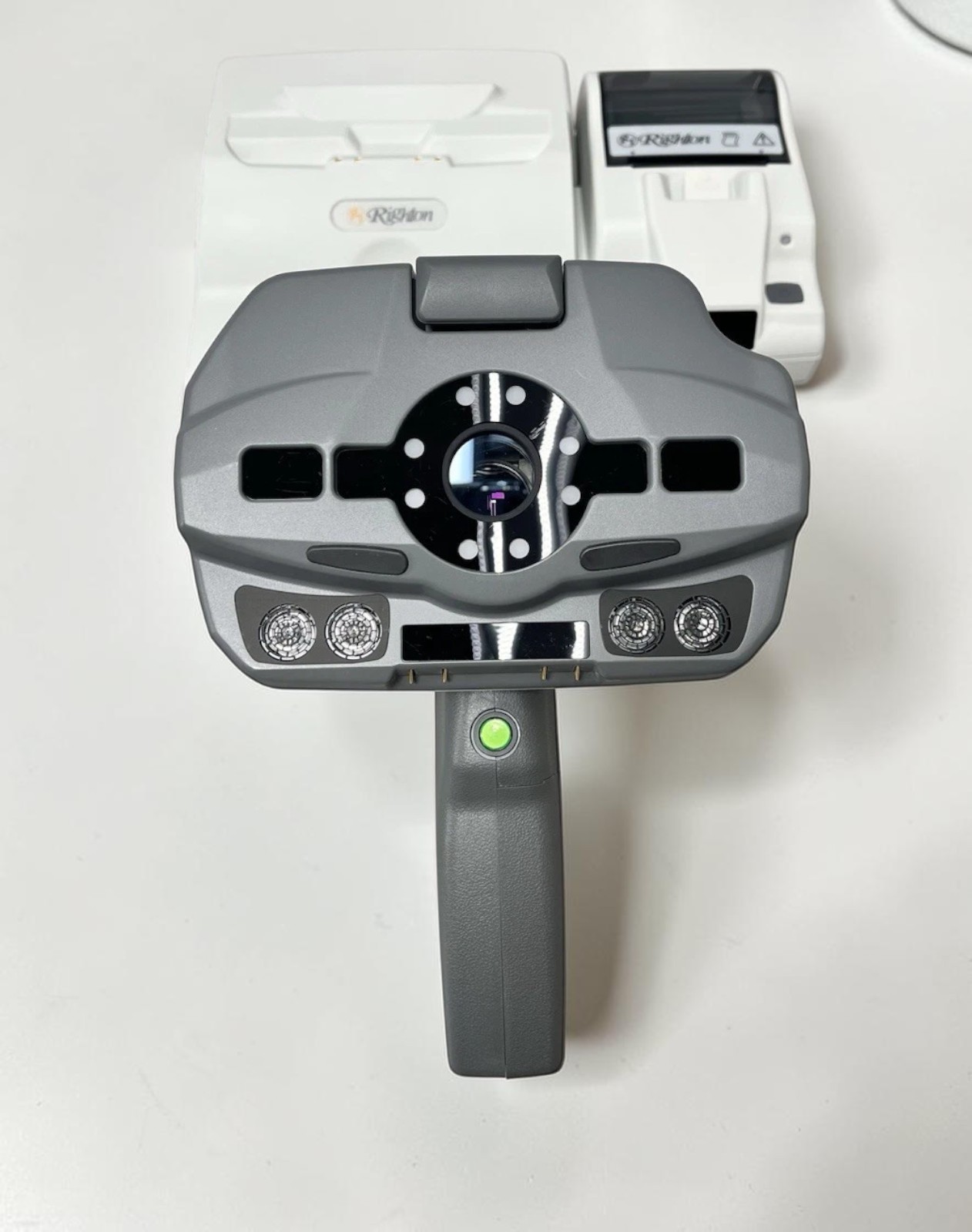

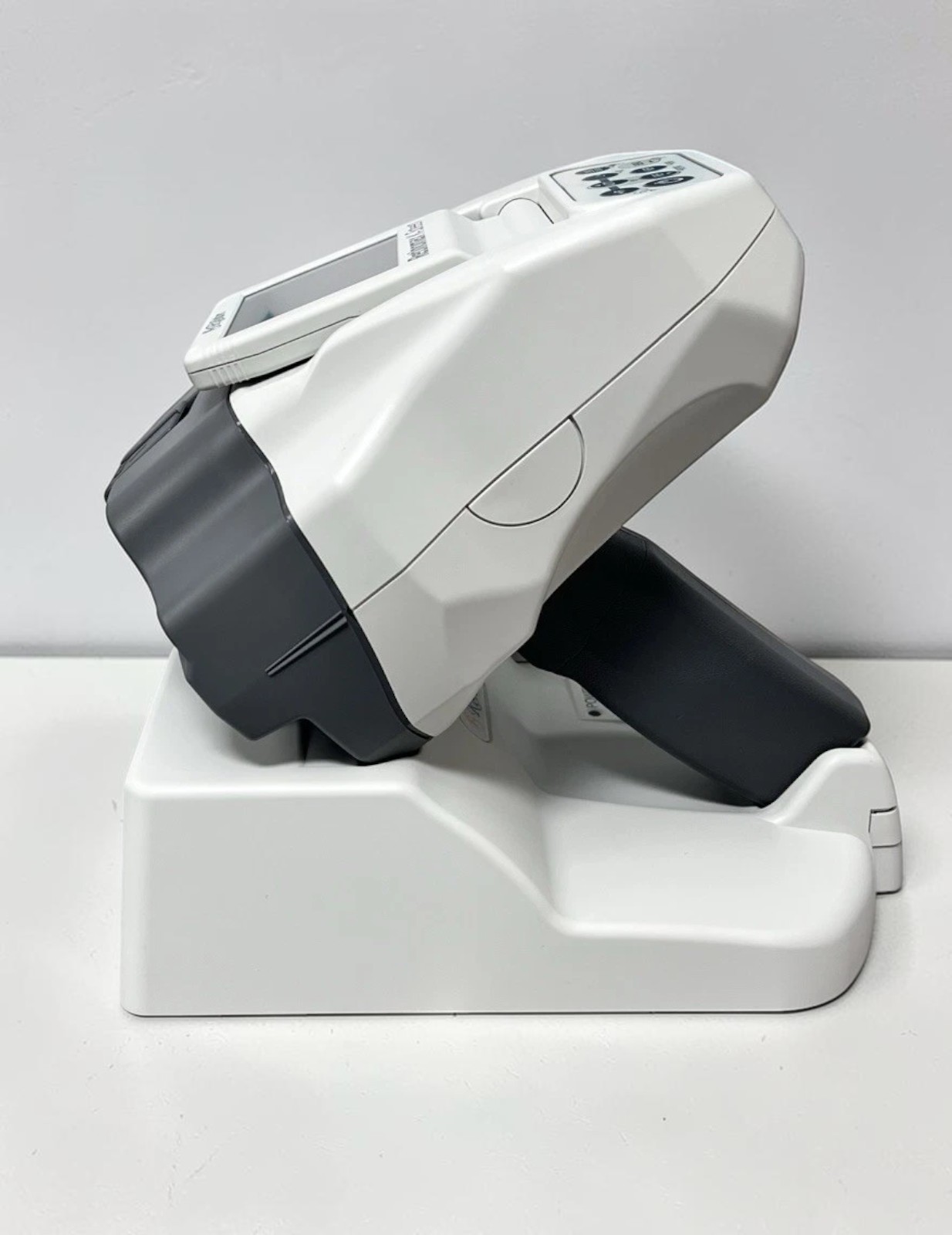

The Righton Retinomax K+ Screen is a handheld retinomax autorefractor and keratometer that measures sphere, cylinder, axis, and corneal radius of curvature from one lightweight, battery-powered instrument. Instead of bringing the patient to a table-mounted refractor, the clinician brings this retinomax autorefractor to the patient — to a child on a parent’s lap, a wheelchair user, or a patient lying on a surgical table.

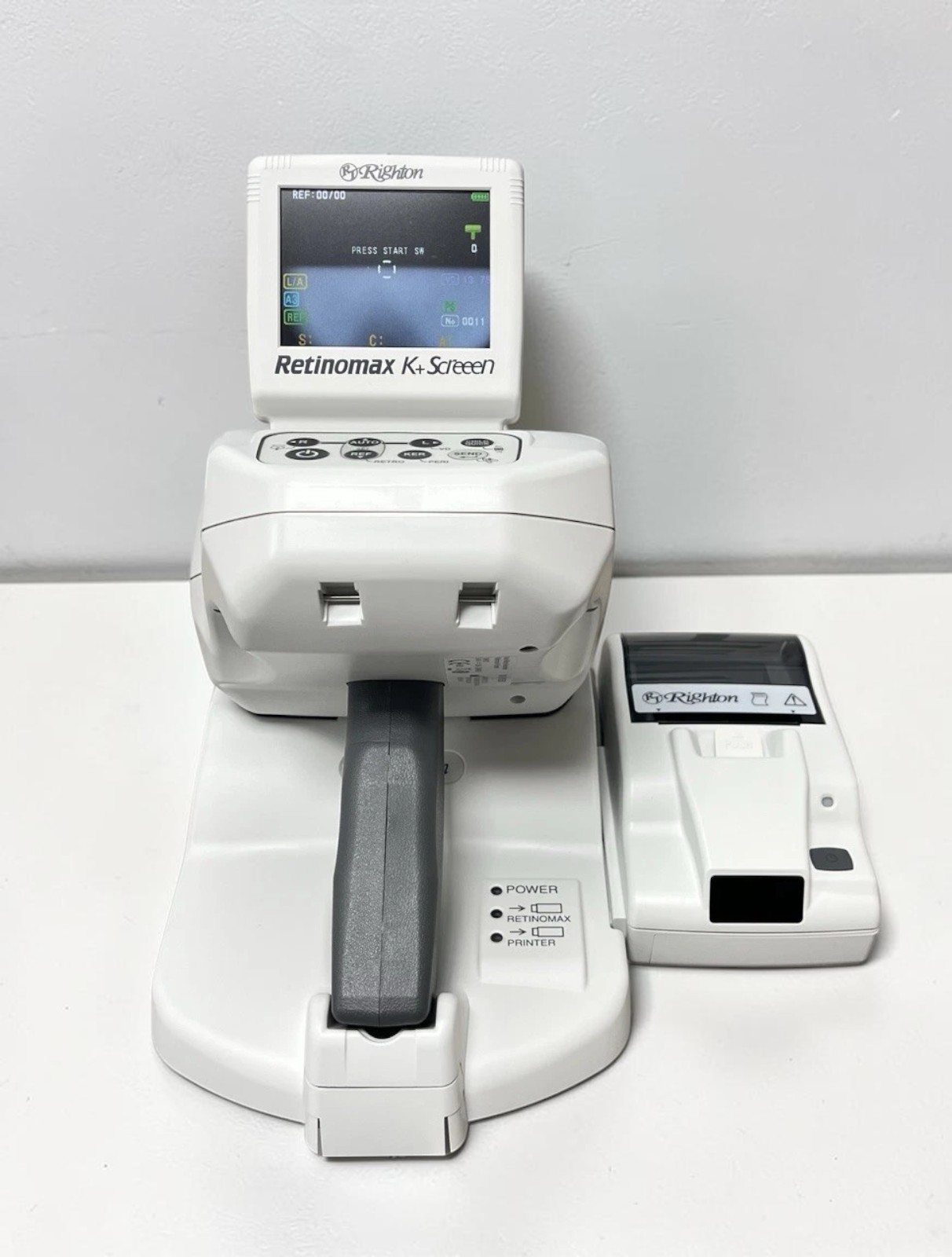

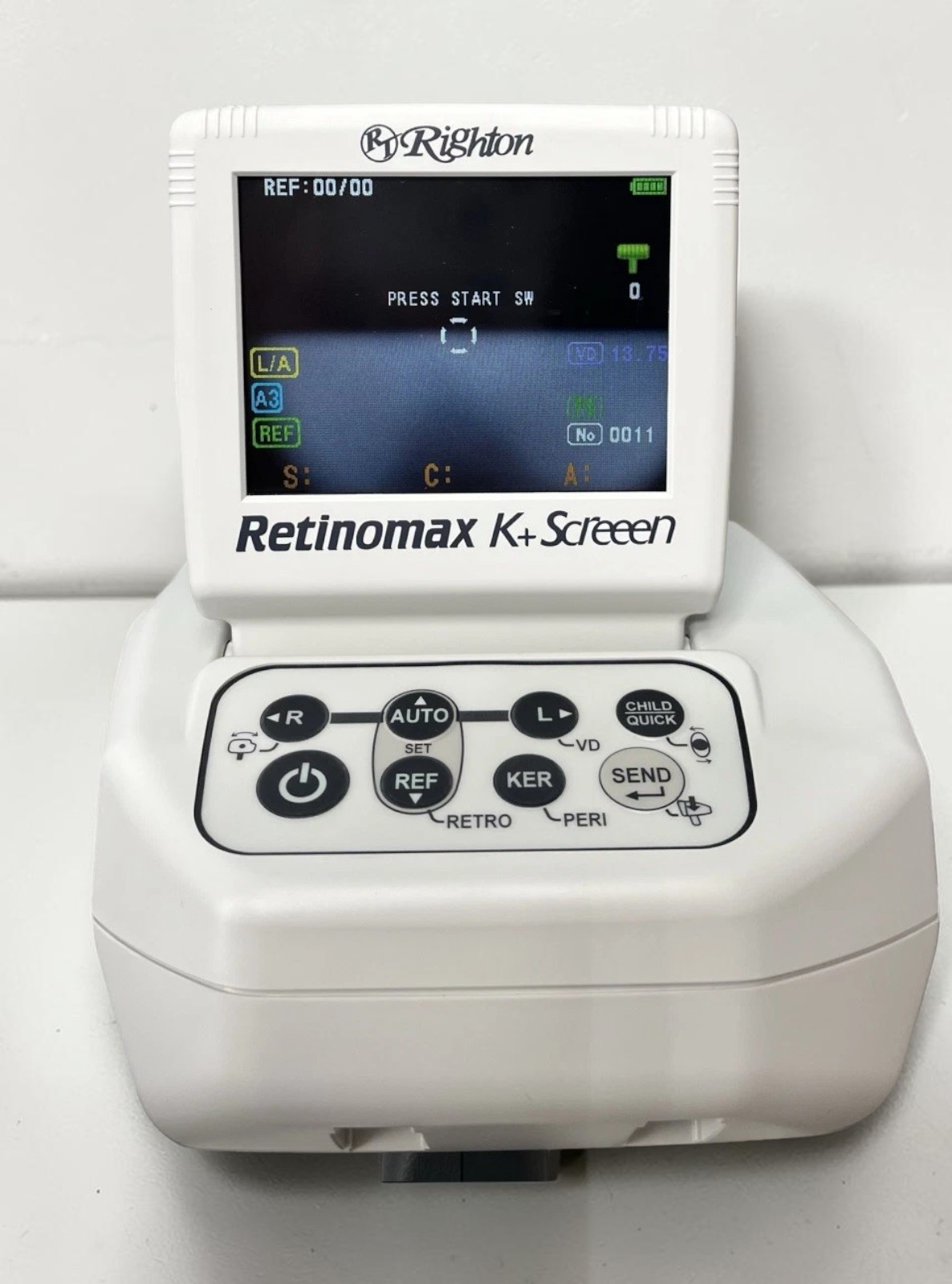

The “Screen” generation adds a 3.5-inch low-reflection color LCD that tilts upward through a 100-degree range, so the operator can follow alignment and readings from almost any posture. A color-coded focus assist shows when the working distance is correct, automatic axis compensation corrects the cylinder axis when the device is not held level, and a child mode with a continuous melody and changing target colors helps hold a young patient’s attention. Results print on the included printer attachment that docks beside the charging station.
A study indexed by the National Library of Medicine compared the Retinomax K-plus3 with retinoscopy by a pediatric ophthalmologist in 311 children and found no clinical difference in cycloplegic refraction between the two methods.
Why Practices Choose the Righton Retinomax K+ Screen

- Refraction and keratometry in one handheld unit — sphere −20 D to +23 D, cylinder to ±12 D, and corneal radius 5.00 to 15.00 mm
- Tilting 3.5-inch color LCD — low-reflection screen with a 100-degree upward tilt for comfortable viewing at the bedside or chair
- Automatic axis compensation — the cylinder axis is corrected when the instrument is tilted during capture
- Color-coded focus assist — red, green, and blue cues guide the operator to the correct working distance
- Child mode — a continuous melody and a target that changes color keep pediatric patients engaged during capture
- 180-minute battery life — enough for school screenings, ward rounds, and outreach sessions
- 970 g with battery — lighter than the 999 g Retinomax K-plus3, with an easy-to-hold grip for long screening sessions
Clinical Applications
- Pediatric and infant refraction when a child cannot sit at a table-top autorefractor
- School and community vision screening programs
- Bedside measurement for non-ambulatory or wheelchair-using patients
- Refraction and keratometry in the operating room or pre-op area
- Objective starting point for subjective refraction in a busy exam lane
Who This Is For
- Pediatric ophthalmology and optometry practices
- Mobile and outreach vision-screening providers
- Hospitals and surgical centers that need portable refraction and keratometry
- Practices adding a second-room or backup auto ref/keratometer
Technical Specifications
| Specification | Detail |
| Type | Handheld auto refract-keratometer |
| Sphere range (S + C) | −20 D to +23 D (VD 12 mm), 0.12 / 0.25 D steps |
| Cylinder range | 0 D to ±12 D, 0.12 / 0.25 D steps |
| Radius of curvature | 5.00 to 15.00 mm (0.01 mm increments) |
| Corneal astigmatism | 0 D to ±12 D (R 5 to 13 mm); 0 D to ±7 D (R 14 to 15 mm) |
| Pupil size measurement | 2.0 to 12.0 mm (0.1 mm increments) |
| Display | 3.5-inch low-reflection color LCD, 100-degree upward tilt |
| Battery life | Up to 180 minutes |
| Weight | 970 g with battery |
| Main body dimensions | 168 (W) x 202 (D) x 236 (H) mm |
| External output | Infrared (main body); USB Micro-B (printer) |
| Station input | AC 100 to 240 V, 50/60 Hz |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
Compare Handheld Auto Ref/Keratometer Options
| Feature | Nidek HandyRef-K | Righton Retinomax K-Plus 5 |
| Type | Handheld ref/keratometer | Handheld ref/keratometer |
| Sphere range | −20 to +20 D | −20 to +23 D |
| Cylinder range | ±12 D | ±12 D |
| Keratometry radius | 5.00–13.00 mm | 5.00–11.00 mm |
| Display | 3.5-inch tiltable color LCD | Viewfinder (±8 D diopter adjustment) |
| Printing | Thermal printer in the station | Built-in printer |
| Battery life | — | — |
| Condition | Used | Used |
| Price | $8,723 | $8,712 |
Also consider the Nidek HandyRef-K for a handheld with its own charging and printing station, or the Righton Retinomax K-Plus 5 from the same Retinomax family with a viewfinder and built-in printer.
Questions about the Righton Retinomax K+ Screen? Contact us for availability and shipping details.
