Description

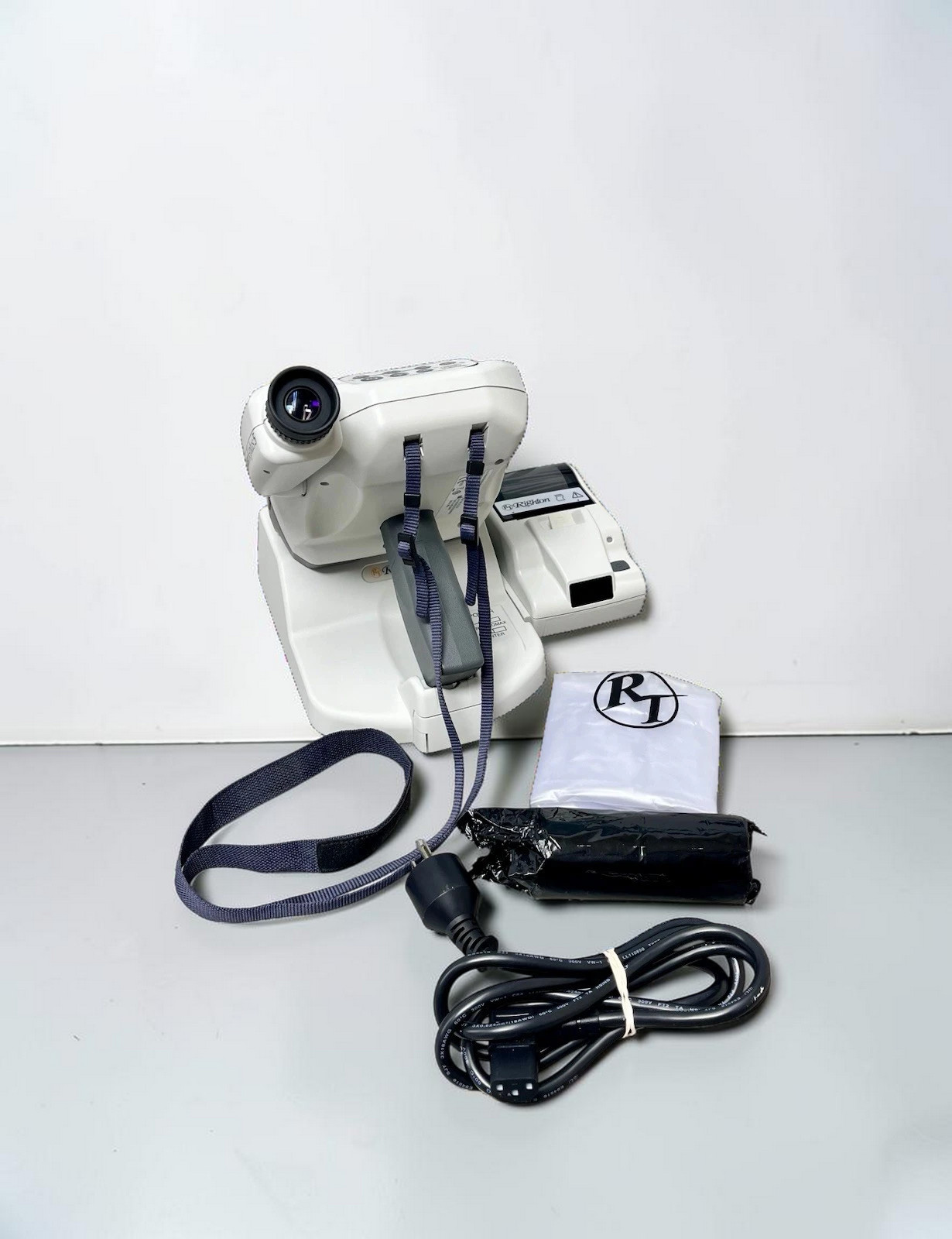

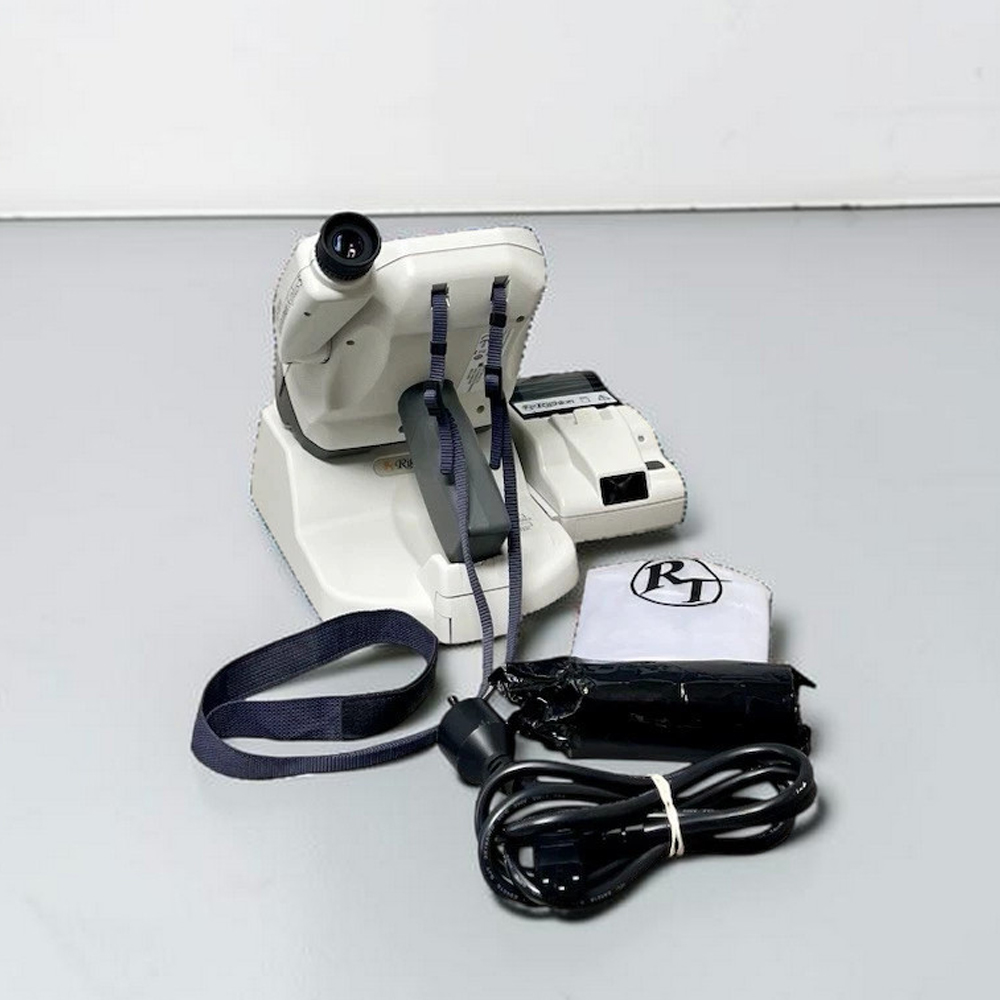

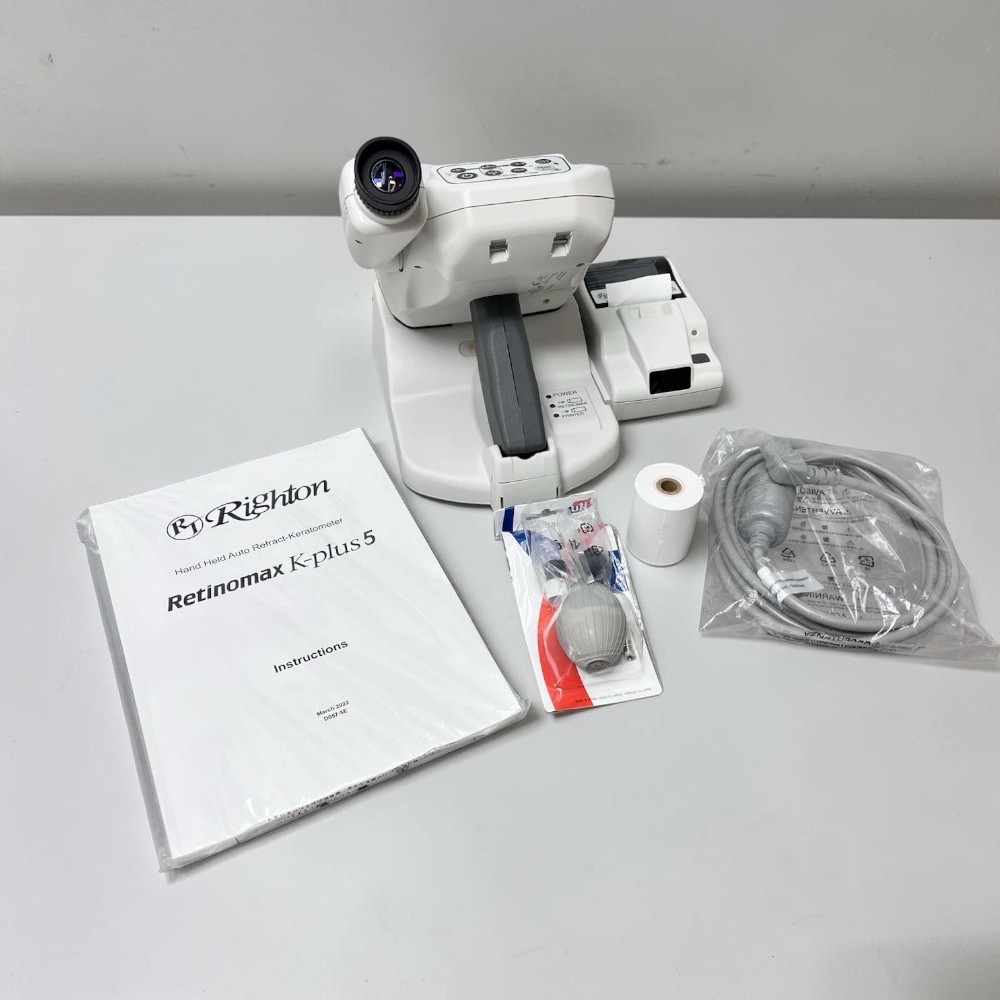

What’s Included

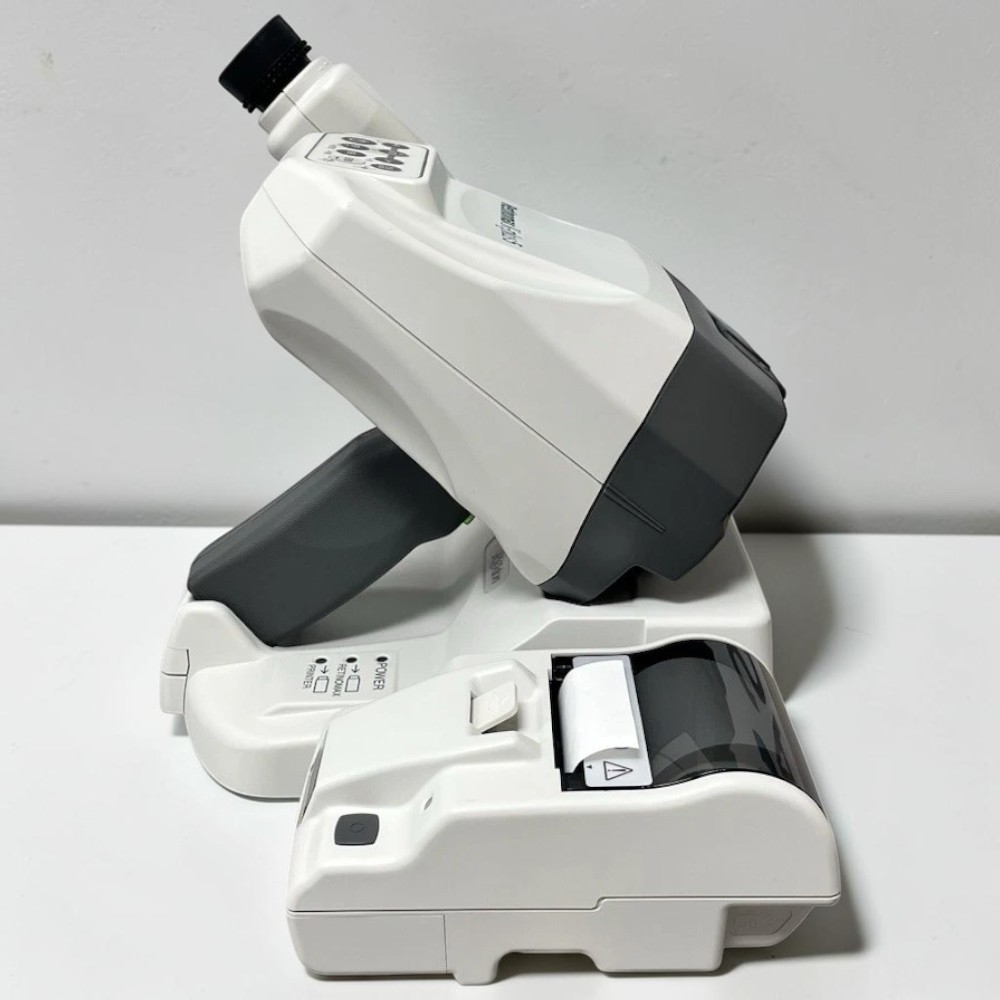

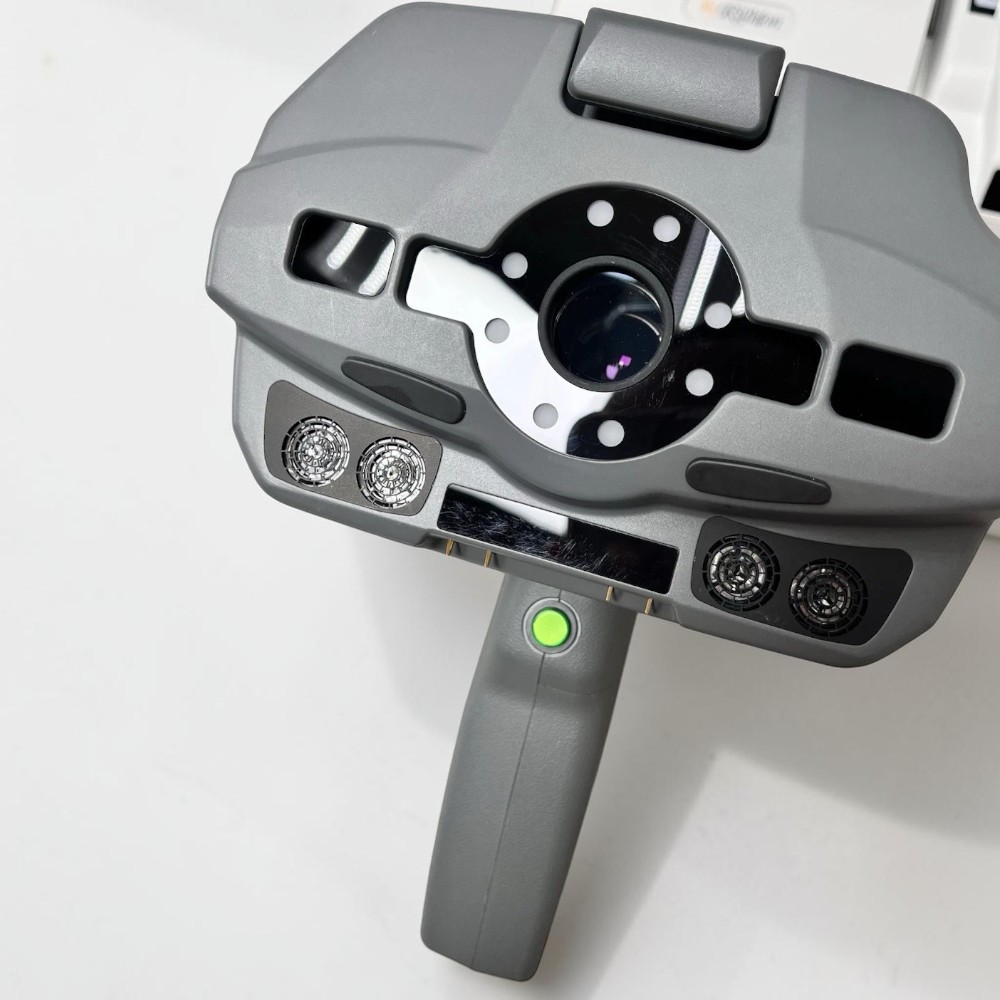

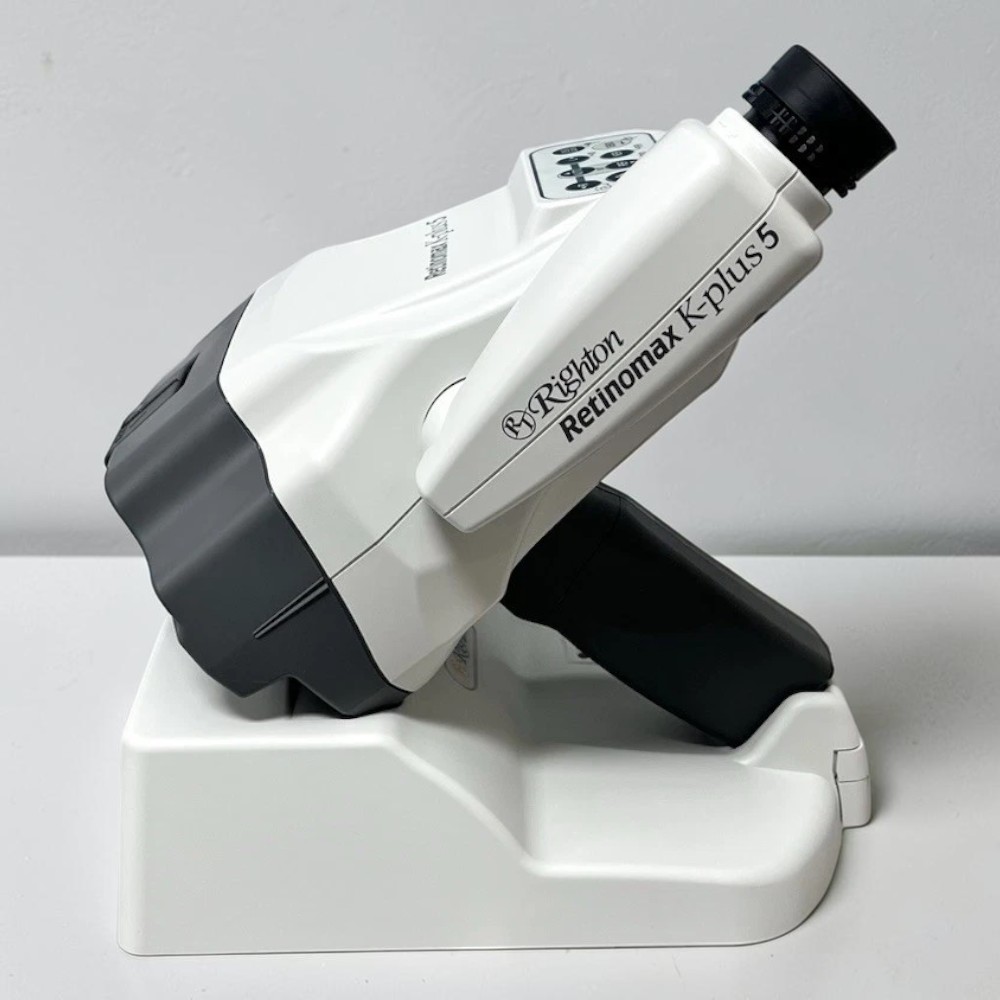

- Righton Retinomax K-Plus 5 handheld autorefractor/keratometer

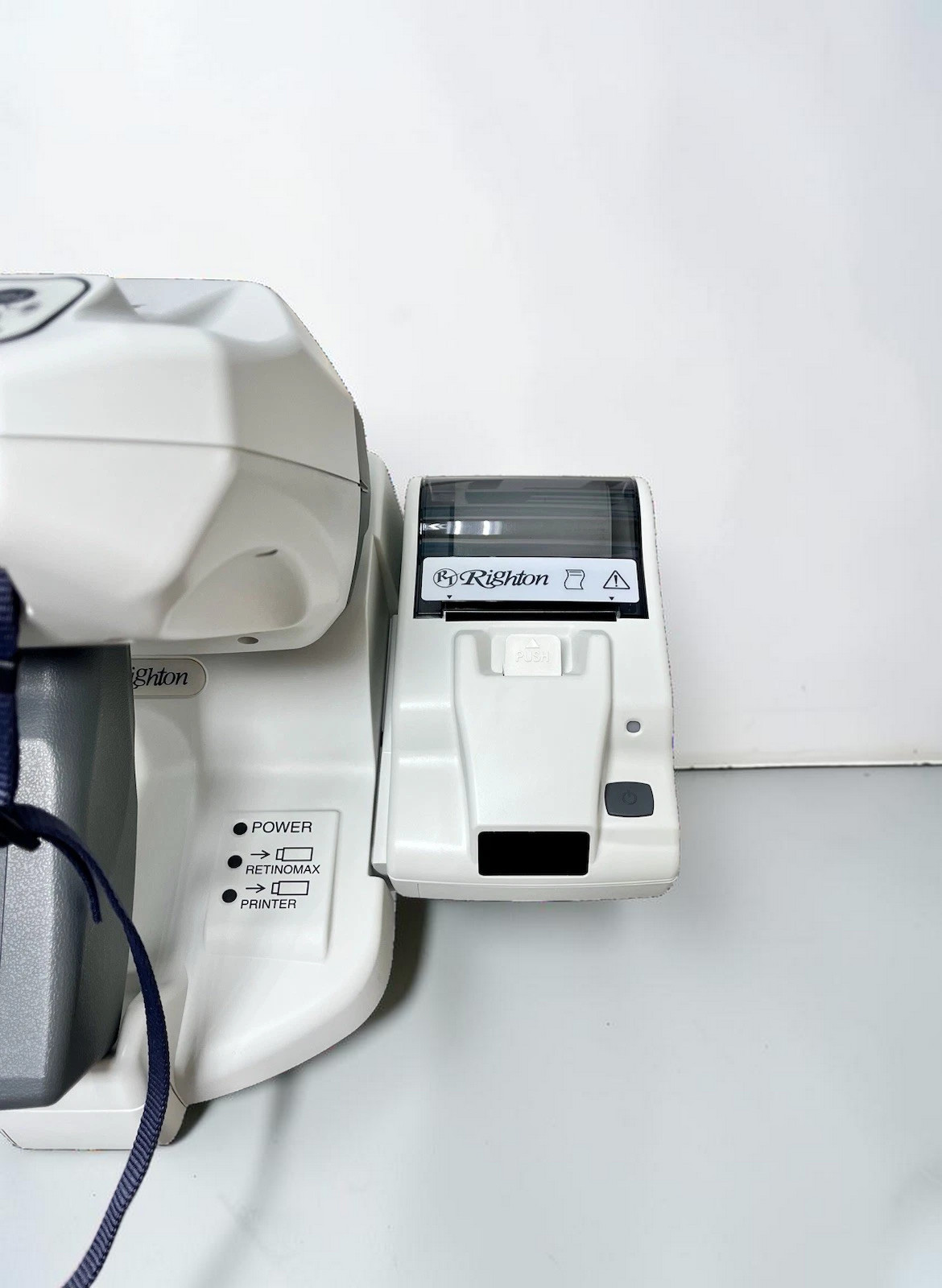

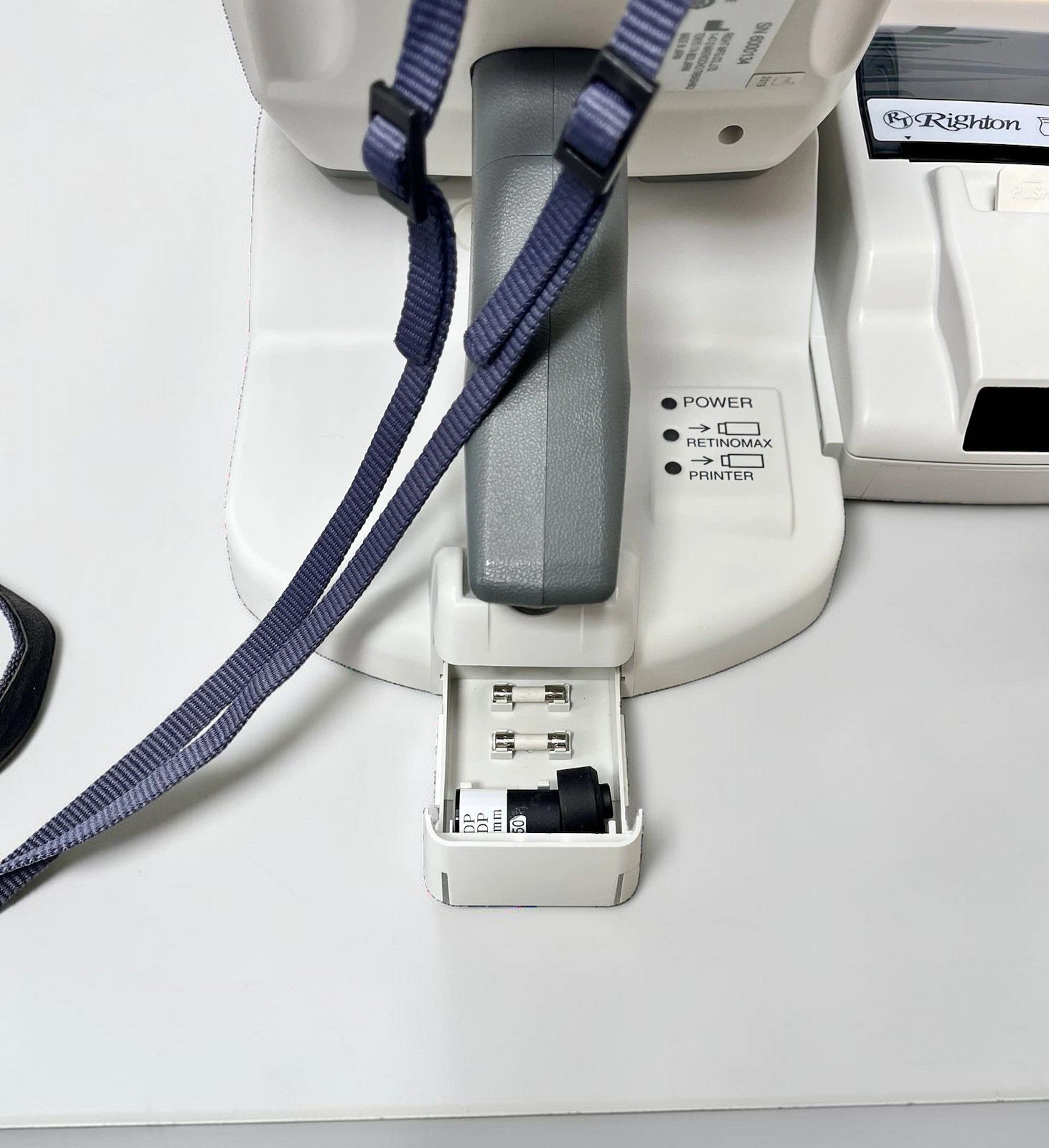

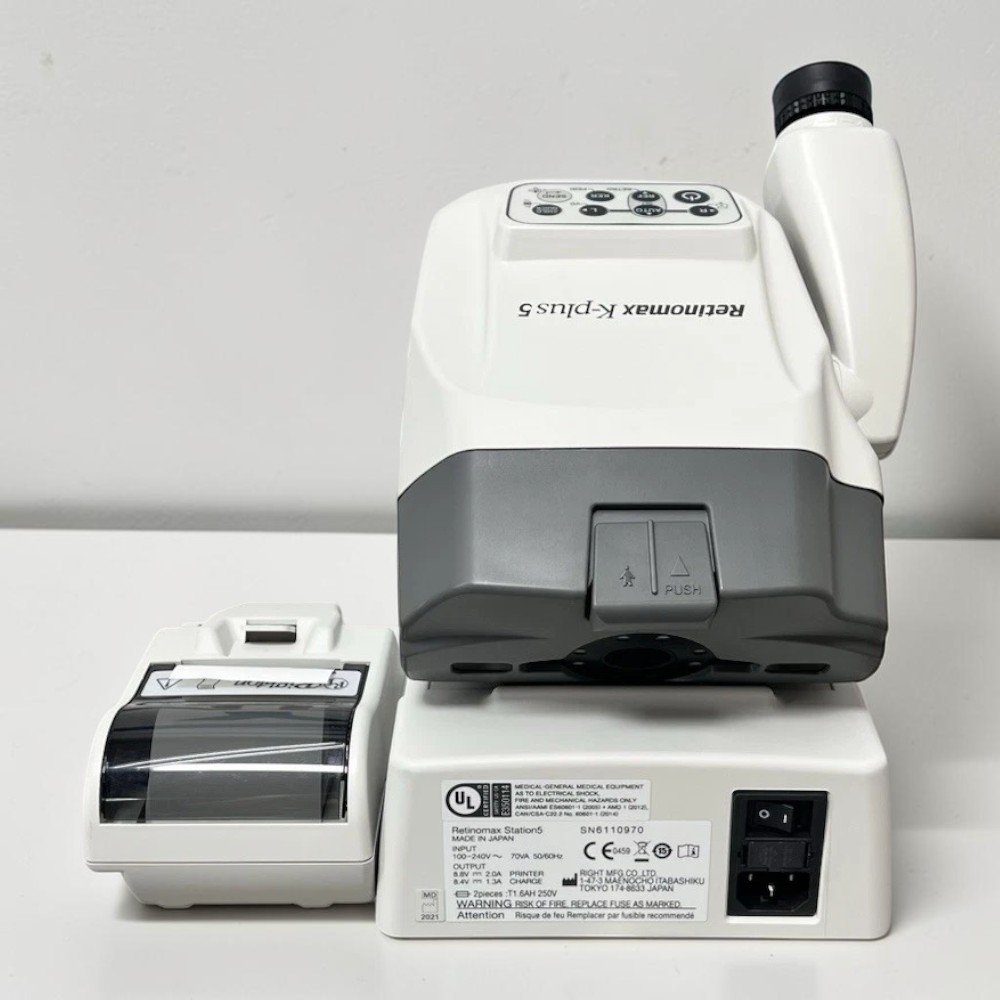

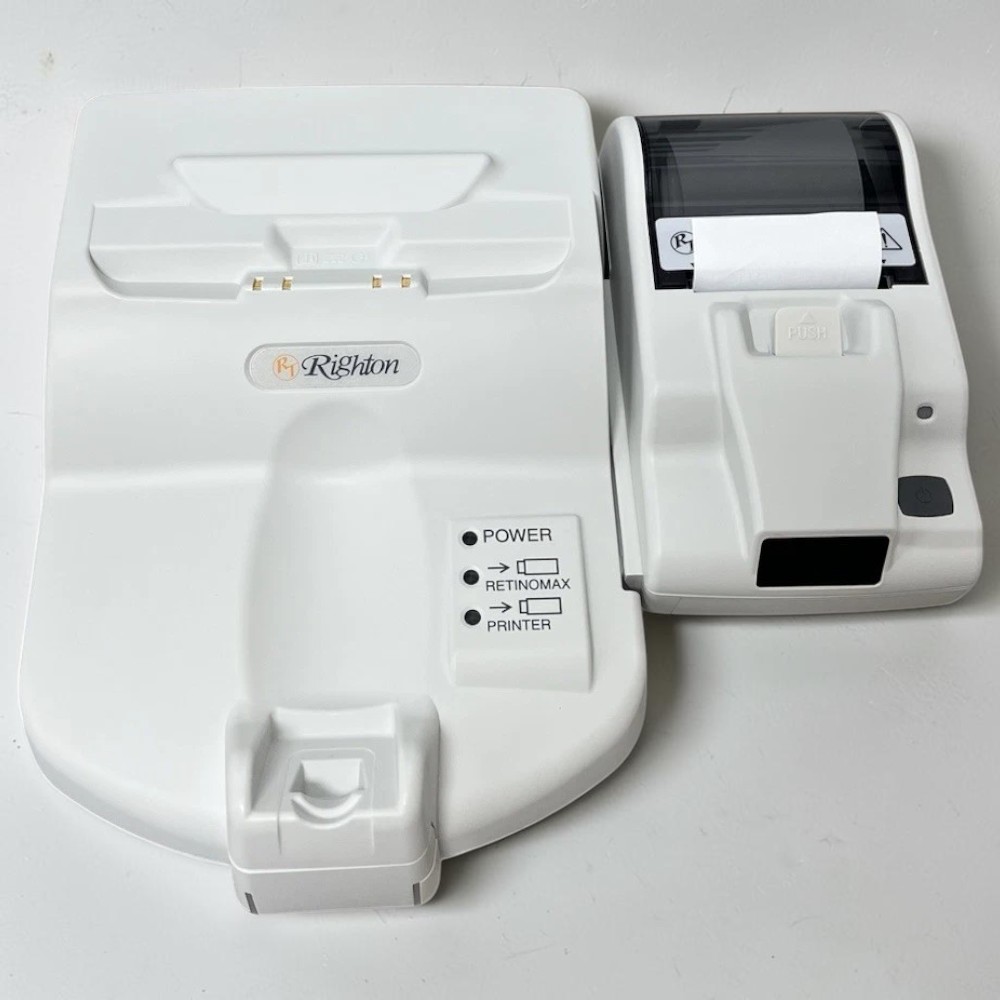

- Charging station

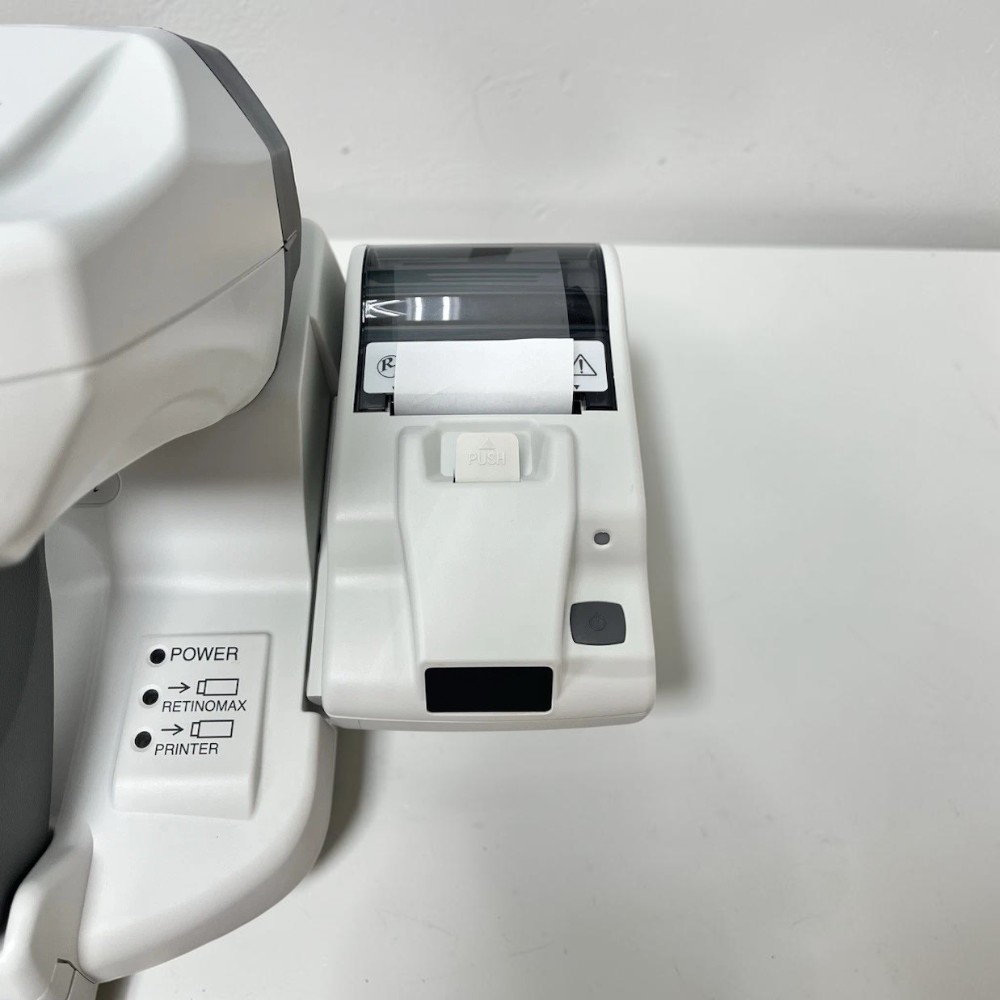

- Printer
- Printer roll
- 1 battery pack
- Power cable
- Manual
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. This Righton Retinomax K-Plus 5 has been tested and is in excellent working order. It has been cleaned and is ready to use, and shows some signs of previous use. Only 1 battery pack is included and no extra battery pack is available. Covered by a 90-day warranty on parts and workmanship.

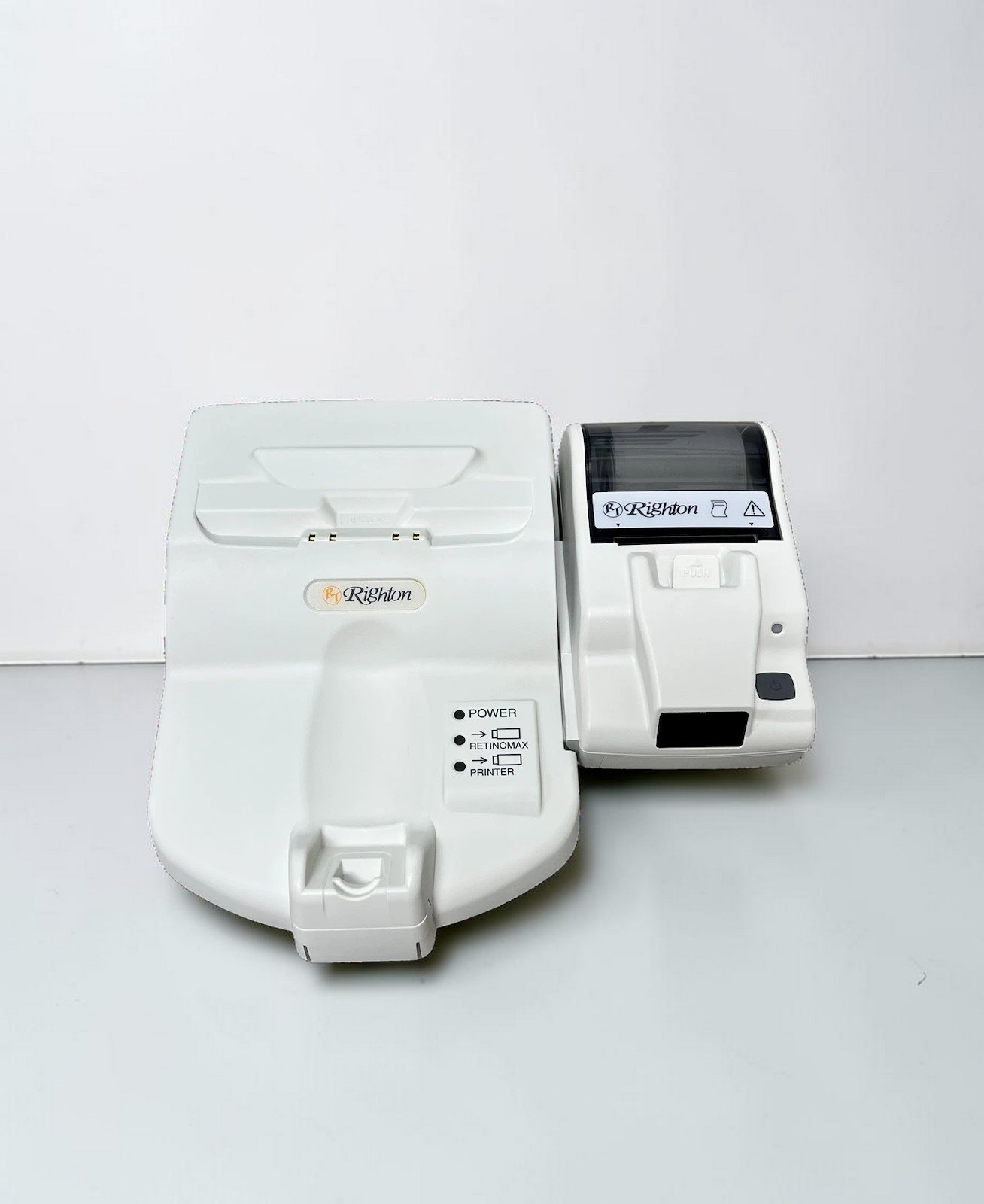

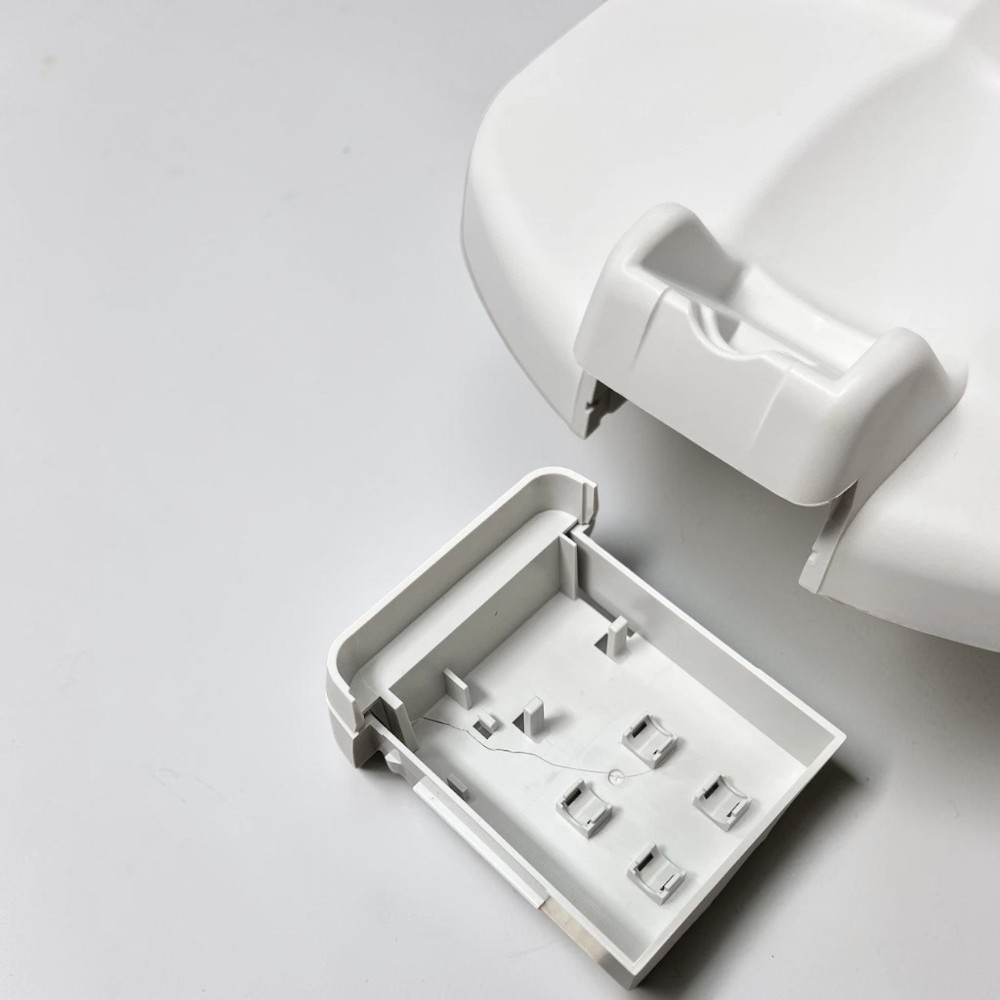

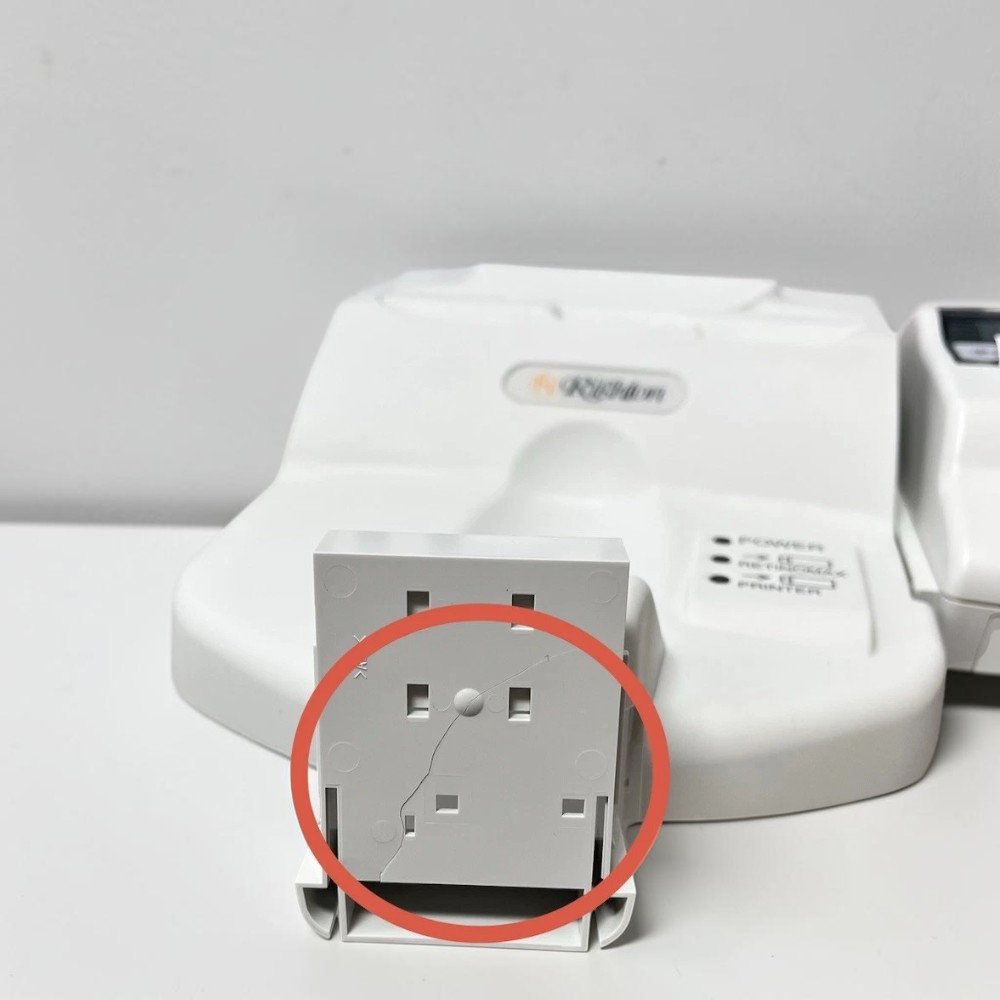

Please note: A removable plastic cover on the charging station has a crack, which is shown in the product photos.

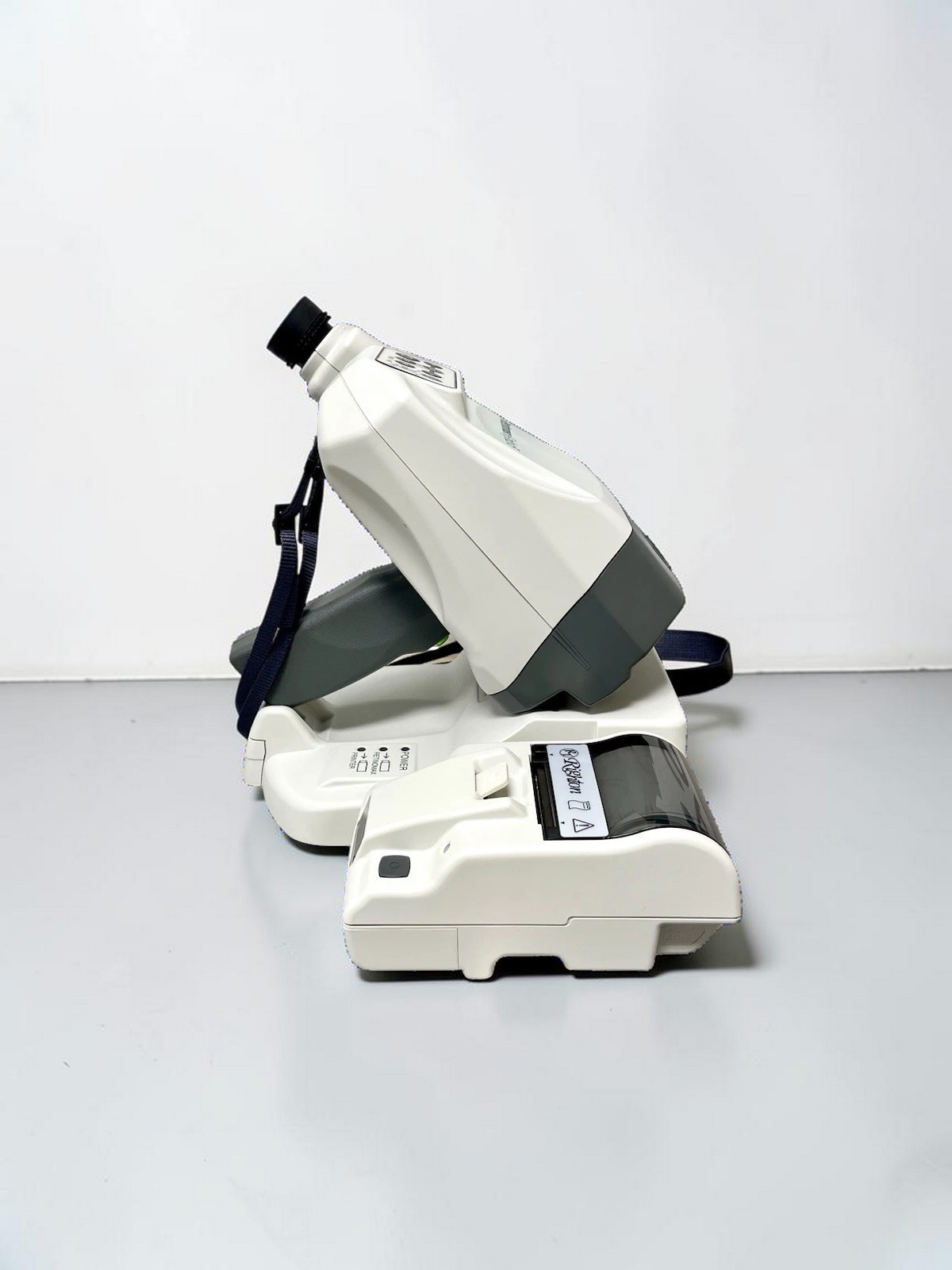

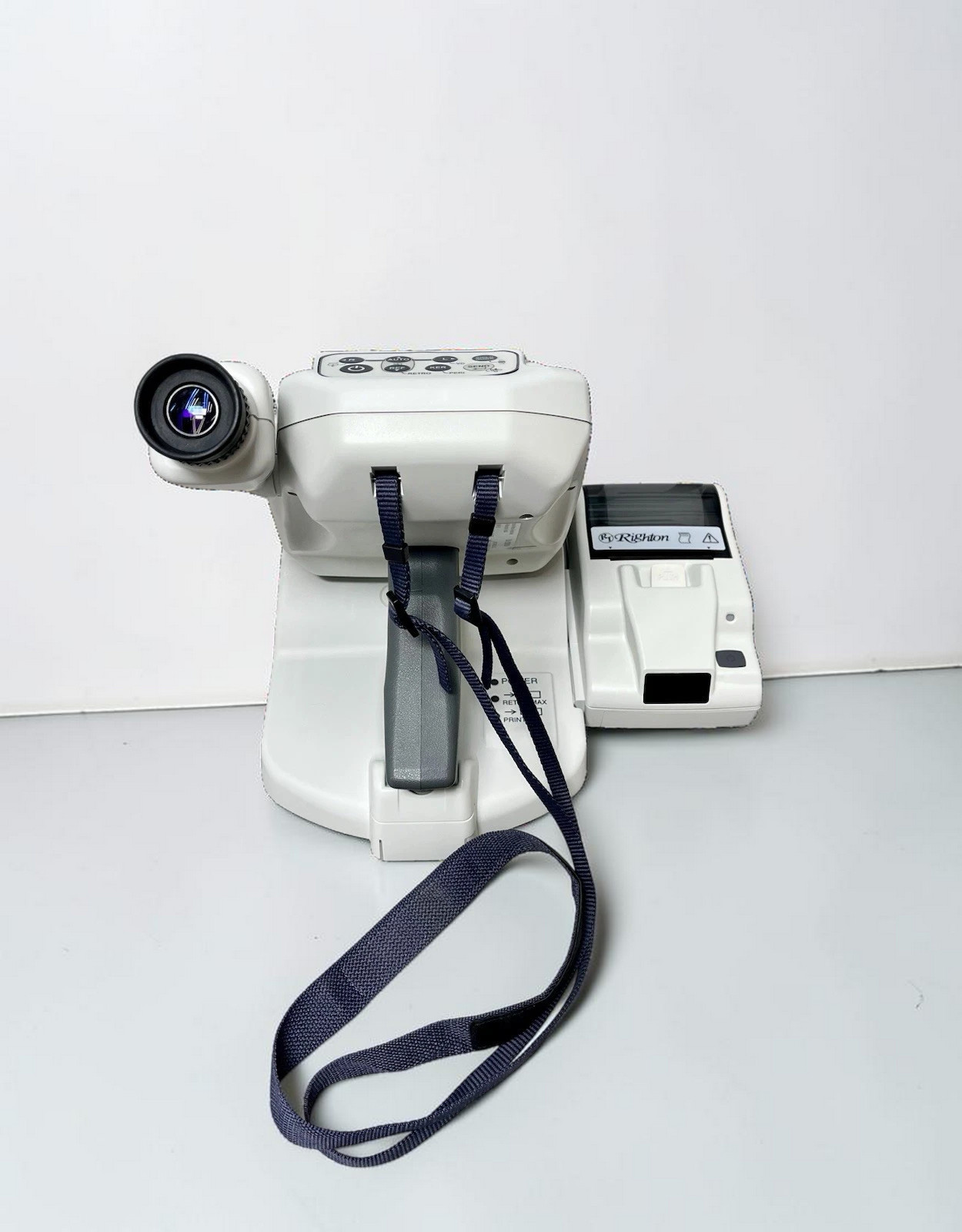

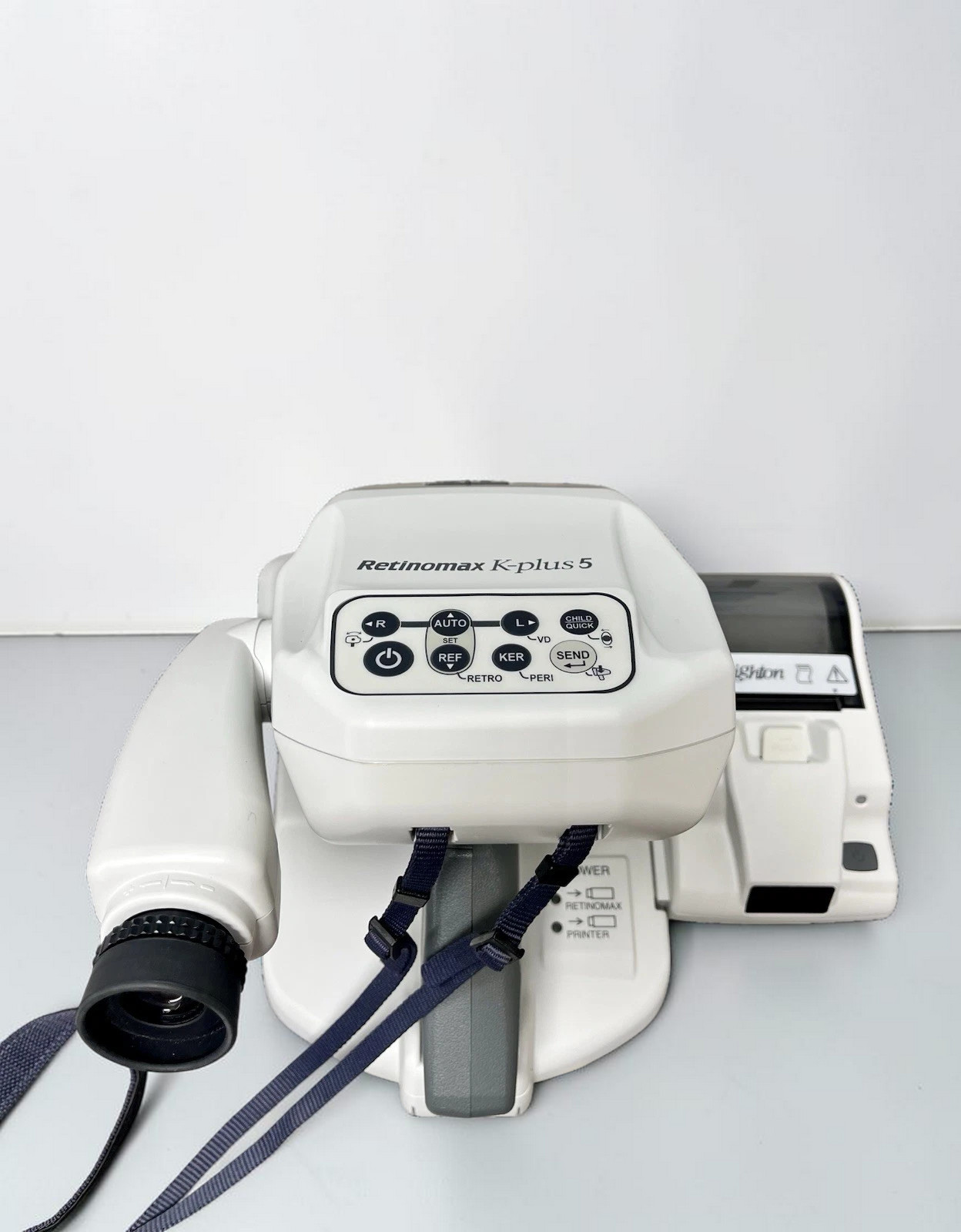

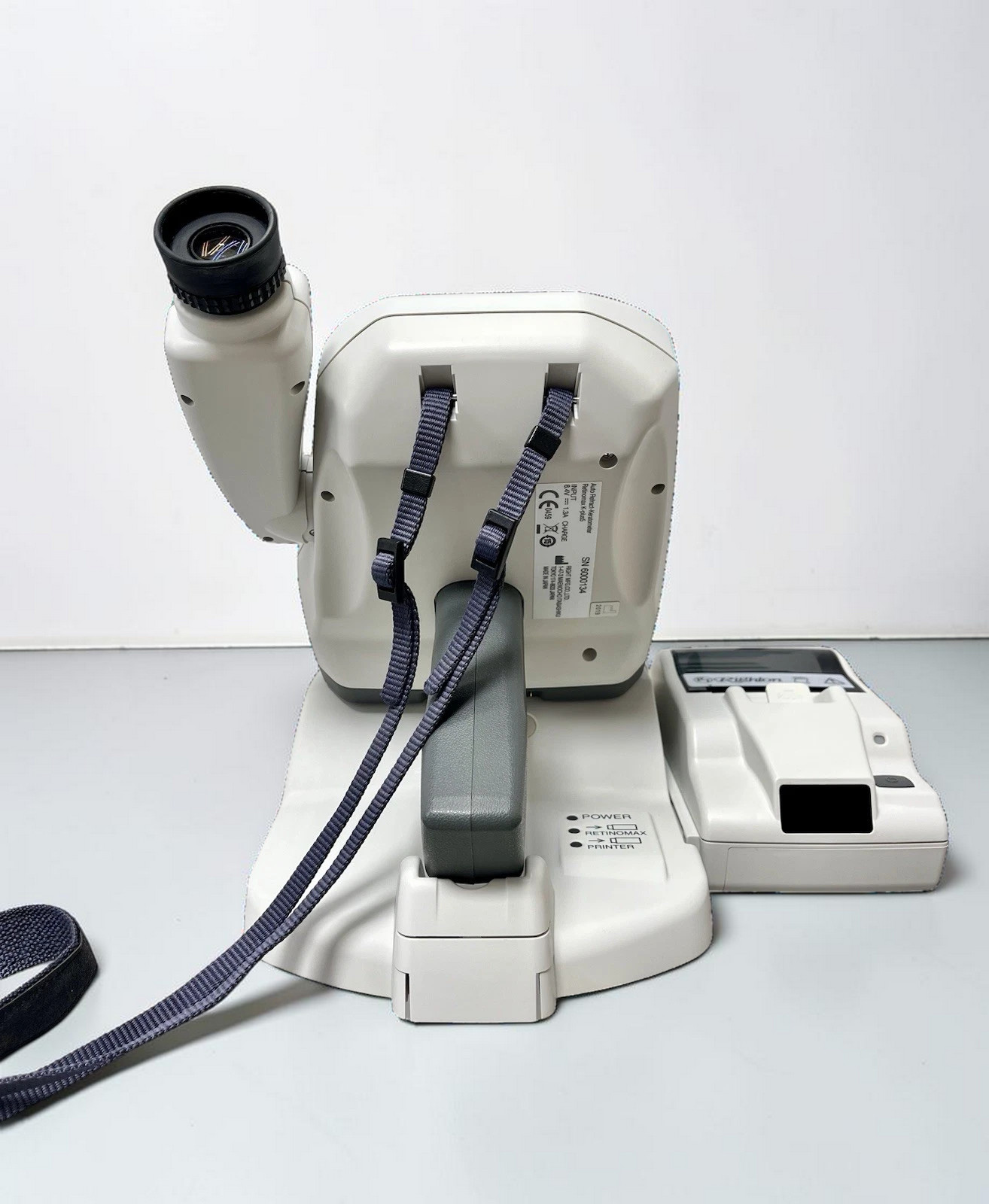

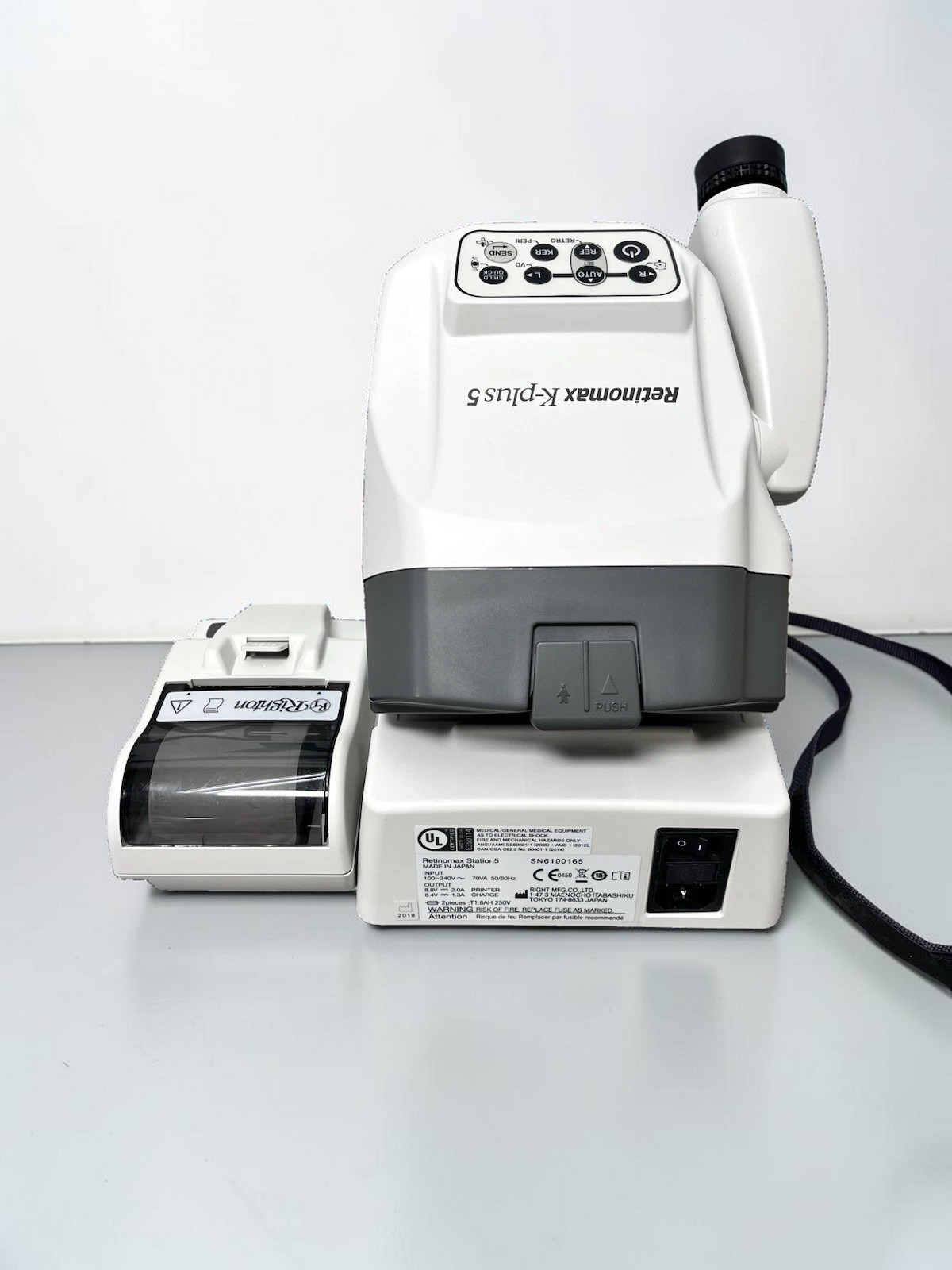

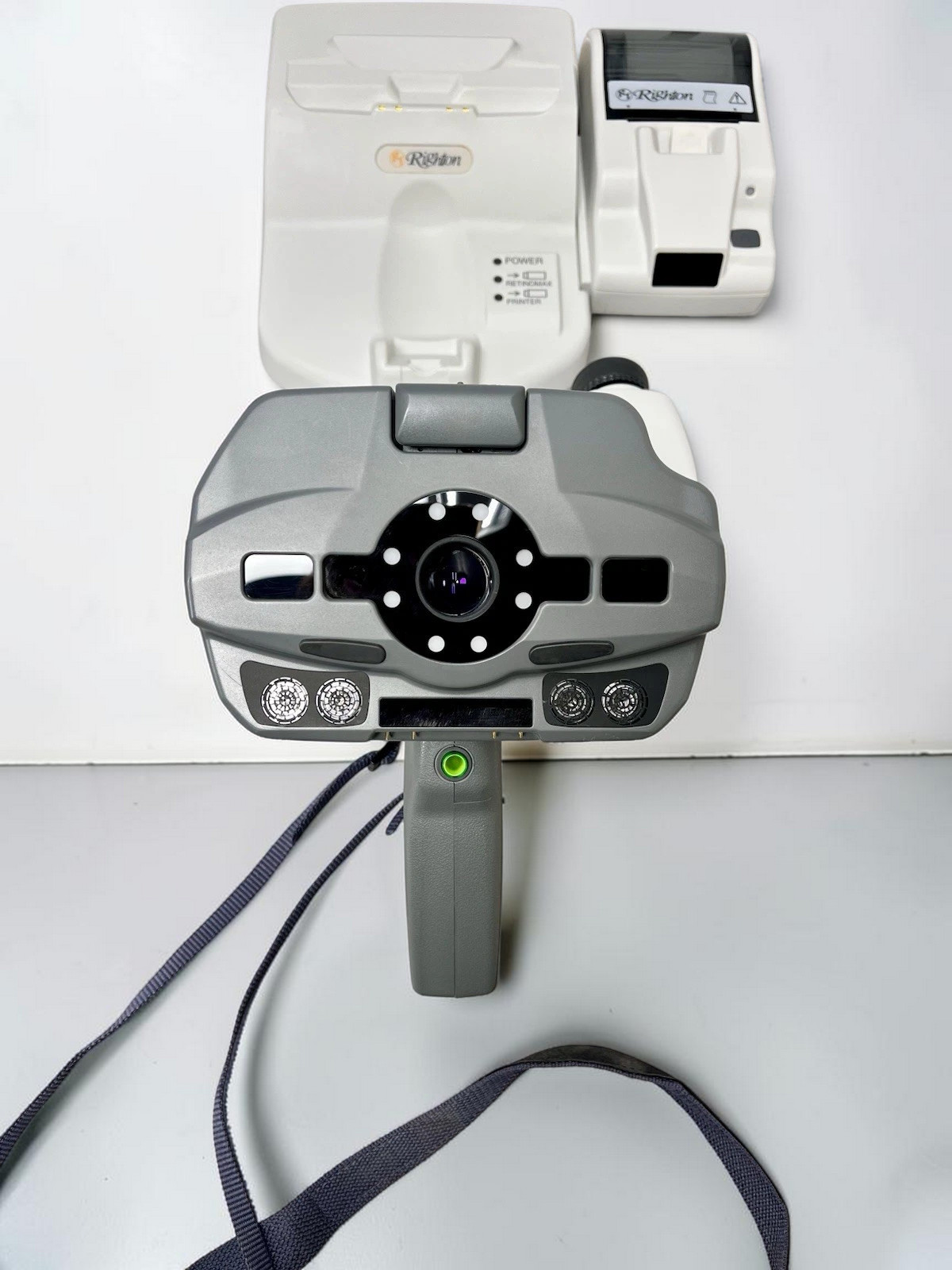

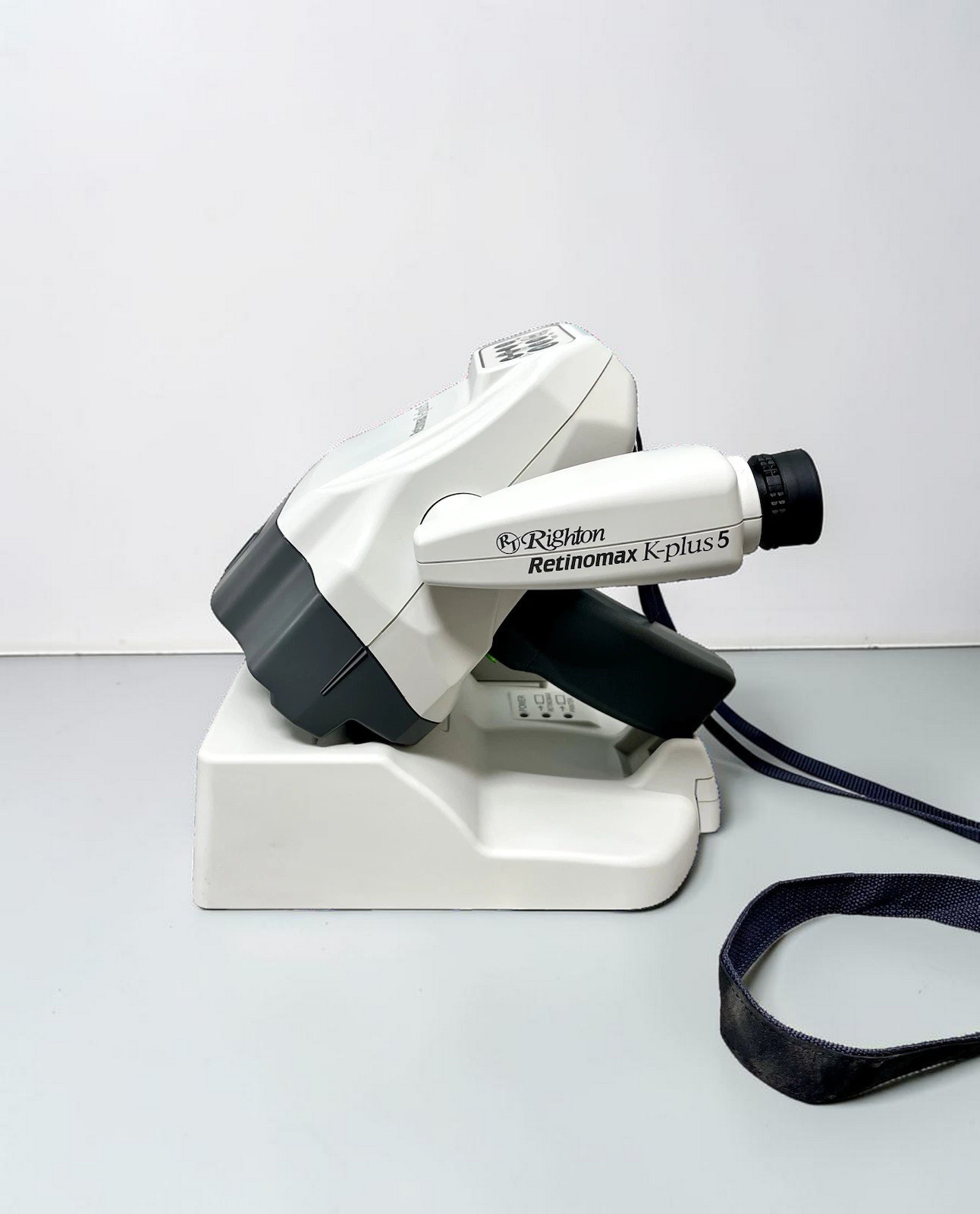

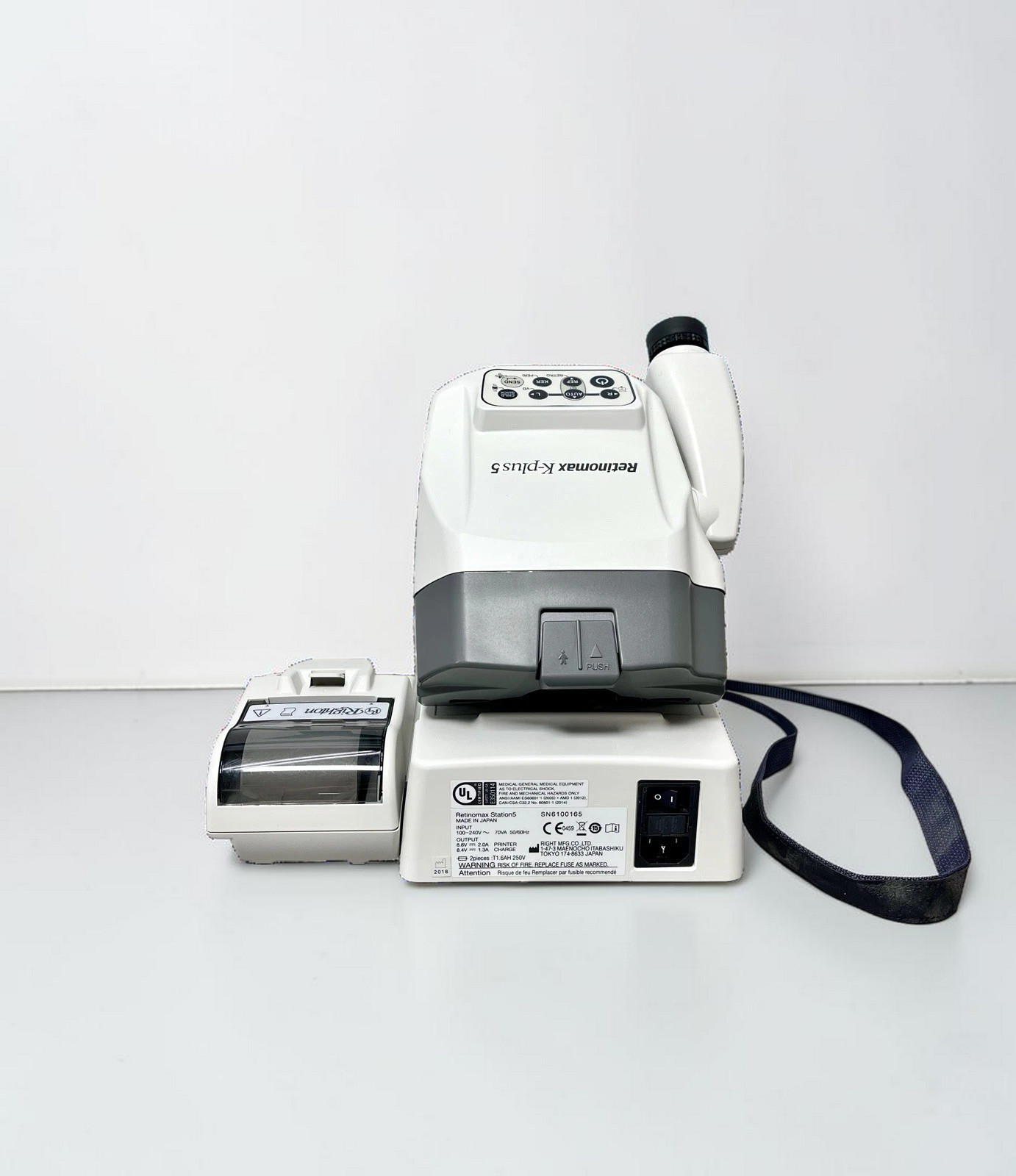

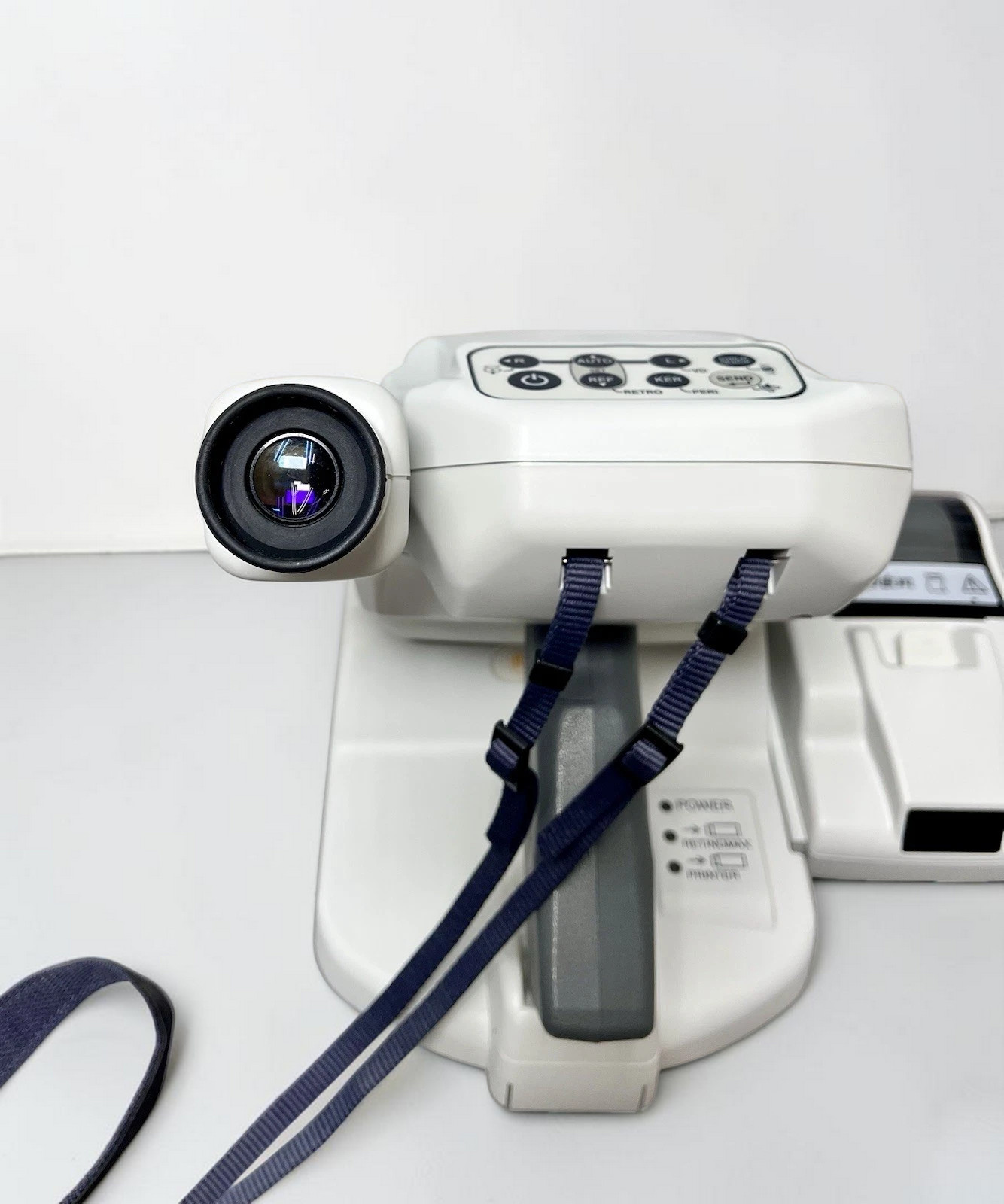

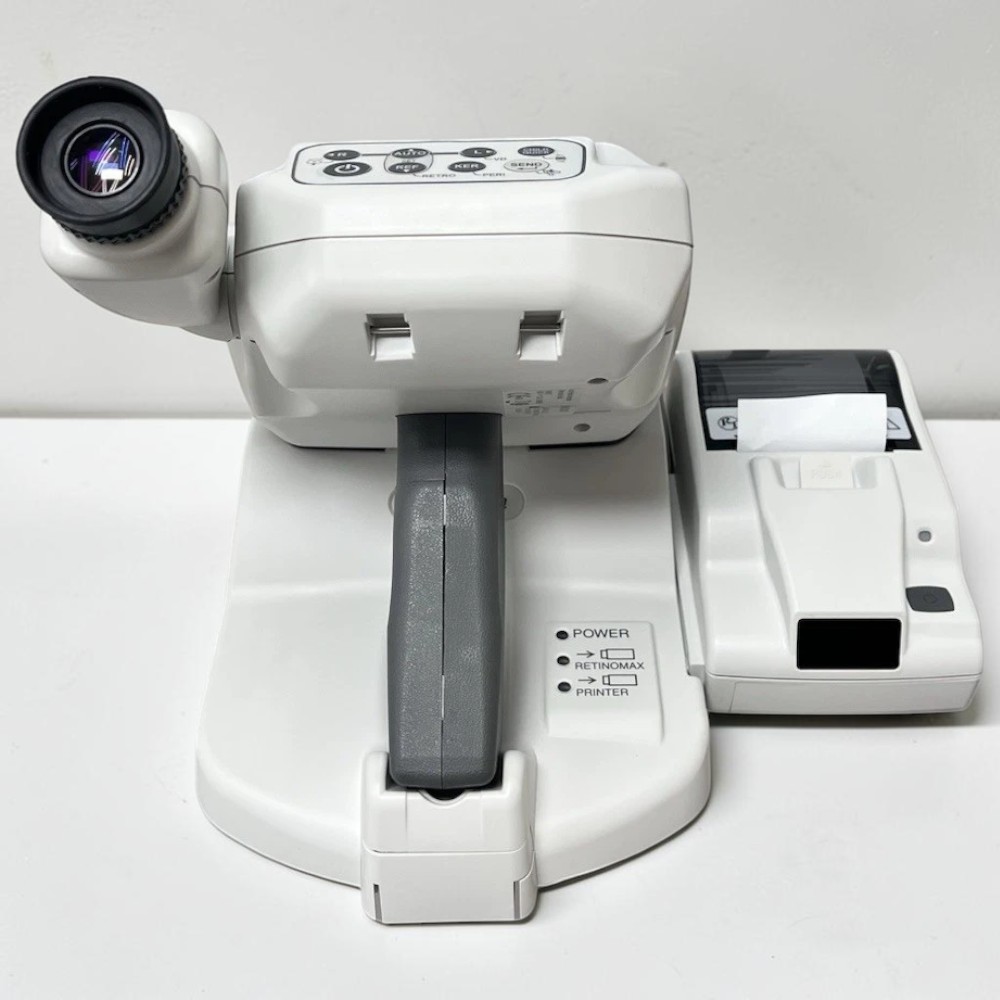

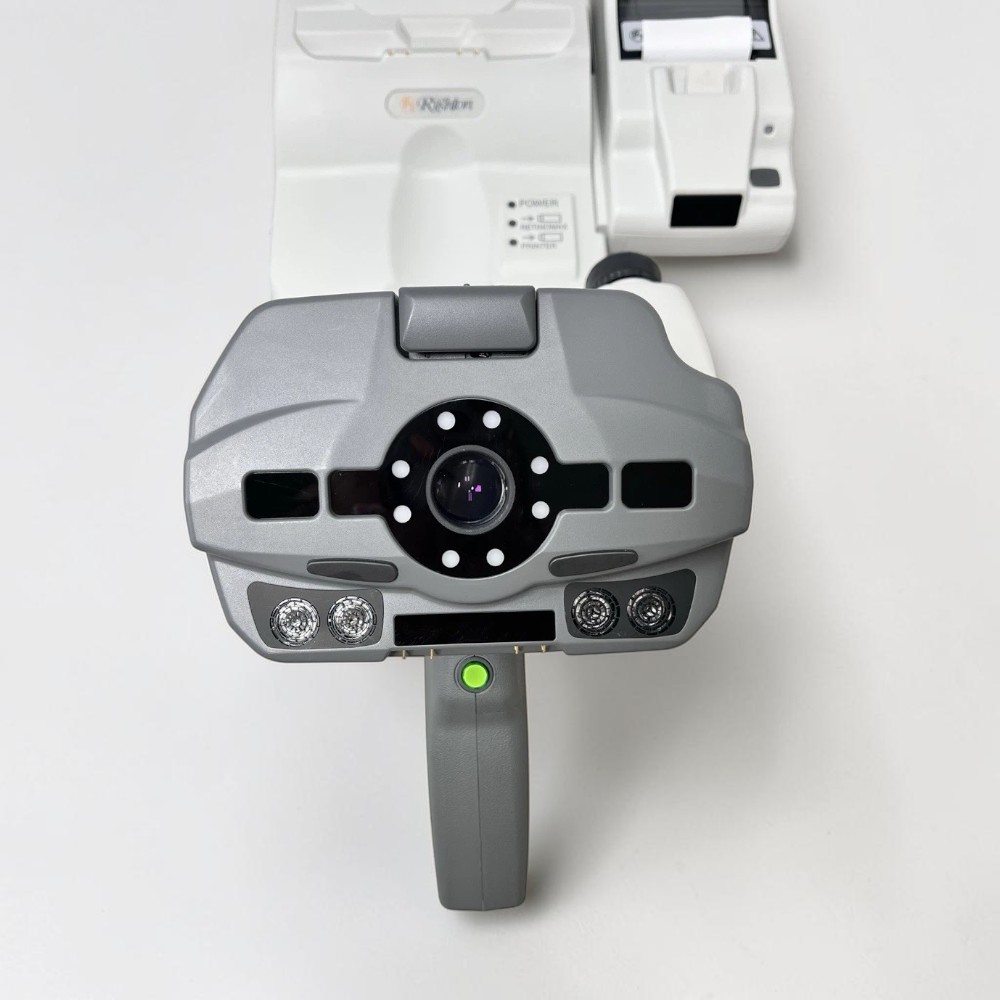

Retinomax K-Plus 5 — Used Righton Handheld Autorefractor Keratometer

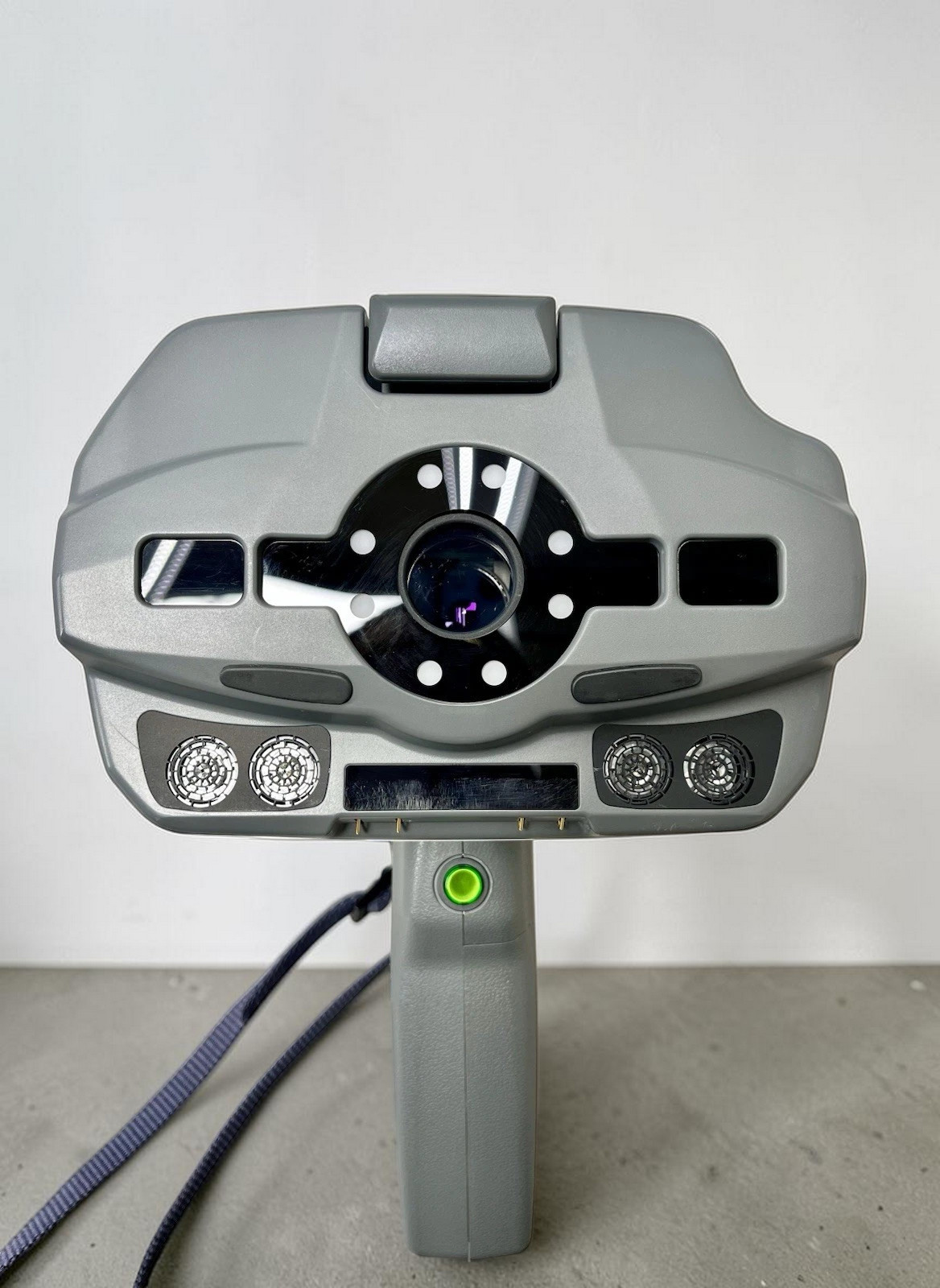

The Retinomax K-Plus 5 is Righton’s handheld autorefractor and keratometer for patients who cannot be positioned at a tabletop instrument: infants and young children, wheelchair users, and bedside or supine patients. This used Retinomax K-Plus 5 comes with its charging station and printer, so objective refraction and corneal curvature readings can be taken and printed anywhere in the clinic or on an outreach visit. The Retinomax K-Plus 5 measures sphere from -20 D to +23 D, cylinder up to ±12 D and corneal radius from 5.00 to 15.00 mm, and its internal gyroscope compensates the cylinder axis automatically when the instrument is not held level.
A National Library of Medicine study evaluated the accuracy of the earlier Retinomax K-plus 3 in measuring refractive error in a pediatric population, the patient group these handheld instruments are most often used with.
Why Practices Choose the Retinomax K-Plus 5

- Handheld refraction and keratometry — one instrument measures refractive error and corneal curvature with no chin rest or instrument table.
- Automatic axis compensation — an internal gyroscope detects the tilt of the instrument and adjusts the cylinder axis, so readings stay valid when the device is not level.
- Fast measurement — each measurement takes 0.14 seconds, and the instrument retries automatically when the data is unstable.
- Focus assist — a color-coded indicator tells the examiner whether the instrument is too far, too close or at the correct working distance.

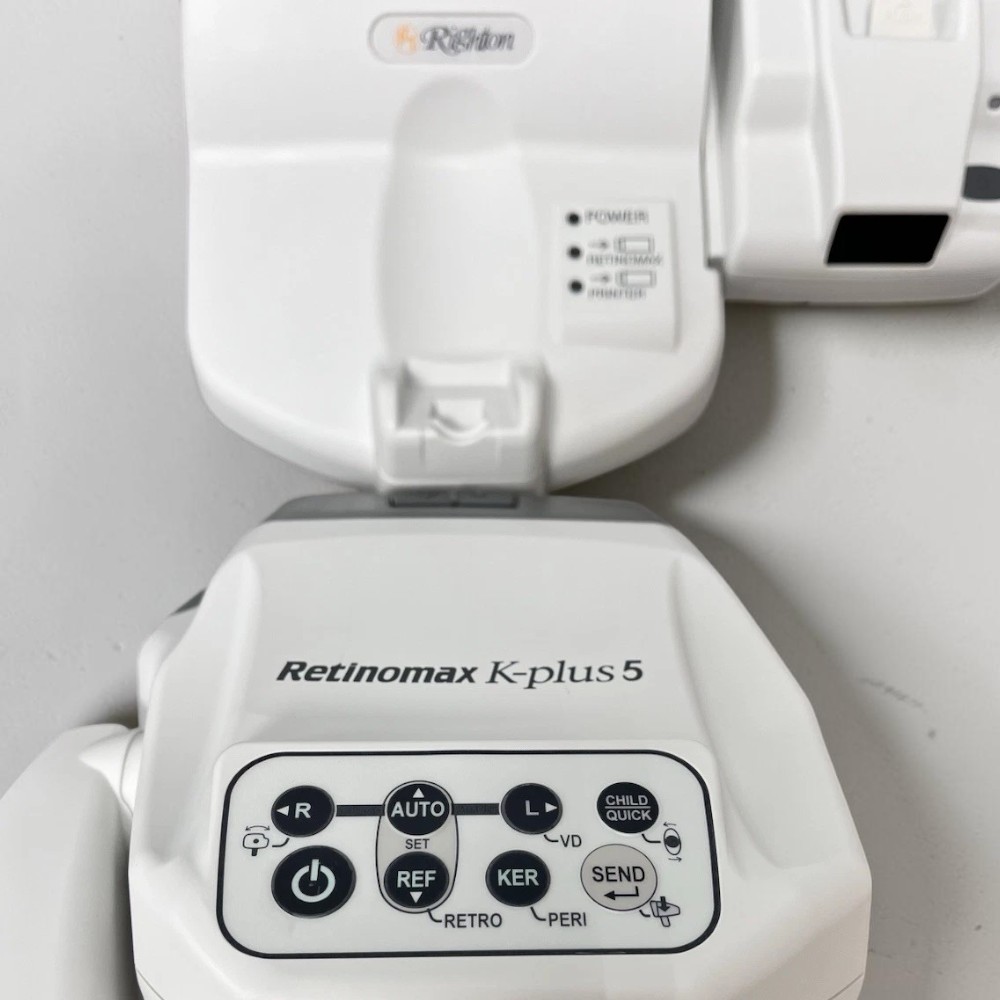

- Child mode — a melody and a changing color display help keep a child’s attention during the measurement.
- Small-pupil handling — measures pupils down to 2.3 mm and lowers the fixation target intensity automatically for pupils under 3.0 mm.
- Retro-illumination mode — lets the examiner observe corneal and lens opacities.
- Adjustable viewfinder — diopter adjustment of ±8 D and an arm that moves from 0 to 135 degrees for measuring patients in different positions.
Clinical Applications
- Pediatric refraction — objective sphere, cylinder and axis in infants and children who cannot sit at a tabletop autorefractor.
- Special-needs patients — refraction at whatever position the patient can hold, including in a caregiver’s lap.
- Bedside and wheelchair examinations — measurements on hospital, nursing home and post-operative patients without moving them to an exam lane.
- Vision screening programs — school and community screenings where the instrument has to travel to the patients.
- Keratometry away from the exam lane — corneal curvature readings for contact lens fitting and pre-operative workups on patients who cannot use a tabletop keratometer.
Who This Is For
- Pediatric ophthalmology and optometry practices that need objective refraction on young children.
- Hospital eye departments performing bedside and ward consultations.
- Mobile clinics and outreach programs that examine patients outside a fixed exam lane.
- General practices that want a portable second autorefractor for patients who cannot use the tabletop unit.
Technical Specifications
| Specification | Detail |
| Manufacturer | Righton |
| Model | Retinomax K-Plus 5 |
| Type | Handheld autorefractor / keratometer |
| Sphere range (S + C) | -20 D to +23 D (VD 12 mm), 0.12 / 0.25 D steps |
| Cylinder range | 0 to ±12 D, 0.12 / 0.25 D steps |
| Radius of curvature | 5.00 to 15.00 mm (0.01 mm increments) |
| Corneal astigmatism | 0 to ±12 D (R 5 to 13 mm); 0 to ±7 D (R 14 to 15 mm) |
| Minimum pupil size | 2.3 mm |
| Pupil size measurement | 2.0 to 12.0 mm (0.1 mm increments) |
| Measurement time | 0.14 seconds |
| Axis compensation | Automatic (internal gyroscope) |
| Viewfinder | Diopter adjustment ±8 D; arm angle 0 to 135 degrees |
| Memory | Up to 120 measurements (60 patients) |
| External output | Infrared (main body) |
| Weight | 950 g with battery |
| Main body dimensions | 191 (W) x 242 (D) x 223 (H) mm |
| Station input | AC 100 to 240 V, 50/60 Hz |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
Compare Handheld Autorefractor Keratometer Options
| Feature | Retinomax K-Plus 5 (this unit) | Retinomax K + Screen | Nidek HandyRef-K |
| Form factor | Handheld | Handheld | Handheld |
| Operator view | Viewfinder | 3.5-inch tilting LCD | 3.5-inch tiltable LCD |
| Sphere range | -20 D to +23 D | -20 D to +23 D | -20 D to +20 D |
| Cylinder range | 0 to ±12 D | 0 to ±12 D | 0 to ±12 D |
| Keratometry radius | 5.00 to 15.00 mm | 5.00 to 15.00 mm | 5.00 to 13.00 mm |
| Condition | Used | Used | Used |
| Warranty | 90 days | 90 days | 90 days |
| Price | $8,712 | $11,000 | $8,723 |
Prefer an LCD screen instead of a viewfinder? See the Righton Retinomax K + Screen or the Nidek HandyRef-K. For patients who can sit at an instrument, the Topcon KR-800 is a tabletop alternative.
Questions about the Retinomax K-Plus 5? Contact us for availability and shipping details.
