Visionix Retinomax K + Screen Handheld Auto Refract-Keratometer

Description

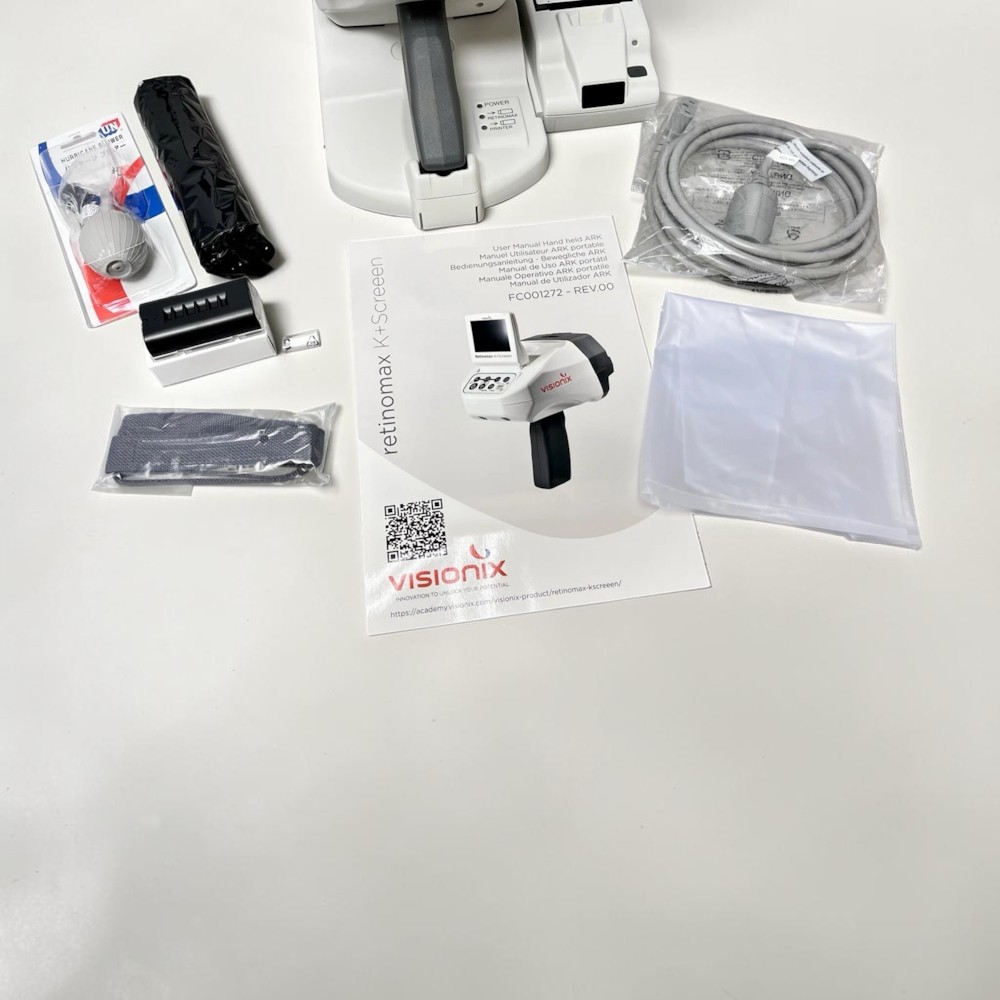

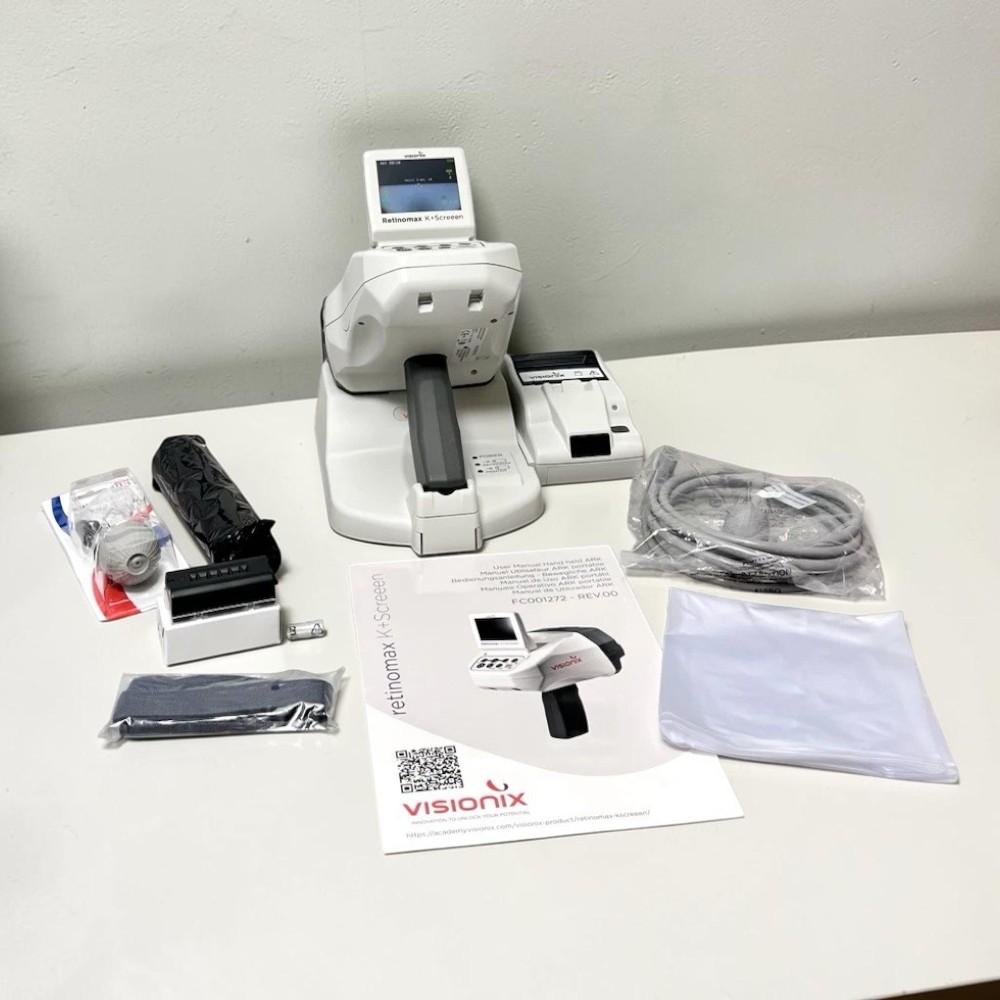

What’s Included

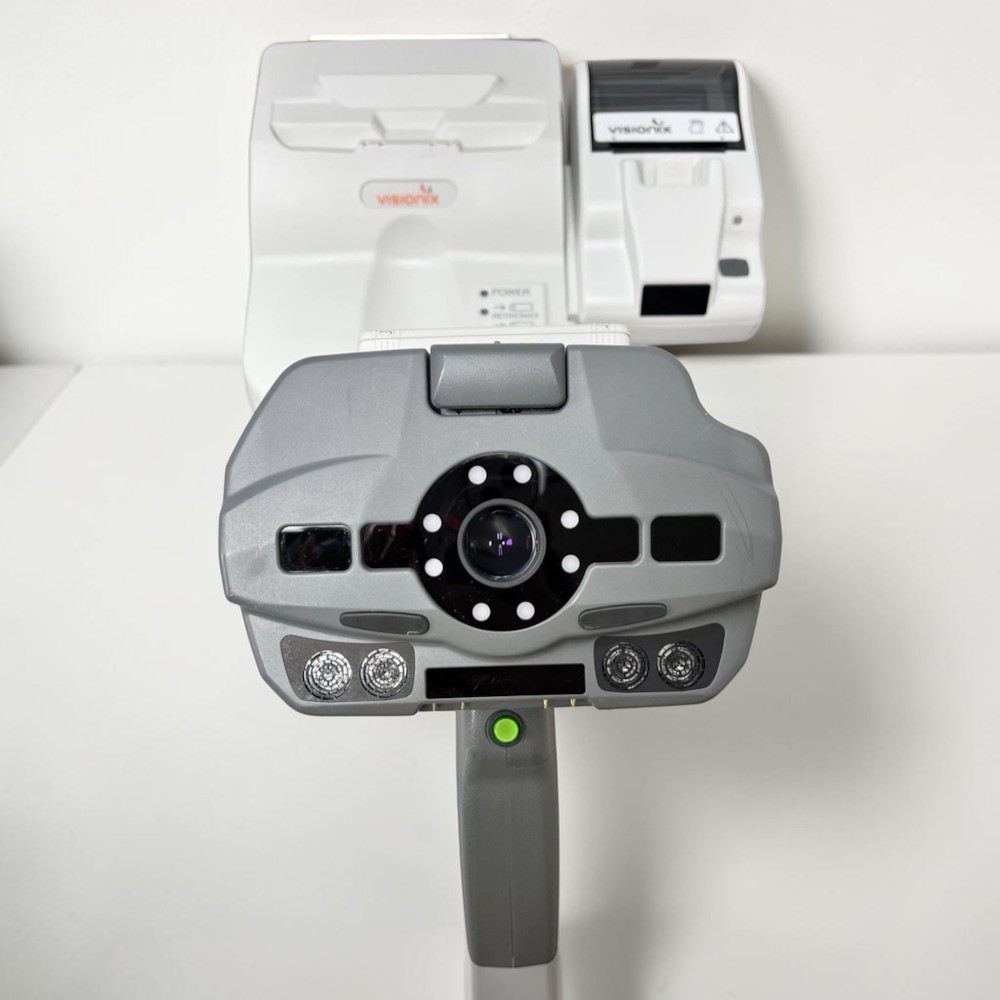

• Visionix Retinomax K + Screen handheld auto refract-keratometer

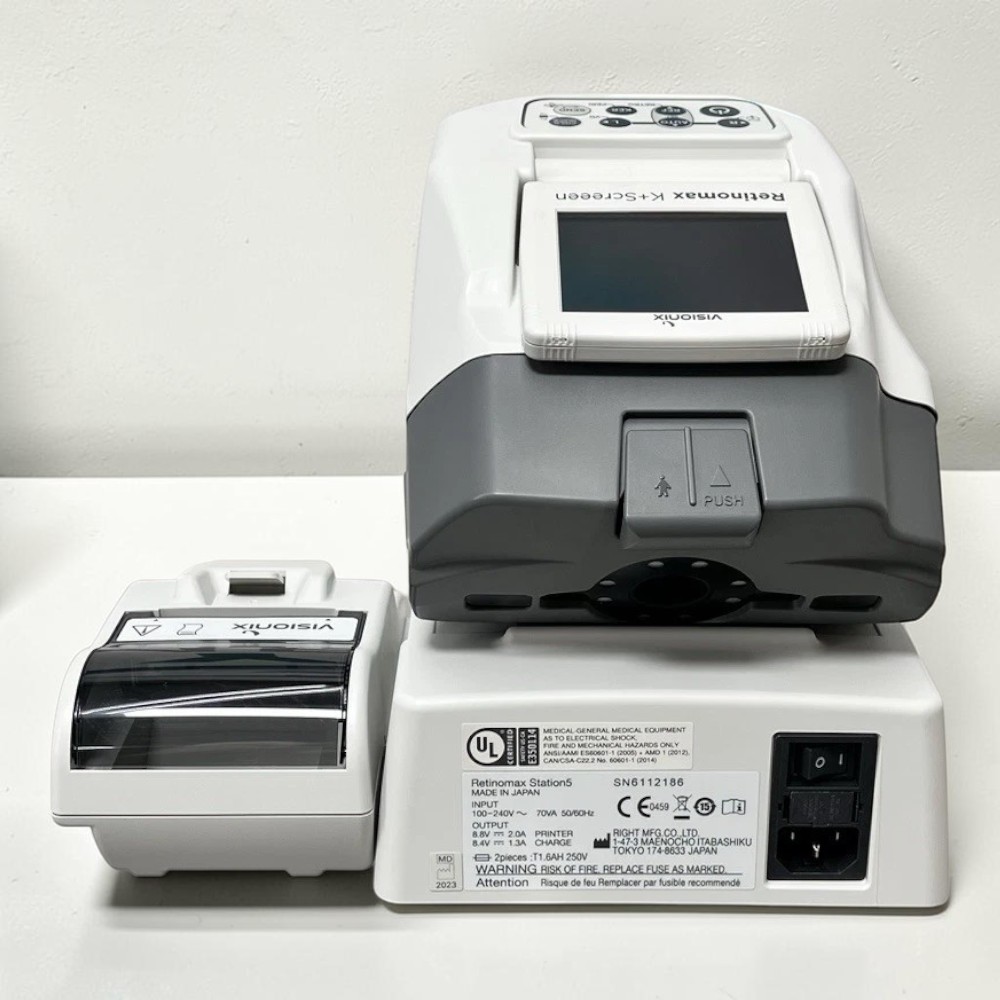

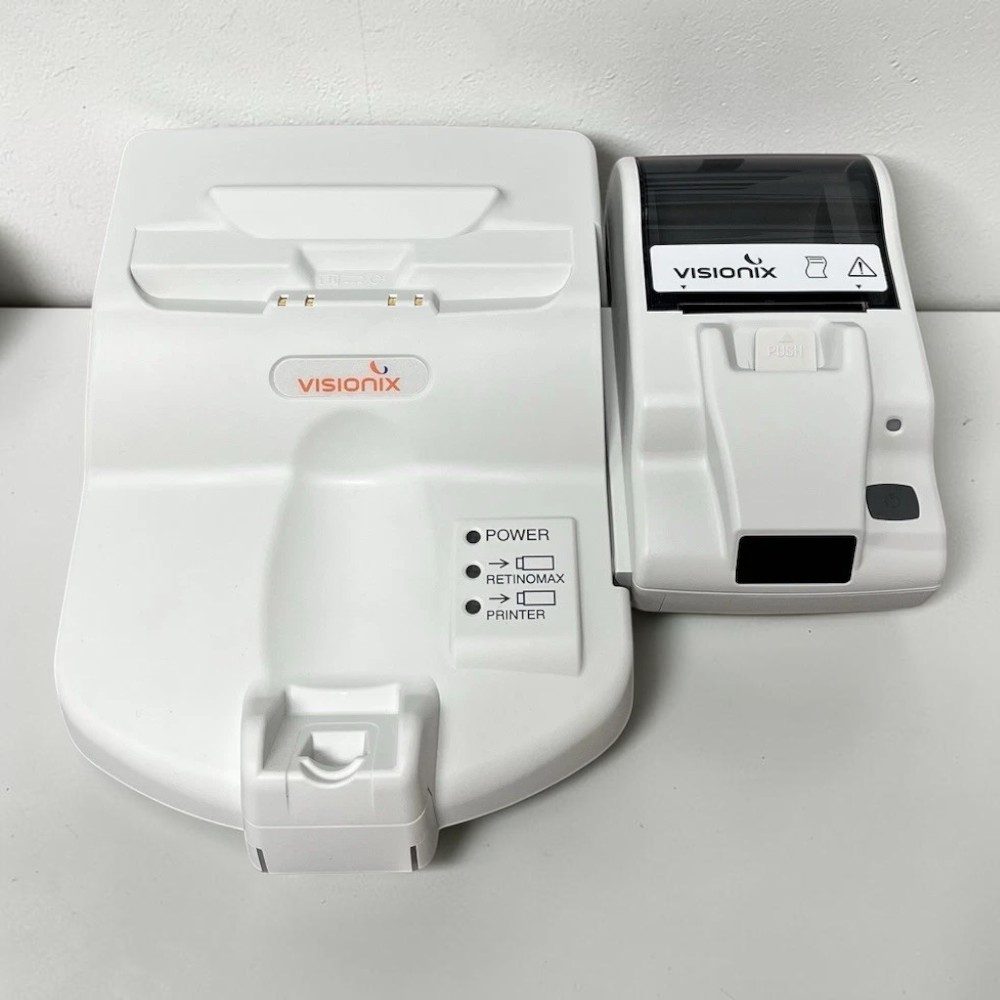

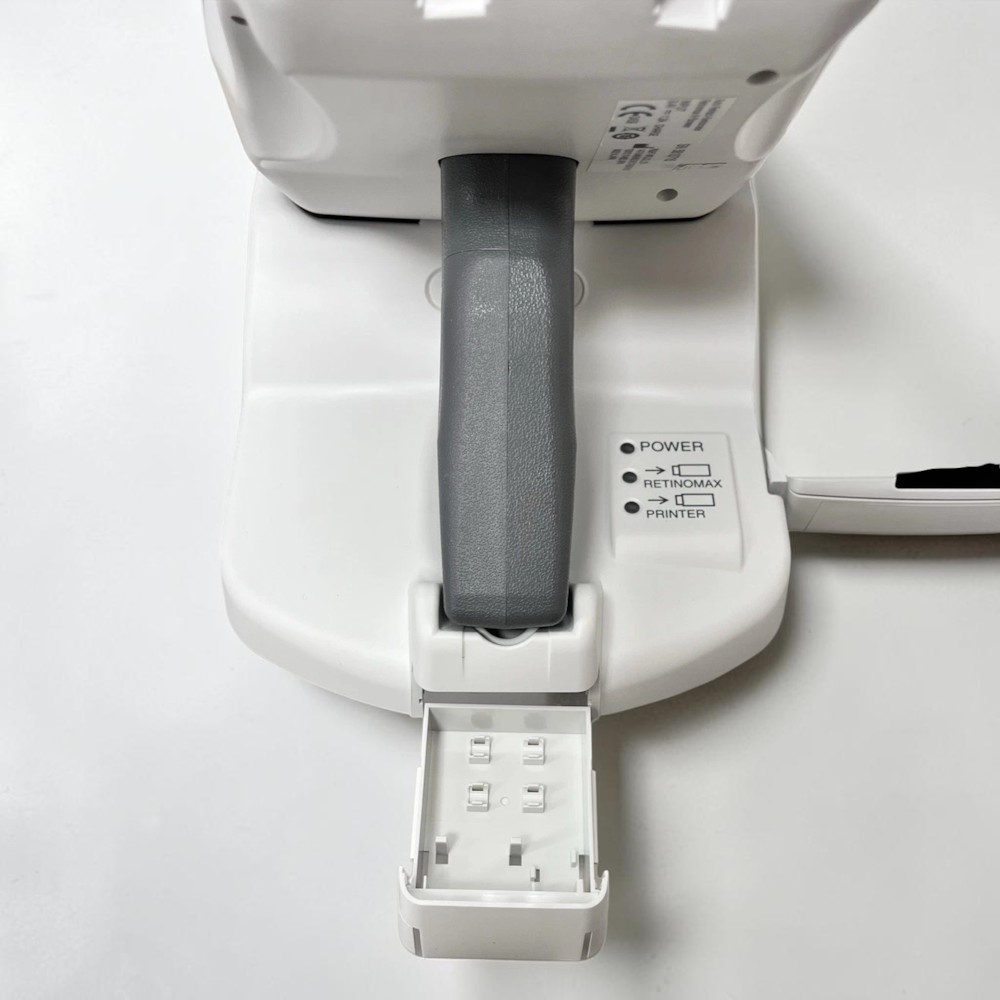

• Charging station
• 2 batteries
• Power cable
• Printer attachments
• Printer paper rolls
• Blower
• Dust cover
• User manual
• 90-day Digital Eye Center warranty

Condition & Warranty

Used. Tested and in excellent working order, cleaned, and ready to use on arrival; the unit shows some cosmetic signs of prior use. Covered by a 90-day warranty on parts and workmanship.

Retinomax K Screen — Used Handheld Auto Refract-Keratometer

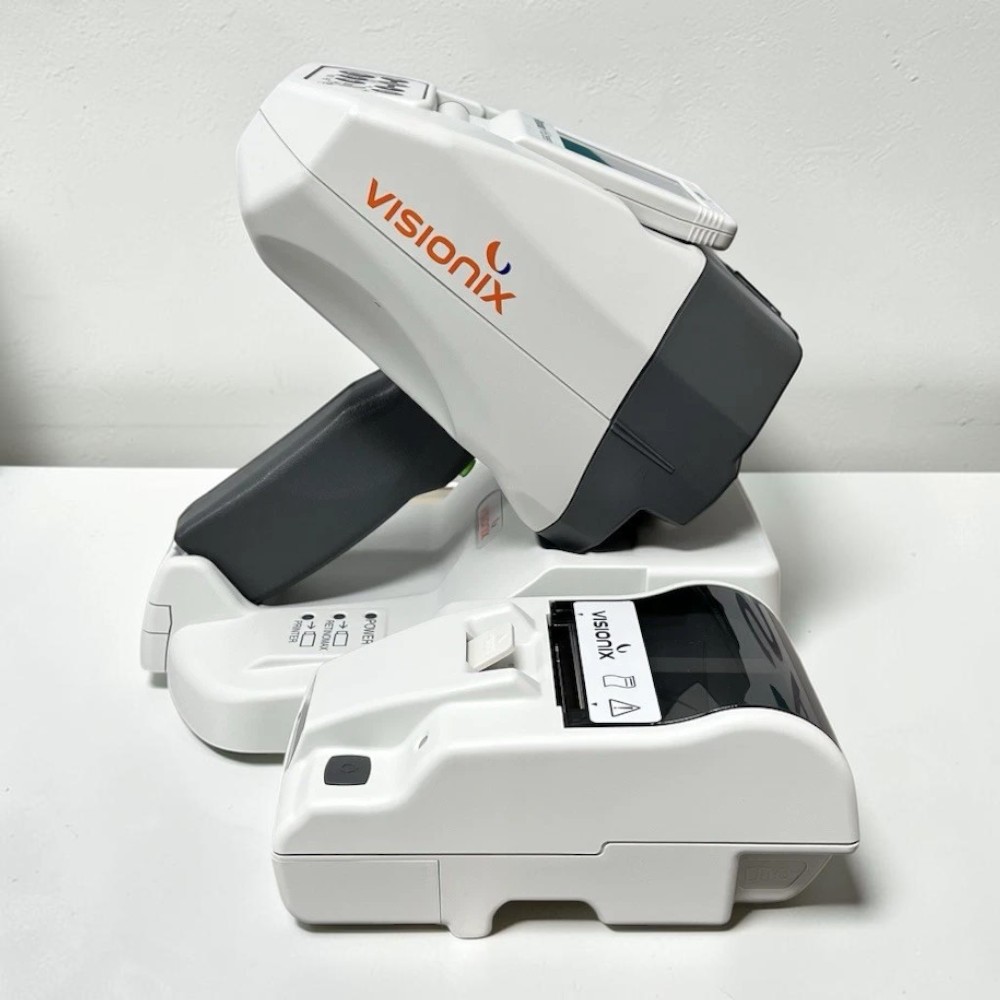

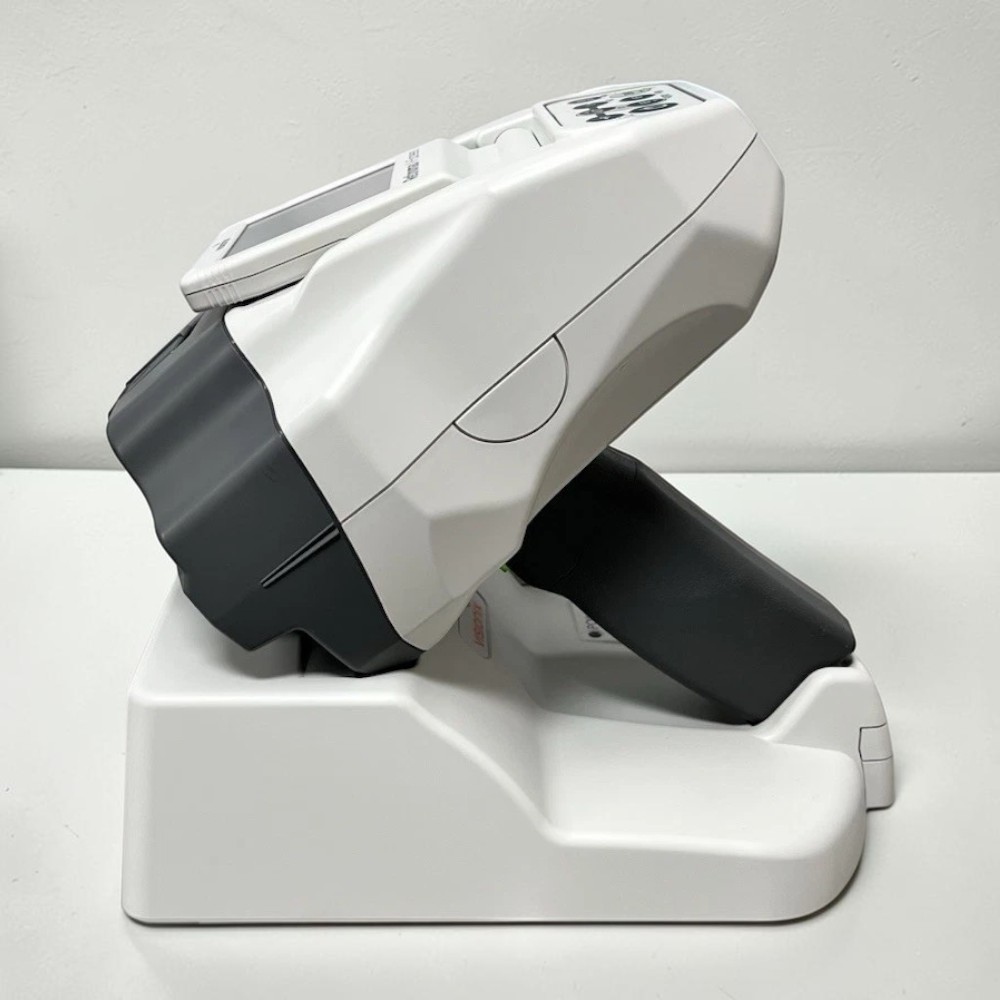

The Retinomax K Screen (Retinomax K+ Screen) is a portable, handheld auto refract-keratometer built by Right Mfg. that brings objective refraction and keratometry to the patient instead of bringing the patient to a benchtop instrument. The Retinomax K Screen measures sphere, cylinder, axis, and corneal radius of curvature from one lightweight device, which makes it well suited to children, wheelchair users, and bedridden patients who cannot be positioned at a table-mounted autorefractor.

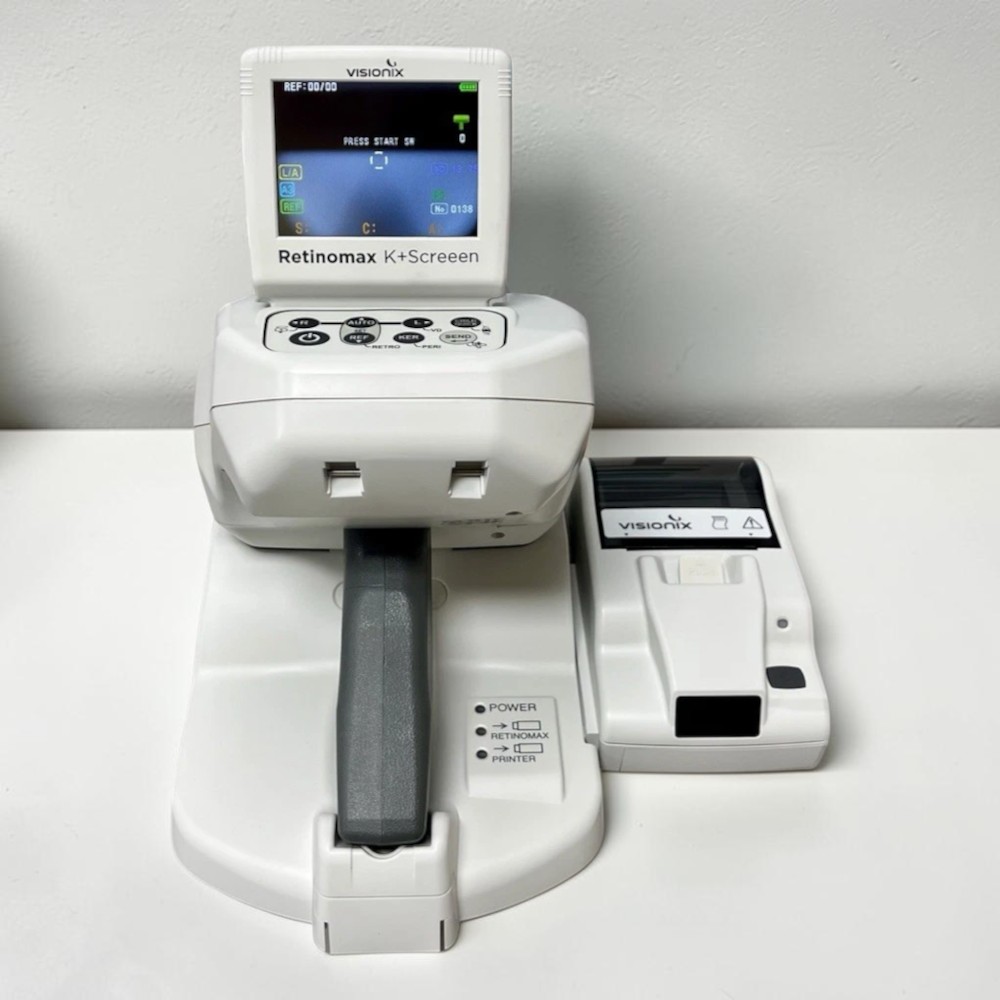

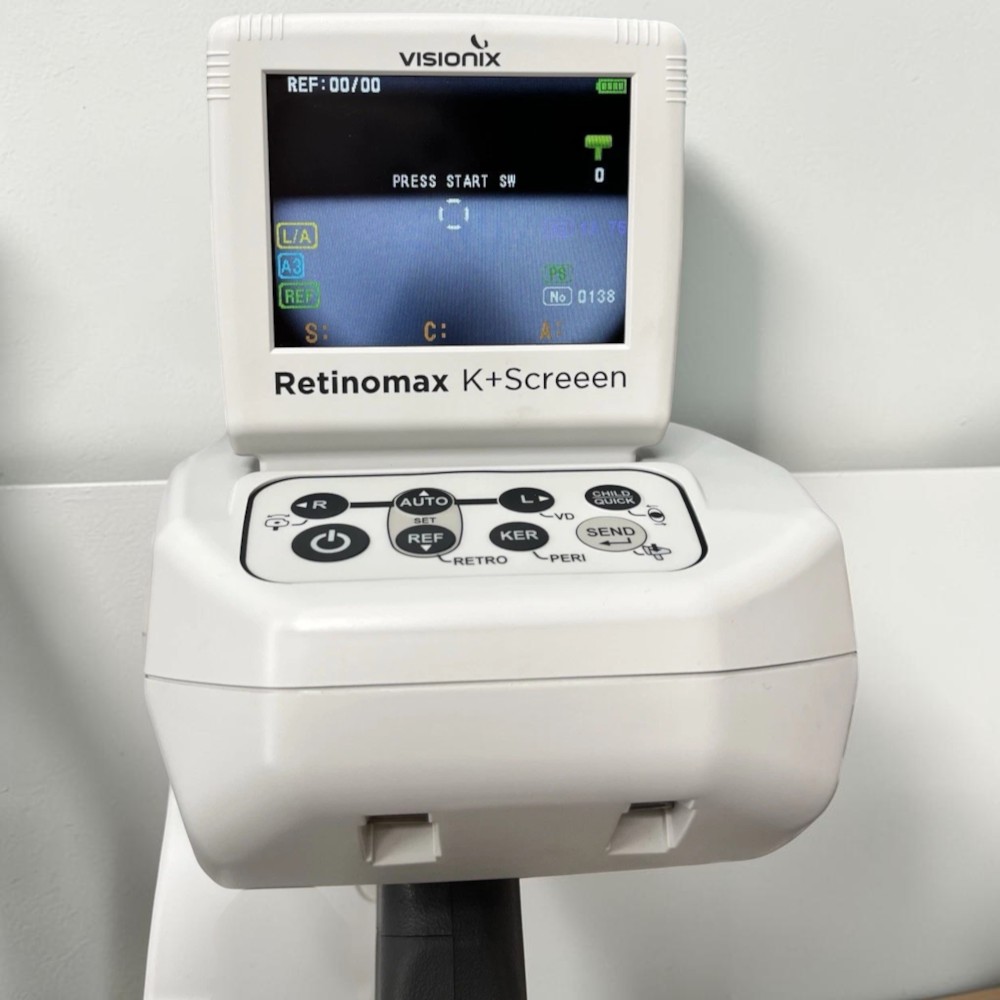

A 3.5-inch low-reflection color LCD tilts upward through a 100-degree range, so the operator can follow alignment and readings from almost any position. A color-coded focus assist (red too near, green OK, blue too far) guides alignment, and the device reports the cylinder axis angle and automatically compensates when it is not held level.

The handheld Retinomax platform has published clinical support: a study indexed by the National Library of Medicine evaluated the accuracy of the Retinomax K-plus3, the previous generation, for measuring refractive error in a pediatric population.

Why Practices Choose the Visionix Retinomax K + Screen

• Handheld, chair-free design — objective refraction in the exam lane, screening room, mobile clinic, or at the bedside.
• Refraction and keratometry in one device — sphere, cylinder, axis, corneal radius, and corneal astigmatism.
• Wide refraction range — sphere -20 D to +23 D and cylinder 0 to ±12 D.
• Extended keratometry range — radius of curvature from 5.00 to 15.00 mm.
• Upward-tilting 3.5-inch LCD — low-reflection screen with a 100-degree range of motion.
• Automatic axis compensation — indicates the cylinder axis angle and corrects when the unit is not level.
• Child mode — a melody and changing target colors help hold a young patient’s attention during measurement.
• 180-minute battery life — cordless use through screening sessions, with a charging station and two batteries included.

Clinical Applications

• Pediatric exams and school vision screening where children cannot sit at a benchtop unit.
• Wheelchair, bedridden, and special-needs patients who cannot reach a table-mounted autorefractor.
• Pre-test objective refraction to give the subjective refraction a starting point.
• Mobile clinics, community outreach, and satellite offices.
• Keratometry readings as a baseline for contact lens fitting.

Who This Is For

• Optometry and ophthalmology practices that need a portable autorefractor/keratometer.
• Pediatric offices and school screening programs.
• Mobile and outreach eye care providers.
• Practices adding a fast, chair-free second refraction station.

Technical Specifications

Compare Auto Ref-Keratometer Options

Also consider another unit of the same model, the Righton Retinomax K + Screen, or the Topcon KR-1W if you also need wavefront analysis and corneal topography.

Questions about the Visionix Retinomax K + Screen? Contact us for availability and shipping details.
