Description
What’s Included
- Reichert Xcel 200 slit lamp biomicroscope
- CT210 Tonometer

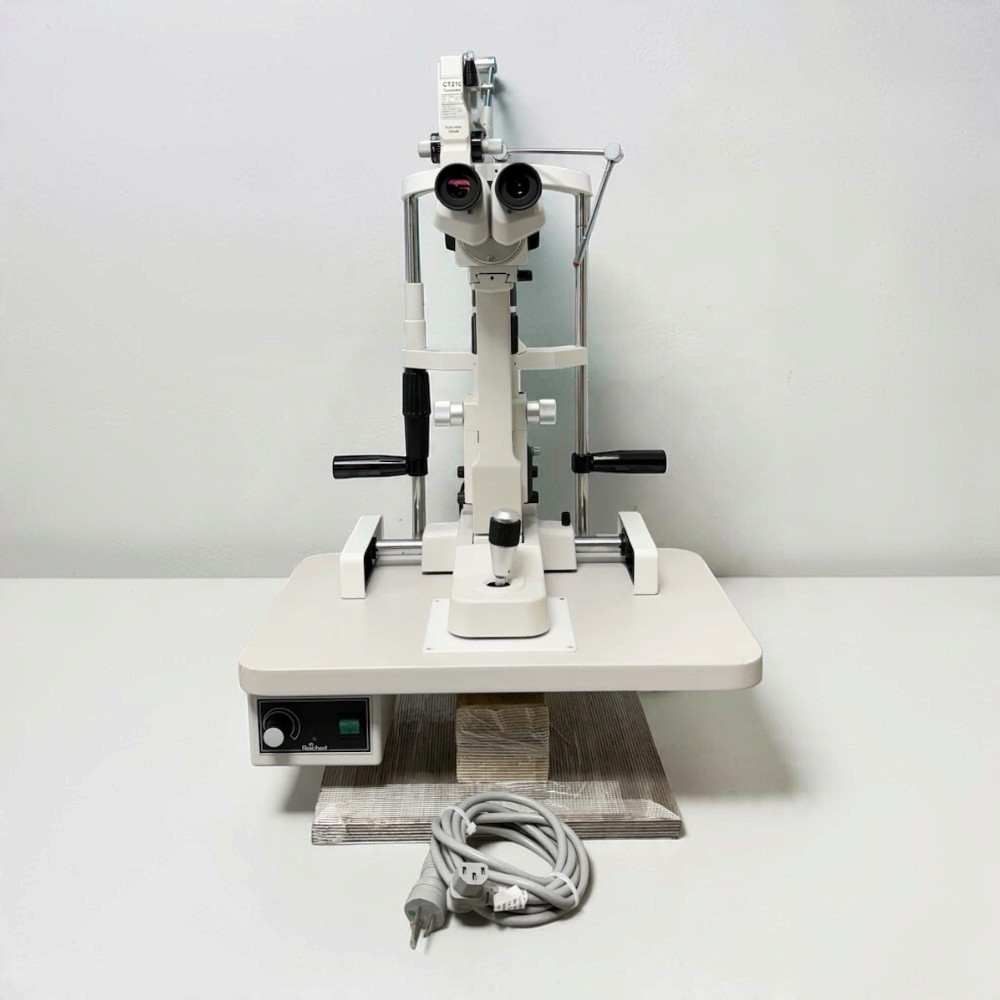

- Power cable (as photographed)
- 90-day Digital Eye Center warranty
Condition & Warranty
The Reichert XCEL 200 Slit Lamp with CT210 Tonometer has been tested and is described by the supplier as being in good working order. The equipment has been cleaned and calibrated, the optics are clean, and the lamp has been lubricated. The unit may show cosmetic signs of previous use.
Covered by a 90-day Digital Eye Center warranty on parts and workmanship.

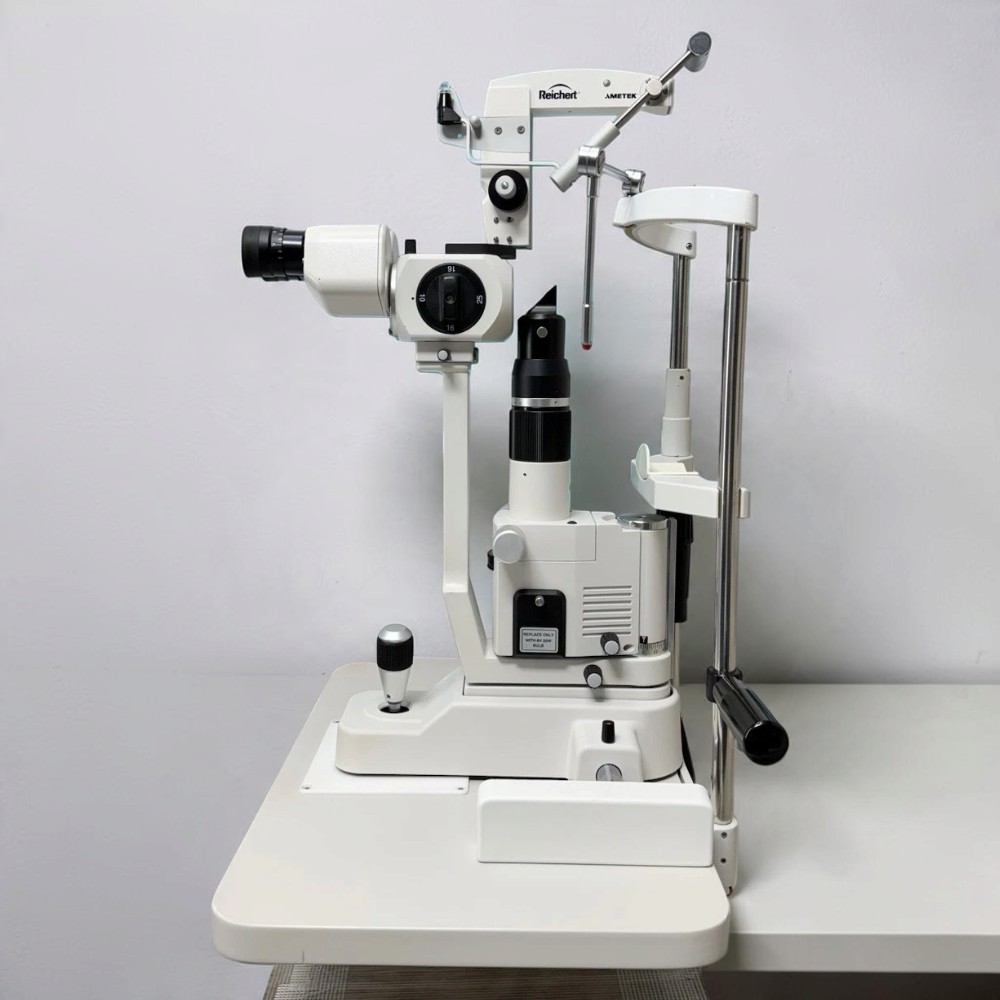

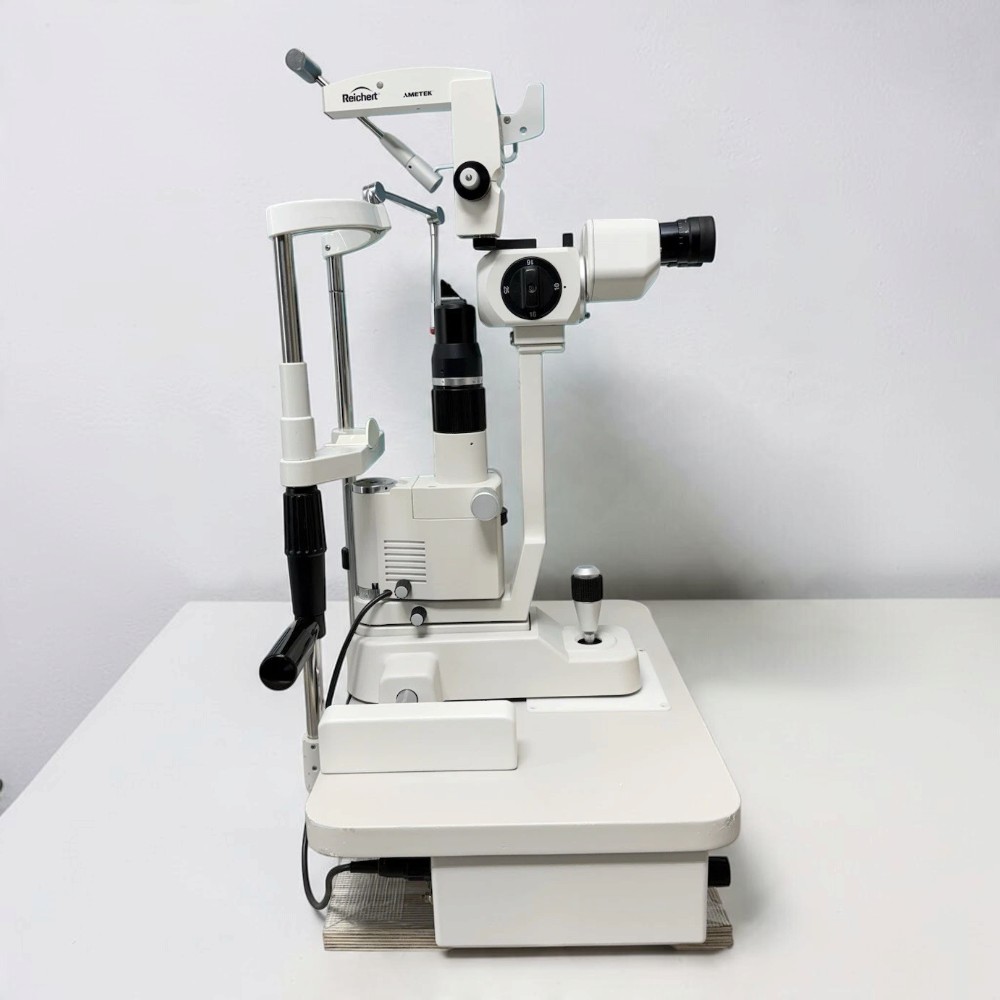

Reichert XCEL 200 Slit Lamp with CT210 Tonometer — Used Ophthalmic Examination System

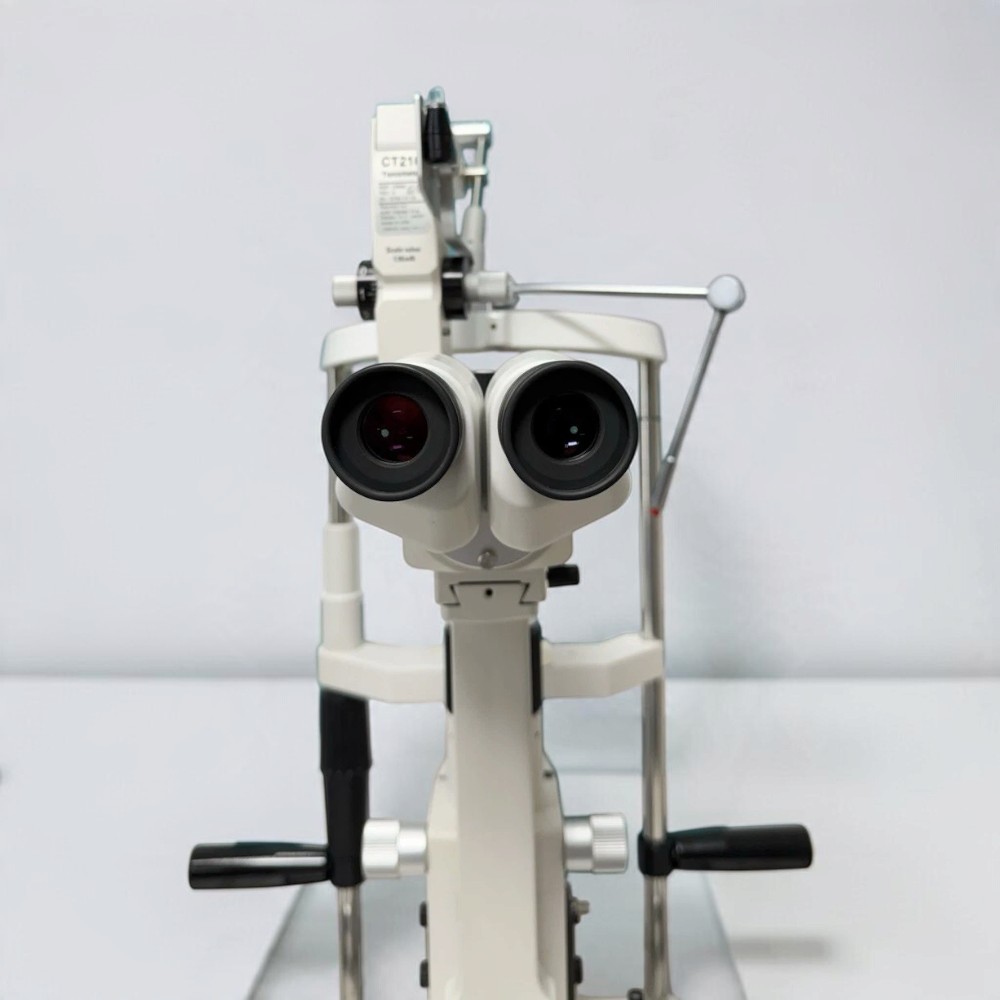

The Reichert XCEL 200 is an ophthalmic slit lamp biomicroscope designed to examine the anterior segment of the eye. Its binocular Galilean microscope provides stereoscopic magnification for examining the cornea, anterior chamber, iris, crystalline lens, and other anterior ocular structures.
The instrument features a three-step magnification system, 12.5× eyepieces, adjustable slit illumination, and selectable diagnostic filters. Its joystick-controlled base allows the clinician to position the microscope and illumination system during examination.

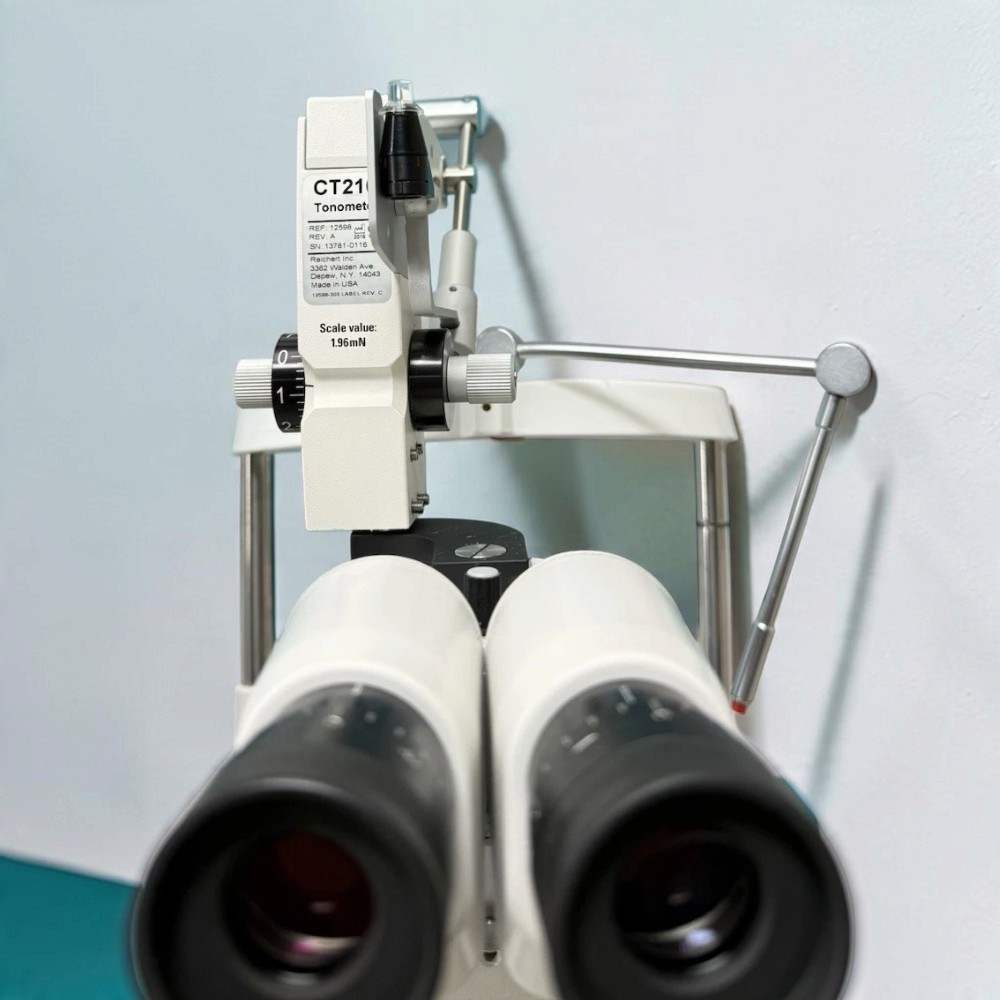

This configuration includes the Reichert CT210 contact applanation tonometer, which measures intraocular pressure (IOP). The tonometer’s measurement arm swings into position when needed and remains mounted on the slit lamp during routine examinations.
Why Practices Choose the Xcel 200
Galilean Binocular Optics — Provides stereoscopic viewing for detailed anterior-segment examinations.
-
Three-Step Magnification — Offers 10×, 16×, and 25× magnification for different examination requirements.
-
Adjustable Slit Illumination — Variable slit width and length support different illumination techniques.
-
Diagnostic Filters — Red-free, cobalt-blue, heat-absorbing, and neutral-density filters support specialized examinations.
-
Integrated CT210 Tonometer — Enables contact applanation measurement of intraocular pressure.
-

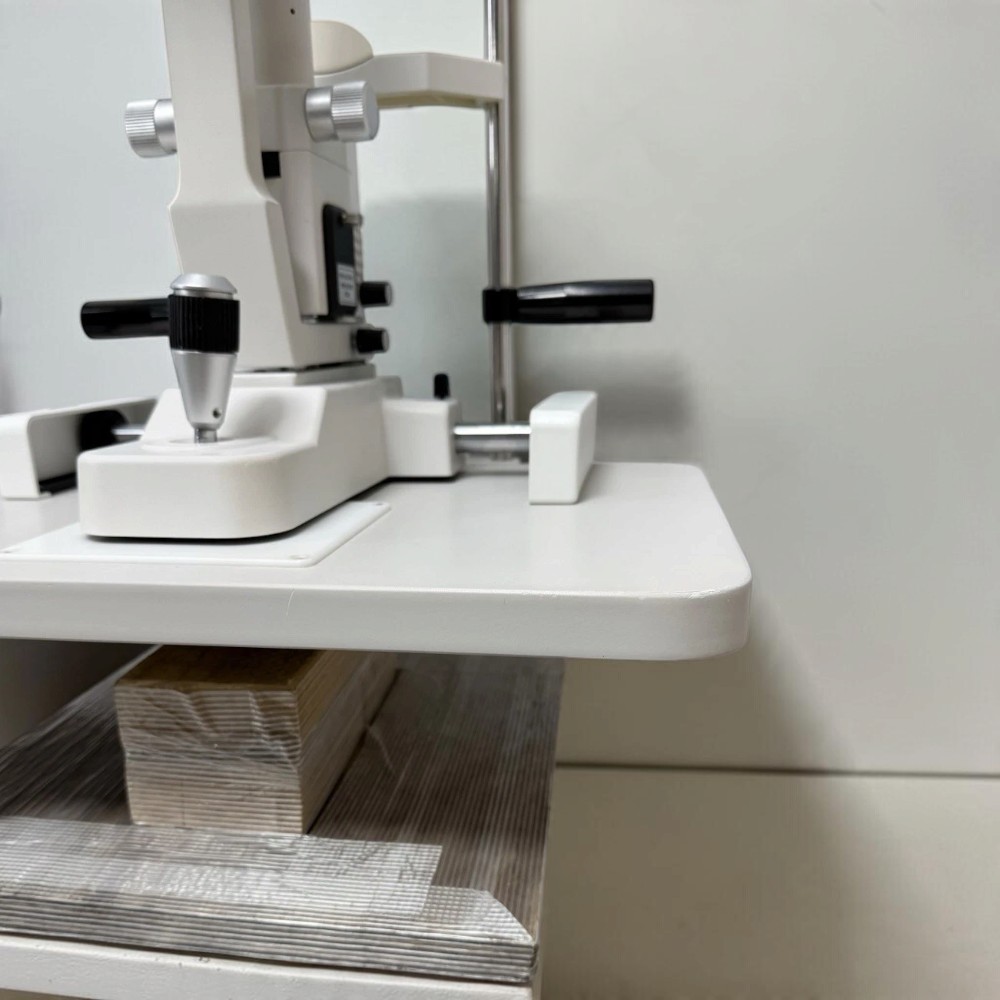

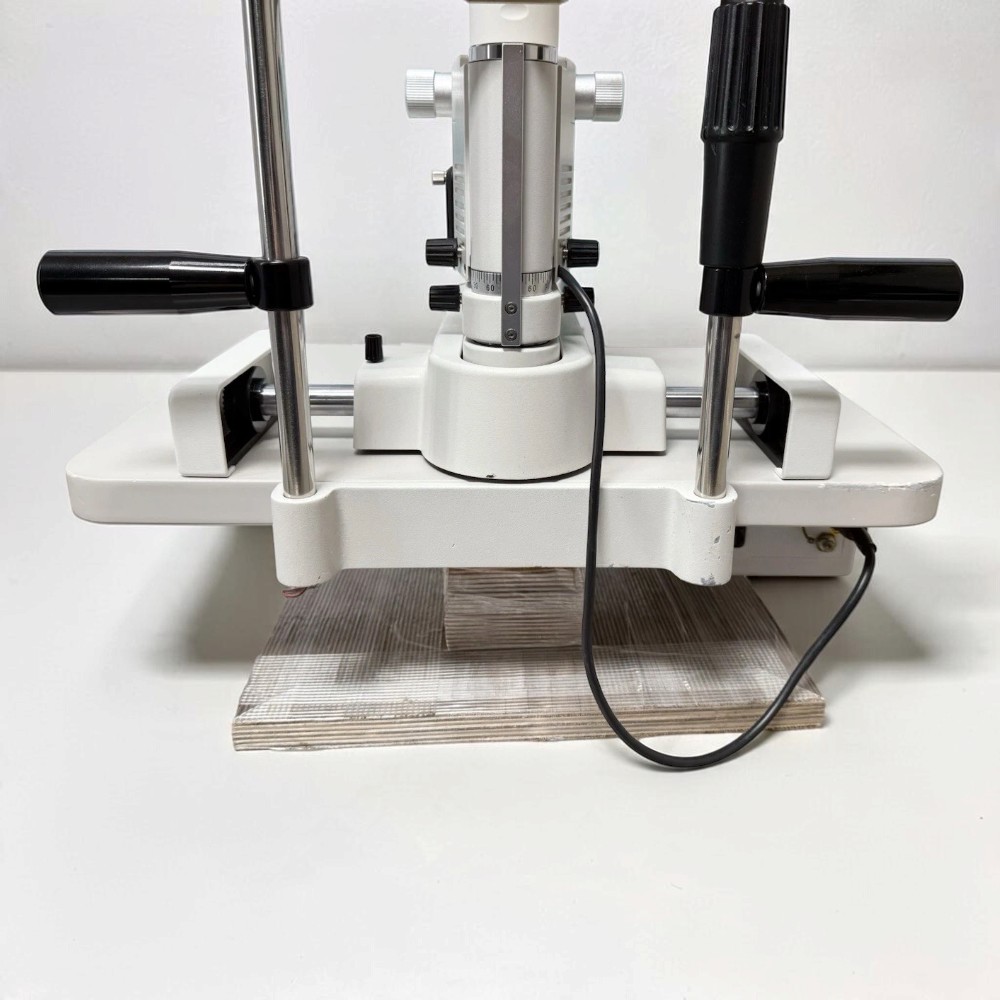

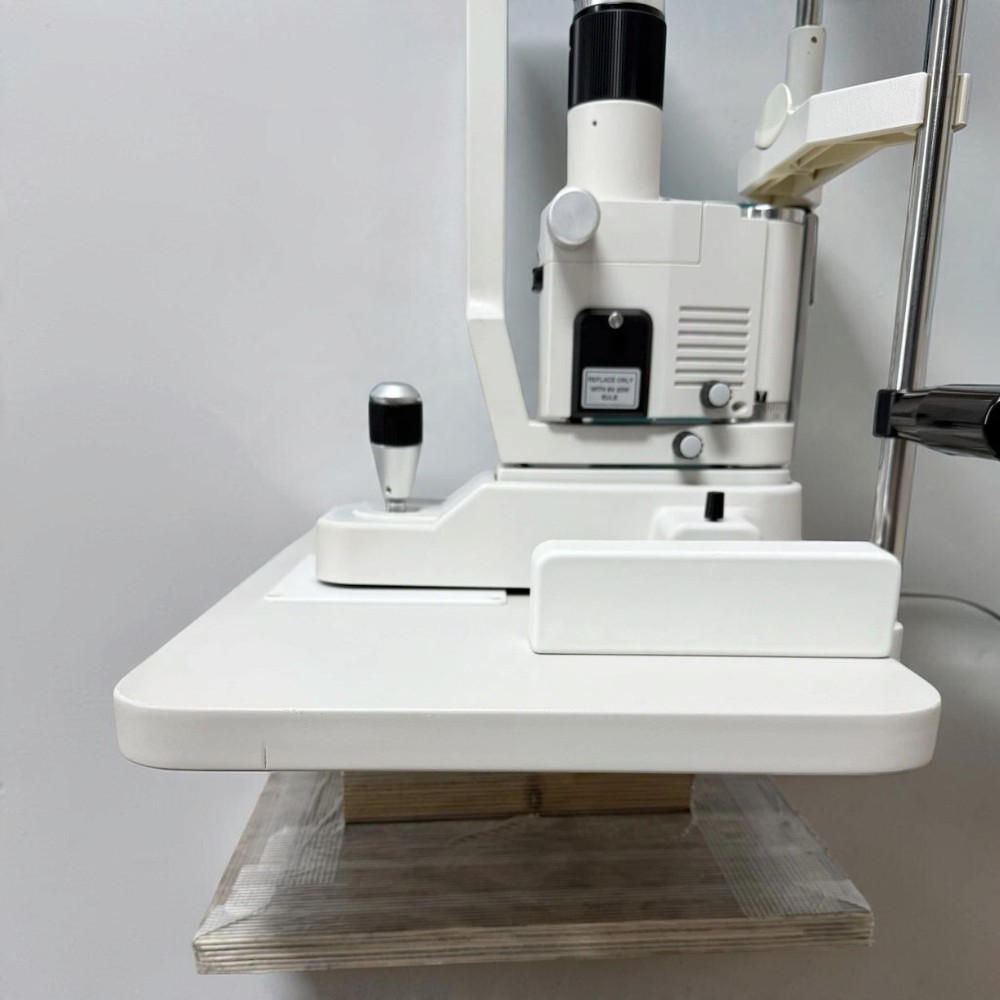

Joystick Positioning — Allows controlled horizontal and vertical movement of the instrument.
-
Compact Clinical Design — Combines slit-lamp examination and tonometry in one workstation.
Clinical Applications
-
Anterior-Segment Examination — Examination of the cornea, anterior chamber, iris, and crystalline lens.
-
Corneal Assessment — Evaluation of corneal abnormalities and ocular surface conditions.
-
Cataract Evaluation — Examination of lens opacities and other crystalline-lens changes.
-
Fluorescein Examination — Cobalt-blue illumination supports fluorescein-based corneal and tear-film assessment.
-
Glaucoma Assessment — Intraocular-pressure measurement using the CT210 applanation tonometer.
-
Ocular Surface Examination — Assessment of selected corneal and conjunctival abnormalities.
-
Postoperative Follow-Up — Examination of anterior-segment structures after ophthalmic procedures.
Who This Is For
-
Optometrists and Ophthalmologists performing routine anterior-segment examinations and IOP measurements.
-
General Eye Clinics requiring a slit lamp with integrated applanation tonometry.
-
Cataract and Glaucoma Practices needing equipment for anterior-segment evaluation and pressure measurement.
-
Secondary Examination Lanes requiring a manual slit-lamp workstation.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Reichert |
| Model | XCEL 200 |
| Type | Slit lamp biomicroscope with contact applanation tonometer |
| Microscope Type | Galilean |
| Magnification | 10×, 16×, 25× |
| Magnification Change | 3-step rotary system |
| Eyepieces | 12.5× |
| Interpupillary Distance | 48.5–80 mm |
| Diopter Adjustment | ±6 D |
| Slit Width | 0–13.5 mm |
| Slit Length | 0–12 mm |
| Slit Apertures | 0.3, 1, 3, 5, 9, 12 mm |
| Slit Rotation | 0–180° |
| Filters | Red-free, cobalt blue, heat-absorbing, neutral density |
| Illumination | Halogen, 6 V / 20 W |
| Longitudinal Movement | 90 mm |
| Lateral Movement | 100–107 mm |
| Vertical Movement | 30 mm |
| Chin Rest Range | 80 mm |
| Tonometer Model | Reichert CT210 |
| Tonometer Type | Contact applanation tonometer |
| IOP Measurement Range | 0–80 mmHg |
| IOP Measurement Accuracy | ±0.6 mmHg |
| Power Supply | 110/220 VAC |
| Condition | Used |
| Warranty | 90-day Digital Eye Center warranty |
Compare Reichert and Topcon Slit Lamp Options
Where this Reichert Xcel 200 fits in DEC’s slit lamp inventory:
| Model | Magnification | Tonometer | Brand | Price | Notes |
| Reichert Xcel 200 | 3-step (10×/16×/25×) | Applanation (included) | Reichert | $1,600 | Entry Reichert — this listing |
| Reichert Xcel 700 | 5-step | Optilasa R-900 | Reichert | $3,300 | Premium Reichert — in stock |
| Topcon SL-2E | 3-step | CSO Z800 | Topcon | $3,080 | Topcon mid-tier — in stock |
| Topcon SL-2ED | 3-step | Included | Topcon | $3,080 | Topcon mid-tier — in stock |
| Topcon SL-3E | 3-step | Optilasa | Topcon | $3,080 | Topcon — in stock |
| Topcon SL-2G | 5-step LED | HS 870 | Topcon | $4,200 | Premium Topcon — in stock |
Questions about the Reichert Xcel 200? Contact us for current availability and shipping details.
