Description
What’s Included

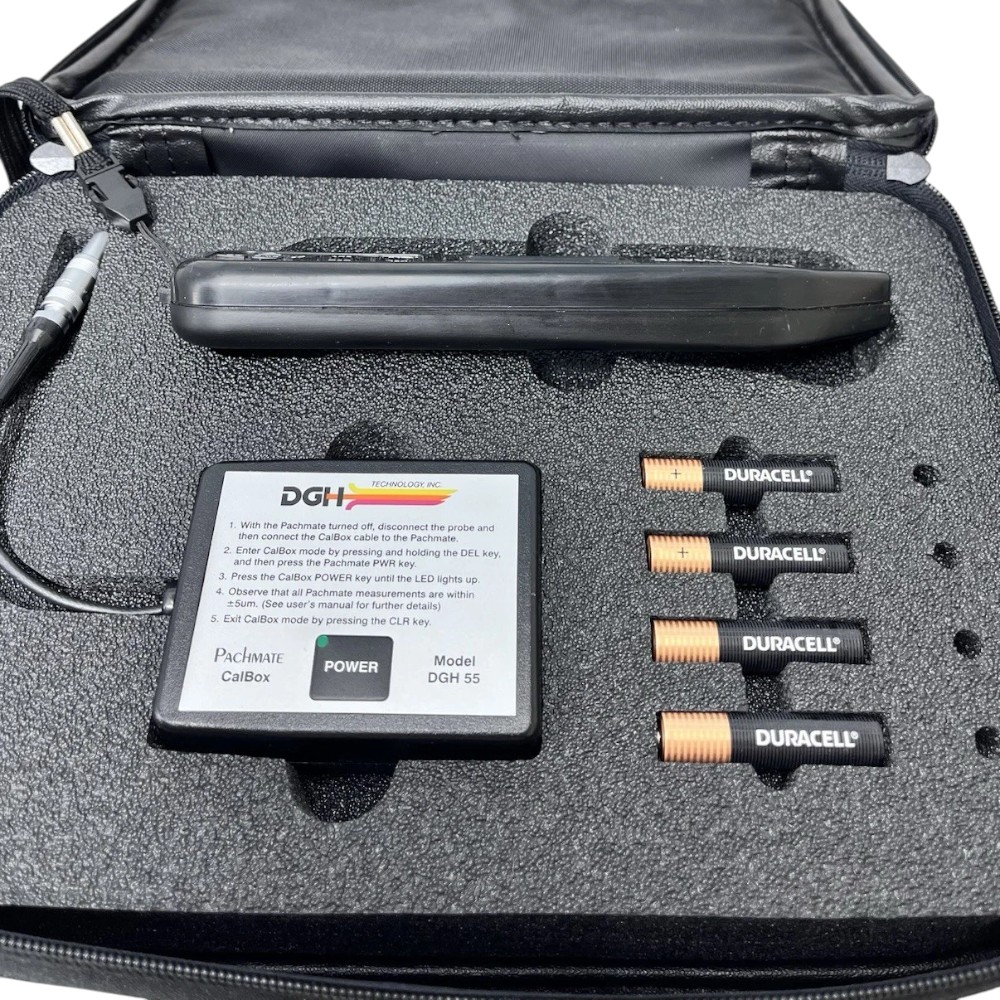

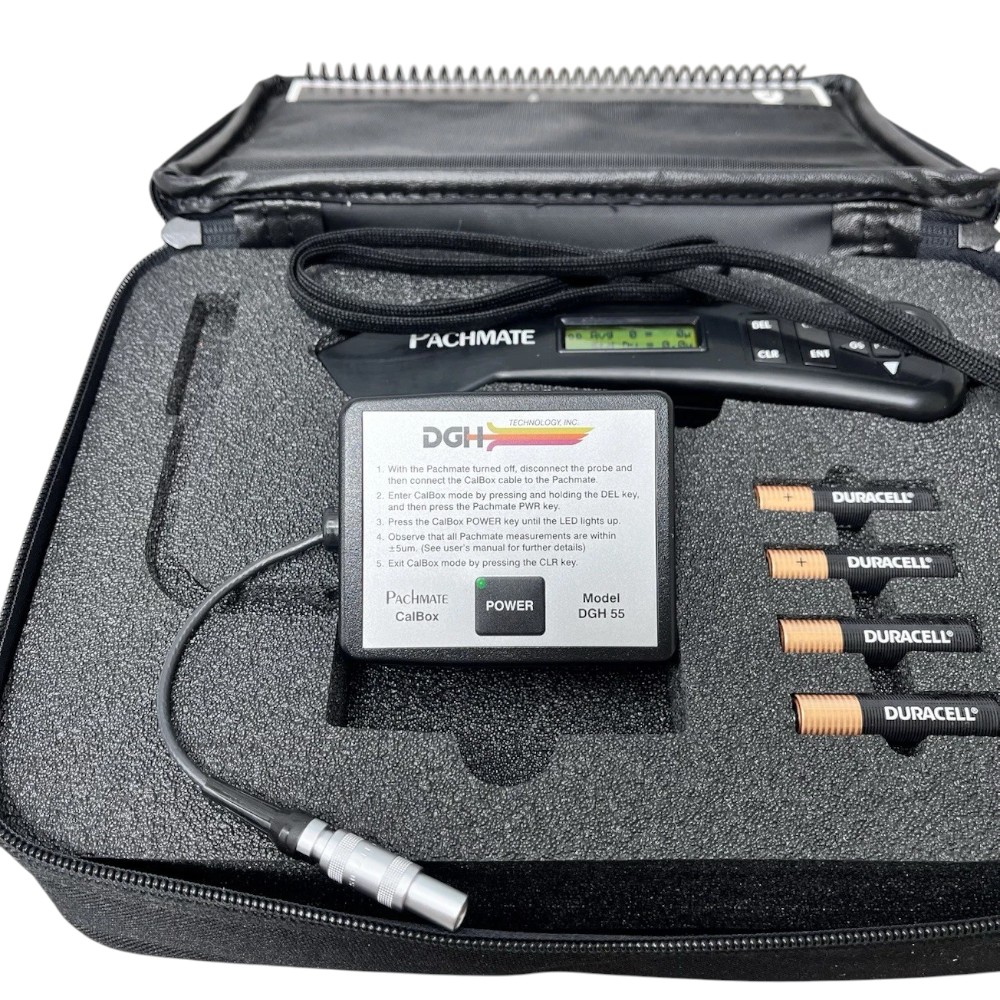

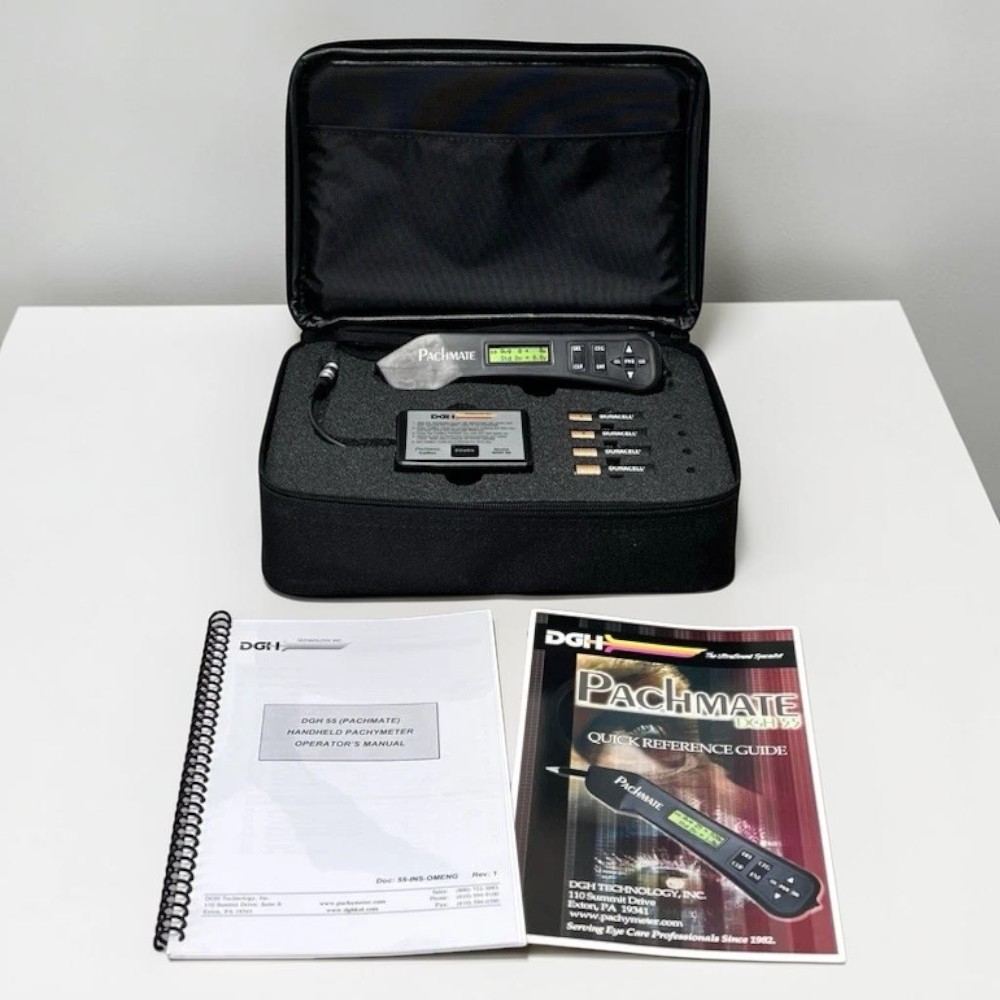

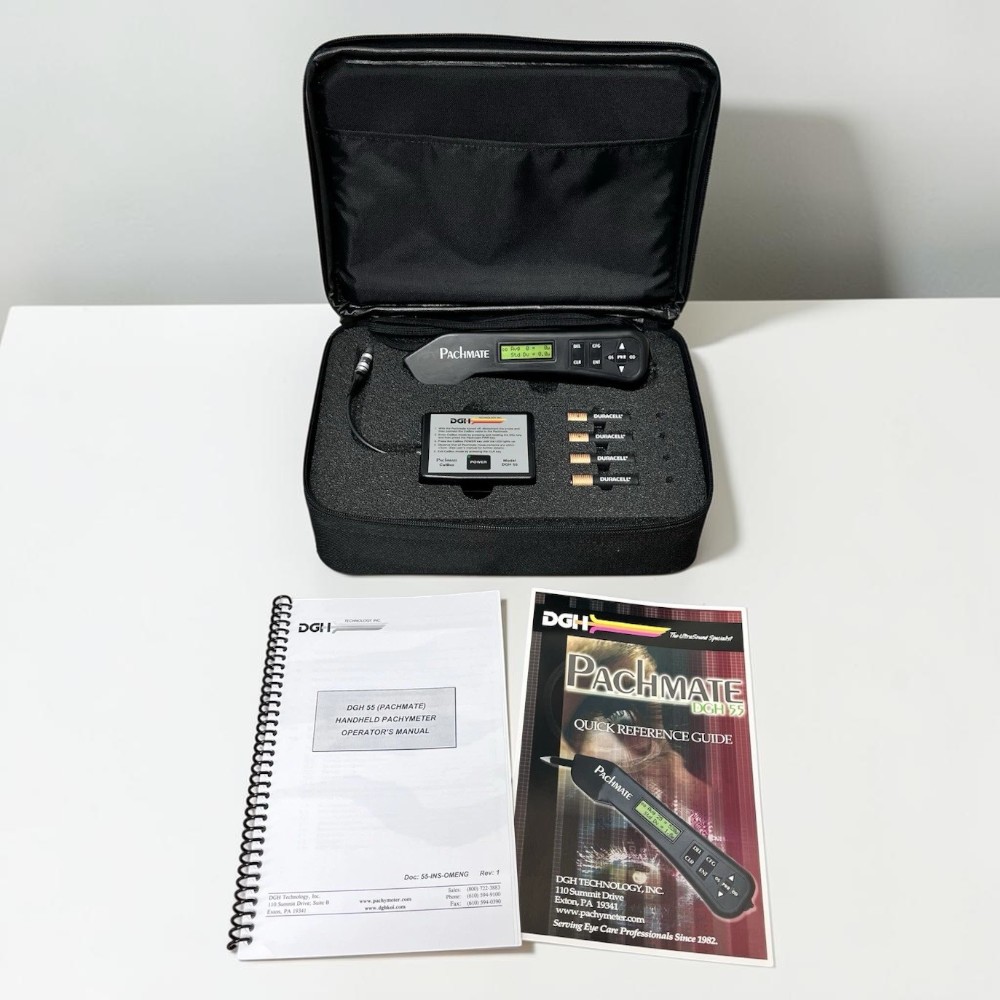

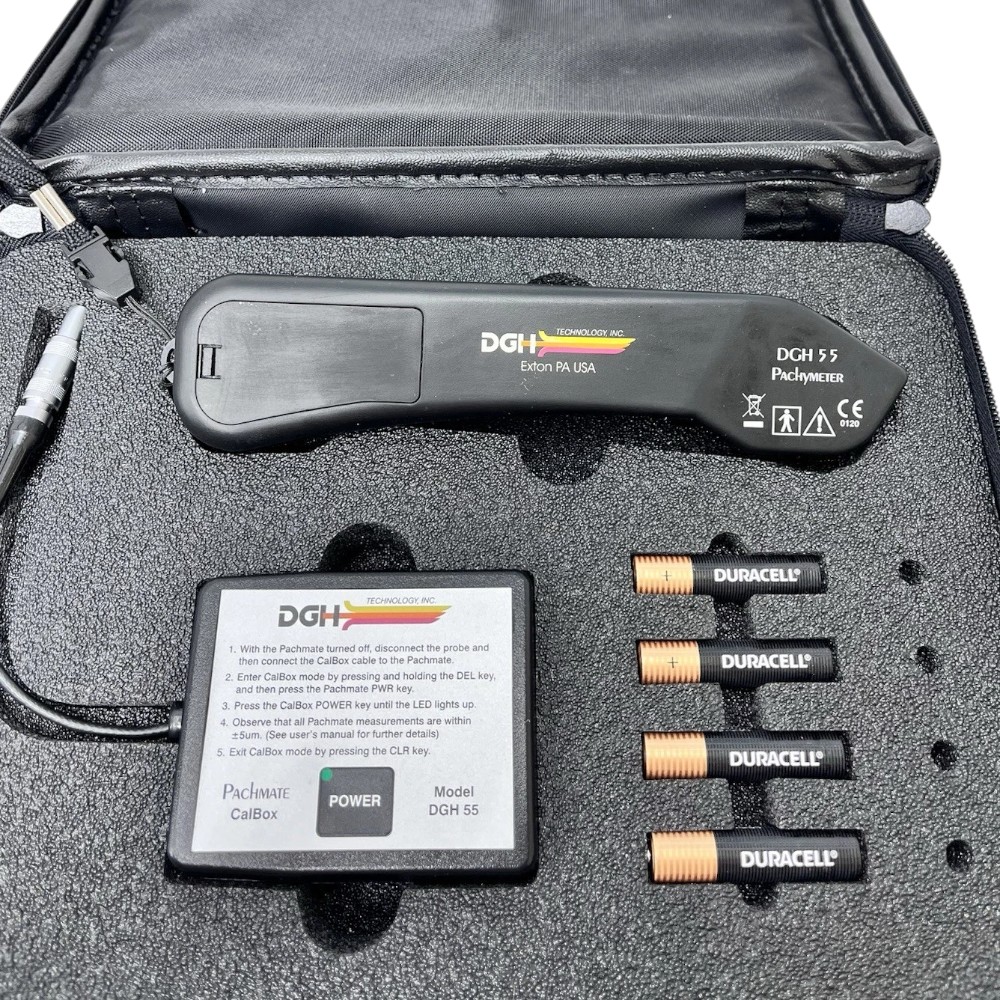

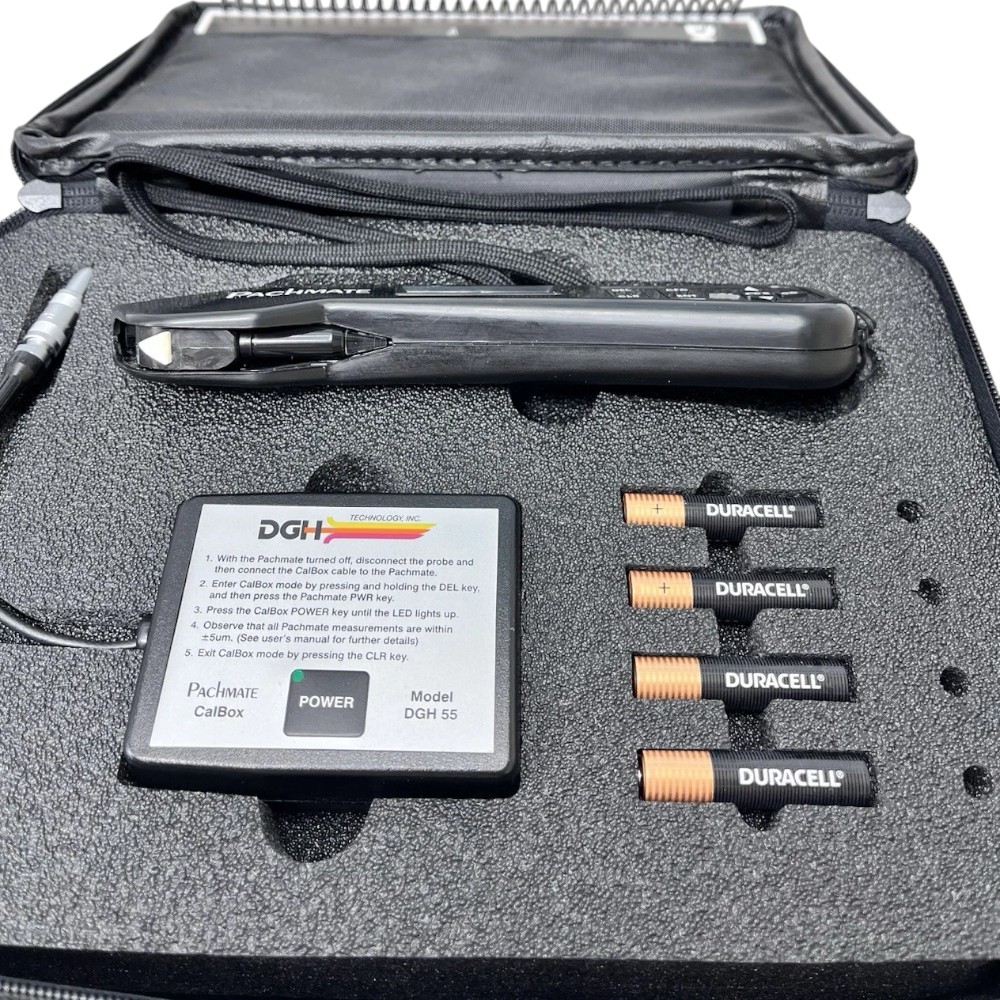

- DGH 55 Pachmate handheld ultrasonic pachymeter

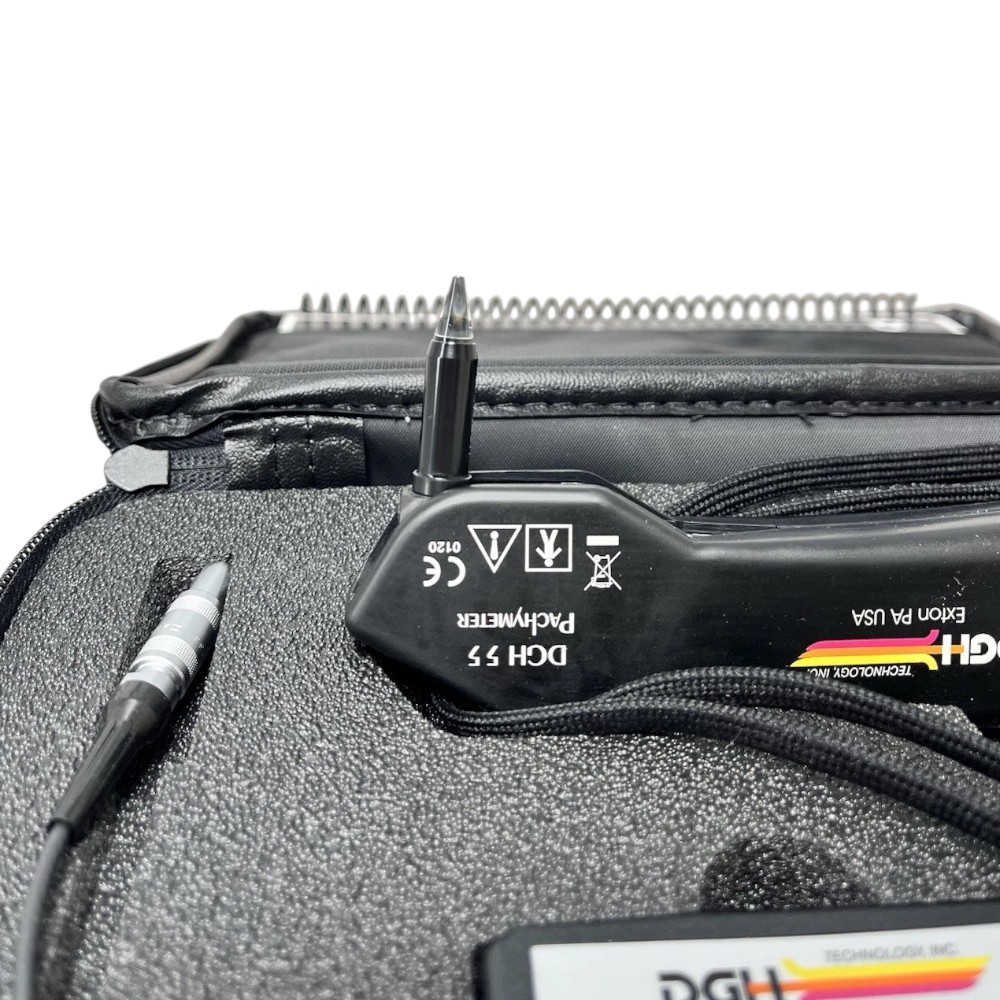

- Detachable adjustable-angle solid-state ultrasound probe

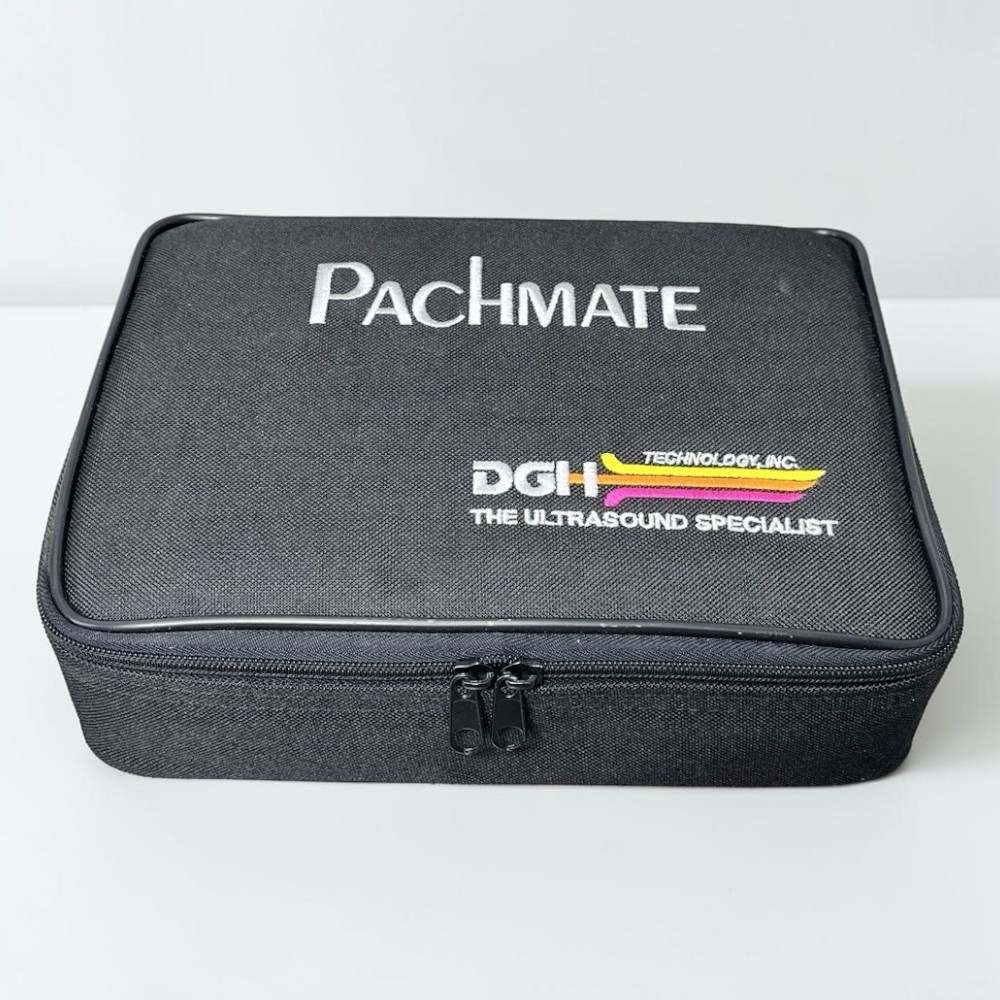

- Protective carrying case
- 90-day Digital Eye Center warranty
Condition & Warranty
Used. This unit has passed technical inspection, probe verification, and functional testing, and performs to original manufacturer specifications; the housing shows only minor cosmetic signs of prior clinical use. Covered by a 90-day warranty on parts and workmanship.
DGH 55 Pachmate Pachymeter — Used Ultrasonic Pachymeter

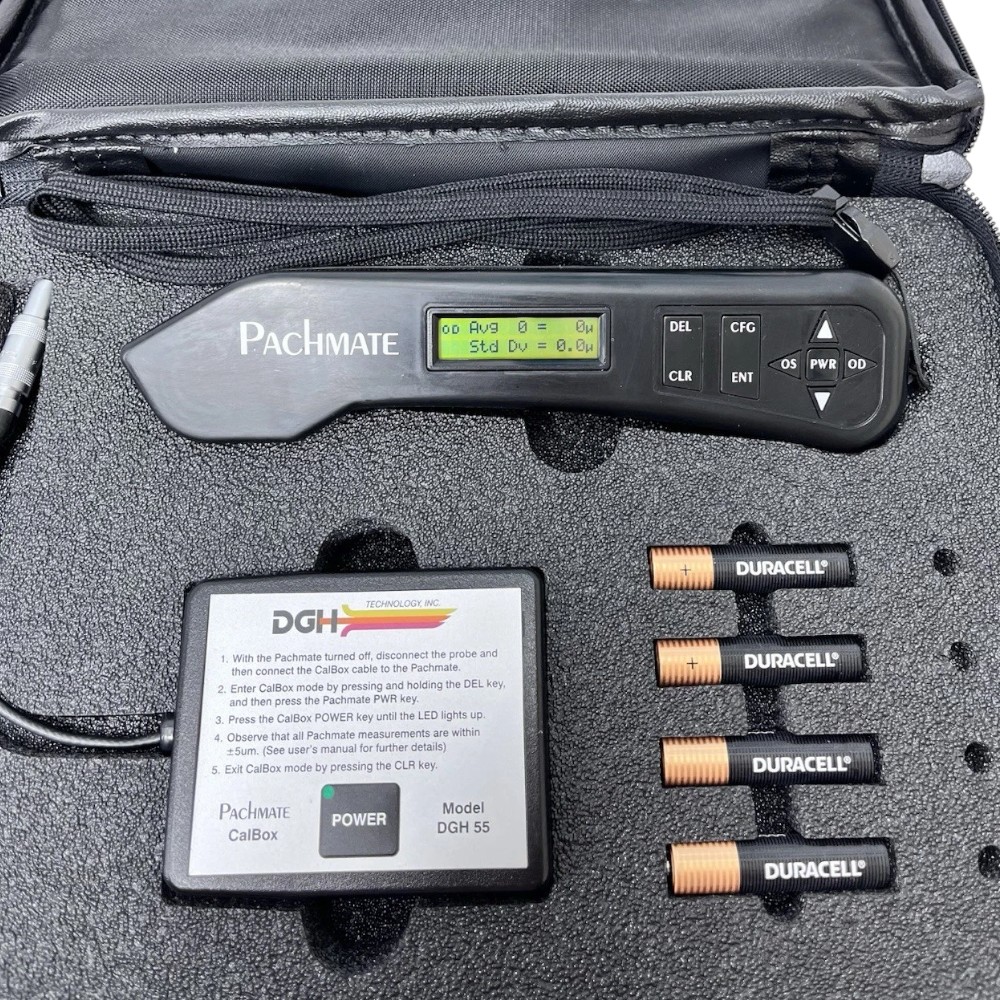

The DGH 55 Pachmate pachymeter is a compact, handheld ultrasonic instrument that delivers fast, reproducible central corneal thickness (CCT) readings at the chairside. Its detachable, adjustable-angle solid-state probe lets clinicians reach the cornea comfortably regardless of patient positioning, while the on-board display shows the running average and standard deviation of each measurement set as it is taken.
Because corneal thickness directly influences applanation tonometry, a reliable DGH 55 Pachmate pachymeter reading is a core part of glaucoma risk assessment, ocular hypertension evaluation, and pre-refractive-surgery screening. The instrument stores up to 25 bilateral measurements, so a practitioner can move between exam rooms without stopping to record results by hand.
Research on ocular biometrics reported in the National Library of Medicine confirms that corneal thickness is a measurable determinant of intraocular pressure readings and a risk factor for ocular hypertension, underscoring why routine pachymetry belongs in the glaucoma workup.
Why Practices Choose the DGH 55 Pachmate
- Handheld portability — at roughly 3.6 oz and under 7 inches long, the unit travels easily between lanes and satellite offices.
- Adjustable-angle probe — the detachable solid-state probe pivots to meet the cornea squarely for consistent, repeatable placement.
- Fast averaged readings — each measurement set displays a running average and standard deviation, so the operator sees measurement quality in real time.
- On-board memory — stores up to 25 bilateral measurements for rapid, back-to-back patient testing.
- High resolution — 1 micron display resolution with plus or minus 5 micron accuracy across a 200 to 1100 micron range.
- Simple operation — battery-powered, single-purpose design keeps training and daily use straightforward for any technician.
Clinical Applications
- Glaucoma risk stratification, where corneal thickness helps interpret measured intraocular pressure.
- Ocular hypertension monitoring and long-term follow-up of borderline patients.
- Pre-operative screening for LASIK, PRK, and other corneal refractive procedures.
- Assessment and monitoring of corneal edema and endothelial function.
- Baseline pachymetry before and after corneal or cataract surgery.
Who This Is For
- Ophthalmology and optometry practices building or expanding a glaucoma diagnostic workflow.
- Refractive surgery centers that need dependable pre-operative corneal measurements.
- Mobile and satellite clinics that require a portable, chairside pachymeter.
- Practices seeking a proven, cost-effective handheld pachymeter as a first or backup unit.
Technical Specifications
| Specification | Detail |
| Instrument type | Handheld ultrasonic corneal pachymeter |
| Manufacturer | DGH Technology, Inc. |
| Model | Pachmate DGH 55 |
| Measurement | Ultrasonic central corneal thickness (pachymetry) |
| Probe | Detachable, adjustable-angle solid-state ultrasound probe |
| Measurement range | 200 µm to 1100 µm |
| Accuracy | ± 5 µm |
| Display resolution | 1 µm |
| On-board memory | Up to 25 bilateral measurements, with running average and standard deviation |
| Dimensions and weight | Approx. 6.9 in long; approx. 3.6 oz |
| Power | Two AAA batteries |
| Condition | Used — inspected and functionally tested |
| Warranty | 90-day Digital Eye Center warranty |
Compare Chairside Diagnostic Options
The DGH 55 Pachmate measures corneal thickness, while handheld tonometers measure intraocular pressure — complementary readings that many practices use together in a glaucoma workup. This table shows how these portable, same-category instruments differ.
| Feature | DGH 55 Pachmate | TonoPen XL Medtronic | Reichert XL Applanation Tono-Pen |
| Measures | Central corneal thickness | Intraocular pressure | Intraocular pressure |
| Technology | Ultrasound (solid-state probe) | Applanation tonometry | Applanation tonometry |
| Form factor | Handheld, approx. 3.6 oz | Handheld pen | Handheld pen |
| On-board memory | Up to 25 bilateral readings | Single reading with averaging | Single reading with averaging |
| Condition | Used | Refurbished | Used |
| Price | $1,100 | $2,695 | $2,530 |
Also consider pairing the DGH 55 Pachmate with a handheld TonoPen XL tonometer for chairside IOP, or stepping up to the Reichert 7cr for automated tonometry with corneal response technology.
Questions about the DGH 55 Pachmate? Contact us for availability and shipping details.
