Description
What’s Included
- Optovue AngioVue OCTA imaging system

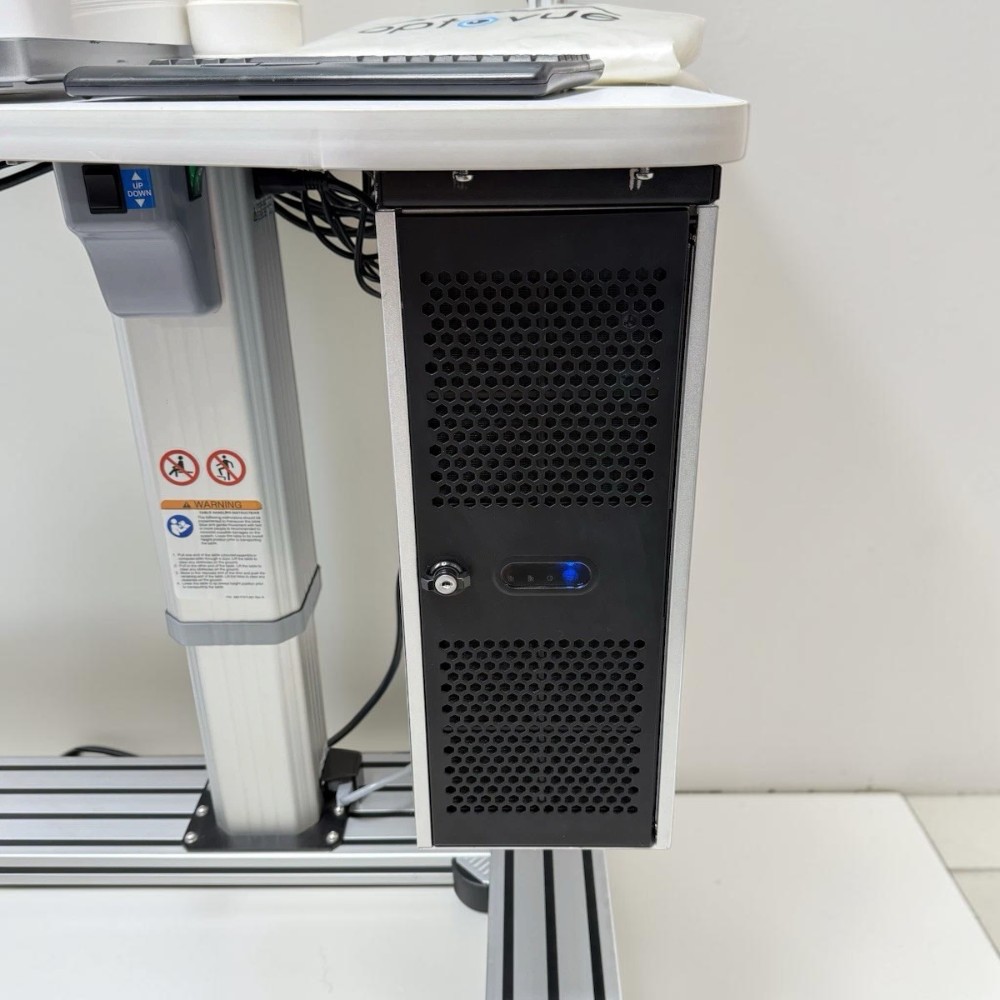

- Electric table

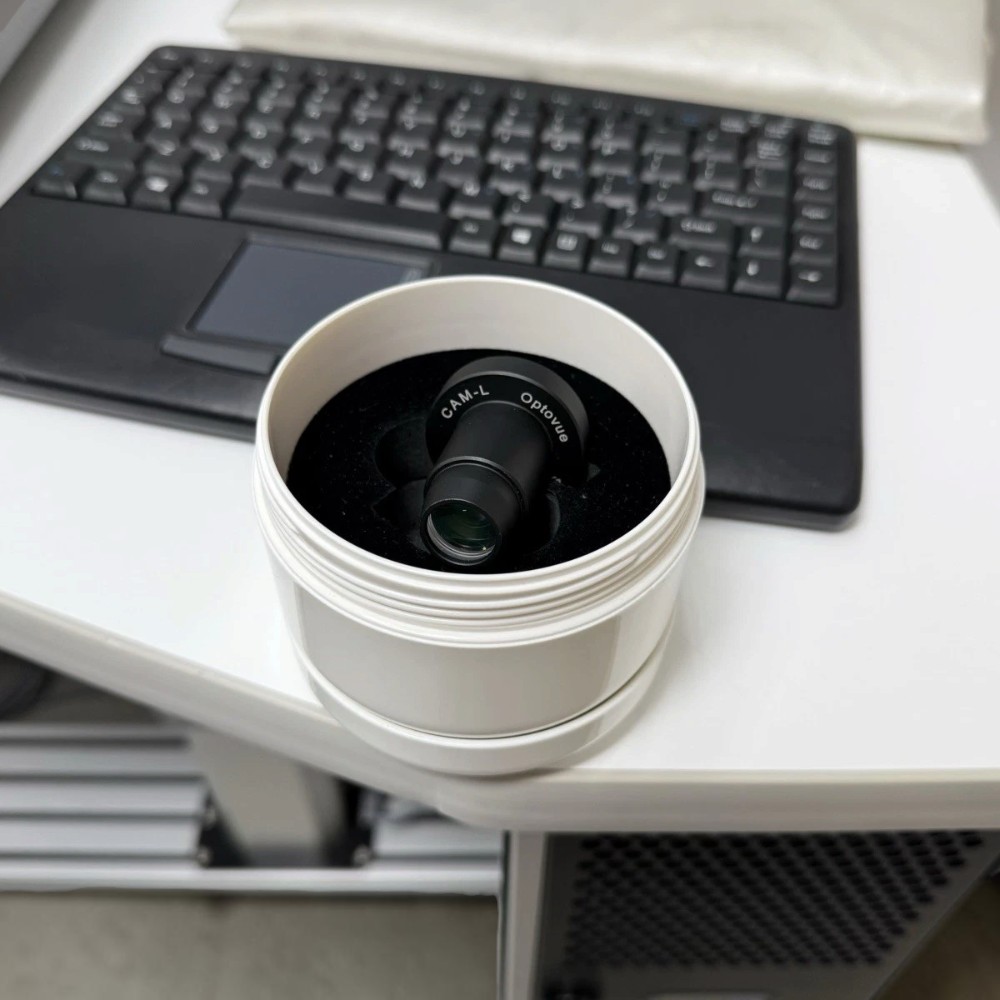

- CAM-L lens
- Power cable

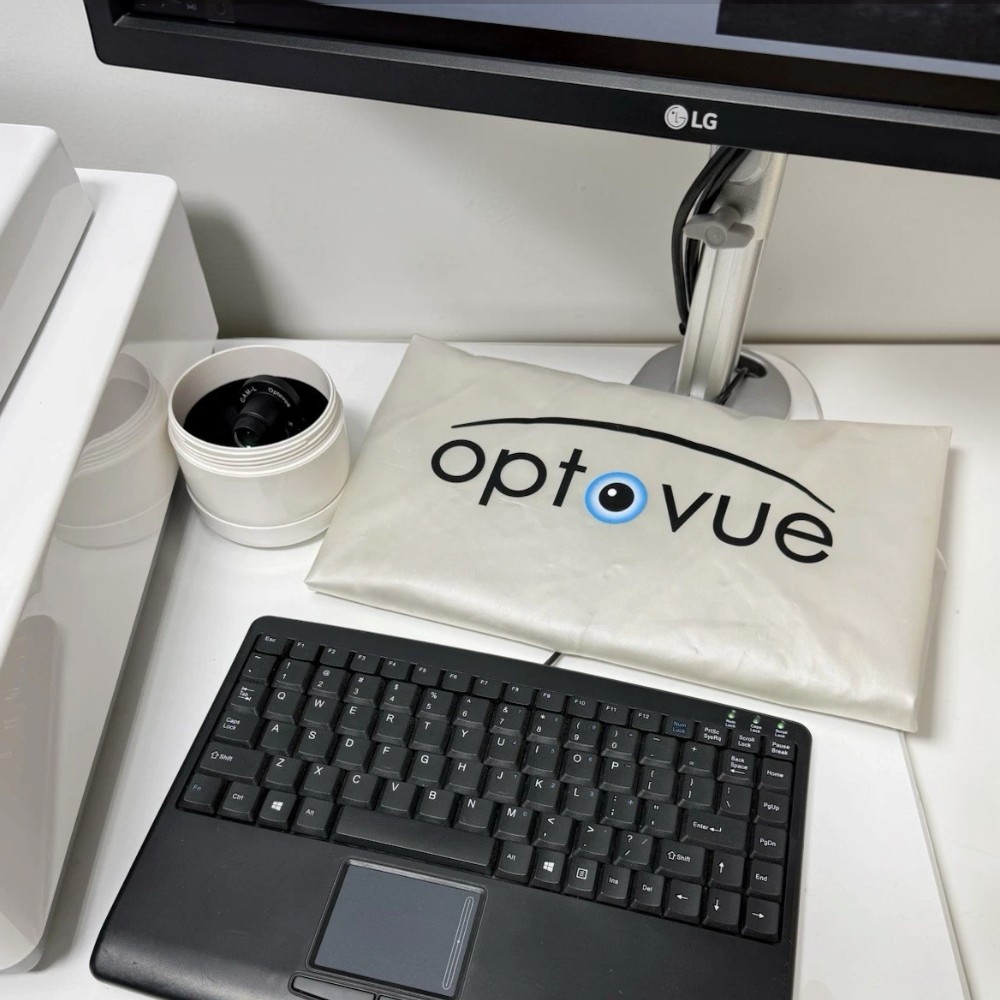

- Dust cover
- 90-day Digital Eye Center warranty
Condition & Warranty

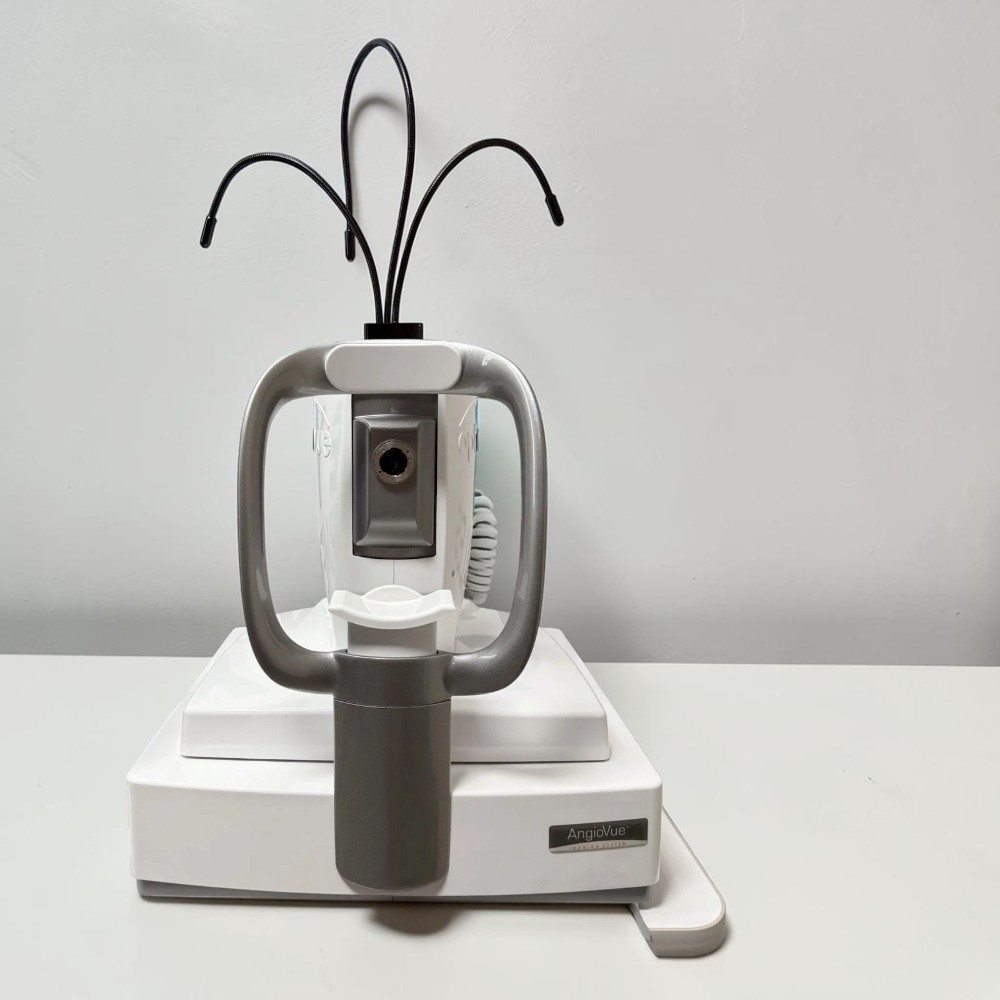

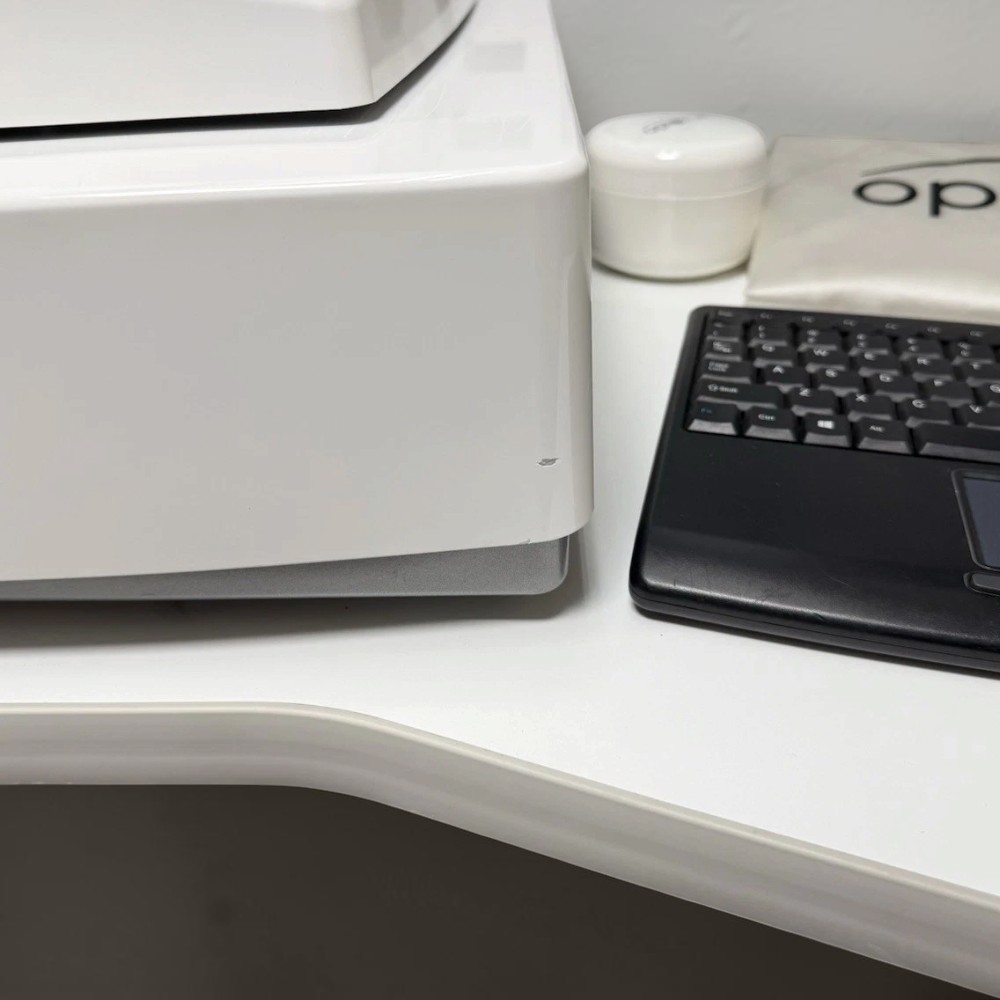

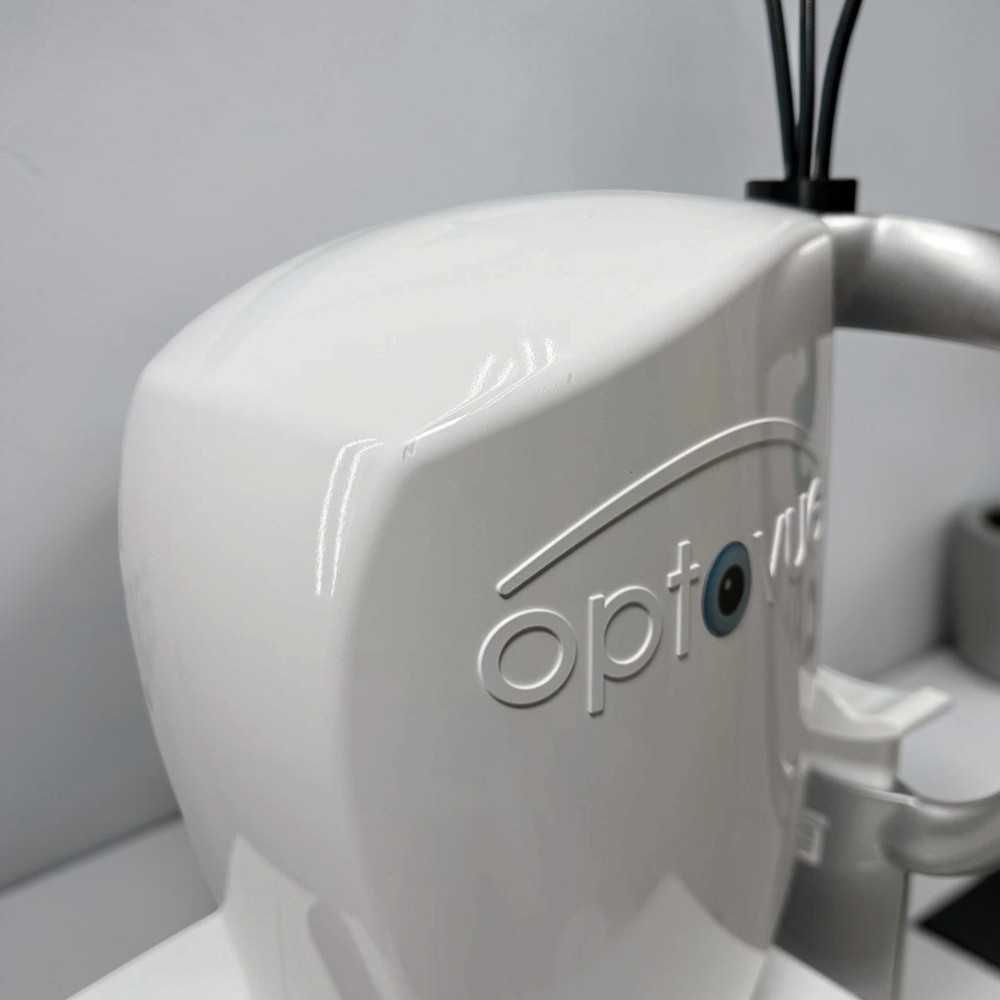

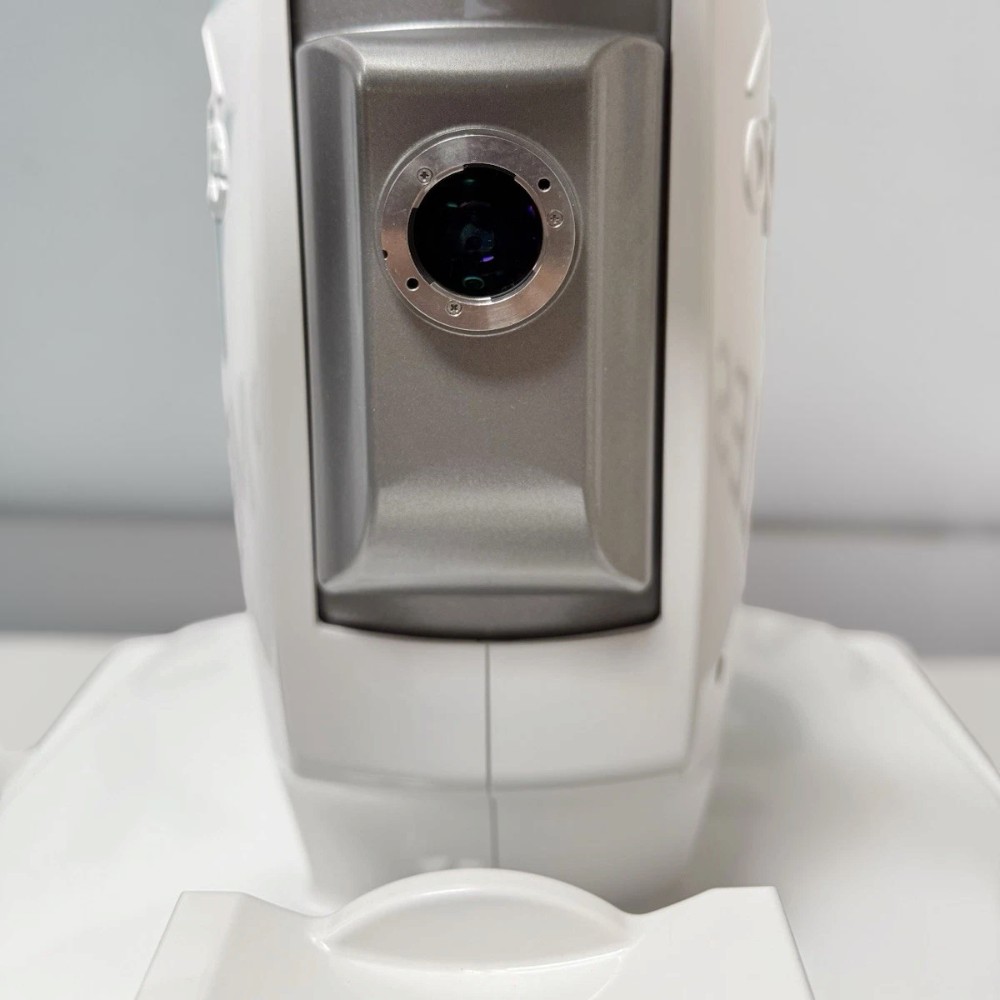

Used. This unit has been tested and is in excellent working order, has been cleaned, and is ready to use on arrival. It shows some cosmetic signs of previous use, documented in the product photos. Covered by a 90-day warranty on parts and workmanship.

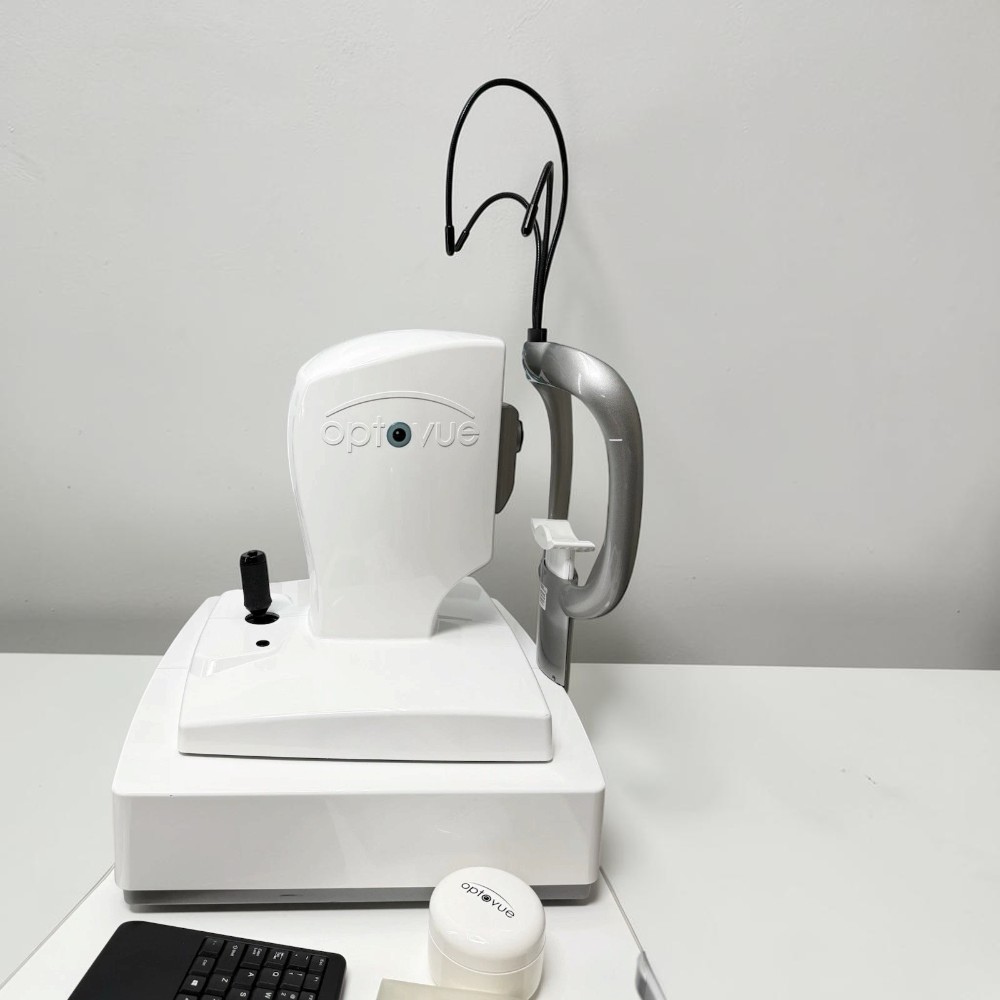

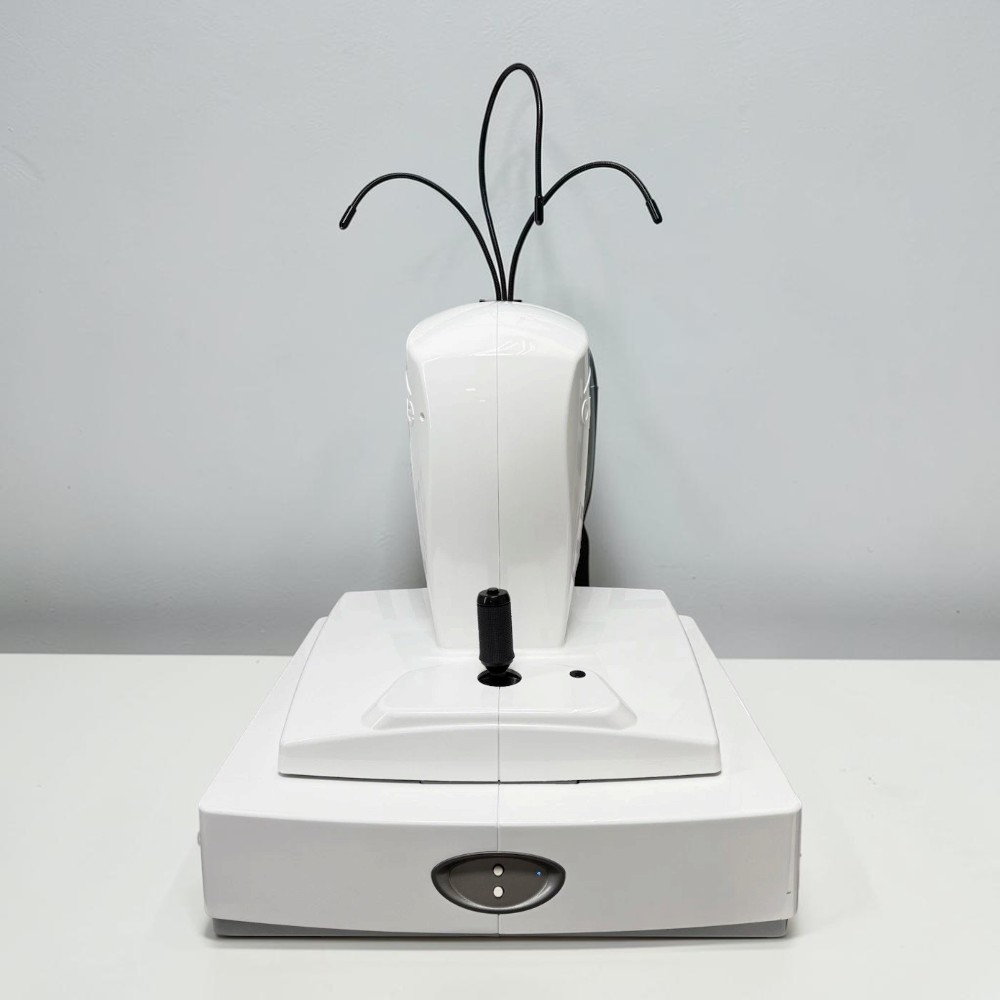

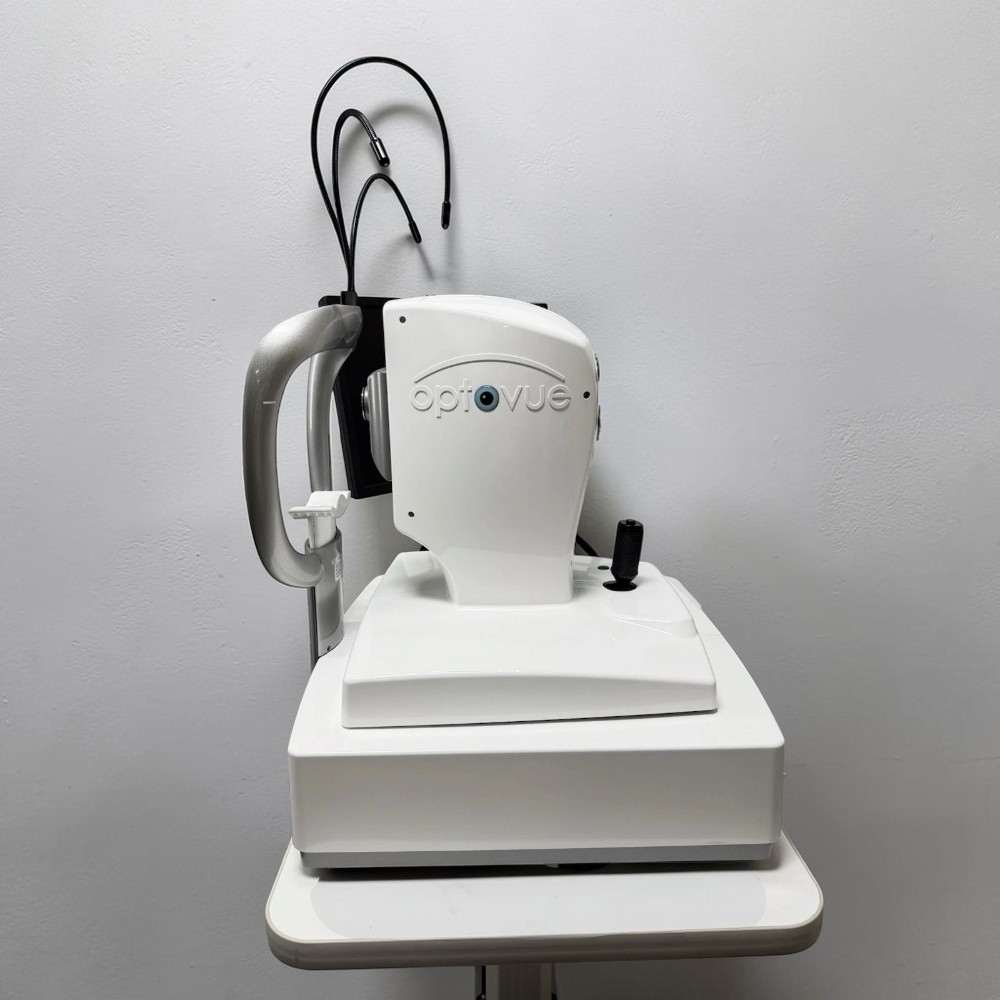

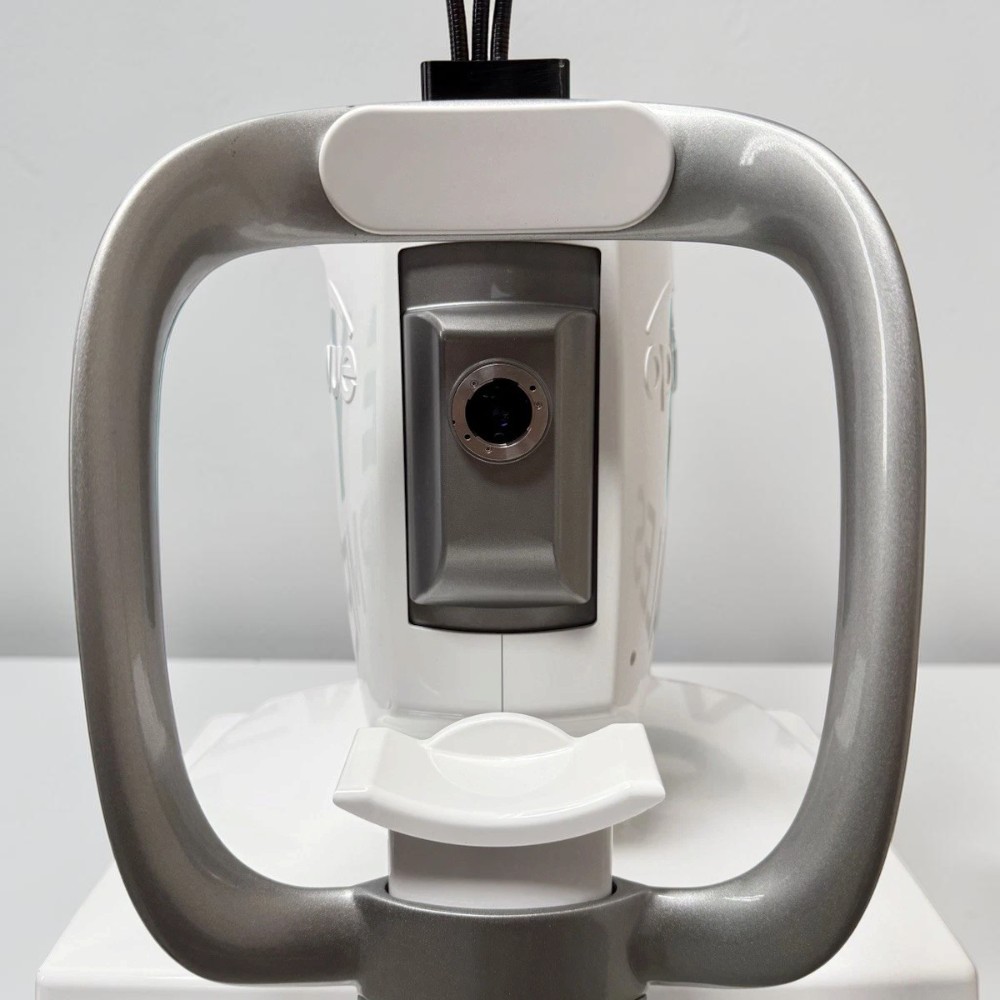

Optovue AngioVue OCTA Imaging System — Used OCT Angiography Platform
The Optovue AngioVue is a spectral-domain OCT platform that adds OCT angiography (OCTA) to structural retinal and optic nerve imaging. The Optovue AngioVue visualizes retinal and choroidal blood flow without intravenous dye, giving practices a fast, noninvasive way to map the microvasculature during the same visit as a standard OCT scan.

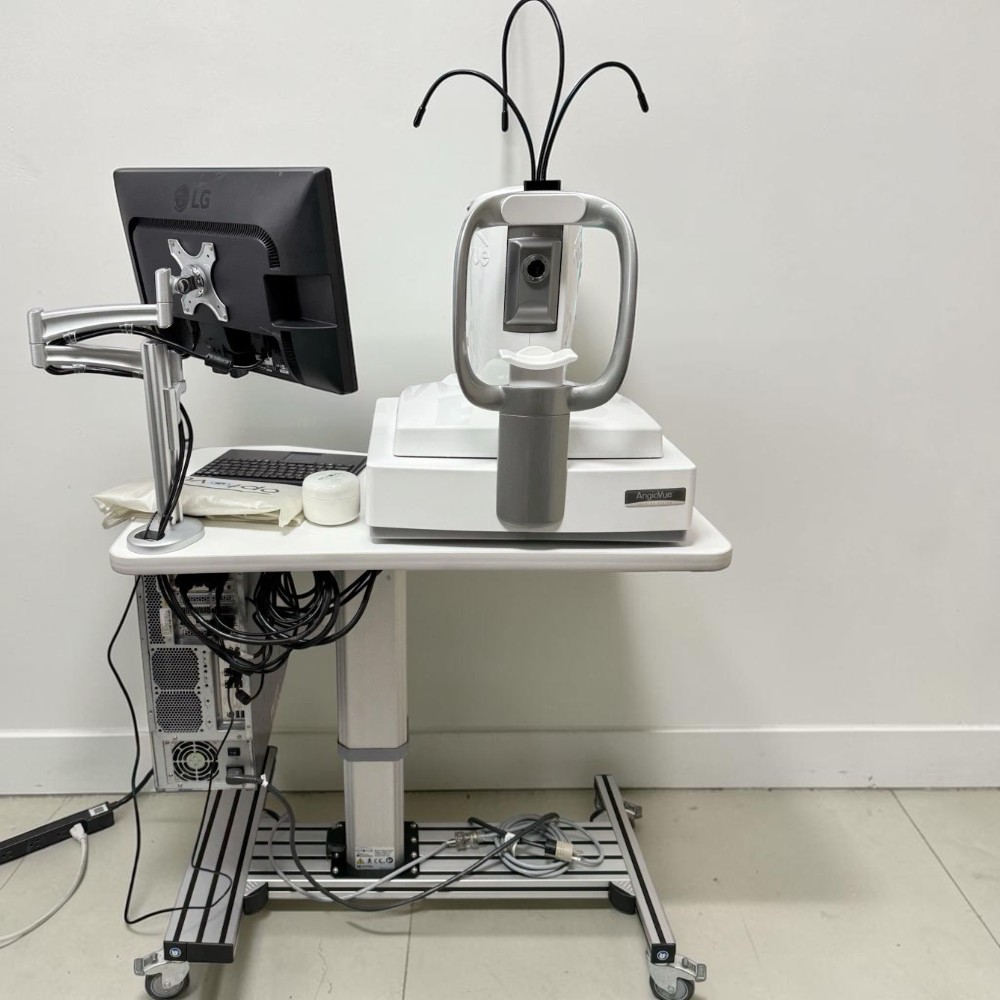

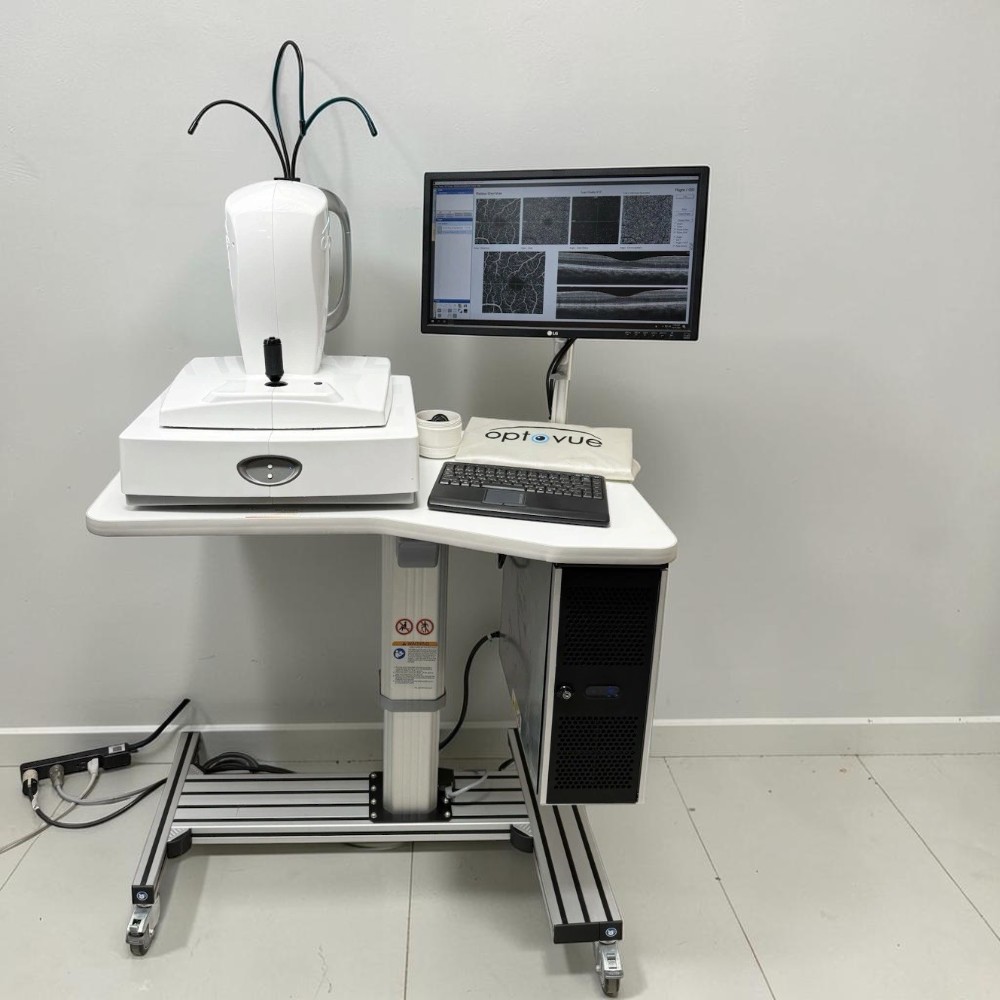

AngioVue runs on the Optovue Avanti SD-OCT engine: an 840 nm light source scanning at 70,000 A-scans per second with roughly 5 µm axial resolution in tissue. Flow is extracted with the Split-Spectrum Amplitude-Decorrelation Angiography (SSADA) algorithm, which acquires a 304 × 304 OCTA volume in about three seconds. This used Optovue AngioVue ships with its electric table, CAM-L lens, power cable, and dust cover.
The National Library of Medicine indexes the original peer-reviewed description of SSADA, the method this platform uses to detect retinal blood flow with OCT angiography.
Why Practices Choose the Optovue AngioVue
- Dye-free angiography — visualizes retinal capillary networks and choroidal vessels without fluorescein or ICG injection.
- 70,000 A-scans per second — fast acquisition keeps OCTA volumes short and reduces motion artifacts.
- SSADA flow detection — split-spectrum processing improves the signal-to-noise ratio of flow maps.

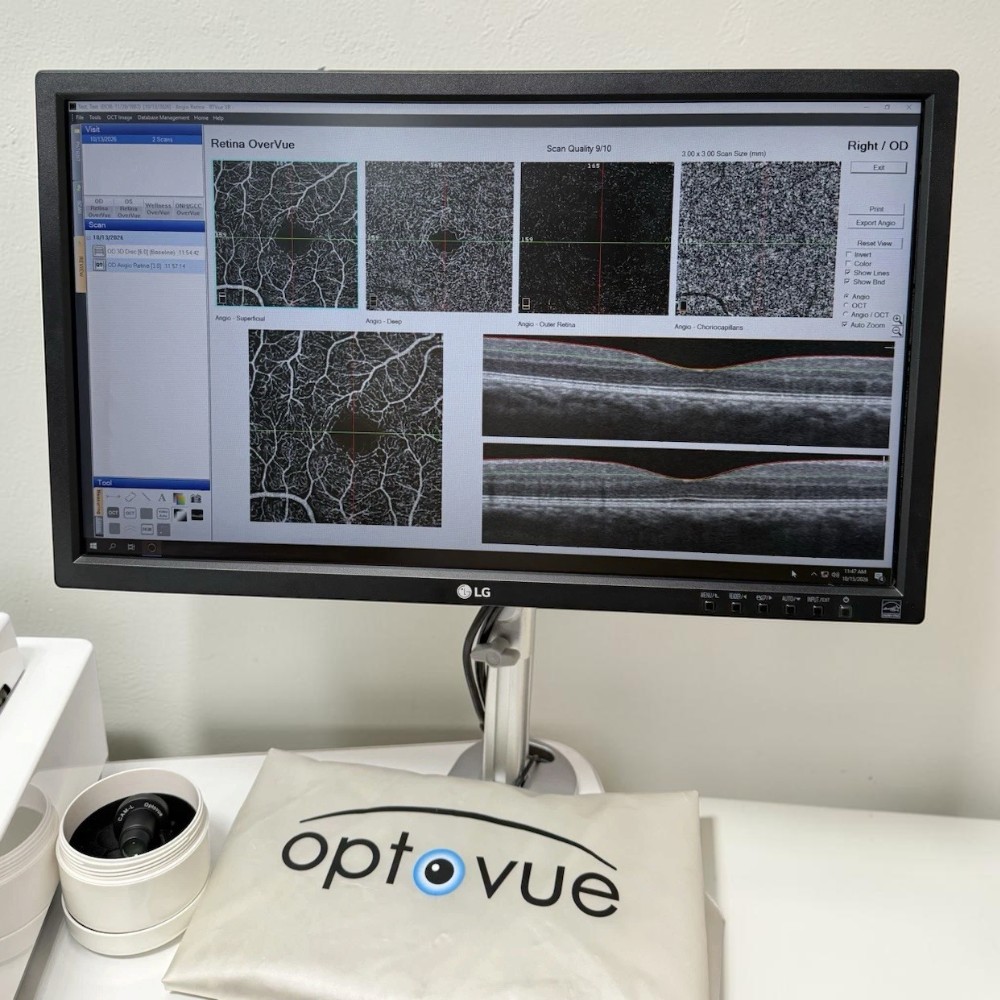

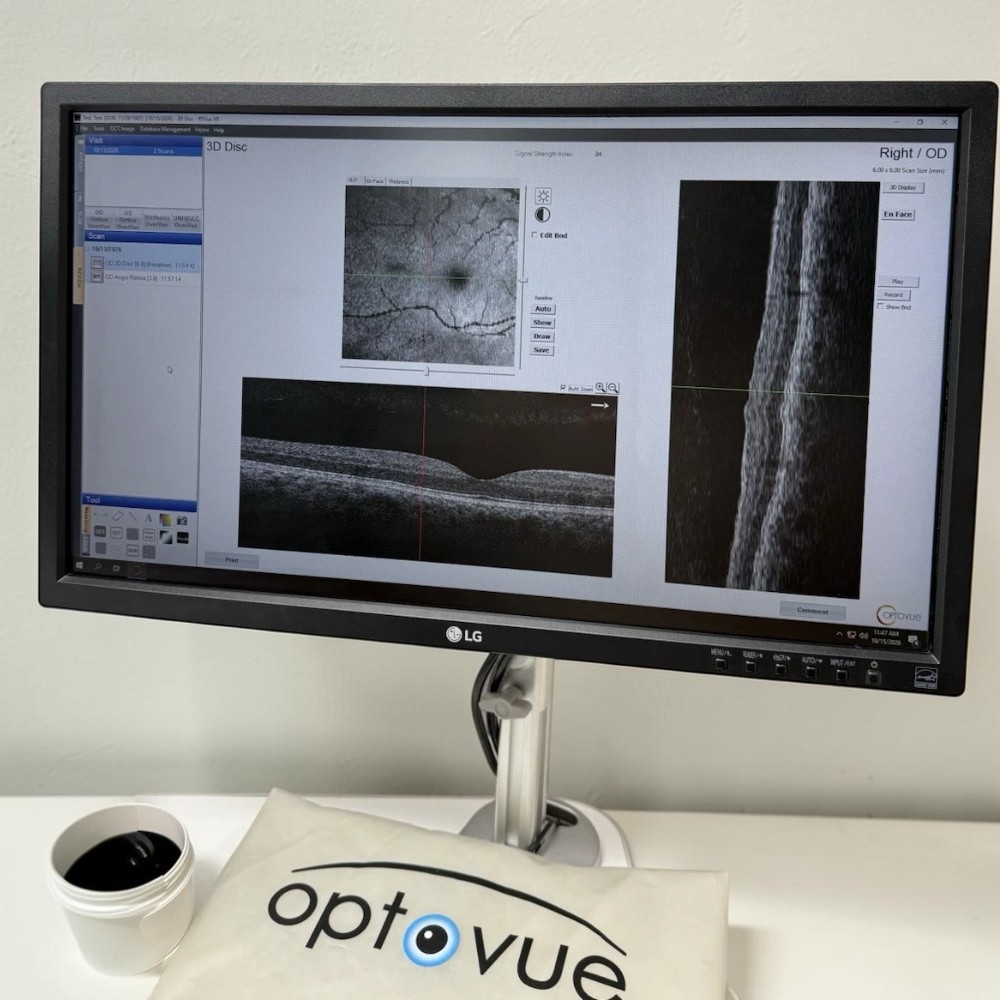

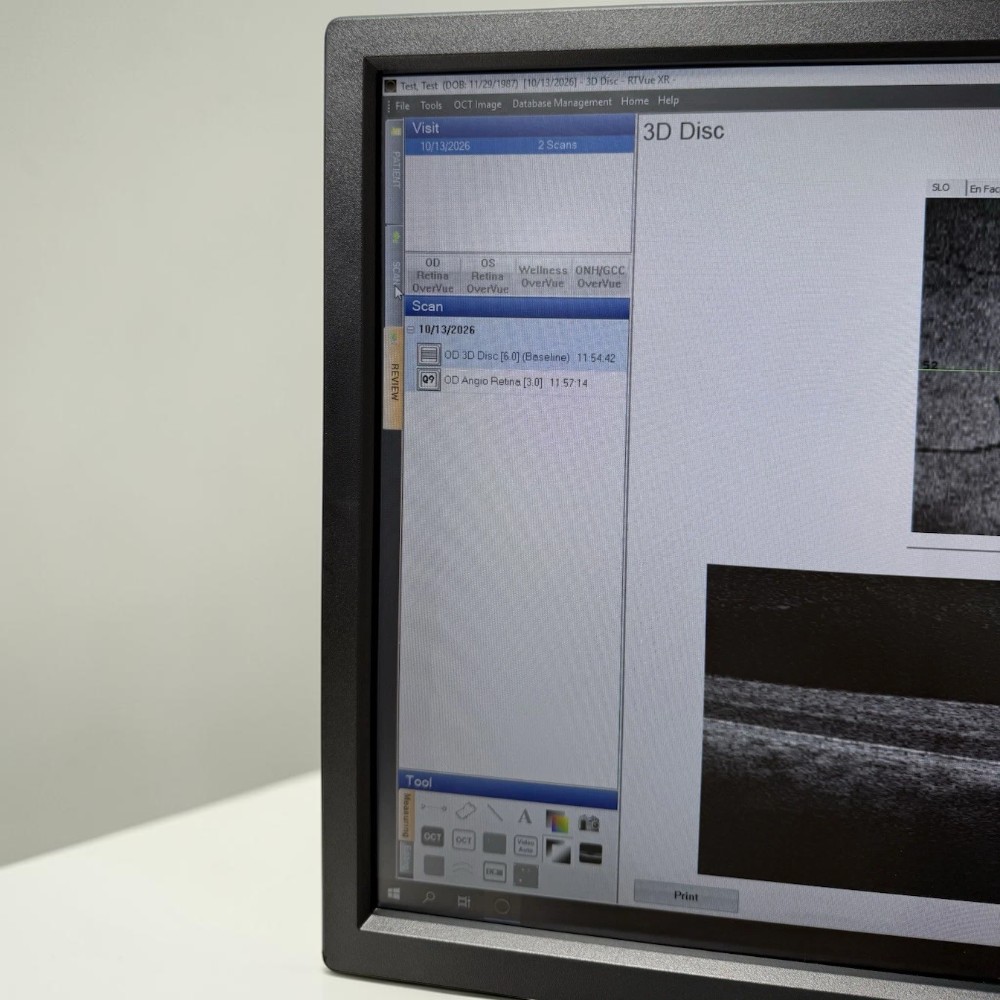

- Structure plus flow in one exam — cross-sectional B-scans and en face vascular maps from the same scan.

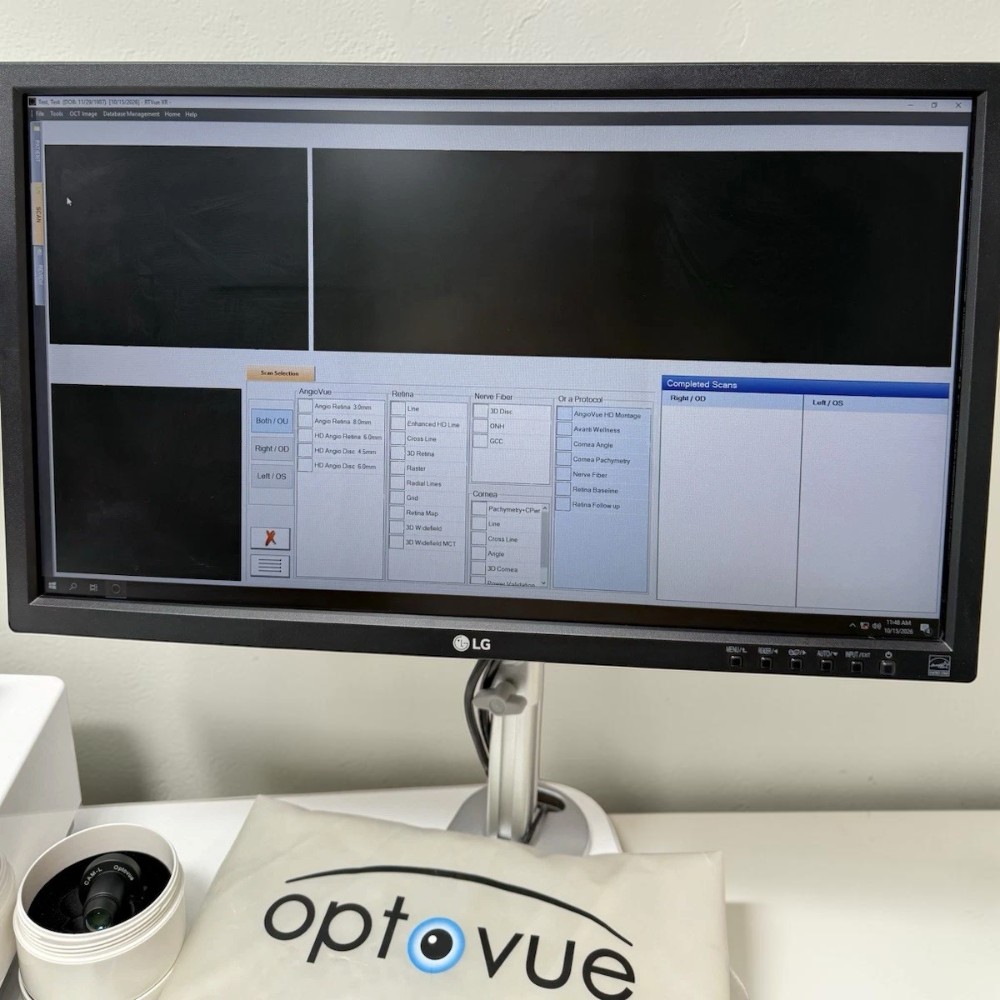

- Retina and optic disc protocols — macular OCTA scans of 3 × 3, 6 × 6 and 8 × 8 mm plus optic nerve head angiography, depending on configuration.
- Anterior imaging lens included — the CAM-L lens ships with the system, which is supplied on its electric table.
See the Optovue AngioVue in Action
This overview from Optovue explains how its OCT angiography technology images retinal blood flow without dye.
Clinical Applications
- Diabetic retinopathy — capillary dropout, foveal avascular zone enlargement and neovascularization.
- Age-related macular degeneration — detection and follow-up of choroidal neovascularization.
- Retinal vein occlusion — mapping of non-perfused areas and collateral vessels.
- Glaucoma — evaluation of optic nerve head and peripapillary vessel density alongside structural OCT.
- Macular disease — structural OCT of the retinal layers with matching vascular maps.
- Longitudinal monitoring — repeat structural and OCTA scans across visits.
Who This Is For
- Retina specialists who need dye-free vascular imaging in clinic.
- General ophthalmology practices adding OCT angiography to structural OCT.
- Glaucoma practices assessing optic nerve head perfusion.
- Multispecialty eye clinics and research centers studying retinal microvasculature.
Technical Specifications
| Specification | Detail |
| Manufacturer | Optovue |
| System | AngioVue OCTA imaging system |
| OCT platform | Avanti spectral-domain OCT |
| Imaging modalities | Structural SD-OCT and OCT angiography |
| Light source | 840 nm |
| Scan speed | 70,000 A-scans per second |
| Axial resolution | Approx. 5 µm (in tissue) |
| Transverse resolution | Approx. 15 µm (in tissue) |
| Scan depth | 2–3 mm (protocol dependent) |
| Angiography algorithm | Split-Spectrum Amplitude-Decorrelation Angiography (SSADA) |
| OCTA acquisition | 304 × 304 A-scan volume in approx. 3 seconds |
| Retina OCTA scan sizes | 3 × 3 mm, 6 × 6 mm, 8 × 8 mm (configuration dependent) |
| Included accessories | Electric table, CAM-L lens, power cable, dust cover |
| Condition | Used |
| Warranty | 90-day warranty on parts and workmanship |
Compare OCT Angiography Options
| Feature | Optovue AngioVue (this unit) | Zeiss Cirrus 5000 w/ AngioPlex | Zeiss Cirrus 5000 | Zeiss Cirrus 5000 Rev 1 |
| Technology | Spectral-domain OCT | Spectral-domain OCT | Spectral-domain OCT | Spectral-domain OCT |
| Scan speed | 70,000 A-scans/s | 27,000–68,000 A-scans/s | 68,000 A-scans/s | 27,000 A-scans/s |
| Axial resolution | 5 µm | 5 µm | 5 µm | 5 µm |
| OCT angiography | Yes (SSADA) | Yes (AngioPlex) | No | No |
| Condition | Used | Used | Used | Refurbished |
| Warranty | 90 days | 90 days | 90 days | 6 months |
| Price | $28,600 | $42,328 | $28,600 | $27,664 |
Need structural OCT on a tighter budget? Also consider the Carl Zeiss Cirrus 500 HD-OCT.
Questions about the Optovue AngioVue? Contact us for availability and shipping details.
