What’s included
- Tonometer Optilasa.
- Power Cable
- Instruction Manual

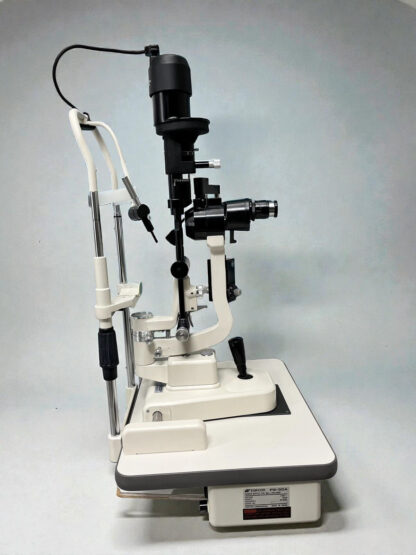

Description Topcon SL-3E
-
The Topcon SL-3E slit lamp is a durable, high-quality ophthalmic biomicroscope designed for detailed anterior segment examinations. Known for its reliability, smooth mechanics, and clear optical system, the SL-3E remains a popular choice in clinics, hospitals, and optometry practices looking for a dependable slit lamp without the cost of newer digital systems.
Key Features
- High-clarity Optical System
The Topcon SL-3E uses a stereoscopic converging binocular optical system designed to deliver sharp imaging of the cornea, anterior chamber, iris, and lens. - Two-Step Magnification
A built-in magnification changer allows clinicians to switch magnifications quickly during examination, maintaining efficiency and workflow. - Adjustable Slit Illumination
The unit includes complete control over beam height and width, with a smooth-moving slit mechanism suitable for routine exams, contact lens fittings, ocular surface evaluations, and pathology documentation. - Illumination Source
Equipped with a 6V/20W halogen bulb, the SL-3E provides bright, even illumination. Many refurbished units can be upgraded to LED illumination. - 20° Illumination Angle for Gonioscopy
The illumination column can be inclined for improved angle visualization, making the SL-3E suitable for glaucoma screening and gonioscopy with a goniolens.
Integrated Filters
The Topcon SL-3E includes multiple optical filters to enhance contrast and visualization:
-
Cobalt blue filter (fluorescein staining)
-
Red-free (green) filter (vascular/nerve contrast)
-
Neutral density filter (light reduction for comfort)
-
Heat-absorbing safety filter
Clinical Applications
The Topcon SL-3E slit lamp is well-suited for:
-
General ophthalmic and optometric exams
-
Dry eye evaluation and fluorescein assessment
-
Corneal pathology and infection monitoring
-
Cataract evaluation
-
Contact lens fitting and follow-up
-
Gonioscopy and anterior chamber angle assessment
Its optical clarity and mechanical stability make it a reliable tool for both routine and diagnostic workflows.
Technical Specs
| SL-3E- TECHNICAL SPECIFICATION | |
|---|---|
|
MICROSCOPE |
|
|
Type
|
Binocular stereoscopic microscope
|
|
Magnification System
|
Two-step rotating objective system
|
|
Eyepieces
|
10× and 16×
|
|
Magnification / Field of View
|
|
|
Interpupillary Distance
|
|
|
Diopter Adjustment
|
±8 D (10×), ±10 D (16×)
|
|
|
|
|
SLIT ILLUMINATION SYSTEM |
|
|
Slit Projection Magnification
|
2/3×
|
|
Slit Width
|
Continuously adjustable from 0 mm to 9 mm (when the slit becomes circular)
|
|
Slit Length
|
Continuously adjustable from 1 mm to 8 mm
|
|
Slit Rotation
|
0°–180° with horizontal sweep capability |
|
Slit Inclination
|
5°, 10°, 15°, and 20° positions
|
|
Filters
|
Blue, red-free (green), neutral density (13 %), and heat-absorbing filter
|
|
Illumination Lamp
|
6V, 20W halogen lamp
|
|
Chinrest Vertical Adjustment
|
approx. 80 mm |
