Description

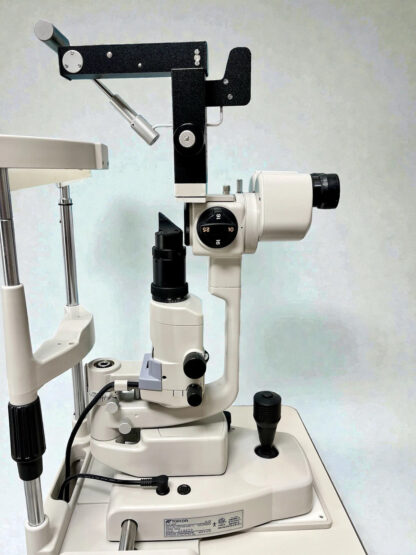

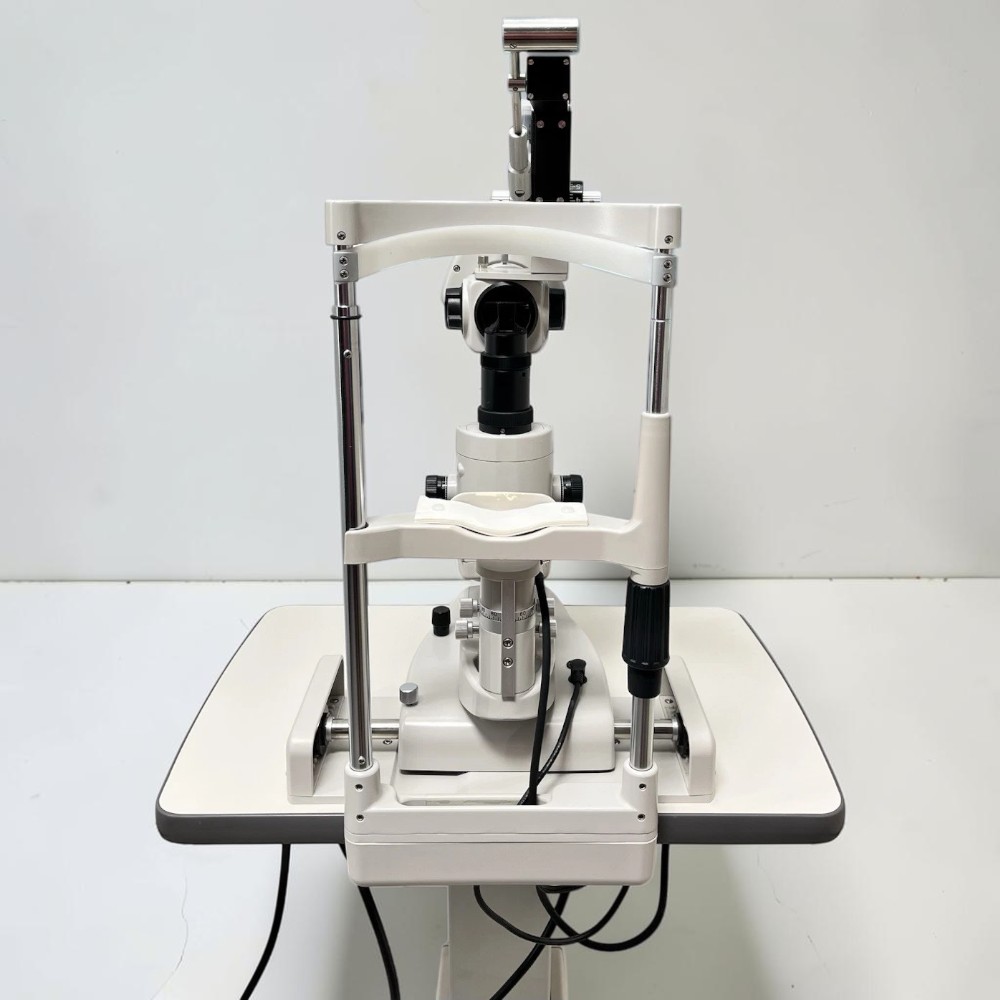

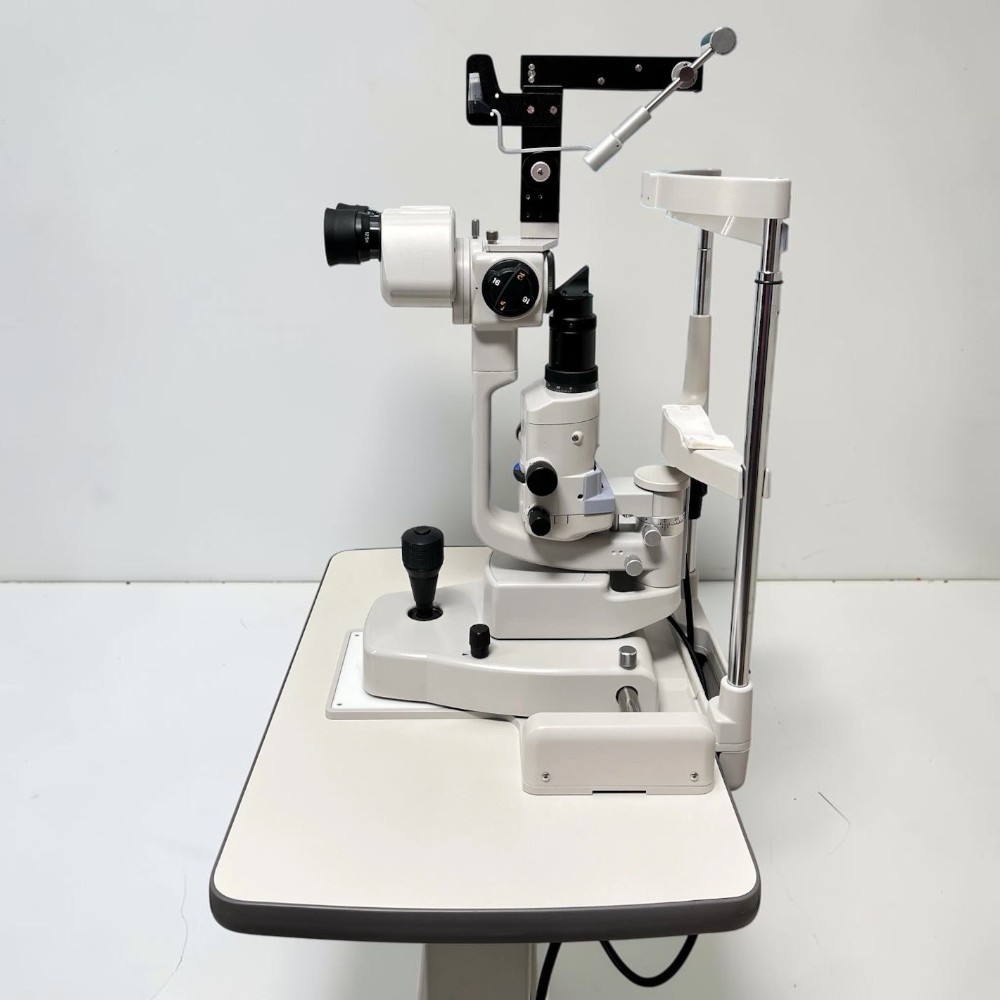

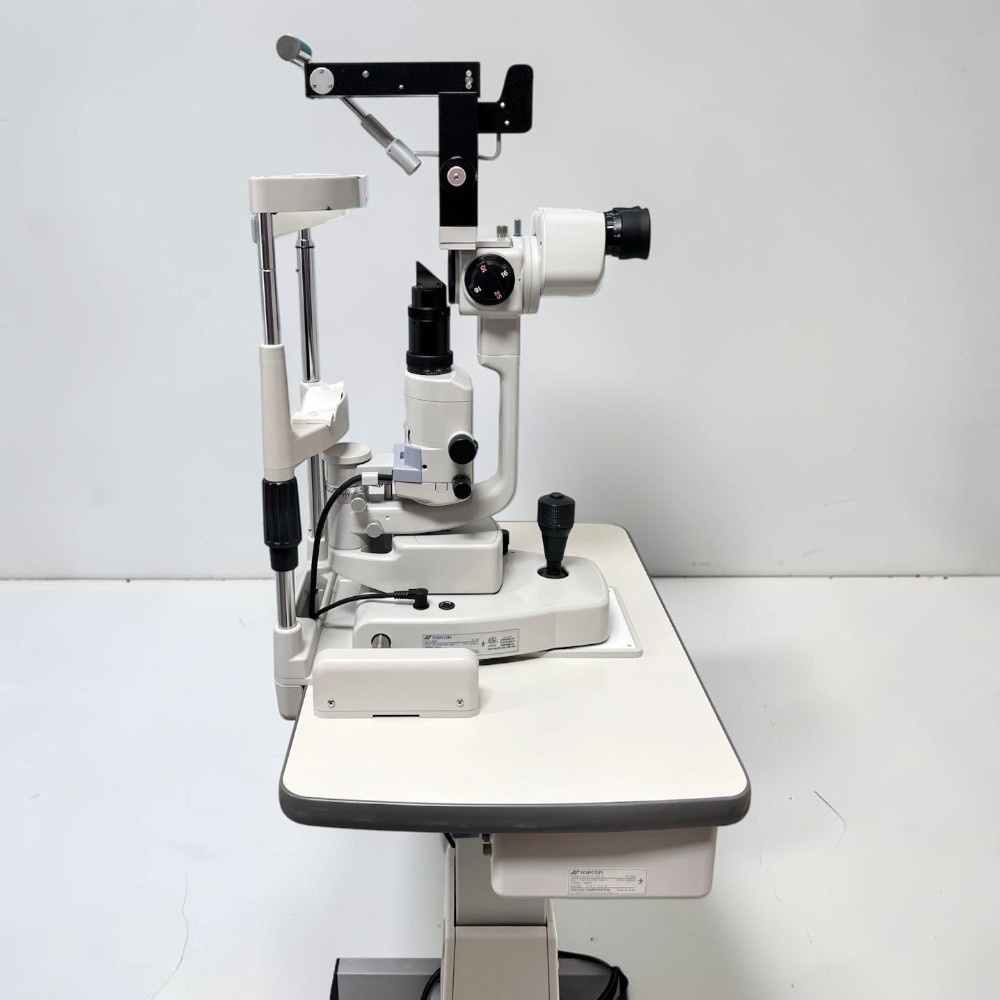

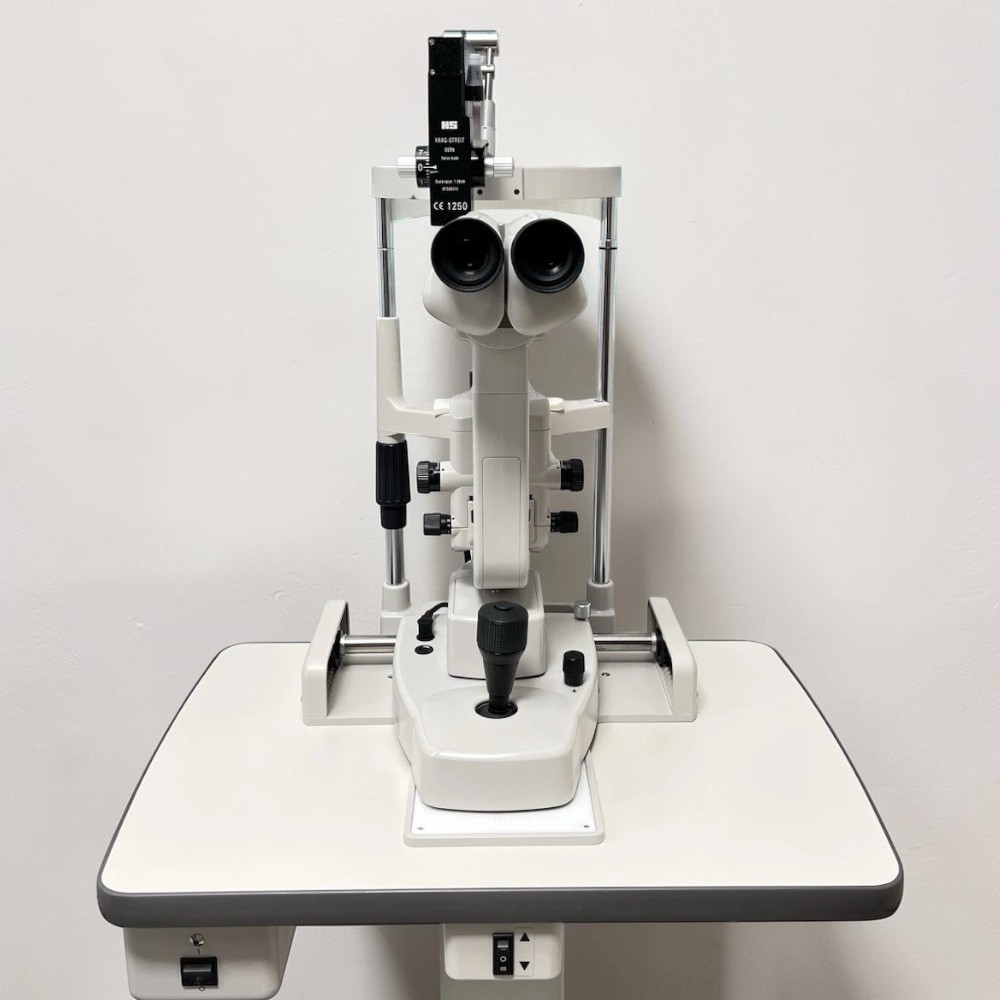

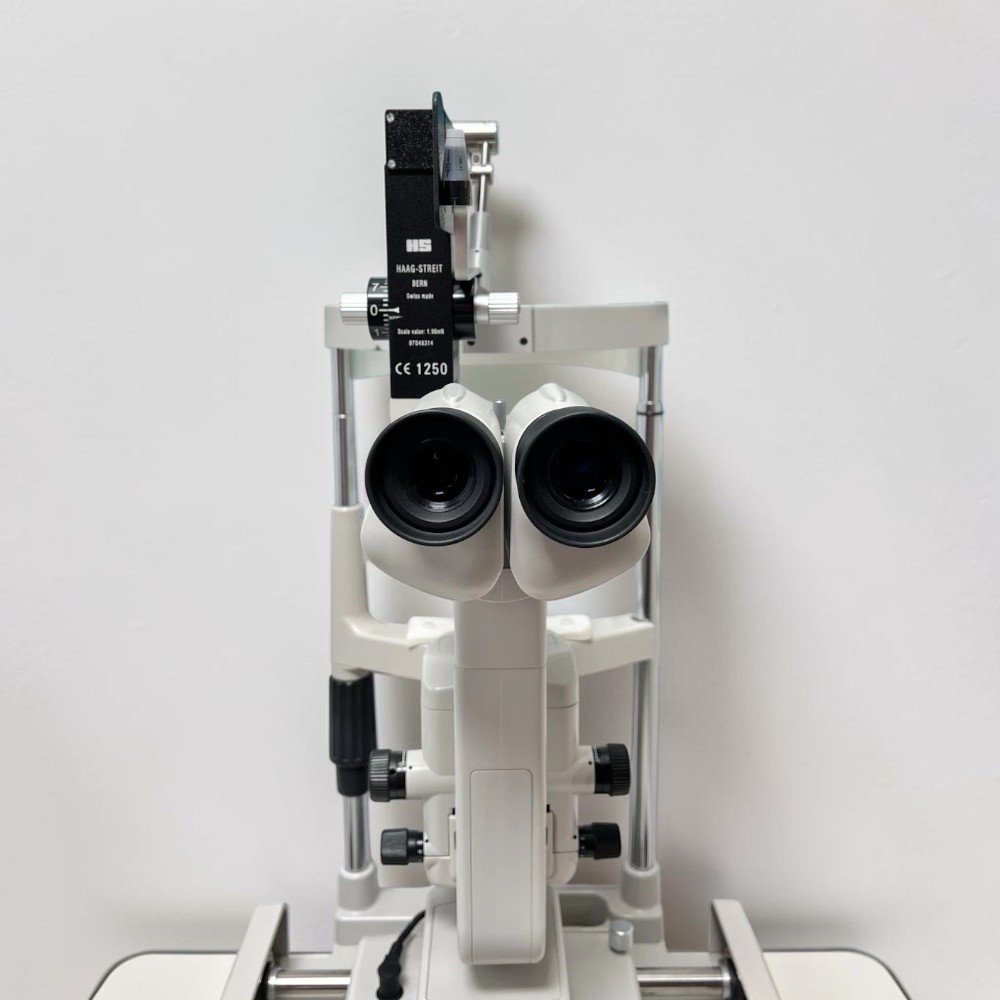

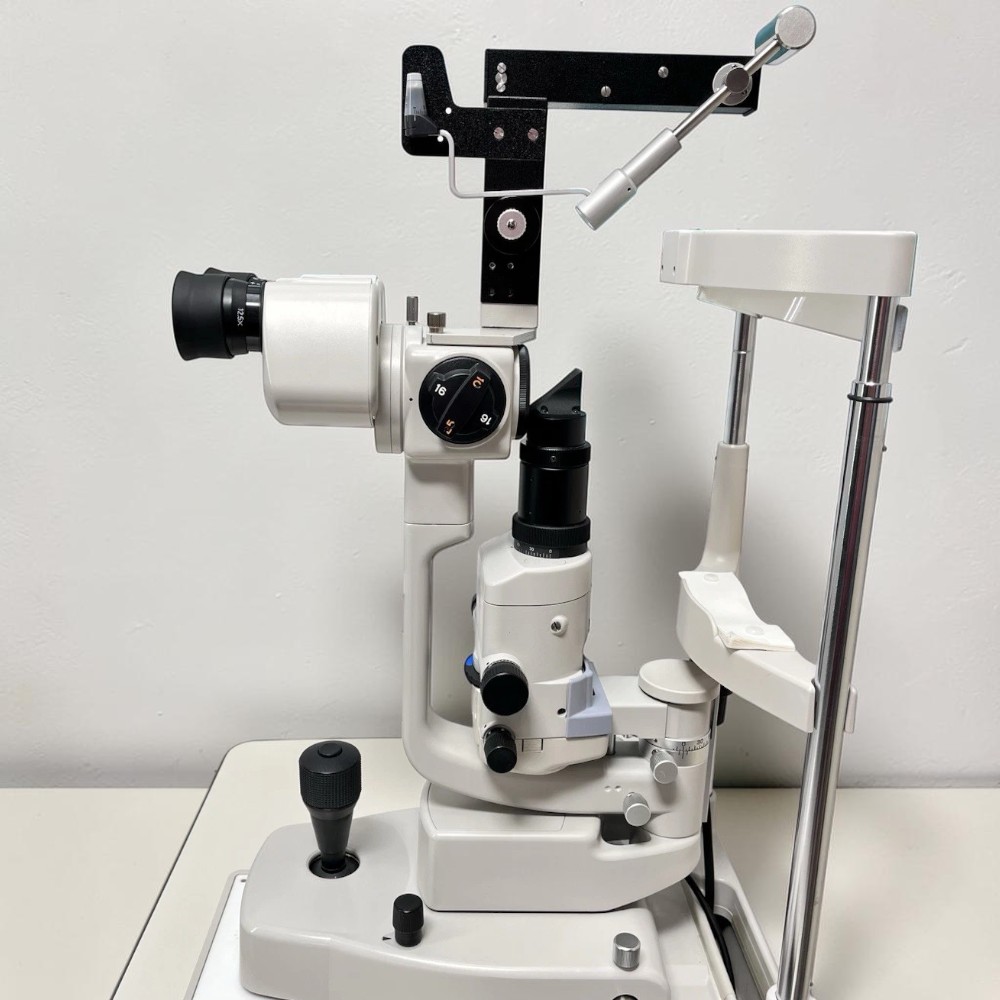

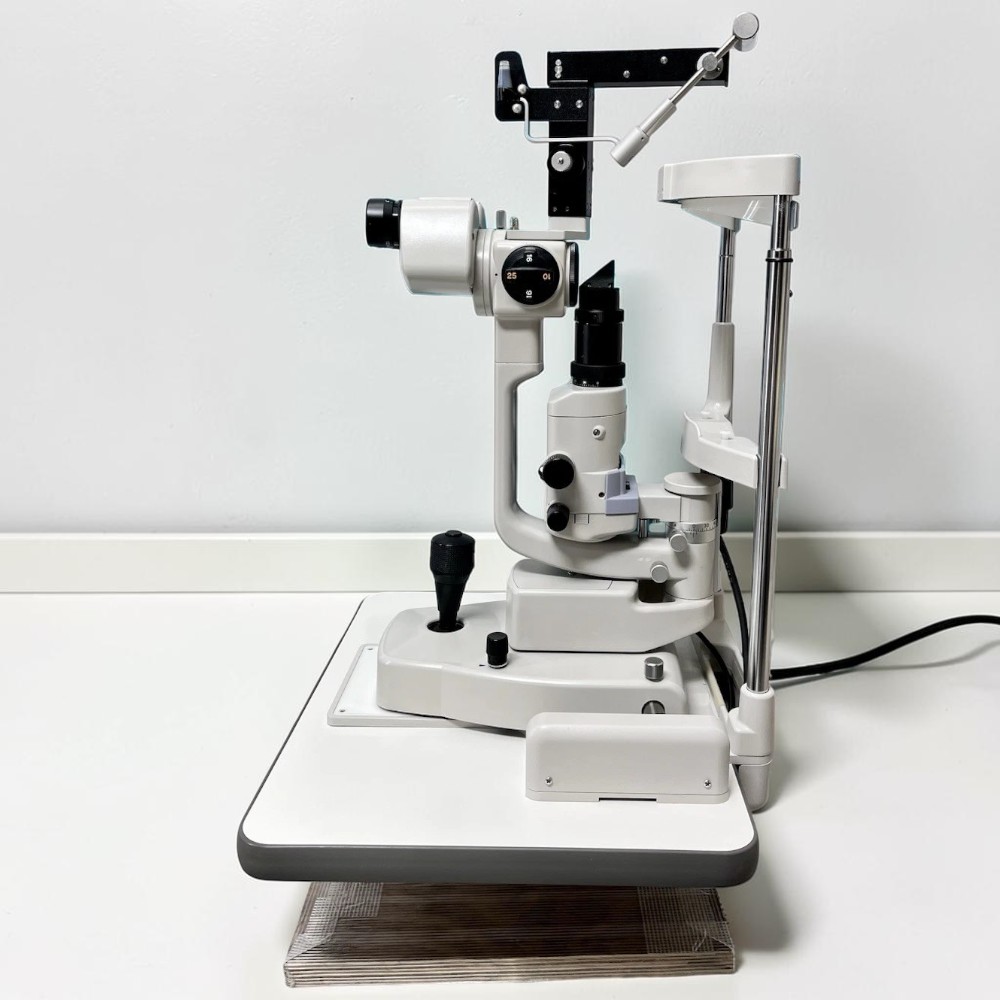

The Topcon SL-D2 Digital-Ready Slit Lamp is a versatile anterior-segment biomicroscope designed for both clinical examination and digital imaging documentation. With three magnification settings, Galilean optics, a high-quality illumination system, and compatibility with optional digital camera attachments (such as Topcon’s DC-3/DC-4 series), the SL-D2 offers excellent clarity, depth of field, and ergonomic ease of use in an ophthalmic practice or hospital environment. Its compact footprint and optional table- or unit-mount configurations make it suited for a variety of clinic workflows and space constraints.
Optical Quality
With more than 85 years of experience in lens manufacturing, Topcon produces all the optics to equip its instruments, ensuring excellent lens quality and a bright, clear view.
Ergonomics

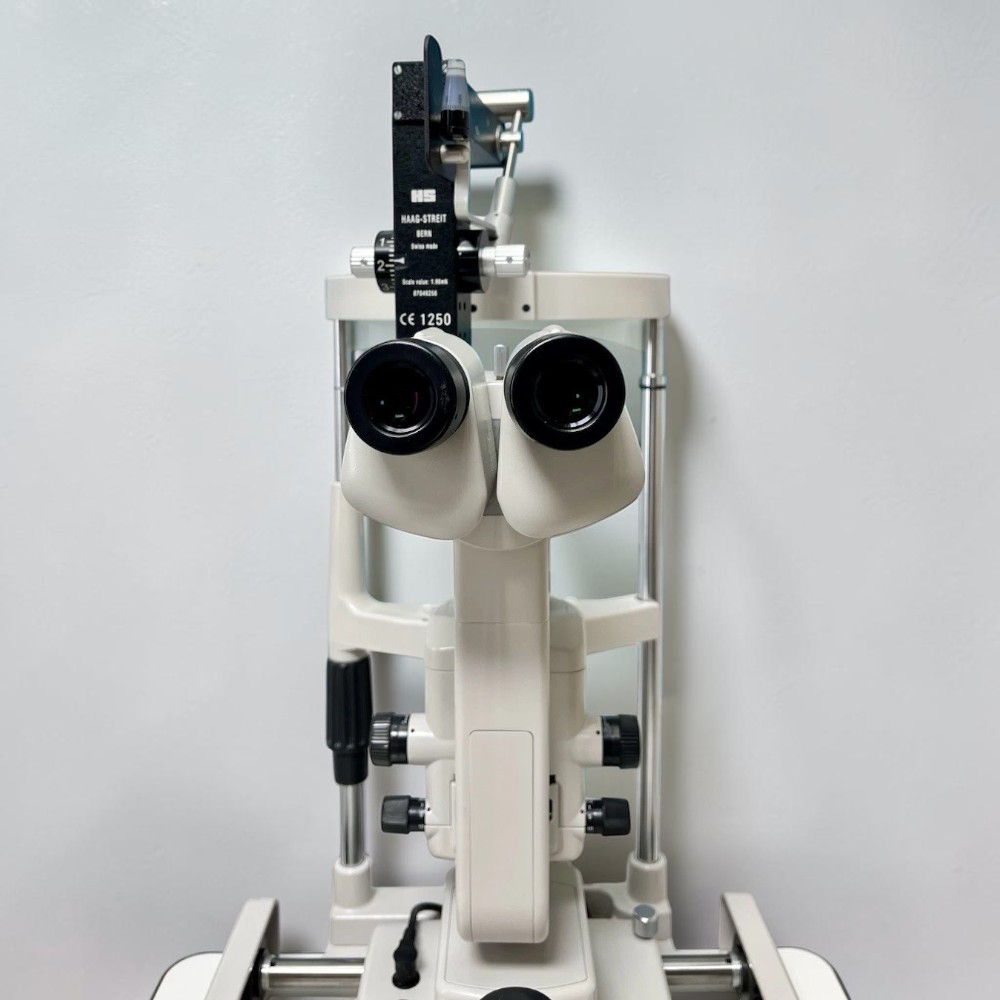

Topcon Slit Lamps are ergonomically designed for comfortable use. The SL “D” Series employs convergent binocular tubes with a parallel-magnification system for comfortable viewing.
Versatility
A variety of models in different configurations offering primary clinical observation through to sophisticated image capture. The Topcon series will satisfy any need and budget.
LED Illumination
As a leader in ophthalmic instrumentation, Topcon recommends LED illumination in many of its Slit Lamp models. The lifetime of an LED is substantially longer than that of conventional halogen bulbs. LEDs don’t need frequent replacement, making Topcon Slit Lamps environmentally sound.
Technical Specs

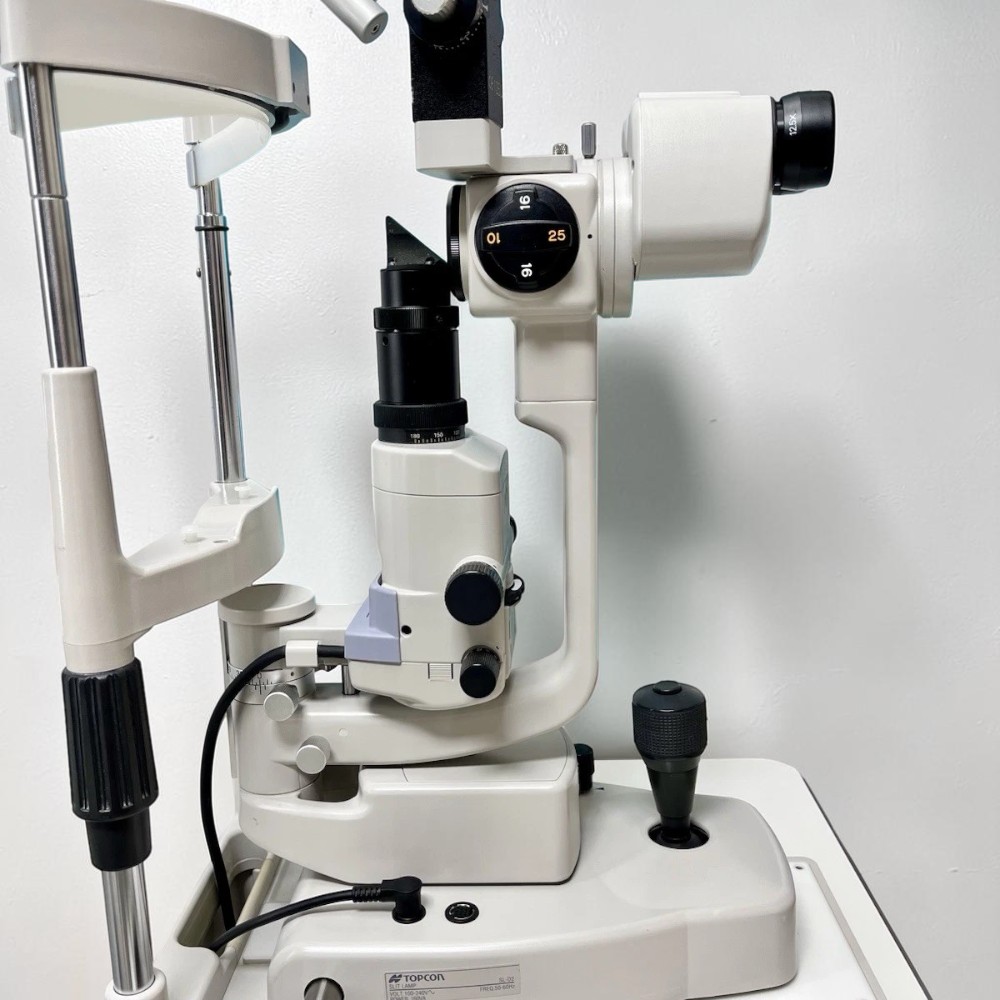

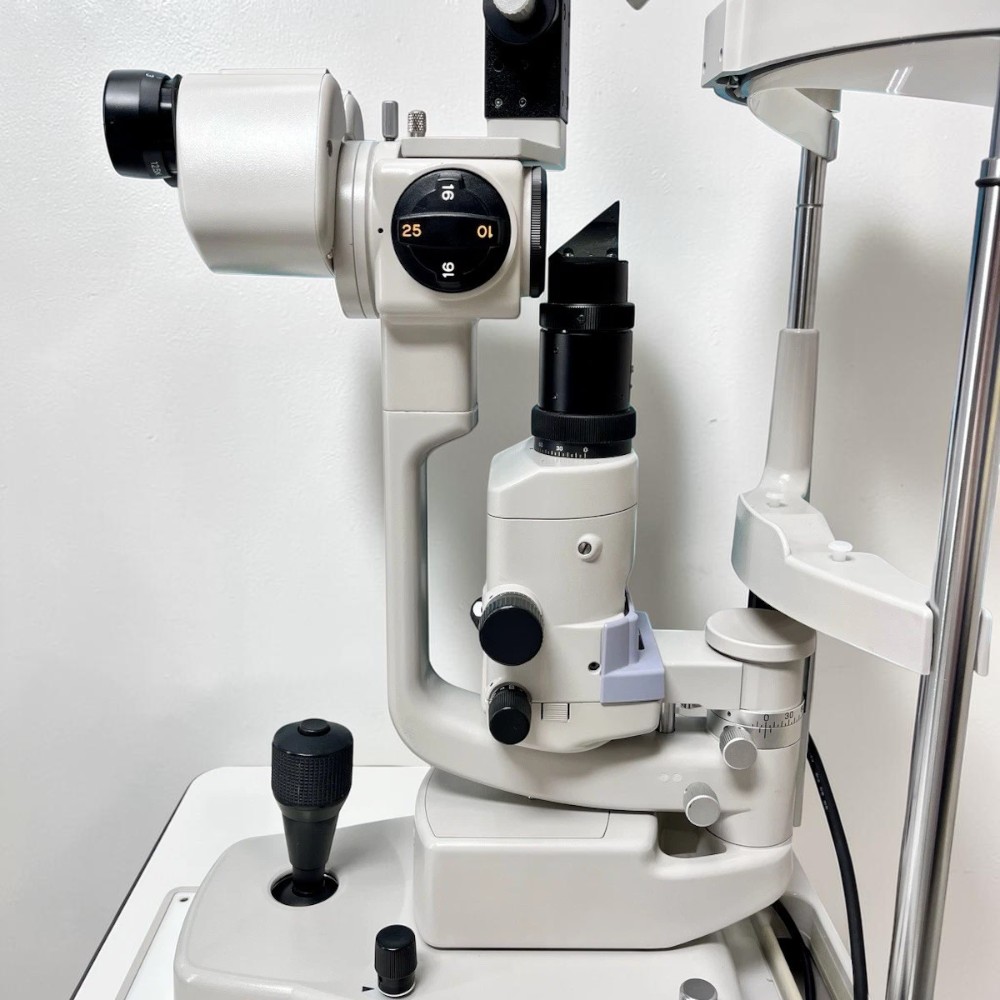

| Magnification settings | 10×, 16× and 25.6× (via Galilean-type drum) |
| Eyepiece magnification | 12.5× standard |
| Field of view | 10×: 22.5 mm; 16×: 14.1 mm; 25×: 8.8 mm |
| Slit width | Continuous: 14 mm to 0 mm (circle at 14 mm) |
| Slit length | Continuous: 14 mm to <1 mm (circle at 14 mm) |
| Slit angle / rotation | 0° to 180° with horizontal scanning capability |
| Illumination light source | Halogen lamp (standard) |
| Filter set | Blue filter, Red-Free filter, Amber filter; UV cut and IR cut standard |
| Digital imaging compatibility | Optional integration with DC-3/DC-4 digital camera (8 megapixel) |
| Weight | With table: 17 kg; With unit table: 16 kg; Without table & chinrest: 9.5 kg |
| Dimensions (W × D × H) | Approx. 550 mm × 399 mm × 558 mm (when mounted with table) |
| Optics design | Converging binocular tubes with parallel magnification body (for ergonomic comfortable view) |

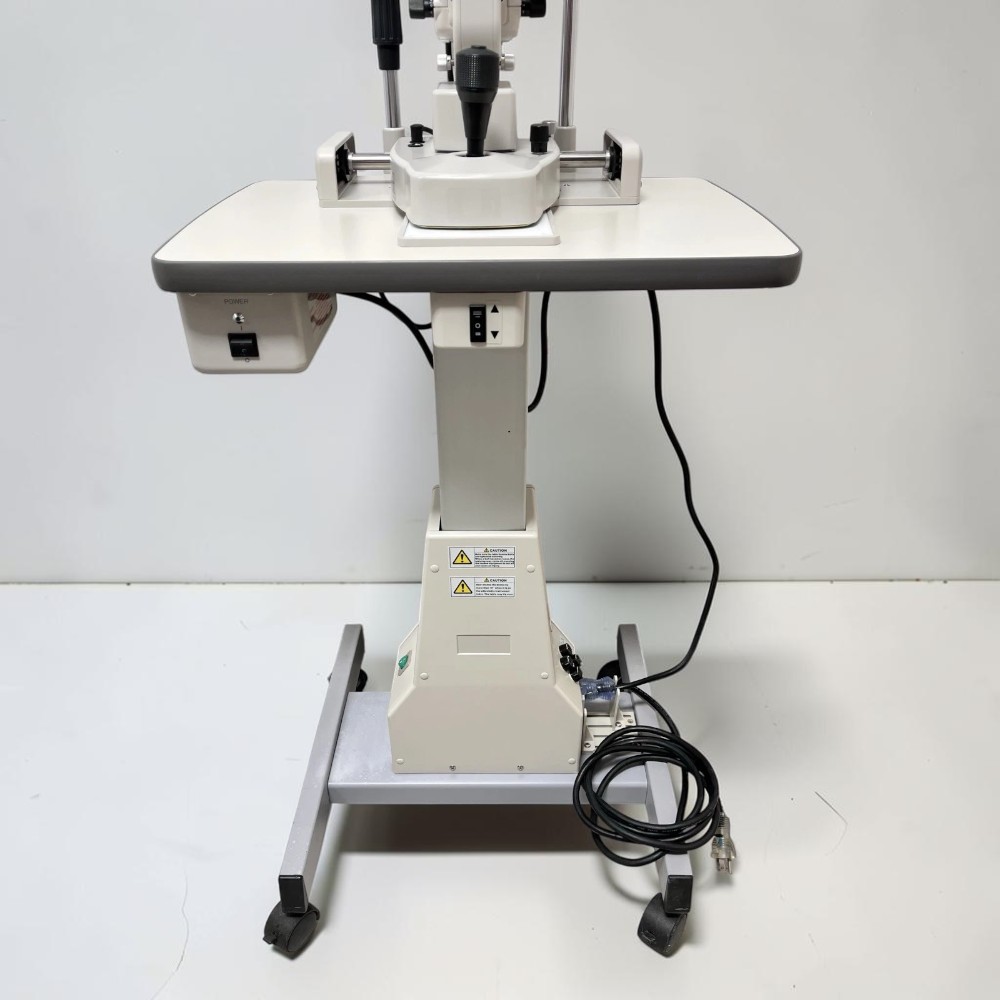

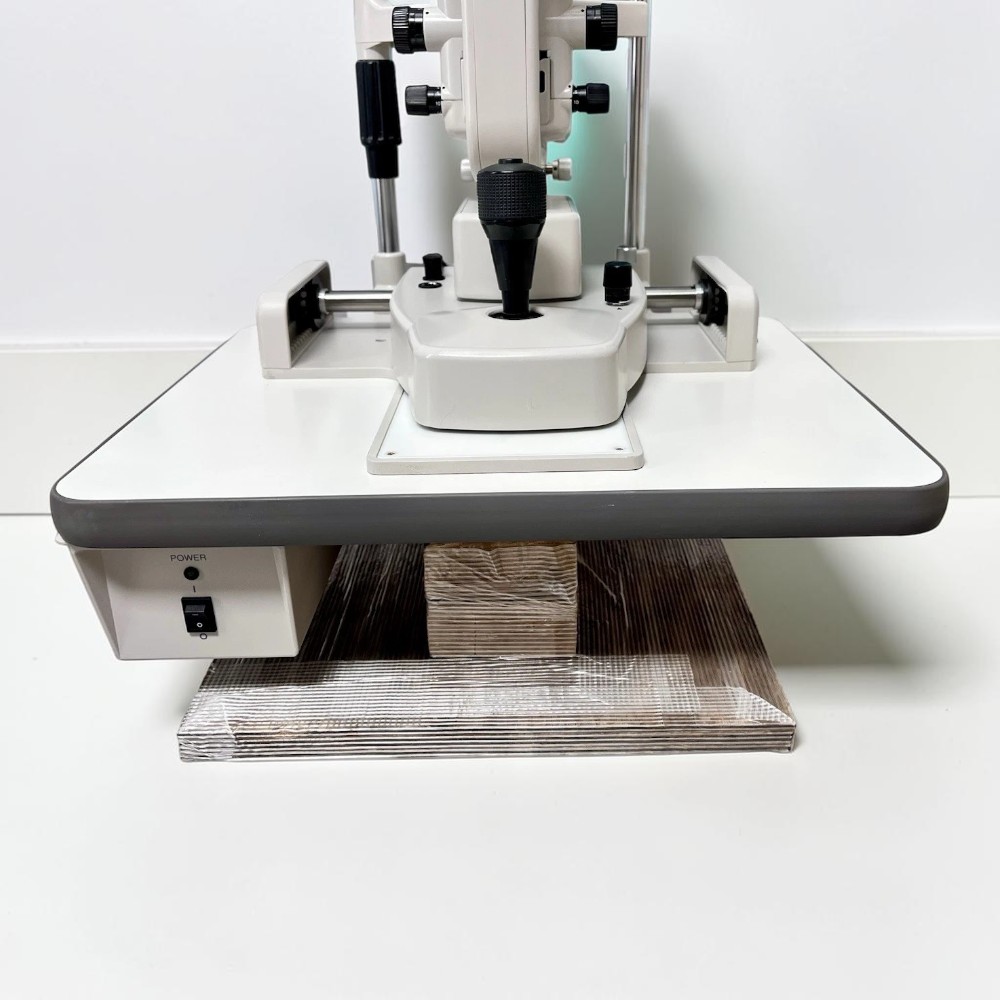

| Configuration options | Table-mount or standalone unit configuration available |
