Description

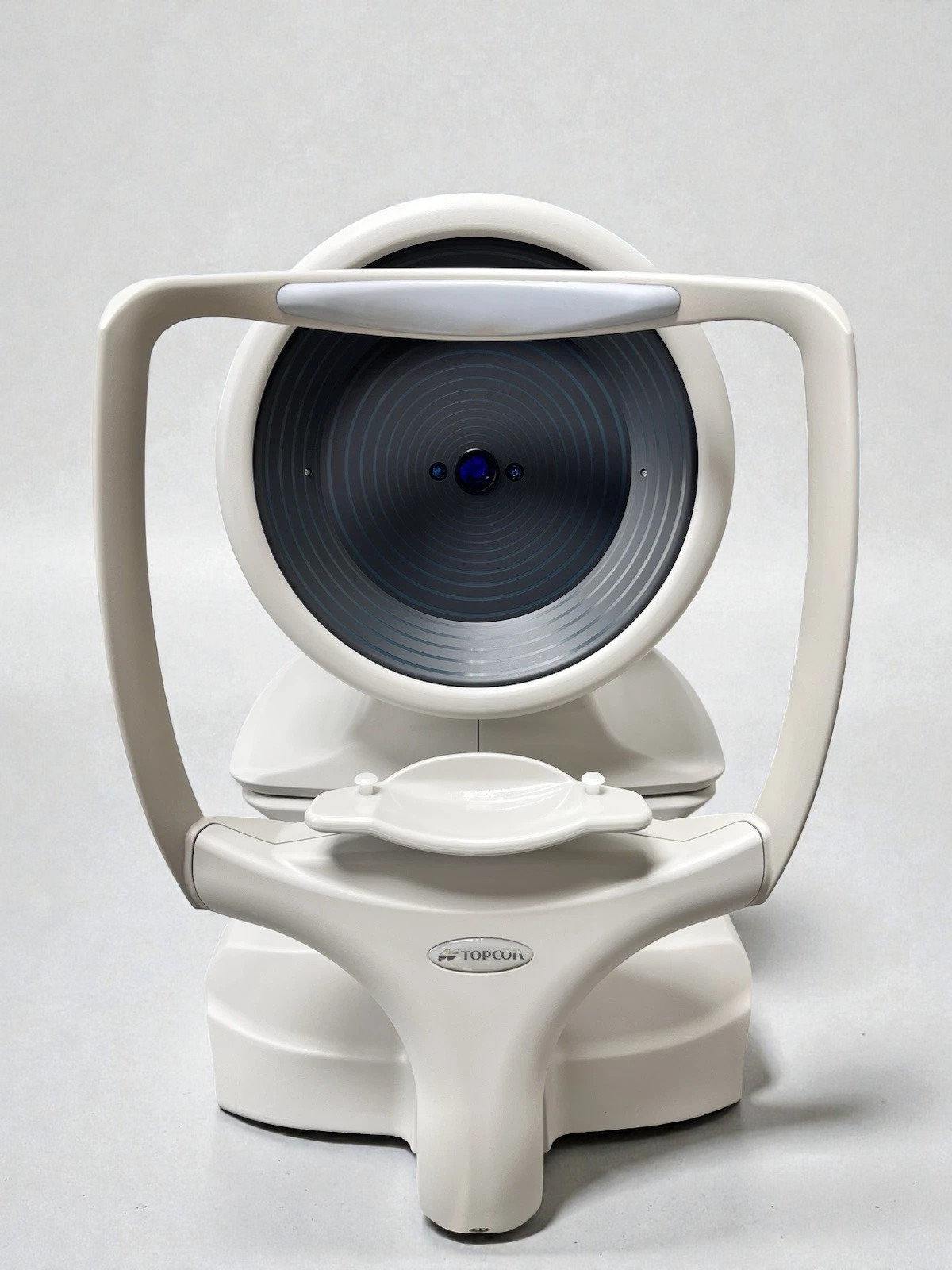

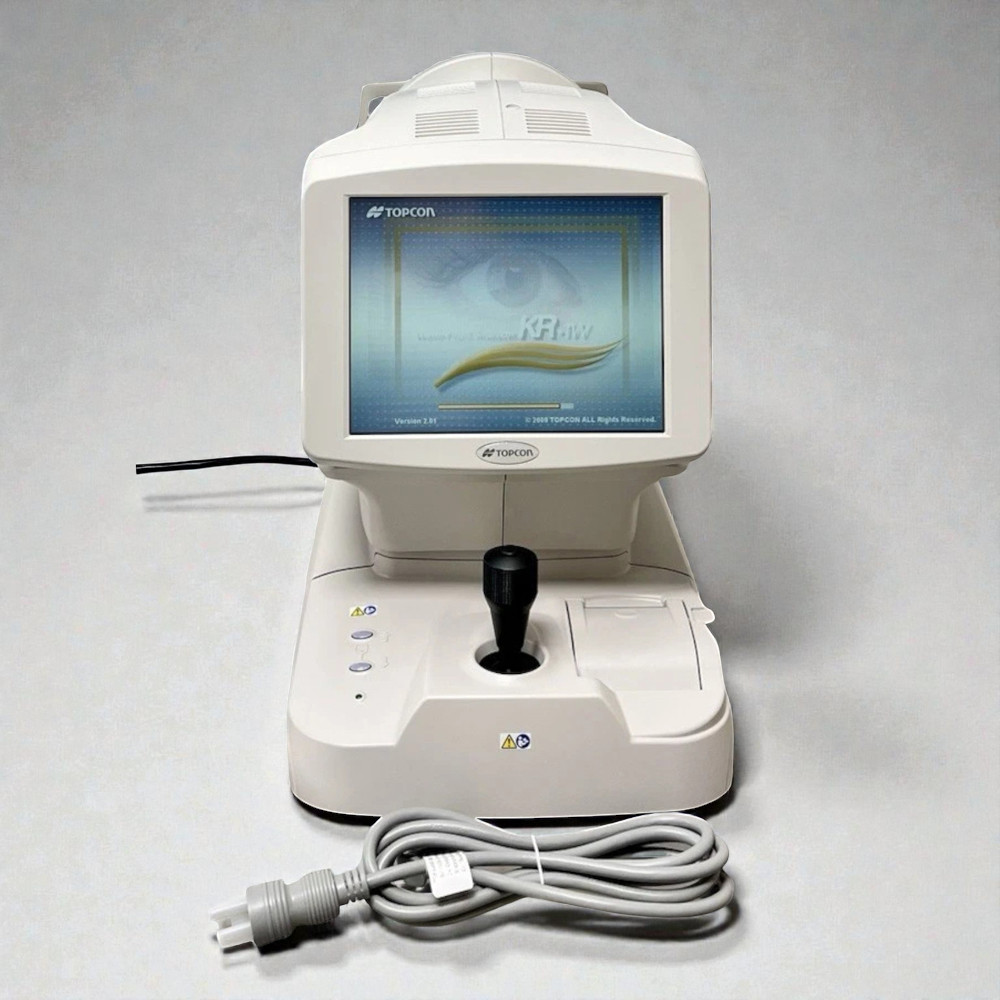

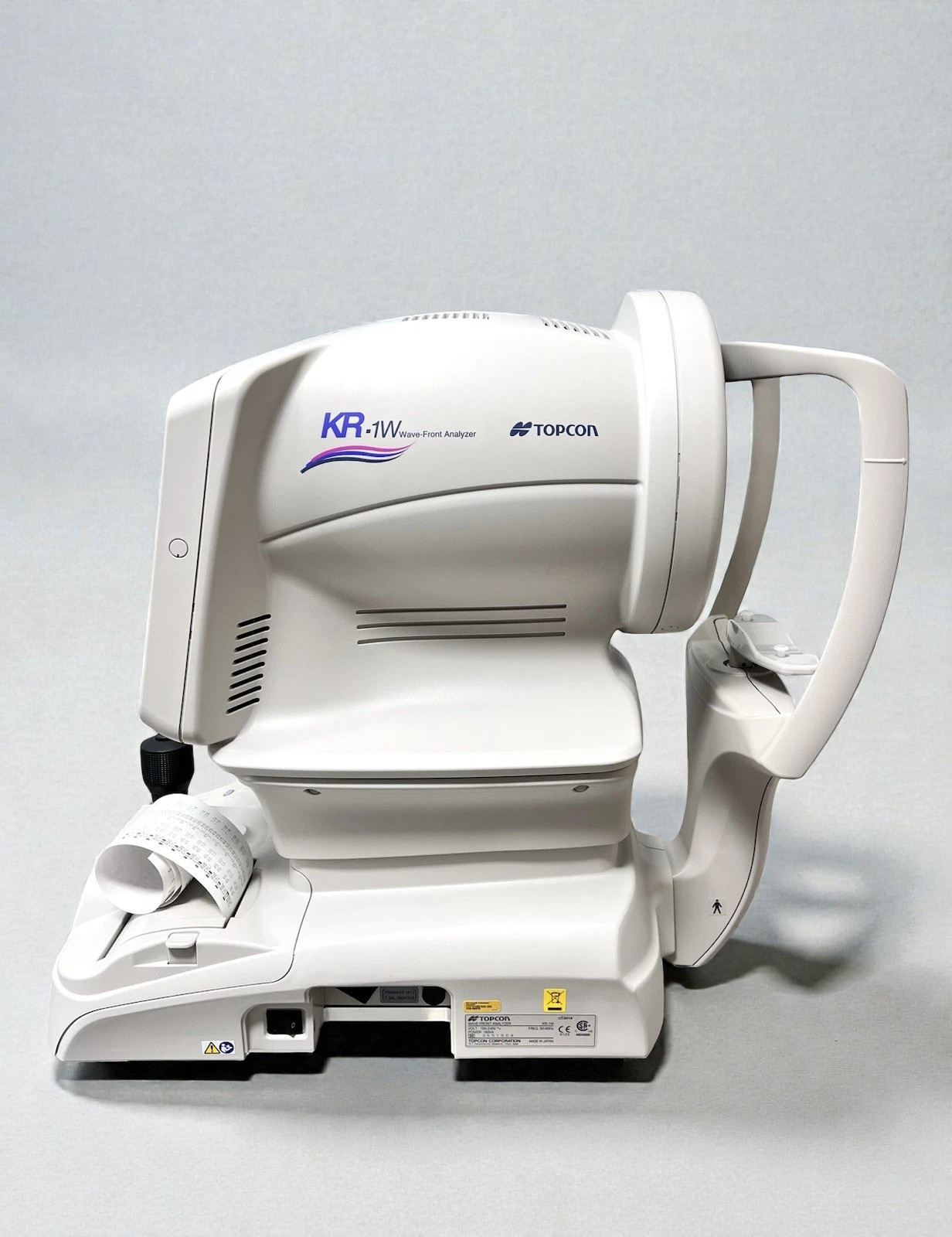

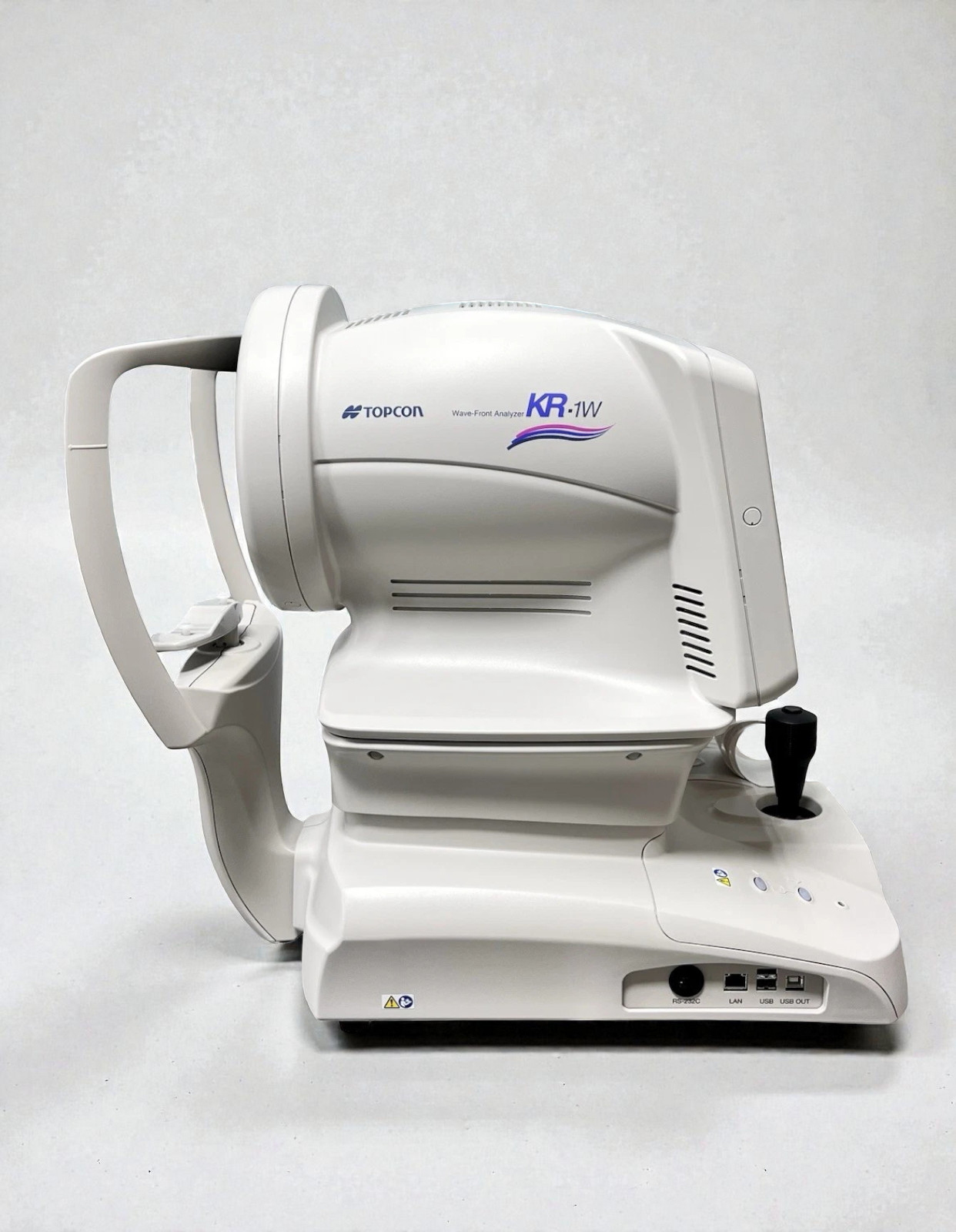

Perfection for Professionals: KR-1W
Topcon, with over 50 years of experience designing and manufacturing refractometers and other diagnostic equipment, introduces a new diagnostic tool with five functions to support the evaluation of the human eye’s visual performance.
The KR-1W combines aberrometry, topography, keratometry, pupillometry, and autorefraction in a single unit that is unparalleled in functionality and reproducibility. At the same time, the KR-1W is extremely easy to operate and allows fast patient throughput. The KR-1W will become the professional’s choice for comprehensive diagnosis of a wide range of ocular conditions.
Features
-
5 functions in 1 machine (Auto-Refraction, Keratometry, Aberrometry, Topography, Pupillometry)
-

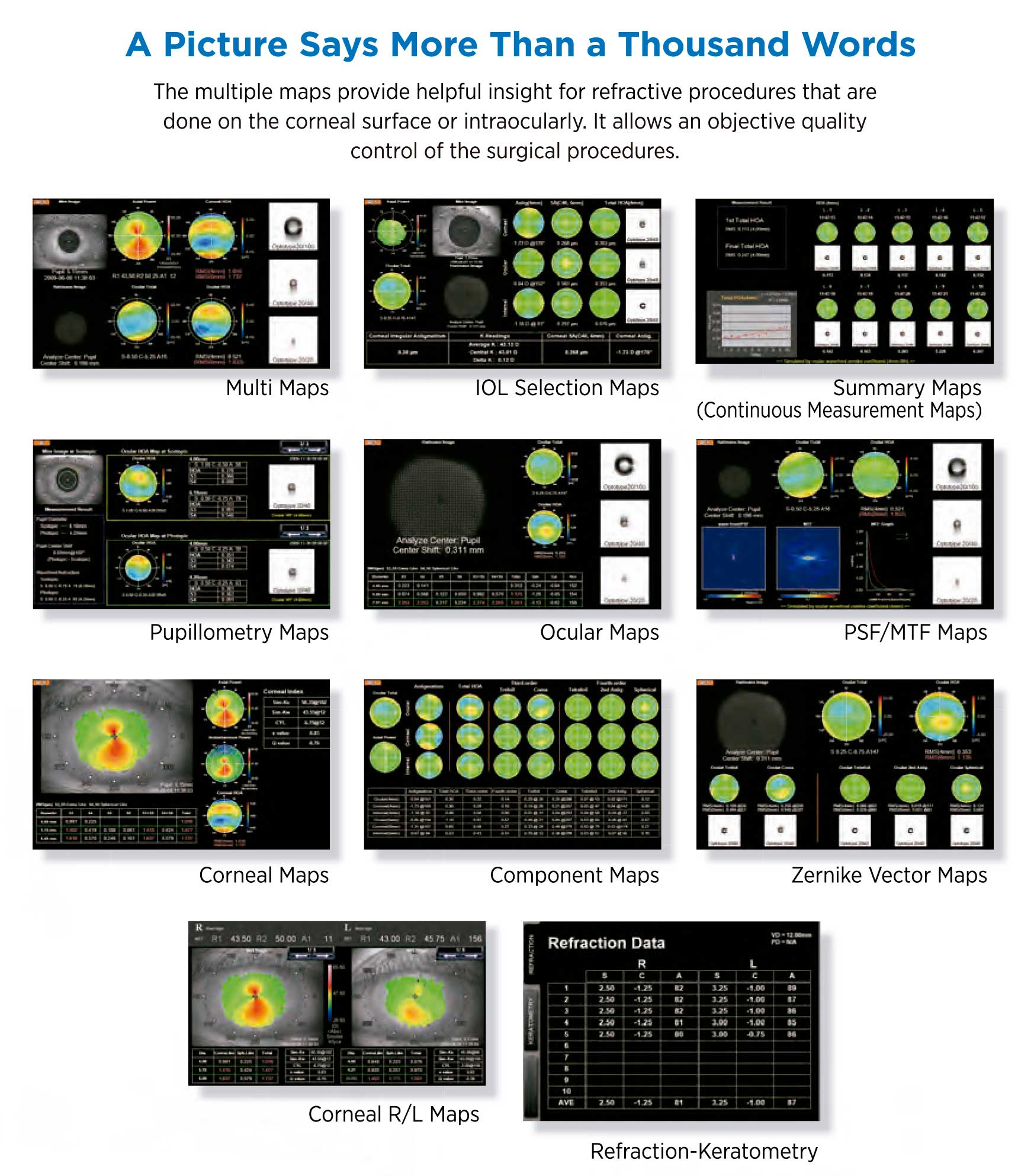

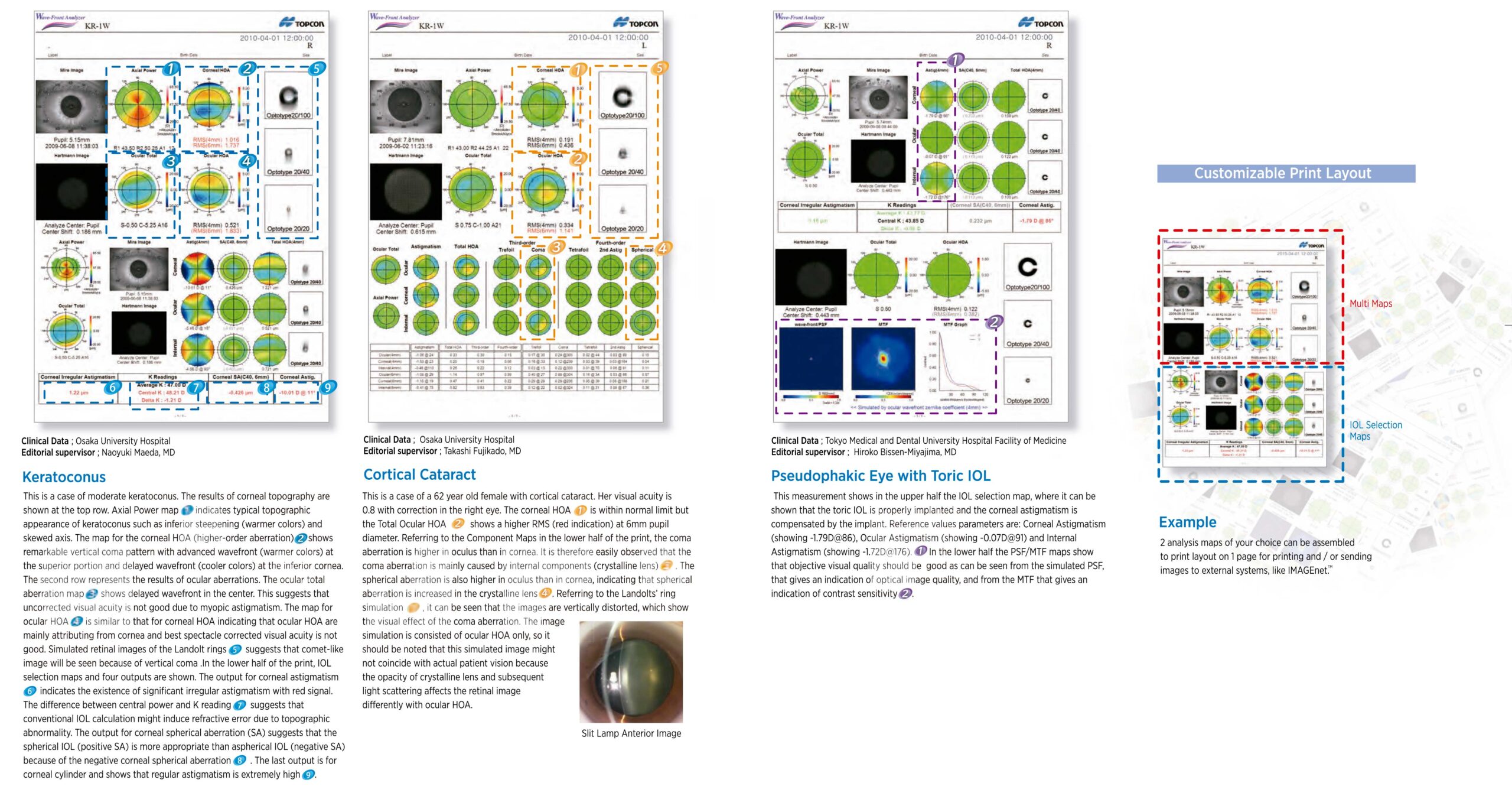

Multiple maps for overview analysis
-

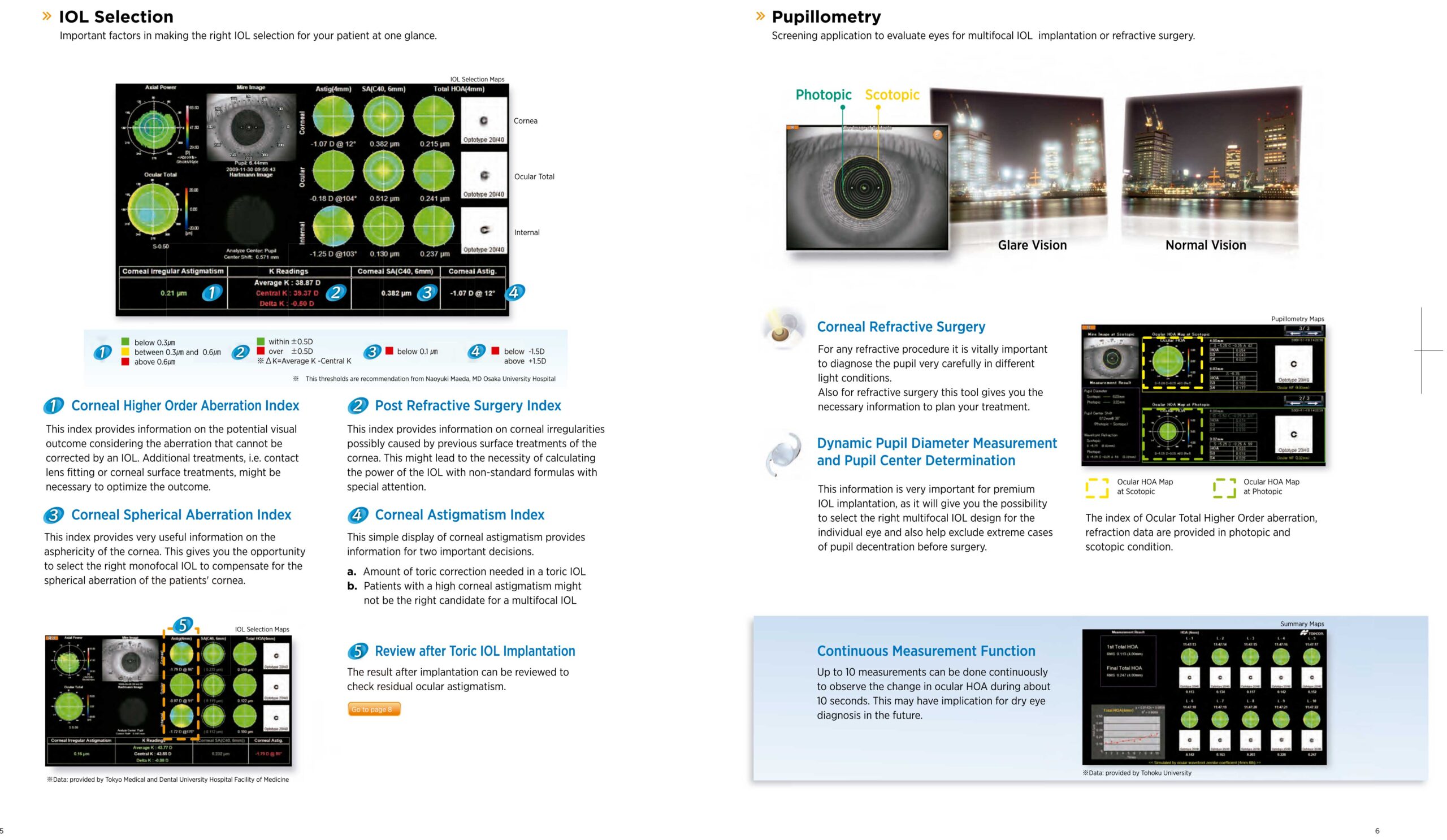

Decision support for cataract and refractive procedures
-
Less stress with invisible light measurement at topography
-

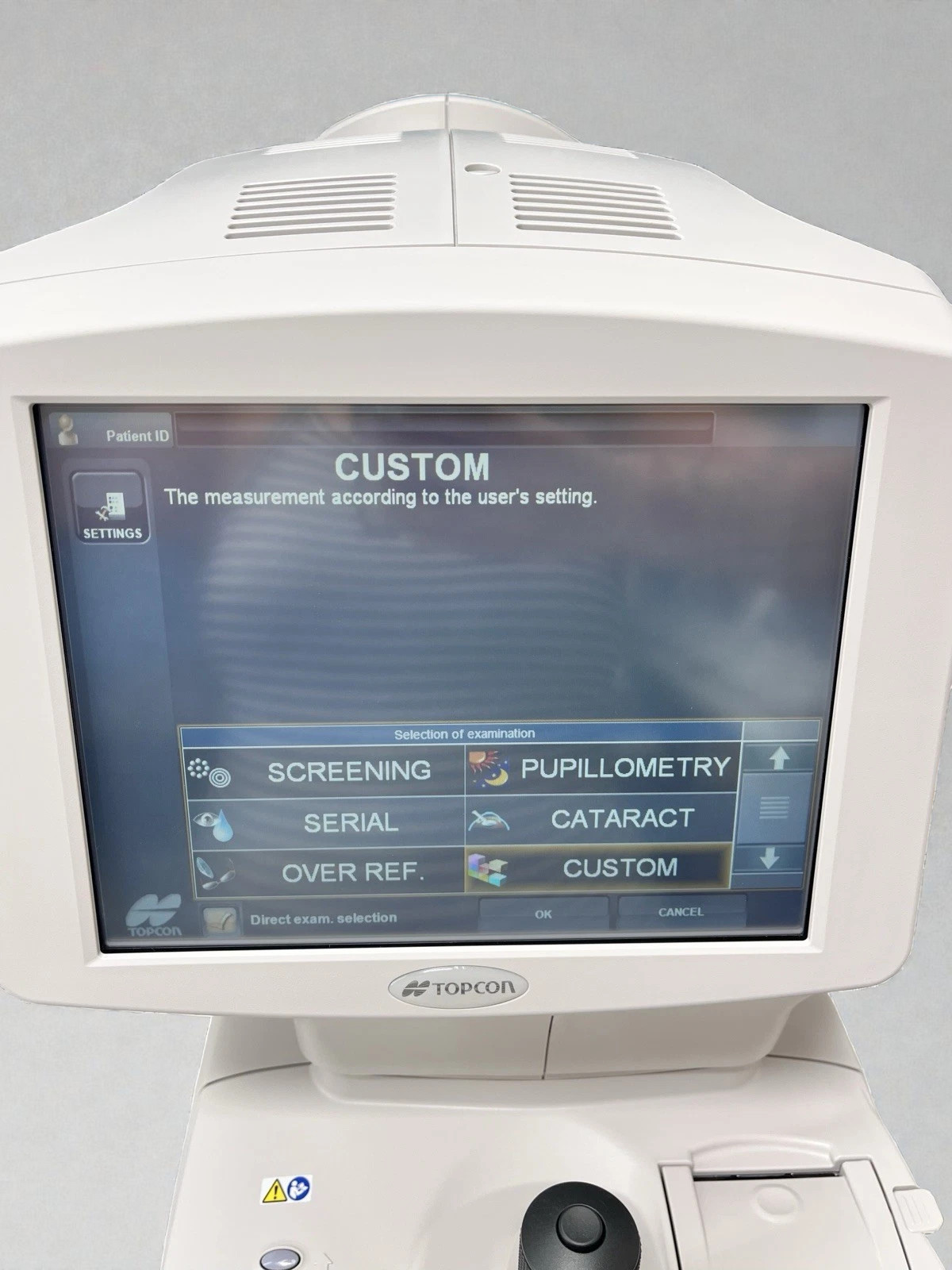

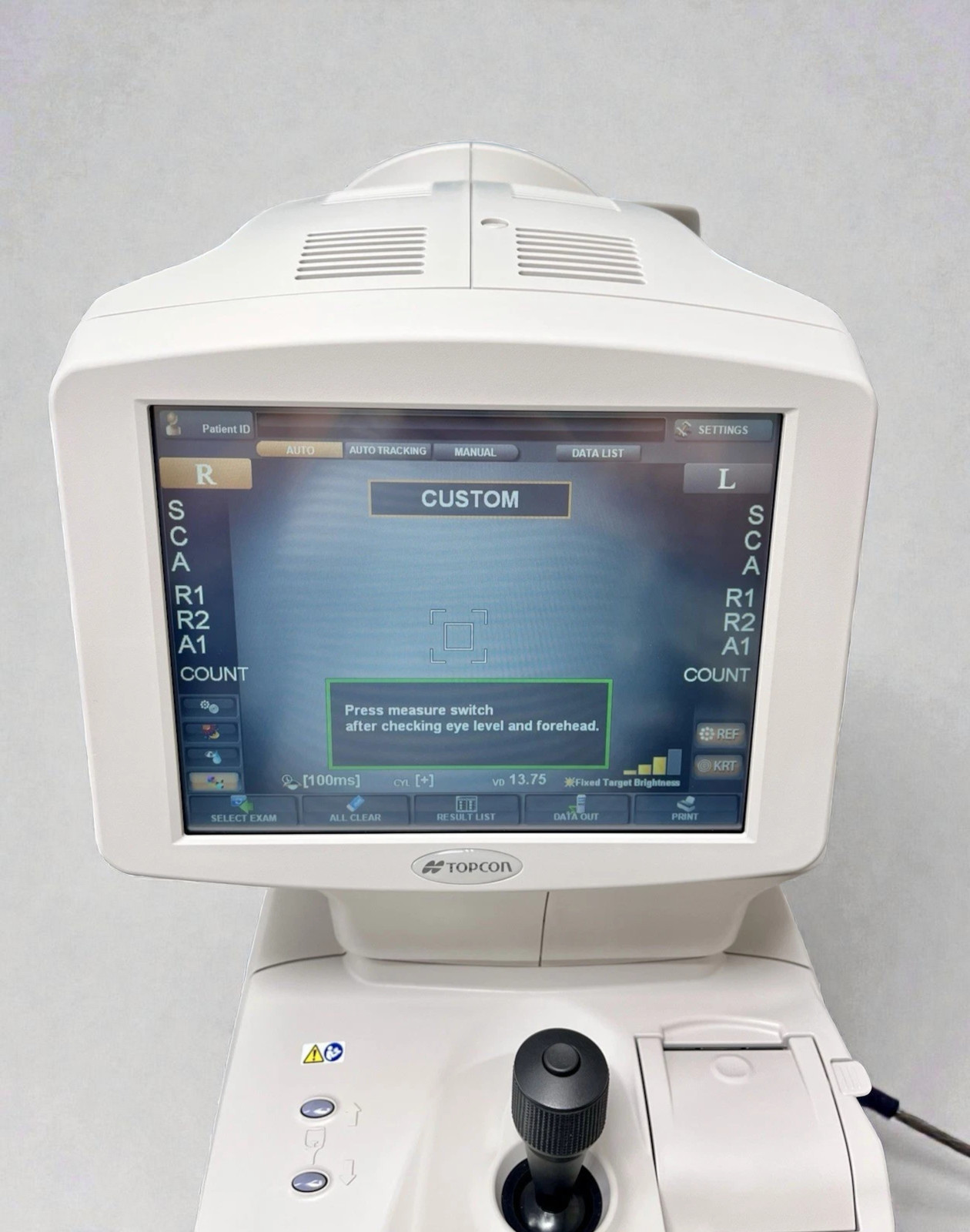

Easier operation with R/L fully automated measurement and touch panel

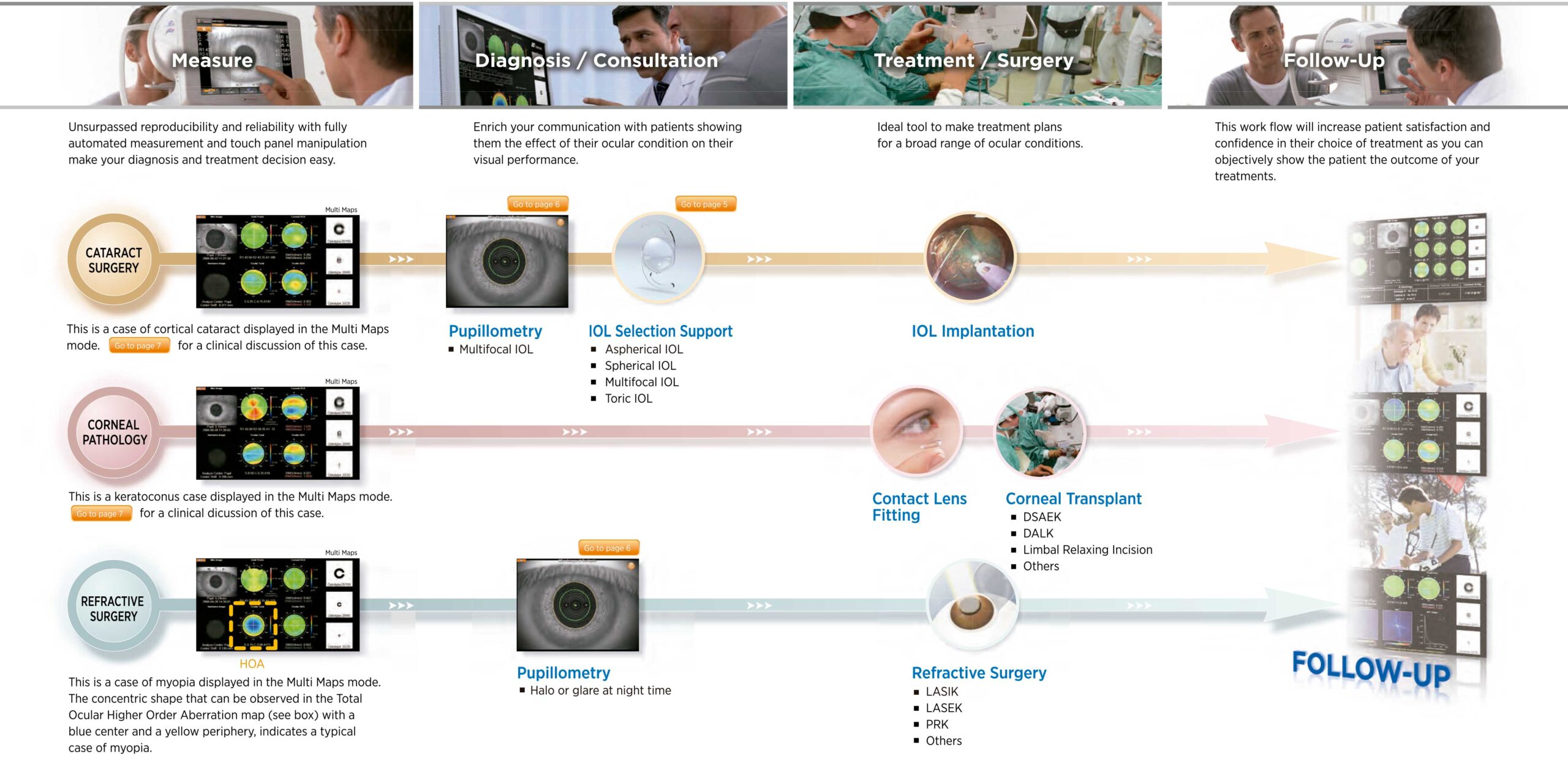

Work Flow
The KR-1W provides the ideal tool for diagnosing, following up, and developing treatment plans for a broad range of ocular conditions. It can be very effective in your practice to speed up your workflow, improve communication with patients, and monitor treatment outcomes. With the KR-1W, you can assess your patients’ functional visual performance over time or pre- and postoperatively with unsurpassed reproducibility and reliability.
Reliable Decision Support for the Demanding Cataract & Refractive Surgeon

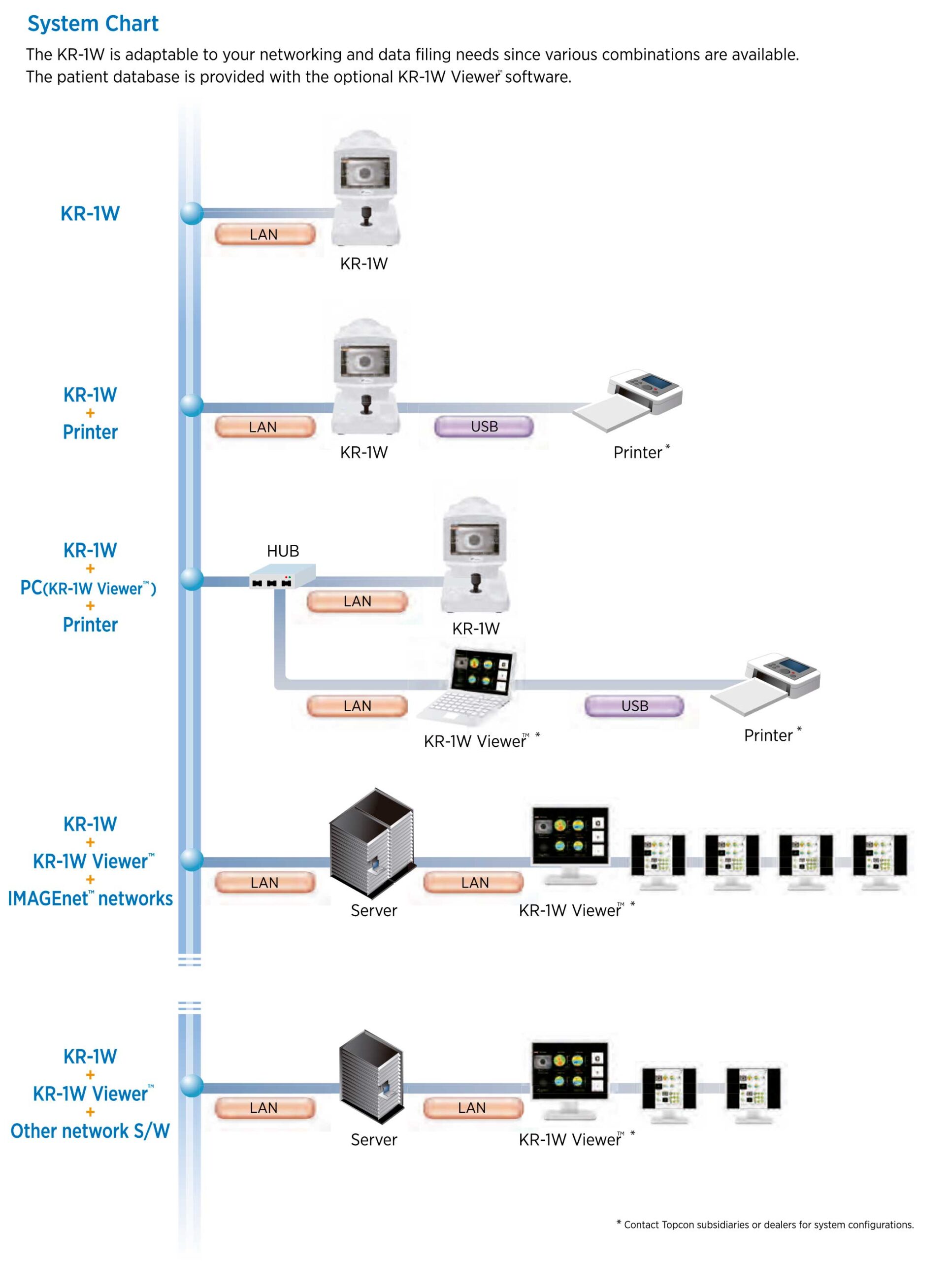

Full Flexibility for Your Data Viewing or Data Storage Needs
Precise Data Leads to Precise Diagnosis
Specifications
Refractive Power Measuring Range
| Sphere Range | -25D ~ +22D (0.01D/0.12D/0.25D steps) |
| Cylinder Range | 0D ~ ±10D (0.01D/0.12D/0.25D steps) |
| Axis Range | 0° ~ 180° (1°/5° steps) |
| Measurable Area | 8 mm (max.) |
| Measurable Minimum Pupil Diameter | 2mm |
Corneal Curvature Measuring Range
| Corneal Curvature Radius | 5.00mm ~ 10.00mm (0.01mm steps) |
| Corneal Refraction | 67.5D ~ 33.75D (0.01D/0.12D/0.25D steps) (Proviso: corneal refractive index = 1.3375) |
| Corneal Astigmatism | 0D ~ -10D (0.01D/0.12D/0.25D steps) |
| Corneal Astigmatism Axial Angle | 0° ~ 180° (1°/5° steps) |
| Measurable Corneal Area | 10.8mm, 8.5 mm, $\emptyset$ 6 mm, 3 mm (Proviso: Radius corneal curvature = 8 mm) |
| Measurable PD Range | 20 ~ 85mm (1mm step) |

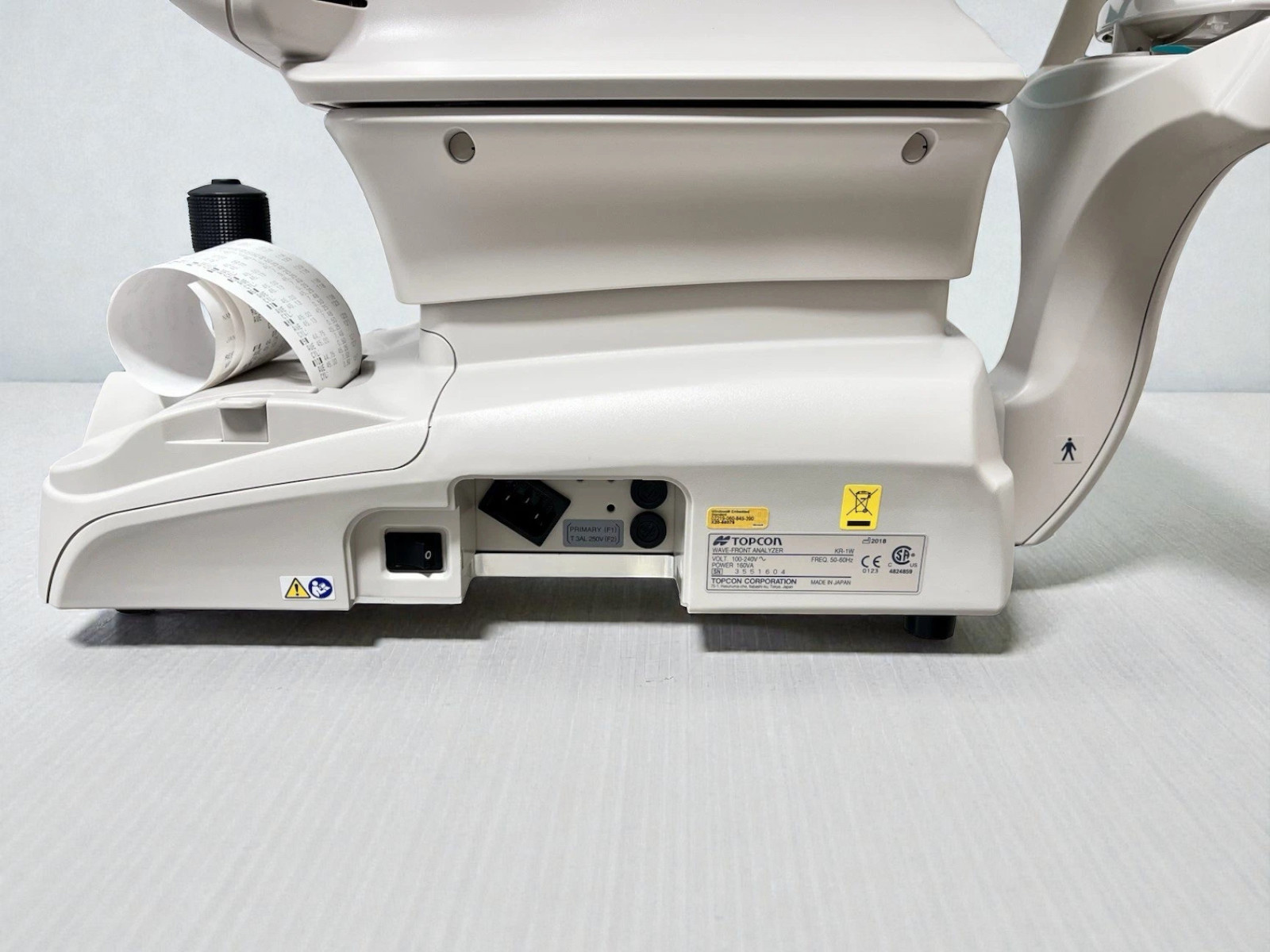

Export Output Terminal

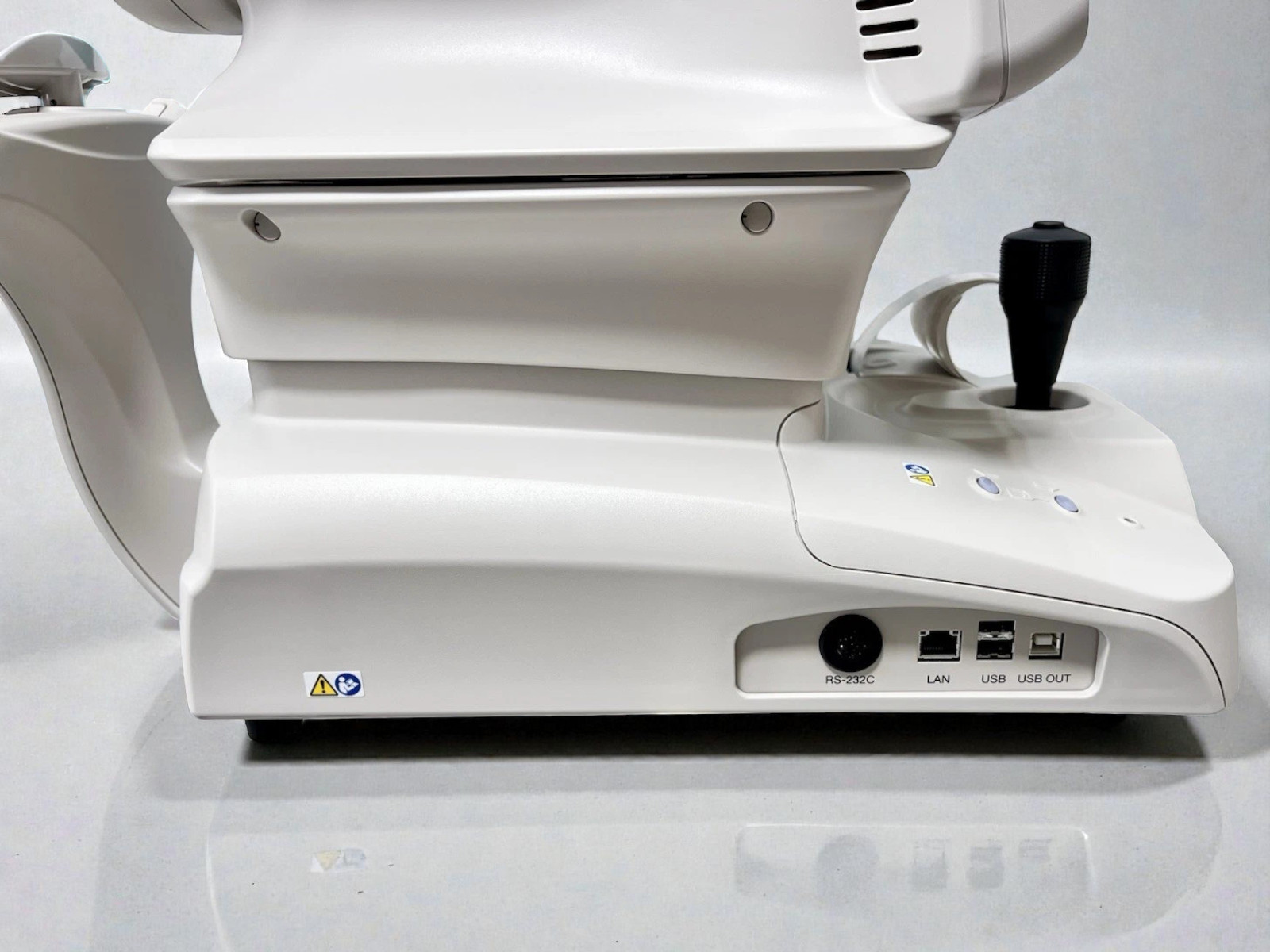

- USB (IN/OUT), RS232C (OUT), LAN (IN/OUT)
