Description

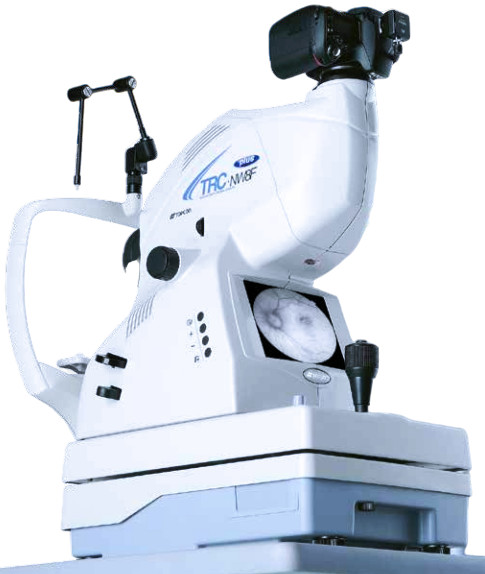

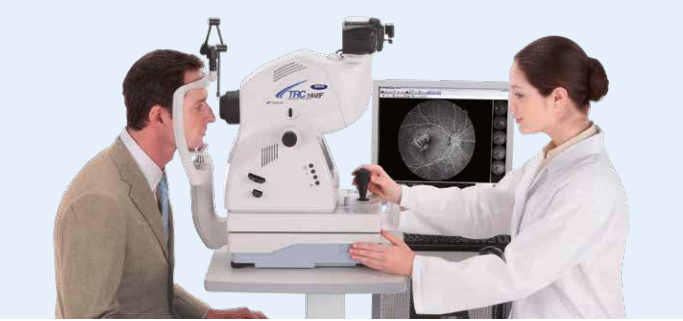

TRC-NW8 series Non-mydriatic retinal camera
The combo retinal camera TRC-NW8 series
|
Color
|
Fluorescence Angiography
|
|
Red-free
|
Fundus AutoFluorescence
|
Impressive line-up of retinal imaging for all vision care professionals
With TRC-NW8 series, it is possible to capture not only Non-Mydriatic Color / Red-free / Fluorescein Angiography, but also Fundus Auto Fluorescein to answer all your needs.
 |
TRC-NW8
allows easy operation by autofocus / autoshoot function. |
 |
TRC-NW8F
allows patient-friendly Fluorescence Angiography photography by lower flash intensity. |
 |
TRC-NW8F
plus allows to capture multi photography such as Color, red-free*, Fluorescence Angiography, and AutoFluorescence photography |
Easy to use

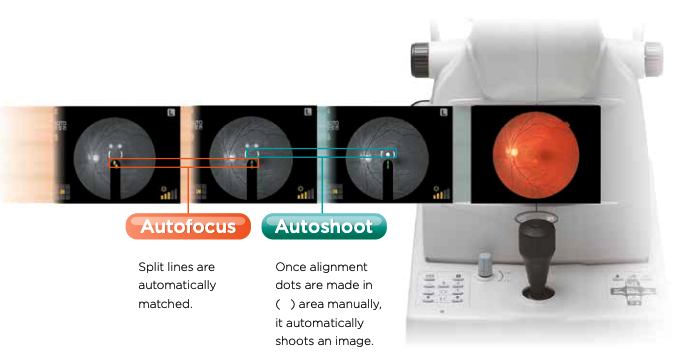

Autofocus and autoshoot
TRC-NW8 series is Topcon’s multifunctional retinal camera which is focused on ‘simple operation’. With our experience in the production of retinal cameras, we have been able to bring all of the benefits of our non-mydriatic camera into this multifunctional camera. The ability of autofocus and autoshoot makes the operation of this camera extremely simple and user-friendly. While still allowing manual override when required.

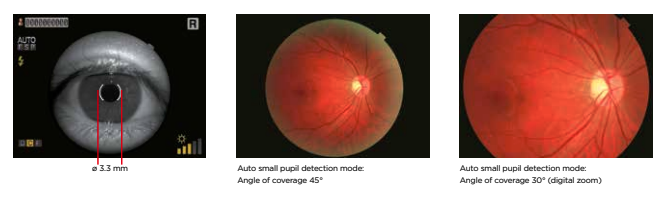

Auto small pupil detection
Small pupils are a common phenomenon, and when mydriatic drops cannot be used, the ‘small pupil’ (ø 3.3 mm) option within the TRC-NW8 series will make sure you are able to get a shot.
 |
Low flash intensity
Topcon has always endeavoured to keep flash levels as low as possible while at the same time ensuring that good exposed images are achieved. For FA photography, it can be performed by half the flash intensity compared to our conventional models. |

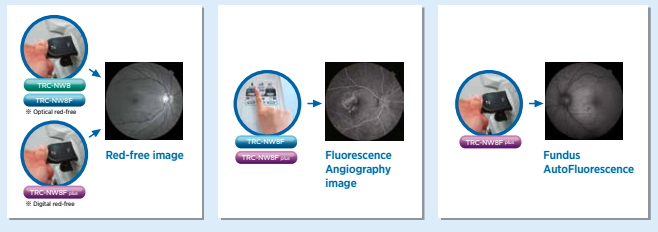

One-touch operation
Red-free photography is easily switchable, simply use the filter lever. The FA photography is also easily switchable, just press the mode switch. In case of TRC-NW8F plus model, the FAF photography mode can simply be activated by pulling out the filter lever.
High quality image
The quality of the image is crucial as well as the durability
With these important requirements, Topcon did not hesitate in deciding on which manufacturer it would use as its digital camera supplier. Nikon probably has the largest reputation when it comes to digital SLR cameras and is used by most of the worlds press for a very good reason. Therefore you have no need to worry that your new TRC-NW8 series will ever be compromised by the digital SLR in terms of quality of images or durability.
 |
Stereo photography
Today is there an increasing need for viewing stereo images and with the TRC-NW8 series camera this has been made very simple with the inclusion of a stereo switch. Once pressed the camera controls fixation to allow for two consecutive images to be captured with just the right amount of shift. These stereo pairs can then be viewed easily on Topcon’s IMAGEnet® software and allow for easier diagnosis. |
 |

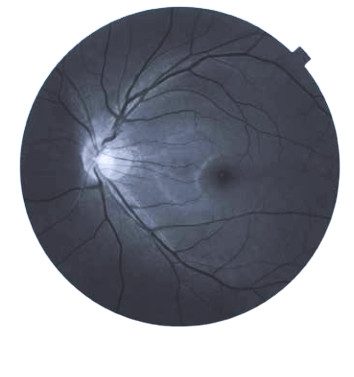

True optical red-free photography
Topcon has developed an innovative feature on TRC-NW8/ TRC-NW8F: True optical red-free capability with an actual red-free filter. This feature allows for high resolution red-free images acquisition. |
 |

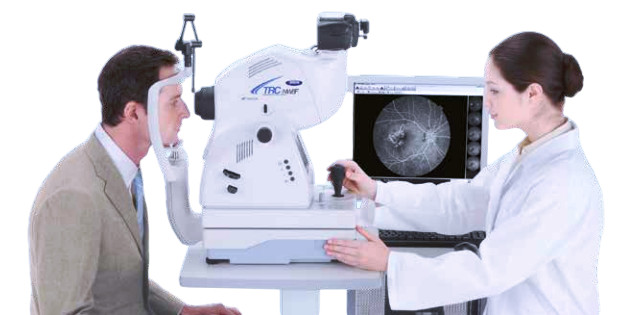

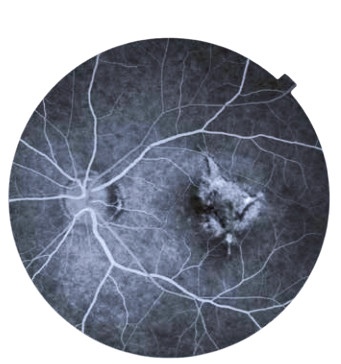

Fluorescence angiography photography
Fluorescein angiography with TRC-NW8F/TRC-NW8F plus allows for much easier photographic sessions. With the lower flash levels used, patients will find the experience much more comfortable and as a consequence the operators are able to concentrate on getting the images they need. |
Imaging system
 |
Always high contrast images available
Using the TRC-NW8F/TRC-NW8F plus always provides the operator with the option to use high contrast or a sharpening tool* in order to aid diagnosis. *Incorporated into Topcon optional IMAGEnet® Software |
 |
Fundus AutoFluorenscence photography
Use of the TRC-NW8F plus allows the operator to capture the AutoFluorescence of Lipofuscin and to show the sub macula area clearly using the built-in FAF filters. These filters have been specifically designed to avoid absorption of xanthophy. It is very useful to observe the change of chorioretinal atrophy in age-related macular degeneration. Spaide FAF filter is produced under the supervision and authorization of Dr. Richard F. Spaide, Vitreous, Retina, Macula Consultants of New York, NY, USA. |
 |
IMAGEnet®
IMAGEnet’s comprehensive patient database management system features efficient dataviewing, storage, analysis and flexible networking solutions. With its unique utilities, such as auto mosaic and stereo functionality, IMAGEnet® software streamlines exam analysis and enhances communication with the patient. Simple and easy IMAGEnet® software allows you to transfer and save retinal images with intuitive handling. Timer, R/L eye detection, angle and patient data will also be transferred with the image. |
 |
Auto mosaic optional software
A panoramic view of the retina is seamlessly stitched together using Auto Mosaic software. By using a special algorithm to detect vessel edges, the fields that are taken randomly are automatically arranged in their correct positions without user intervention. |
Technical Specifications
| Manufacturer | Topcon |
| Model | TRC NW8 |
| Field of View | 45° |
| Imaging Type | Non-mydriatic color fundus photography |
| Mydriasis Required | No (non-mydriatic for most patients) |
| Operating System | Windows 10 (included) |
| FA Capable | No (color fundus only) |
| Condition | Refurbished |
| Warranty | Warranty |
