Description
CLARUS 700 from ZEISS HD
Ultra-Widefield Fundus Imaging with Fluorescein Angiography
Expanding insights with ultra-wide imaging.
Unsurpassed image quality with fluorescein angiography.

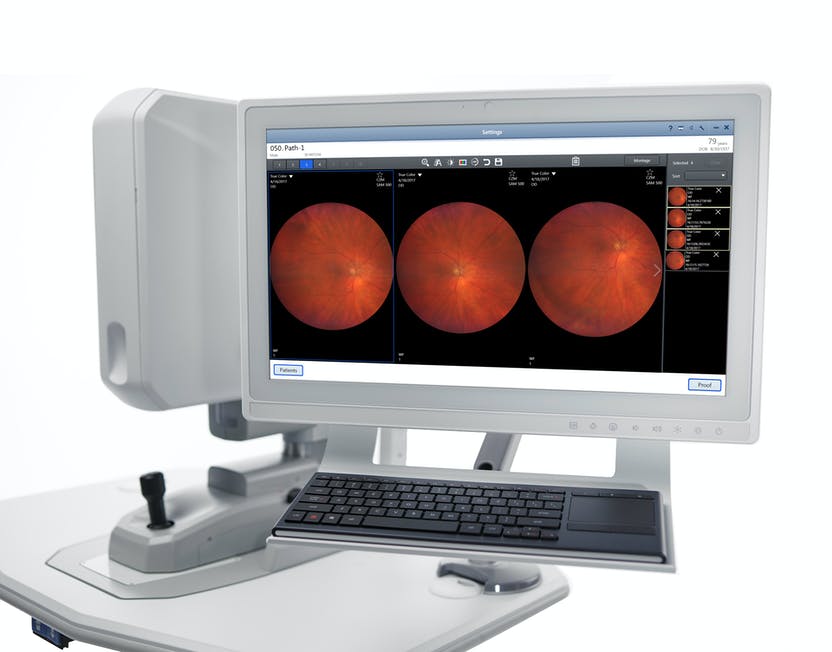

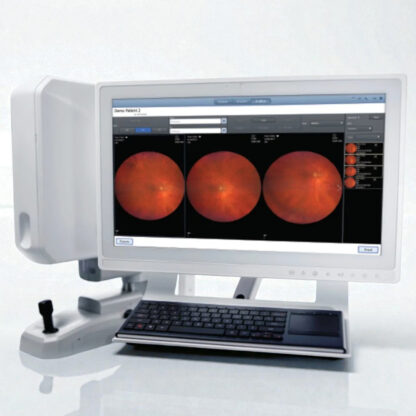

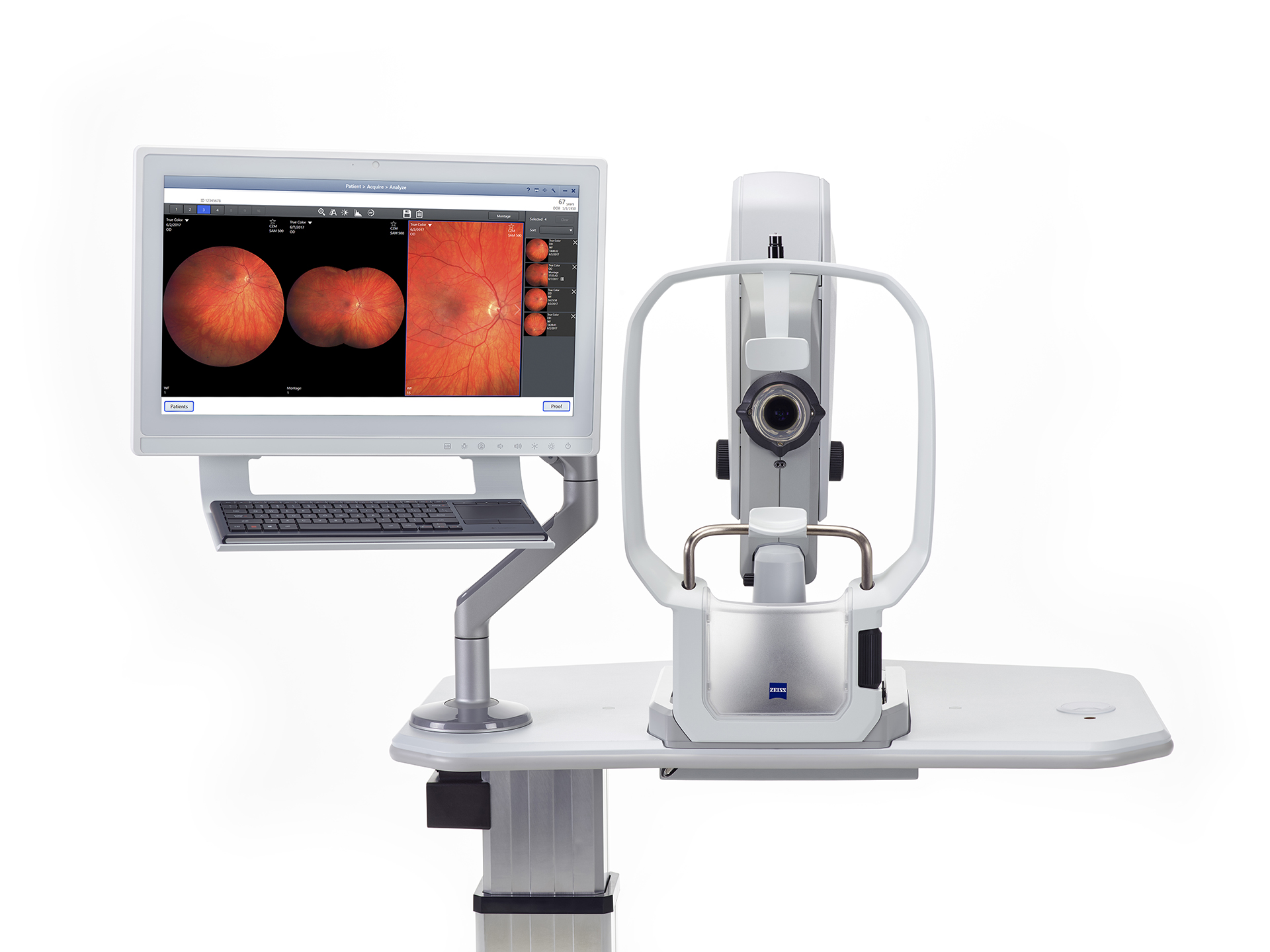

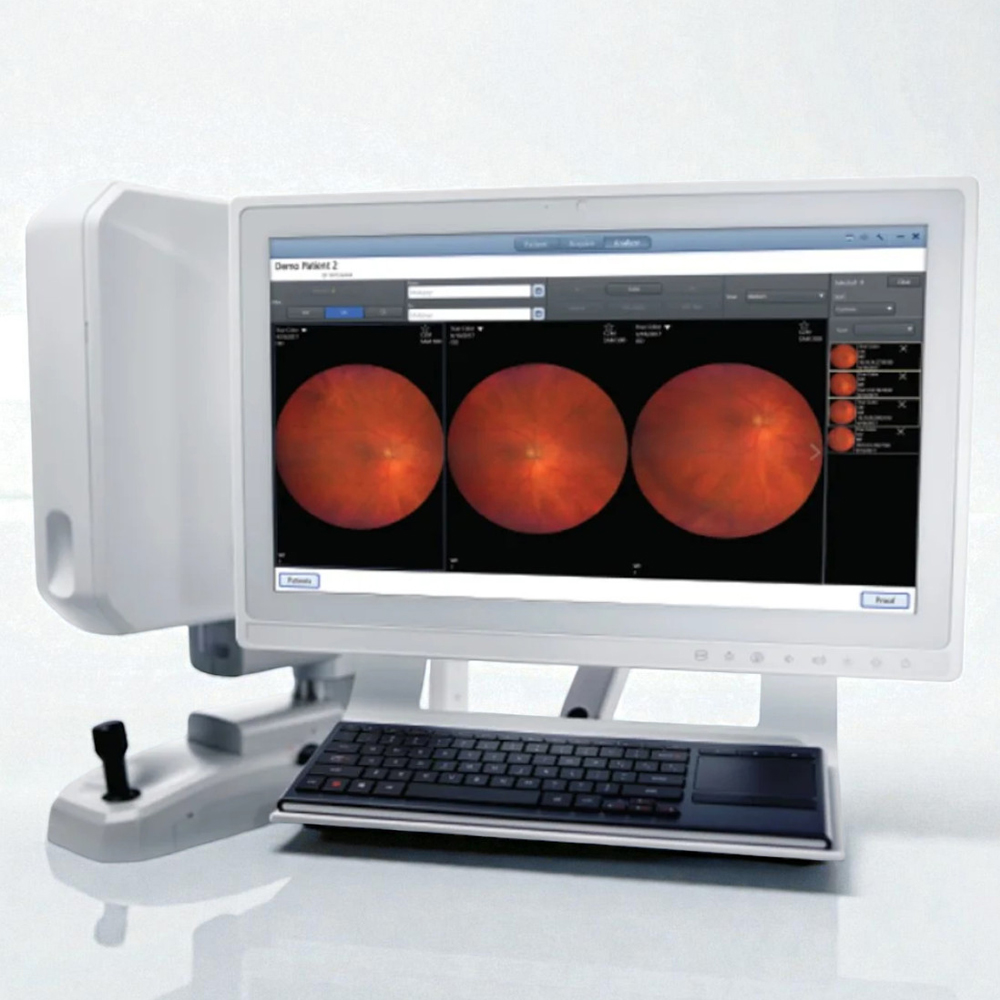

CLARUS® 700 from ZEISS allows you to capture clear and accurate images from the macula to the far periphery, all with a single instrument that combines:
• Ultra-wide field of view
• True Color imaging from broad spectrum LED scans • Exceptional resolution
• Fluorescein Angiography (FA)
• Advanced imaging features
Now, ultra-wide fundus imaging with True Color and unmatched clarity.
In one complete system.
|
True Color Imaging |
A Comprehensive Imaging System |
|
Powered by Broad Line Technology, the ZEISS CLARUS 700 captures images that closely resemble the coloration of the fundus as seen during clinical examination.
|
Now you can manage all fundus imaging modalities without compromising on clarity—viewing high resolution in ultra-widefield. • Image from the superior and inferior retina with less peripheral distortion • Capture clear detail of vessel structure from early to late phase of fluorescein angiography • AutoBright control automatically optimizes the angiogram series preserving change in signal Combining ultra-widefield imaging with True Color, excellent clarity and a full suite of imaging modalities, ZEISS CLARUS 700 empowers you with features and capabilities that maximize workflow efficiency. • Quickly and easily compare images over time and between image capture modes • Provide a comfortable patient experience that ensures image integrity, with ergonomic chin and head rests to swivel motion and live IR preview |
Complete suite of imaging modalities
Integrated Diagnostic Imaging platform from ZEISS. See the whole picture.
Key to meeting current challenges in eye care is the ability to capture, integrate and transform high-quality data into meaningful analyses that enhance practice workflow and improve patient care.
The ZEISS Integrated Diagnostic Imaging combines exam data from gold-standard devices like CLARUS ultra-widefield fundus imaging and CIRRUSTM HD-OCT from ZEISS and presents critical information from multiple sources into a single integrated point-of-view for more efficient and insightful treatment decisions.
Advanced features to help you capture your best images.
PrecisionFocus
Quickly see the details in regions of interest by selecting where to optimize focus, without losing the macula focal point.
AutoBright
Spend time analyzing images rather than adjusting them. ZEISS CLARUS 700 automatically optimizes the brightness of the image sequence throughout the angiogram, while still preserving the change in signal. And with the extremely large dynamic range, you’ll never be at risk of saturating the image.

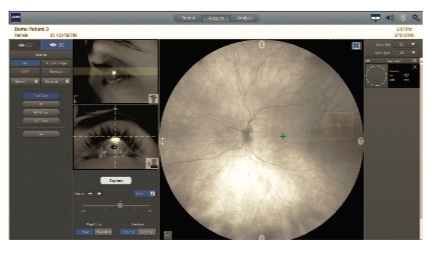

GazePointFind the patient’s gaze angle quickly and accurately. CLARUS 700 uses AI to automatically find the optic nerve head and accurately derive the patient’s gaze rather than relying on internal fixation. |
 |
Specifications for Zeiss Clarus 700
| Field of View(measured from the center of the eye) | 133º Widefield (one image) 200º Ultra-widefield (two images) up to 267º Montage (up to six images) |
| Resolution | 7.3 μm |
| Pupil Diameter | 2.5 mm (minimum) |
| Working Distance | 25 mm (patient’s eye – front lens) |
| Light Sources | Red LED, 585–640 nm Green LED, 500–585 nm Blue LED, 435–500 nm Infrared laser diode, 785 nm |
| Automatic Operations | Auto-focus Auto-gain AutoMontage Auto-laterality |
| Acquisition Speed | Live IR Preview, 10 frames/second Image Capture, ≤ 0.2 seconds |
| Compensation for ametropia | – 24 D to + 20 D continuous |
| Imaging Modes | True Color (with Red, Green and Blue channel separation) Autofluorescence-Gree Autofluorescence-Blue Infrared reflectance External eye image (ocular surface) Stereo |
